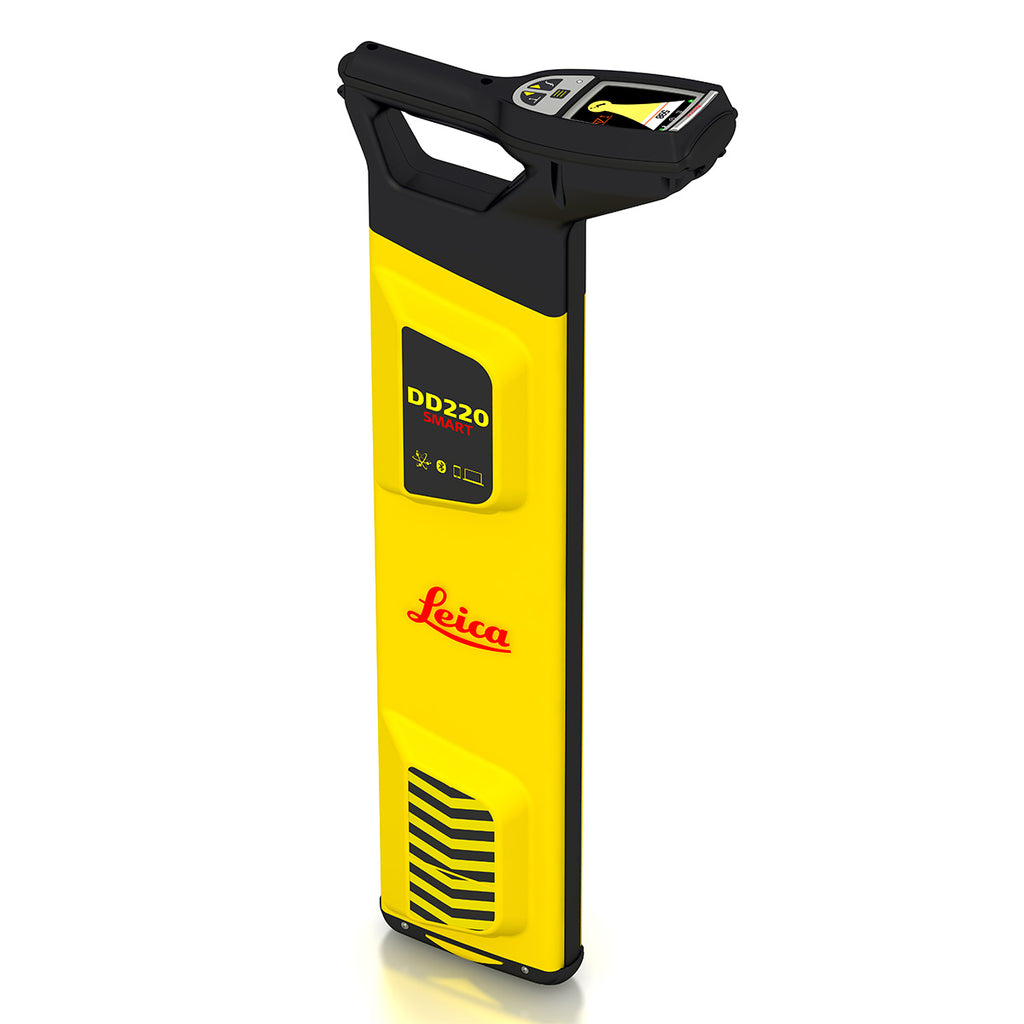

Leica DD220 Smart Utility Locator



  • Protect your assets and your workers

    The new Leica DD220 is an easy to use, intuitive locator simplifying the detection of buried utilities and increasing user confidence.

    With automated pinpointing technology and a clear visible display, the DD220 discovers buried utilities with confidence, even in densely packed areas. On-board video support, usage alerts and diagnostics, combine to improve product use and, protect operators and utilities.

    • SMART Technology; GPS, Bluetooth®, 8GB internal memory
    • Power, Radio, Auto modes
    • Transmitter modes, 131kHz, 33kHz, 8kHz or Auto (automatic detection of the transmitter signal)
    • Depth detection up to 7 meters (23 feet)
    • Good-to-Go™ Health Check and Start up test
    • On-board video user guides
    • IP66 rating - protection from dust and water
    • Web Calibration Verification
    • 3 year Warranty

    LGS DXLeica DD SMART utility locator solution

    For professionals looking to streamline utility locating operations, the Leica DD SMART utility locators create a single source solution. DX Shield software provides a space for utility analysis and a convenient connection between SMART locators to increase productivity and save time.

    DX Shield software allows you to gain a better understanding of task performance and site complexities with easy-to-use reports that provide a fast and convenient overview of product use, reducing utility strikes and saving direct repair costs and project downtime.

  • MODE DD220 SMART DD230 SMART
    Power 50 / 60 Hz mains electrical and harmonics 50 / 60 Hz mains electrical and harmonics
    Radio 15kHz to 60kHz 15kHz to 60kHz
    Auto Power, Radio, 33kHz Power, Radio, 33kHz
    Transmitter Modes 131.072 (131) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    131.072 (131) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    512 Hz
    640 Hz
    Depth Range Line 0.1m to 5m
    Line 4 inches to 16.4 feet
    Sonde 0.1m to 7m
    Sonde 4 inches to 23 feet
    Line 0.1m to 7m
    4 inches to 23 feet
    Sonde 0.1 to 10m
    Sonde 4 inches to 32.8 feet
    Depth Accuracy* 5% 5%
    Bluetooth Class 2 BLE dual mode module
    Bluetooth Classic 2.1
    Bluetooth 4.0 (LE)
    Class 2 BLE dual mode module
    Bluetooth Classic 2.1
    Bluetooth 4.0 (LE)
    GPS** Chipset (1): u-blox®GPS
    Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
    Accuracy (2): Horizontal Position 2.5 m
    Autonomous, 2.0 m SBAS,CEP
    Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
    Chipset (1): u-blox®GPS
    Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
    Accuracy (2): Horizontal Position 2.5 m
    Autonomous, 2.0 m SBAS,CEP
    Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
    Memory Capacity 8 GB internal memory 8 GB internal memory
    Environmental Standard IP66 IP66
    Operating Temperature -20 °C to +50 °C
    -4 °F to +122°F
    -20 °C to +50 °C
    -4 °F to +122°F
    Battery 7.4V Rechargeable Li – Ion 7.4V Rechargeable Li – Ion
    Battery operating time *** 15 h 15 h
    Dimensions (HxWxD) 765x290 x93mm
    30.12 x11.42x3.66 inches
    765x290 x93mm
    30.12 x11.42x3.66 inches
    *Depth to an undistorted signal
    ** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.
    (2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
    *** Constant use at 20°C/68°F
  • Downloads - Leica DD Cable Locators

    Leica DD Smart Brochure
