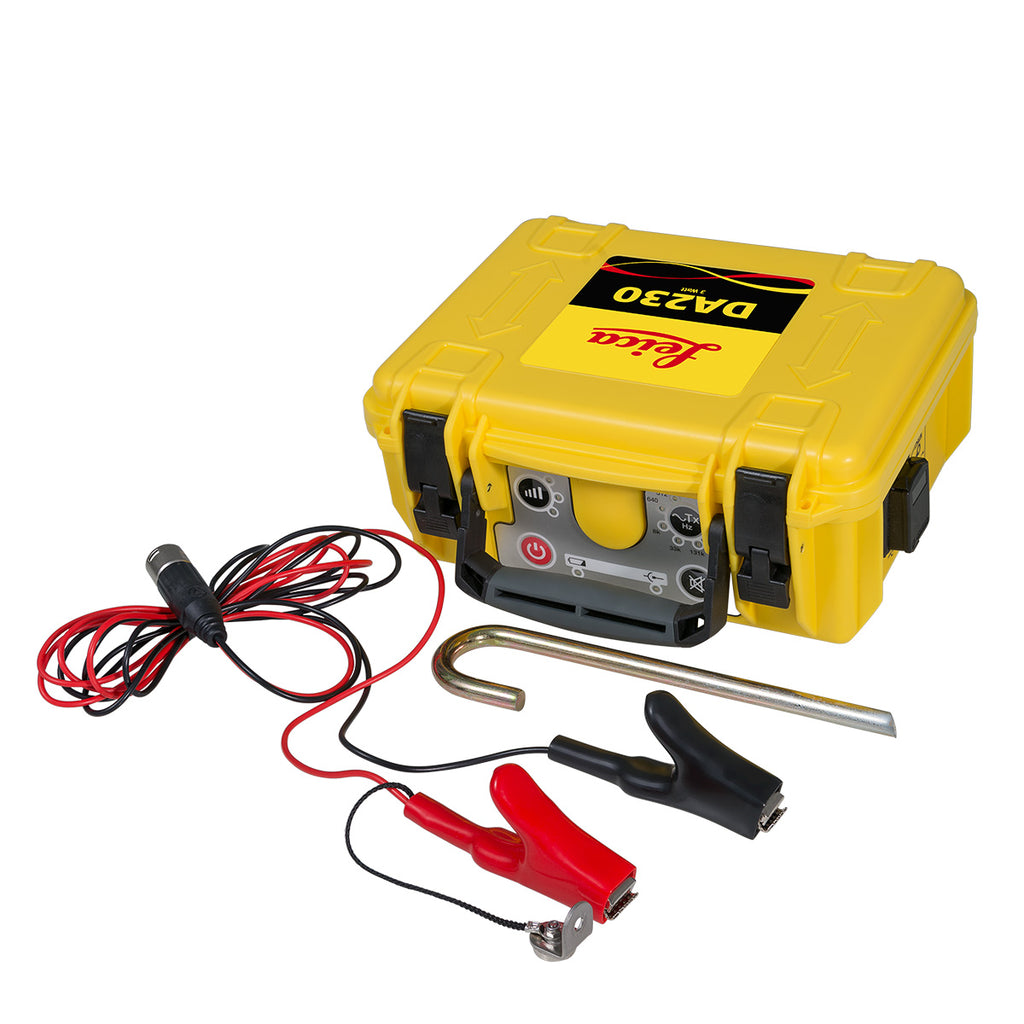

Leica DA230 3-Watt Signal Transmitter


Price:
£855 exc. VAT

Description

The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter. The DA signal transmitters are compact, robust and easy-to-use. The have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace or locate buried cables and pipes.

  • To improve the detection success.
  • To trace the route of a utility.
  • To make a depth or current measurement.
MODE DD220 SMART DD230 SMART
Power 50 / 60 Hz mains electrical and harmonics 50 / 60 Hz mains electrical and harmonics
Radio 15kHz to 60kHz 15kHz to 60kHz
Auto Power, Radio, 33kHz Power, Radio, 33kHz
Transmitter Modes 131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz
640 Hz
Depth Range Line 0.1m to 5m
Line 4 inches to 16.4 feet
Sonde 0.1m to 7m
Sonde 4 inches to 23 feet
Line 0.1m to 7m
4 inches to 23 feet
Sonde 0.1 to 10m
Sonde 4 inches to 32.8 feet
Depth Accuracy* 5% 5%
Bluetooth Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)
Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)
GPS** Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
Memory Capacity 8 GB internal memory 8 GB internal memory
Environmental Standard IP66 IP66
Operating Temperature -20 °C to +50 °C
-4 °F to +122°F
-20 °C to +50 °C
-4 °F to +122°F
Battery 7.4V Rechargeable Li – Ion 7.4V Rechargeable Li – Ion
Battery operating time *** 15 h 15 h
Dimensions (HxWxD) 765x290 x93mm
30.12 x11.42x3.66 inches
765x290 x93mm
30.12 x11.42x3.66 inches
*Depth to an undistorted signal
** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.
(2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
*** Constant use at 20°C/68°F
