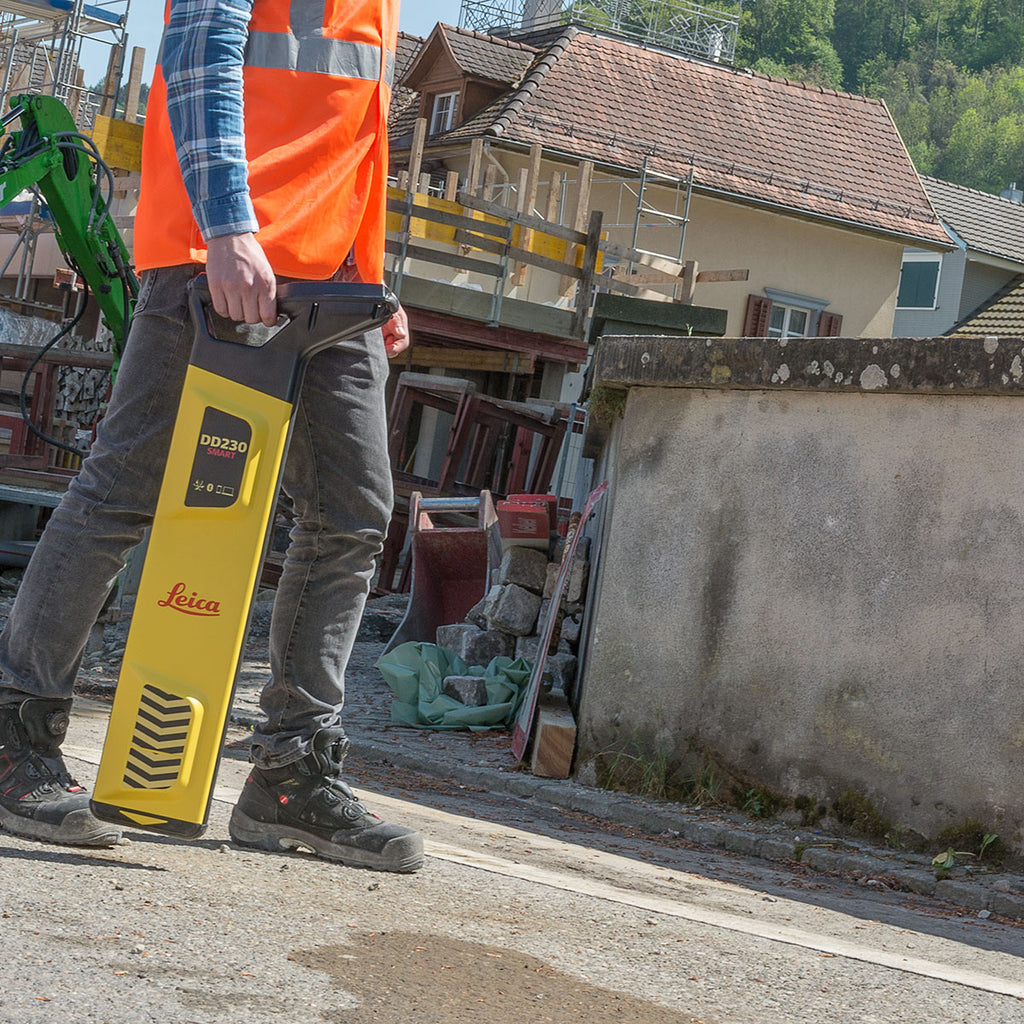

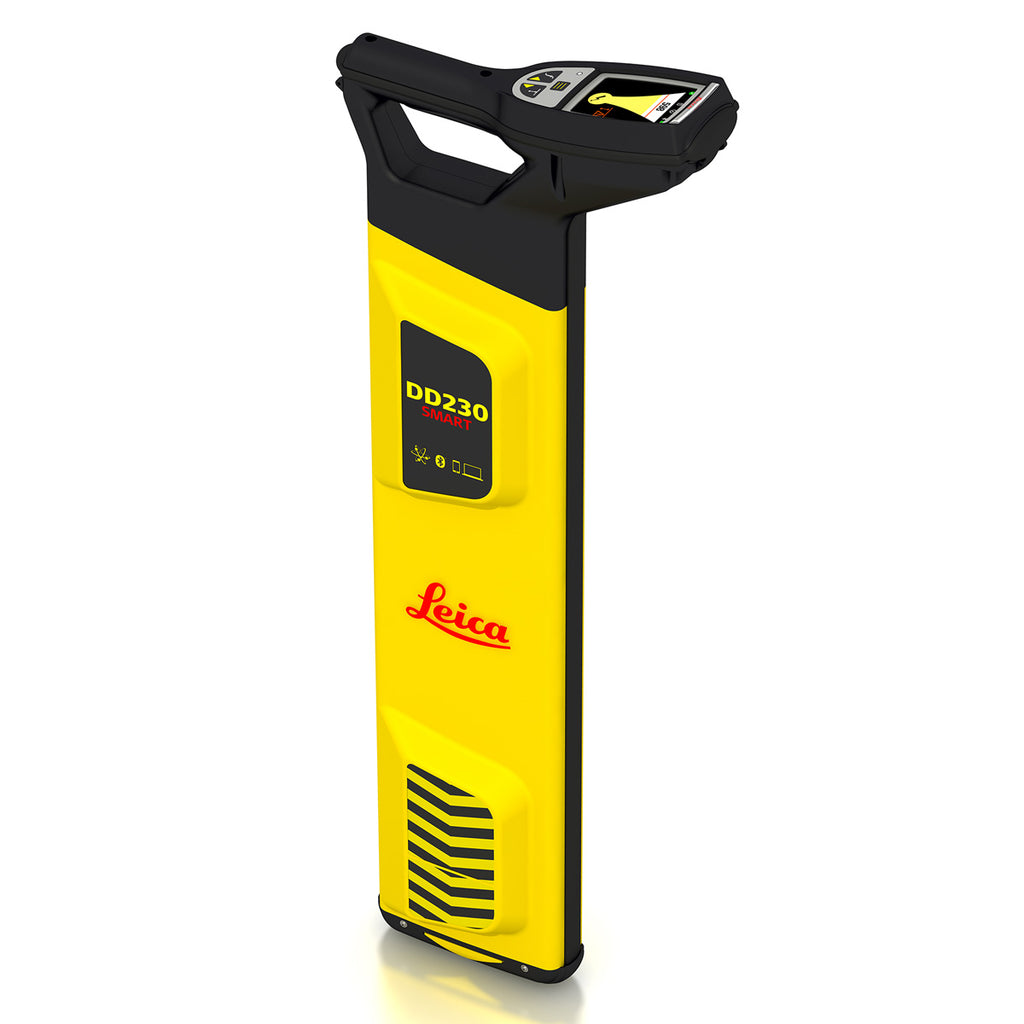

Leica DD230 Smart Utility Locator


Price:
£1,085 exc. VAT

Description

Smart utility location

The new Leica DD230 combines enhanced trace capabilities, producing greater detection accuracy and increased distance tracing with an intuitive, user-friendly package. With added confidence, you can locate and trace deeper and further than ever before.

With an innovative antenna design, large colour screen and advanced digital signal processing, the DD230 provides reliable performance through easy operation, detecting the smallest signals in the most congested areas.

To locate buried utilities deeper and further than before, with greater user confidence, use the Leica DD230.


  • SMART Technology; GPS, Bluetooth®, 8GB internal memory
  • Power, Radio, Auto modes
  • Transmitter modes, 131kHz, 33kHz, 8kHz or Auto (automatic detection of the transmitter signal)
  • Depth detection up to 7 meters (23 feet)
  • Good-to-Go™ Health Check and Start up test
  • On-board video user guides
  • IP66 rating - protection from dust and water
  • Web Calibration Verification
  • 3 year Warranty

LGS DXLeica DD SMART utility locator solution

For professionals looking to streamline utility locating operations, the Leica DD SMART utility locators create a single source solution. DX Shield software provides a space for utility analysis and a convenient connection between SMART locators to increase productivity and save time.

DX Shield software allows you to gain a better understanding of task performance and site complexities with easy-to-use reports that provide a fast and convenient overview of product use, reducing utility strikes and saving direct repair costs and project downtime.

MODE DD220 SMART DD230 SMART
Power 50 / 60 Hz mains electrical and harmonics 50 / 60 Hz mains electrical and harmonics
Radio 15kHz to 60kHz 15kHz to 60kHz
Auto Power, Radio, 33kHz Power, Radio, 33kHz
Transmitter Modes 131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz
640 Hz
Depth Range Line 0.1m to 5m
Line 4 inches to 16.4 feet
Sonde 0.1m to 7m
Sonde 4 inches to 23 feet
Line 0.1m to 7m
4 inches to 23 feet
Sonde 0.1 to 10m
Sonde 4 inches to 32.8 feet
Depth Accuracy* 5% 5%
Bluetooth Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)
Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)
GPS** Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
Memory Capacity 8 GB internal memory 8 GB internal memory
Environmental Standard IP66 IP66
Operating Temperature -20 °C to +50 °C
-4 °F to +122°F
-20 °C to +50 °C
-4 °F to +122°F
Battery 7.4V Rechargeable Li – Ion 7.4V Rechargeable Li – Ion
Battery operating time *** 15 h 15 h
Dimensions (HxWxD) 765x290 x93mm
30.12 x11.42x3.66 inches
765x290 x93mm
30.12 x11.42x3.66 inches
*Depth to an undistorted signal
** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.
(2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
*** Constant use at 20°C/68°F
Downloads - Leica DD Cable Locators

Leica DD Smart Brochure
