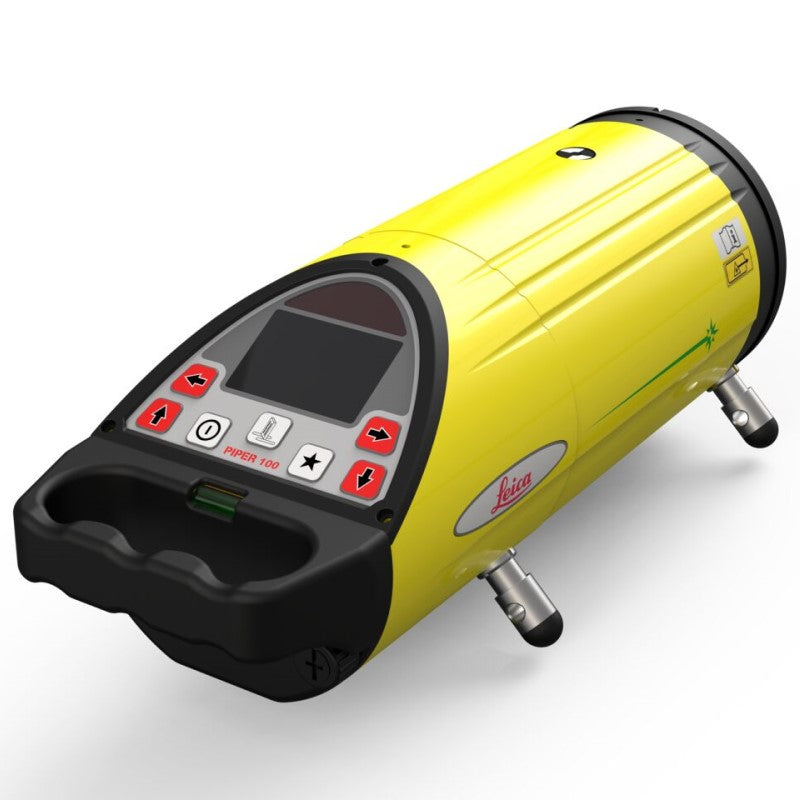

Leica Piper 100G Pipe Laser

£3,430 exc. VAT


The Piper Green series offers you four times better visibility of the laser providing you higher levelling accuracy. This allows you to work at longer distances from the instrument position even in sunny conditions.

Often used in water and sewage the green series improves the usability also in those use cases.

Solid performance in the pipe, over the top or in the manhole. The Leica Piper series helps you to work with confidence having the perfect instrument for your application and need.

Built with a rugged aluminium housing, these pipe lasers perform powerfully even in tough jobsite conditions.


  • Compact and Powerful - The pipe laser that fits inside a 100mm/4 in pipe
  • Automatic Grade Compensation - With the housing rolled up to ± 3°, the Piper will compensate and correct for the grade errors.
  • Heavy Duty Trivet - With easy grip handle, heavy base and clear markings on the pole to adjust and set the height.

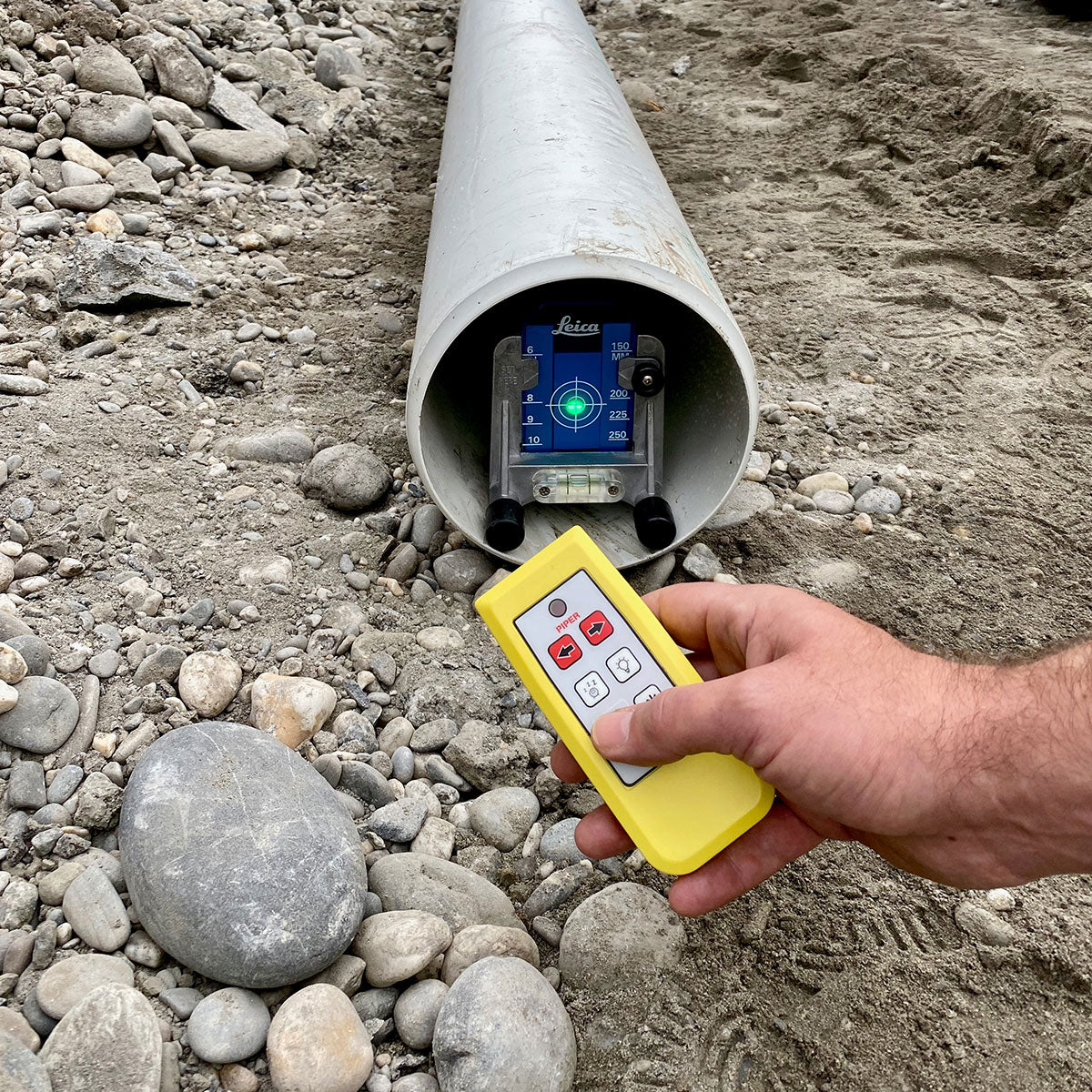

  • Multi-function remote - Works up to 150m (500 ft) for line control and other features.
  • Green beam - Four times better visibility of the laser for longer measurement distance and higher levelling accuracy.

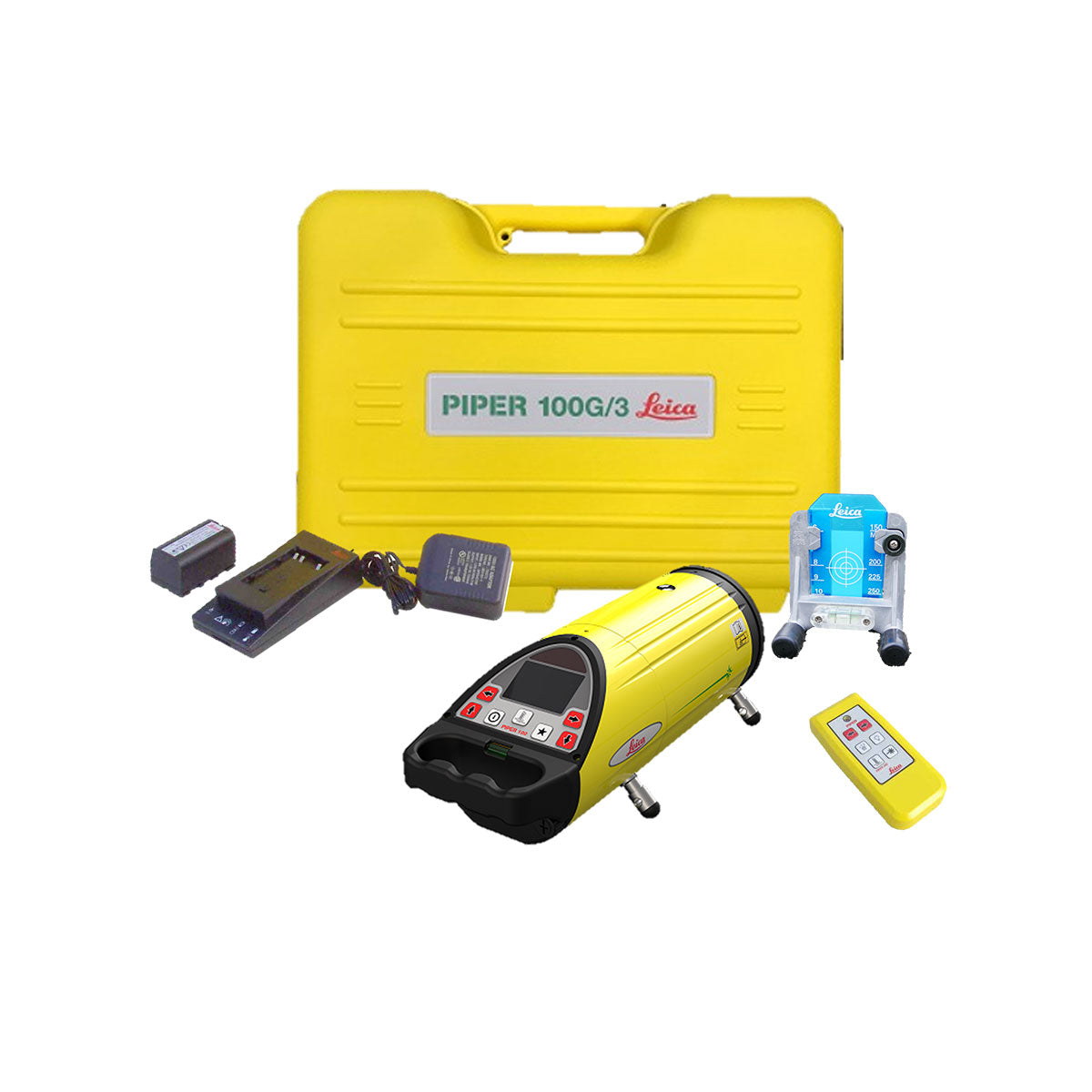

    Box Contents

    Package includes:

    • Leica Piper 100G
    • Remote Control
    • Target Assembly
    • Li-ion Battery
    • Charger with AC & Auto Adapter
    • Carrying Case
    • User Manual

    However, you do have the option to add whichever accessories you might need including battery, charger, remote control, target assembly, mount assembly and bracket.


    Features Piper 100
    Piper 100G
    Laser beam colour Red Green
    Wave length 635nm 520nm
    Laser class 3R 3R
    Max. average radiant power 4.75mW 4.8mW



    Leica Piper Series - Brochure

    Leica Piper Series - Data Sheet
