Single and dual grade laser levels of the highest quality from Leica Geosystems.

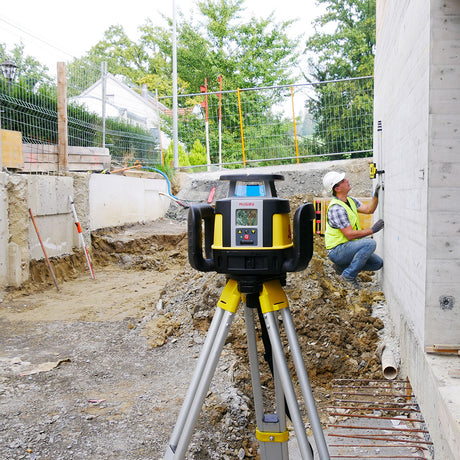

These instruments perform a wide range of tasks including laying out a construction site, collecting height and angle data, aligning concrete forms or complete site preparation and earthworks.
All required accessories available including receivers, staffs and tripods.
The toughest construction lasers on site!
Please call us on 0800 633 5131 to discuss your requirements.
| Technical data | Leica Rugby 670 | Leica Rugby 680 |
|---|---|---|
| Dimensions | 212 × 239 × 192 mm | |
| Weight | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs |
| Functionality | Self-levelling horizontal, dial-in grade in single axis |
Self-levelling horizontal, dial-in grade in dual axis |
| Product type | Semi-auto grade | Semi-auto grade |
| Laser class | Class 2 | |
| Laser type | 635 nm (visible) | |
| Plumb up | - | - |
| Measured at 20°C (horizontal / vertical) |
± 1.5 mm at 30 m (1/16" at 100 ft) | |
| Grade range | ± 8% SG | ± 8% DG |
| Smart Slope | Yes | Yes |
| Rotation – RPS | 10 | 10 |
| Scanning – degrees | - | - |
| Scan90 | - | - |
| Beam down | - | - |
| Sleep mode | - | - |
| Range (diameter) – Basic | 600 m (2.000 ft) | 600 m (2.000 ft) |
| Range (diameter) – RE140/160 | 800 m (2.600 ft) | 800 m (2.600 ft) |
| RF remote control (diameter) | - | - |
| Li-Ion batt. / hours operation | 40+ | 40+ |
| Alkaline batt. / hours operation | 60+ | 60+ |
| Working temperature range | –10 to +50 °C (14 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
| Storage temperature range | –40 to +70 °C (–40 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
| Seal (both excluding and including battery pack) |
IP67 | IP67 |
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage) | |
| Technical data | Leica Rugby 870 | Leica Rugby 880 |
|---|---|---|
| Self-levelling | Horizontal | Horizontal / Vertical |
| Grade capability | ± 15% | ± 15% in either axis ± 10% and ± 3% in both axes |
| Self-leveling accuracy | ± 1.5mm at 30m | ± 1.5mm at 30m |
| Operating range (diameter) | 1100m | 1100m |
| Remote range (radius) | 600m | 600m |
| Self-levelling range | ± 6° | ± 6° |
| Rotation speed | 5, 10 rps | 5, 10 rps |
| Laser class | Visible / 635 nm, Class 1 | Visible / 635 nm, Class 1 |
| Environmental standard | IP 68 / MIL Standard 810G | IP 68 / MIL Standard 810G |
| Batteries Alkaline/ Li-Ion | 60h / 40h @ 20°C | 60h / 40h @ 20°C |
| Smart Technology | Grade match, monitoring, axis alignment, auto calibration | Grade match, monitoring, axis alignment, auto calibration |
Leica Rugby 260/270/280 Brochure
Leica Rugby 600 Series Brochure
Leica Rugby 670 & 680 Quick Start guide
Leica Rugby 670 & 680 User Manual
Leica Rugby 870/880 Series Brochure
Leica Rugby 870/880 Quick Start guide
Leica Rugby 870/880 User Manual
Our hire services cover the south of England & beyond including:-
If you require quality hire services within these counties then please contact: -
One Point Survey offer a comprehensive range of Survey Equipment and Safety Equipment for hire. We can often offer door-to-door deliver and collection within Berkshire, Cornwall, Devon, Dorset, Hampshire, Somerset, Surrey, Sussex and Wiltshire.
Please call 0800 633 5131 to discuss your hire requirements.
Whether the equipment is second-hand, reconditioned or ex-demo, we can still guarantee high quality equipment with a minimum 3 month warranty as well as a valid 1-year calibration certificate.
