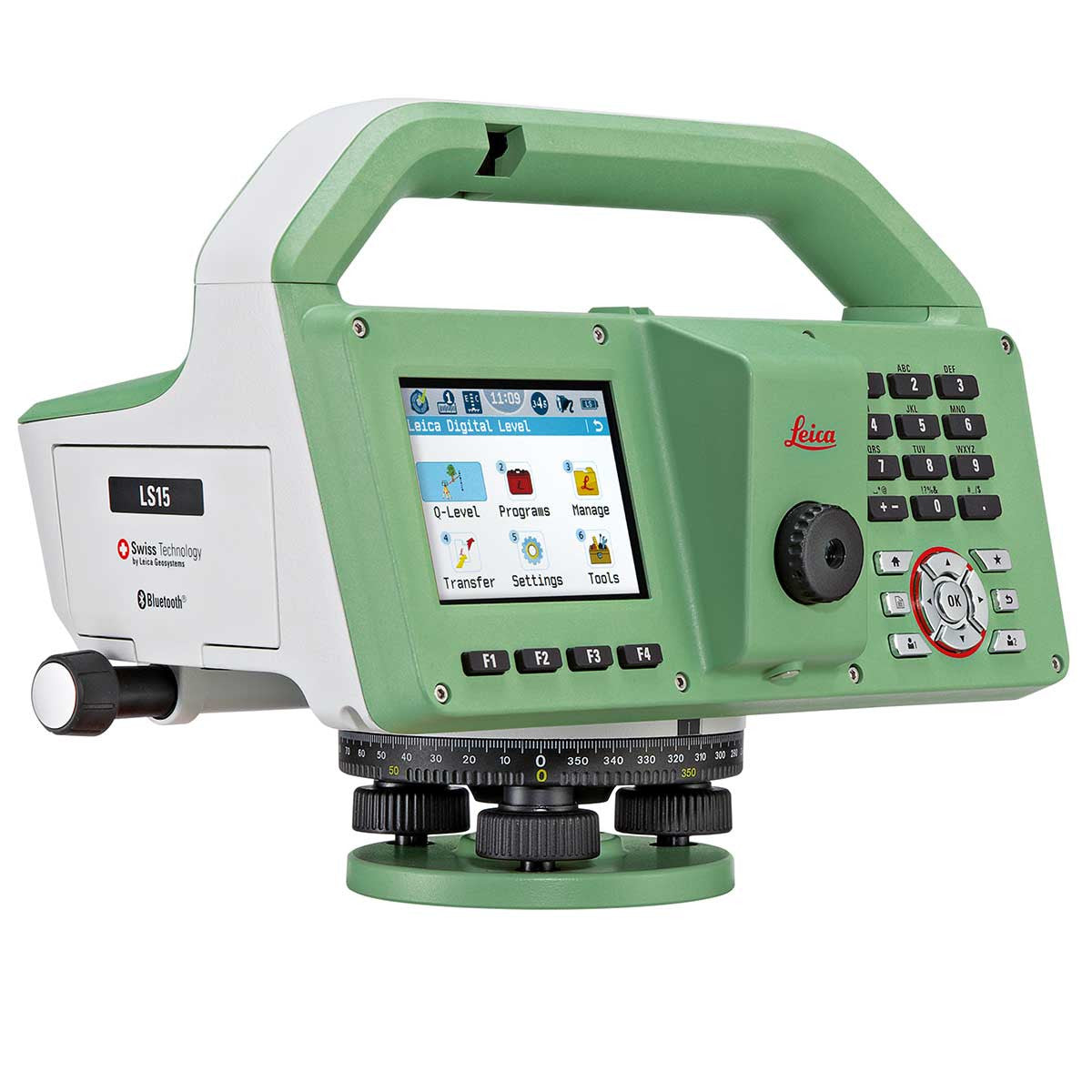

Leica LS15 Digital Level


Price:
£5,475 exc. VAT

Description

The new Leica LS digital levels range replace the popular Leica DNA03 and DNA10 digital levels.

Automated functions and industry-leading 0.2mm and 0.3mm accuracy to standard Invar staffs deliver unmatched reliability.

Precision begins by using the electronic level bubble to set up instruments.

After one button press, automatic tilt checks are made prior to each measurement.

Integrated autofocus not only finds your target faster, it increases measurement accuracy by maximising contrast of the staff.

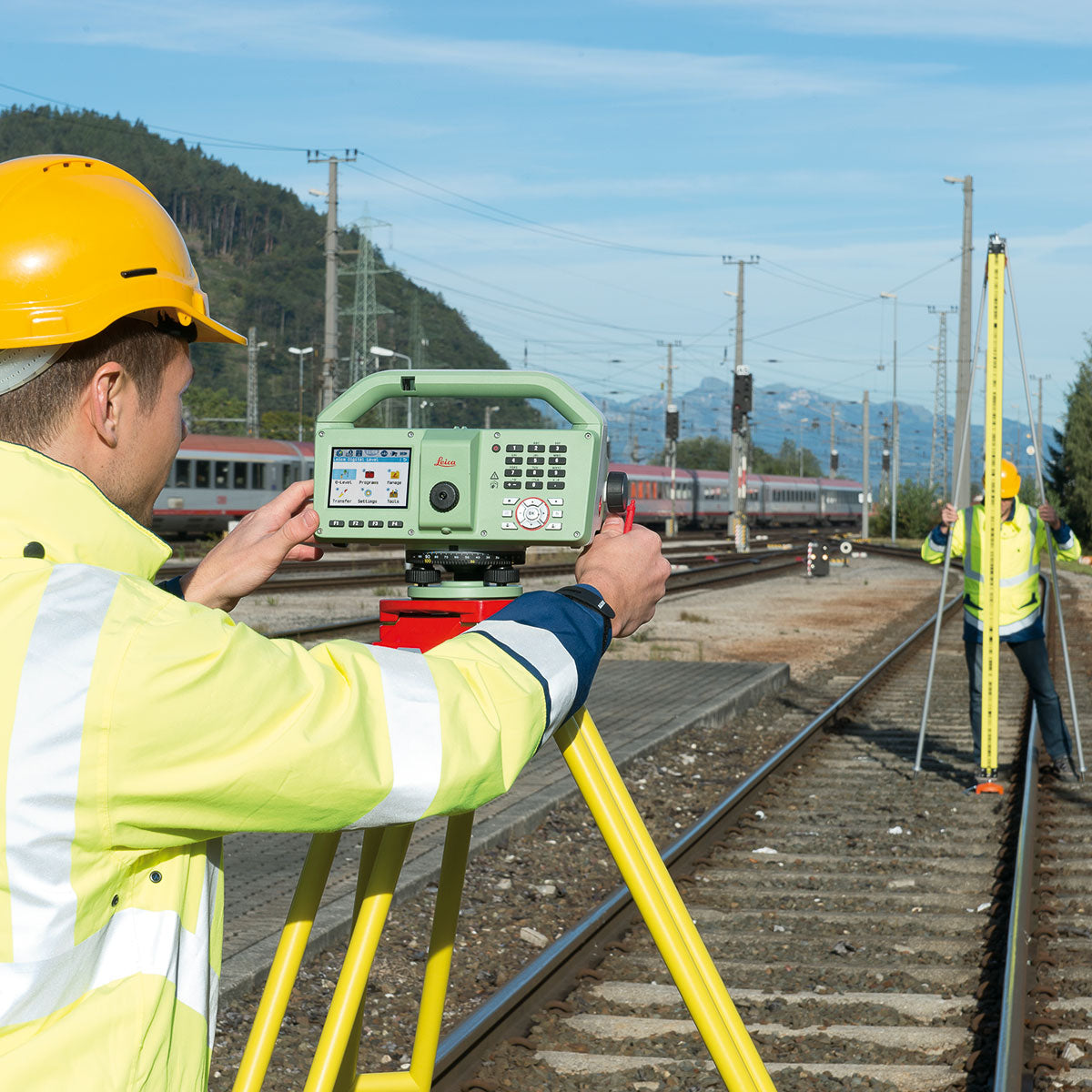

Engineered and manufactured by the industry leader of digital levels, the new Leica LS Digital Levels offer experienced measuring professionals automated comfort and reliable accuracy while measuring any demanding levelling project for roads, railways, bridges or in authoritative first order levelling networks.

For trusted surveyors and measuring professionals, getting a full day's worth of highly precise levelling measurements is not only stressful but an unusually complex and redundant job.

The Leica LS10 and LS15 digital levels give a welcome chance to alleviate demanding levelling tasks. Automated functions and industry-leading 0.2mm amd 0.3mm accuracy allow users to easily demonstrate their measuring skills while effectively completing any project. Just point at your target and with one button press, all steps of levelling will be completed with automated ease.

From autofocus to touchscreen displays with clean layouts, the entire measurement process is made more efficient with LS10 and LS15 digital levels. Common levelling errors, like misreading the staff or transcription mistakes, are worries of the past. Providing the most reliable results from immediately understandable line flows with image-supported colour visuals, these levelling solutions make the professional's daily tasks a more enjoyable experience.

The Leica LS levels offer:

  • Highest accuracy
  • Efficiency of work
  • Field experience
  • Digital camera aiming
  • Autofocus efficiency
  • Quick setup
  • Easy data transfer
  • Use standard invar staff

Users profit from Leica Geosystems’ experience as inventors and industry leaders of digital levels. Honing the digital level into an art form, these solutions collect results faster with the highest accuracy available.

Package includes: -

  • Leica LS10 Digital Level
  • Standard Levelling Applications
  • USB Memory Stick
  • Sunshade
  • Rain Cover
  • Carry Case
  • Quick Guide
  • Calibration Certificate - 1 Year

All accessories also available including: -

  • GEB331 Battery
  • GKL311 Battery Charger
  • GEB371 External Battery
  • GEV223 Cable - USB to PC
  • GST20 Wooden Tripod
  • GTL4M Telescopic Staff 4m Fibreglass
Digital Level Model LS10 LS15
Height Measurement
Distance Measurement
Magnetically Damped Compensator
32x Magnification Telescope
Manual Focus
Autofocus -
Overview Camera for Aiming and Documentation -
Compass -
MapView / Coordinates for Office Export

-

Inview Mechanical Bubble
Electronic Bubble / Tilt Check -
Communication (USB Host, USB Device)
Bluetooth
RS232/USB Lemo Connector Interface -
Internal Flash Memory for 30,000 Measurements
Downloads

Leica LS10 & LS15 Brochure

Leica LS10 & LS15 Equipment List

Leica LS10 & LS15 Datasheet
