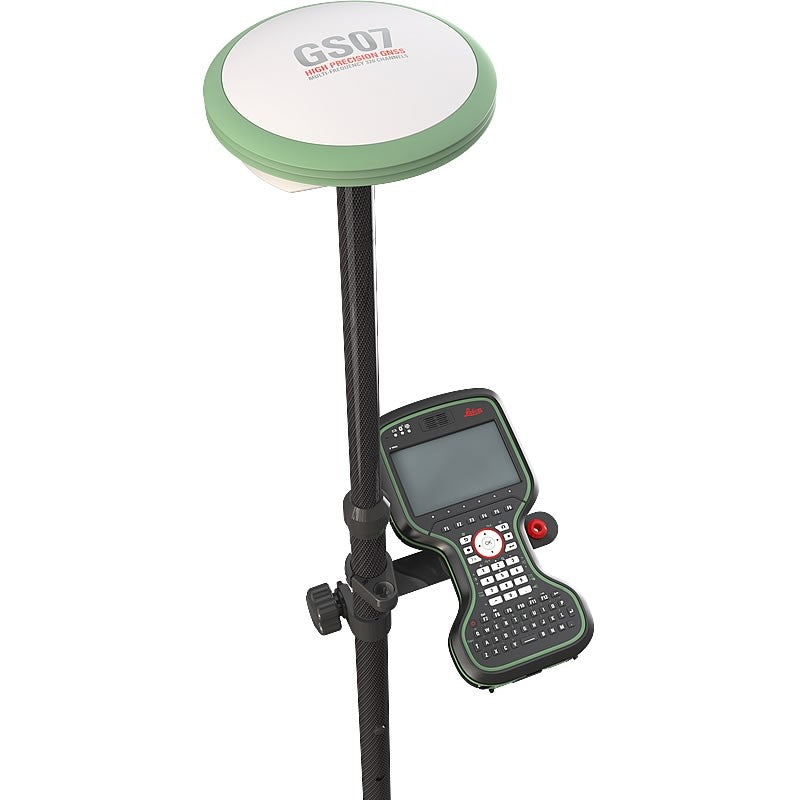

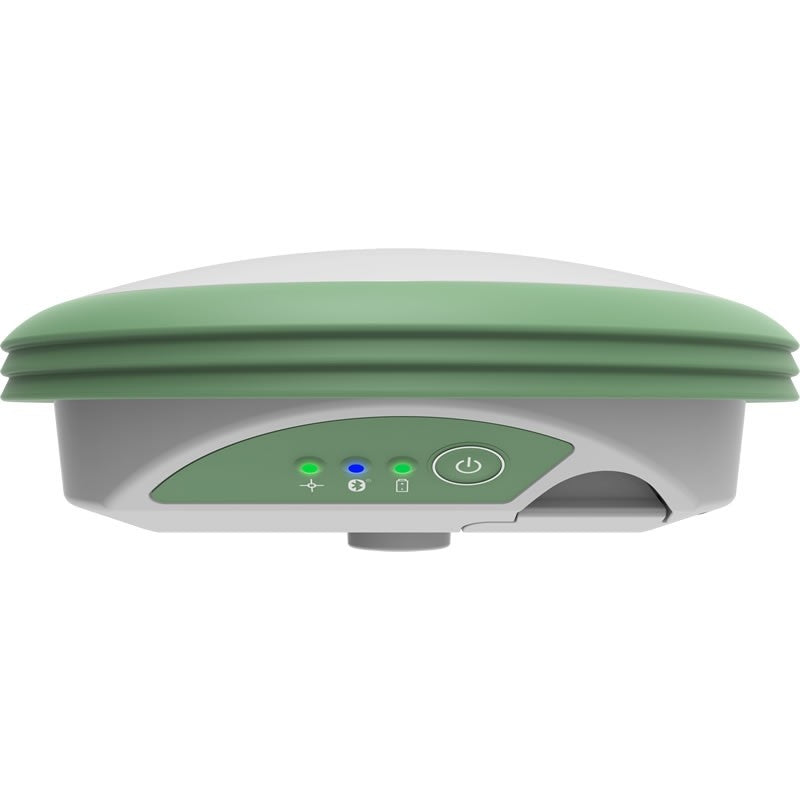

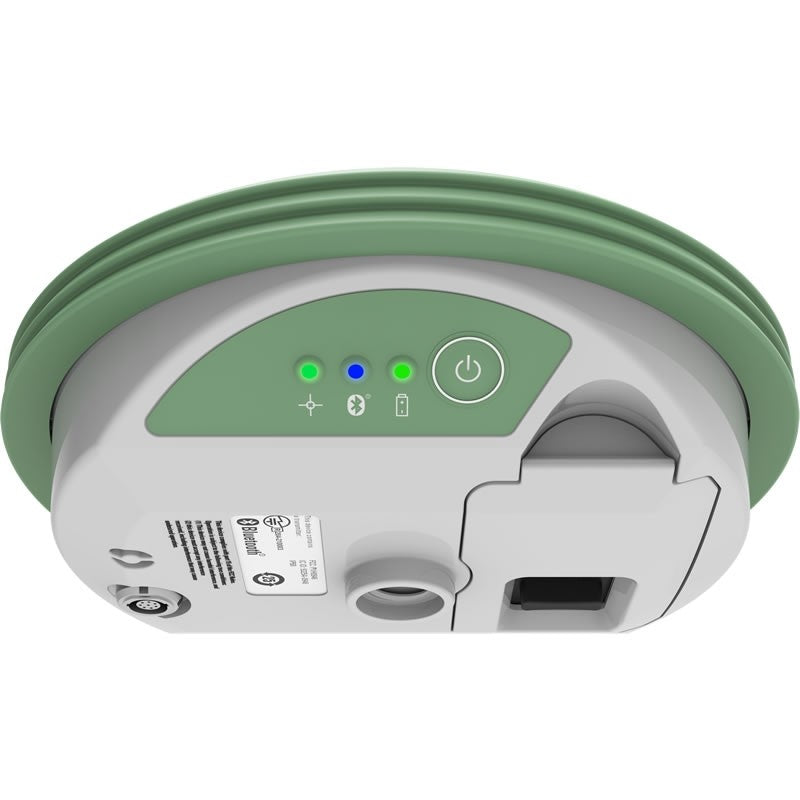

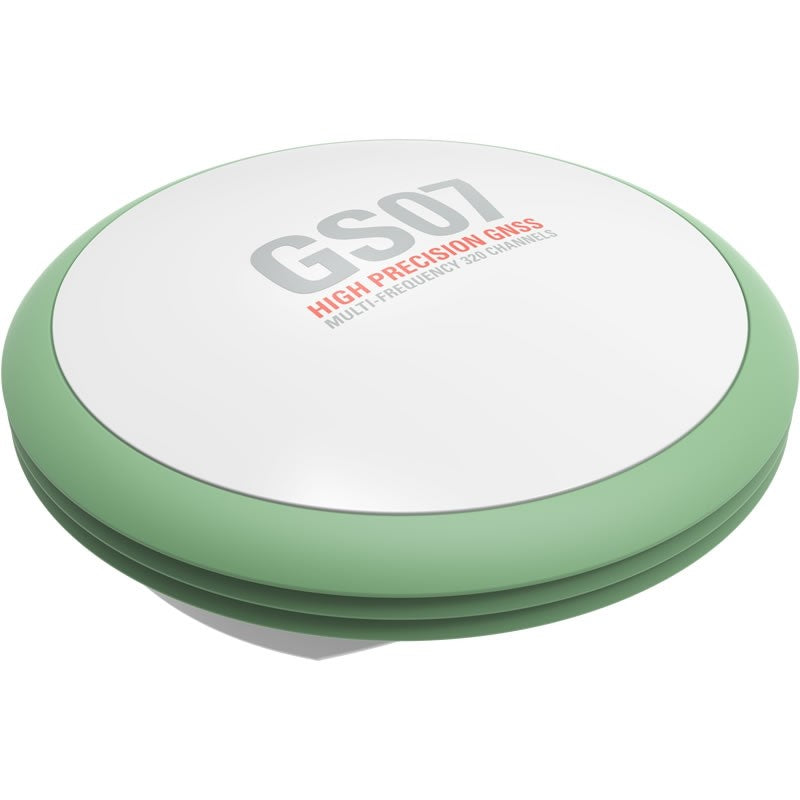

Leica GS07 NetRover

Price on Application


The GS07 is the new mid-range Smart Antenna, light weight but robust. Guaranteeing fast and reliable stake out and data capture, combined in an easy-to-use rover with 320 channels, multi frequency and multi constellation.

It also supports expansion of communication devices such as UHF radios which are fully integrated in the CS20 Field Controller.

The Leica GS07 is accompanied with the revolutionary Captivate Software, turning complex data into the most realistic and workable 3D models. With easy-to-use apps and familiar touch technology, all forms of measured and design data can be viewed in all dimensions.

The GS07 system can be used as either a Network Rover or a Rover in Radio operation, however the CGR4 radio module for the CS20 is needed.

  • Leica RTKplus
  • GPS (L1, L2, L2C, L5), GLONASS (L1, L2, L3), BeiDou, Galileo, QZSS, NaviC L5, SBAS
  • 320 channels
  • RTK Network Accuracy - H: 10mm + 0.5ppm; V: 20mm + 0.5ppm
  • Comes with Viva CS20 field data recorder / controller
  • Full Alphanumeric Keyboard, 5 "Screen, GPRS & UHF Modems
  • Leica Captivate software
  • USB, SD connectors
  • Li-Ion batteries
  • 0.7 kg weight
  • Operating temperature from -40 to +65°C
  • IP66 protection
Number of Channels 320 hardware channels
Time for Installation Typically, 6s
Communication Ports Lemo and Bluetooth
Built-in data links 3.75g GSM / UMTS / CDMA phone modem/ Radio modem
Field Controller Leica CS20
User Interface Buttons and LEDs
Data Recording Removable SD Card 8GB
Weight 0.7kg / 2.7kg standard RTK rover set-up on pole
Dimensions 186mm x 71mm
Temperature -40 to +65°c operating
-40 to +80°c storage
IP Rating IP66

Leica GS07 Datasheet

Leica GS07 GNSS Equipment List
