Description
High performance for all general construction applications.
Working diameter (laser dependent): | 900 m / 2953 ft |
Detection height: | 70 mm / 2.8 in |
Detectable spectrum: | 600 nm to 800 nm |
Detectable accuracies
Fine: | ± 1.0 mm / ± 0.04 in |
Medium: | ± 2.0 mm / ± 0.08 in |
Coarse: | ± 3.0 mm / ± 0.12 in |
Audio volumes: | 105 dBA / 65dBA / Off |
Automatic shut off: | 10 minutes |
Arrow display: | 9 channels |
Environmental: | IP67 |
Batteries: | 50+ hours (2 x 1.5 V "AA" ) |
Dimensions: | 173 x 76 x 29 mm / 6.8 x 3.0 x 1.1 in |
Operating temperature: | -20°C to +50°C / -4°F to +122°F |
LCD Indication | Two, large graphic displays on the front and back of the receiver. |
Level Vial | Ensures good alignment and improves your reading accuracy. |
Audio Indication | Three audio settings. Up to 110 decibels for noisy jobs. |
Grade Rod Bracket | A circular level vial, attaches easily to your grade rod |
Package includes: -

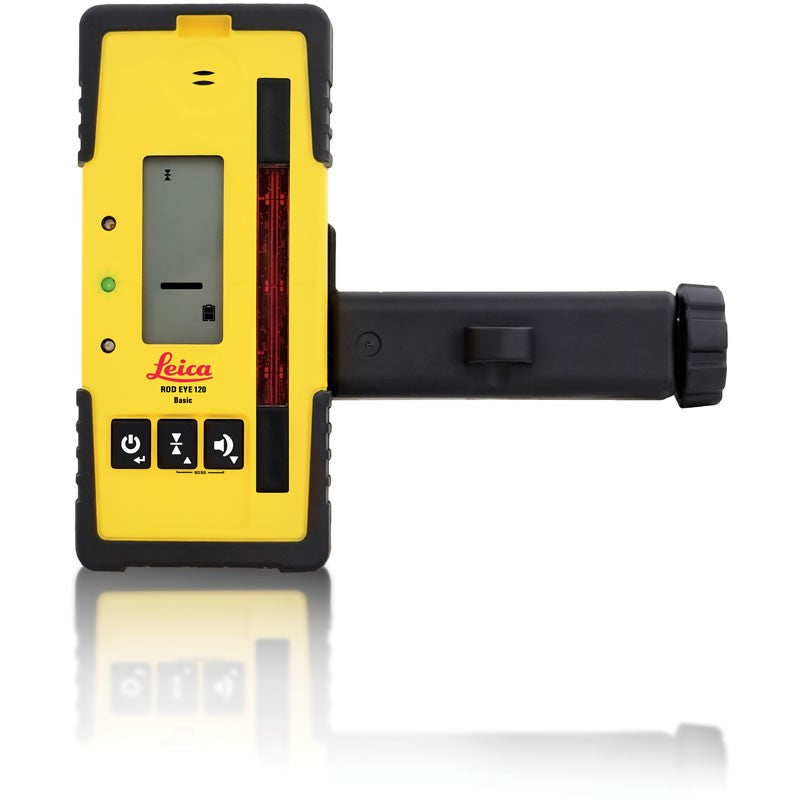

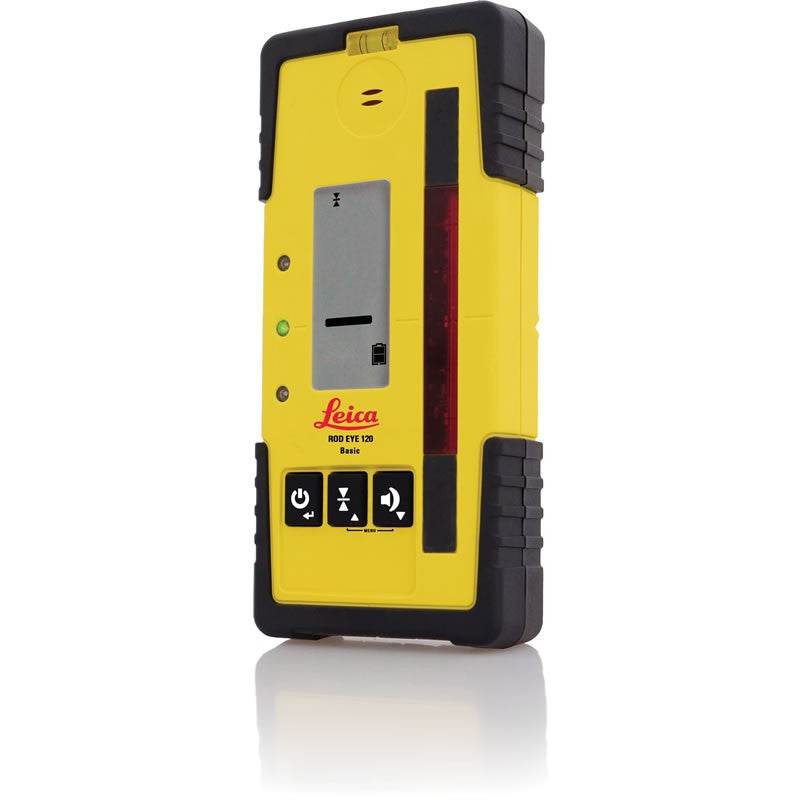

- 1 x Leica Rod Eye 120 Basic Laser Receiver
- 1 x Bracket
|
||||
Technical data |
||||
Working diameter |
600m (2000 ft) | 900m (2953 ft) | 1.350m (4430 ft) | 1.350m (4430 ft) |
Extended detection window |
36mm / 1.4in | 70mm / 2.8in | 120mm / 5in | 120mm / 5in |
Numeric readout height |
- | - | 90 mm / 3.5 in | |
Detectable spectrum |
600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm |
Detection Accuracies |
||||
Very fine |
- | - | ± 0.5 mm / ± 0.02 in | |
Fine |
± 1.0 mm / ± 0.04 in | ± 1.0 mm / ± 0.04 in | ± 1.0 mm / ± 0.04 in | ± 1.0 mm / ± 0.04 in |
Medium |
- | ± 2.0 mm / ± 0.08 in | ± 2.0 mm / ± 0.08 in | ± 2.0 mm / ± 0.08 in |
Coarse |
± 3.0 mm / ± 0.12 in | ± 3.0 mm / ± 0.12 in | ± 3.0 mm / ± 0.12 in | ± 3.0 mm / ± 0.12 in |
Very coarse |
- | - | ± 5.0 mm / ± 0.20 in |
