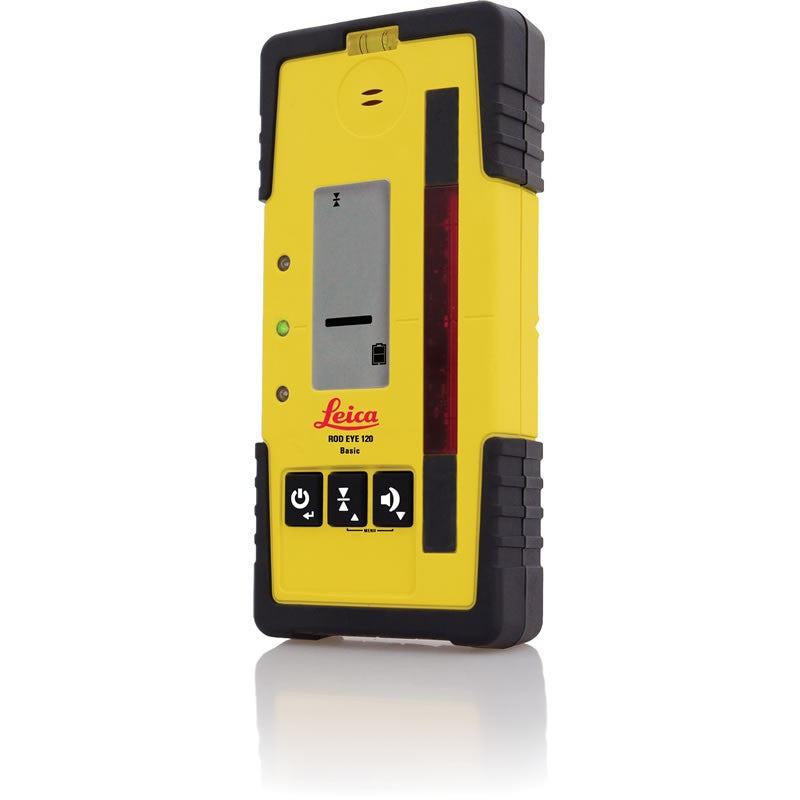

Leica Rod Eye 120 Basic Laser Receiver

  • High performance for all general construction applications.

  • Working diameter (laser dependent): 900 m / 2953 ft
    Detection height: 70 mm / 2.8 in
    Detectable spectrum: 600 nm to 800 nm

    Detectable accuracies

    Fine: ± 1.0 mm / ± 0.04 in
    Medium: ± 2.0 mm / ± 0.08 in
    Coarse: ± 3.0 mm / ± 0.12 in

    Audio volumes: 105 dBA / 65dBA / Off
    Automatic shut off: 10 minutes
    Arrow display: 9 channels
    Environmental: IP67
    Batteries: 50+ hours (2 x 1.5 V "AA" )
    Dimensions: 173 x 76 x 29 mm / 6.8 x 3.0 x 1.1 in
    Operating temperature: -20°C to +50°C / -4°F to +122°F
    LCD Indication Two, large graphic displays on the front and back of the receiver.
    Level Vial Ensures good alignment and improves your reading accuracy.
    Audio Indication Three audio settings. Up to 110 decibels for noisy jobs.

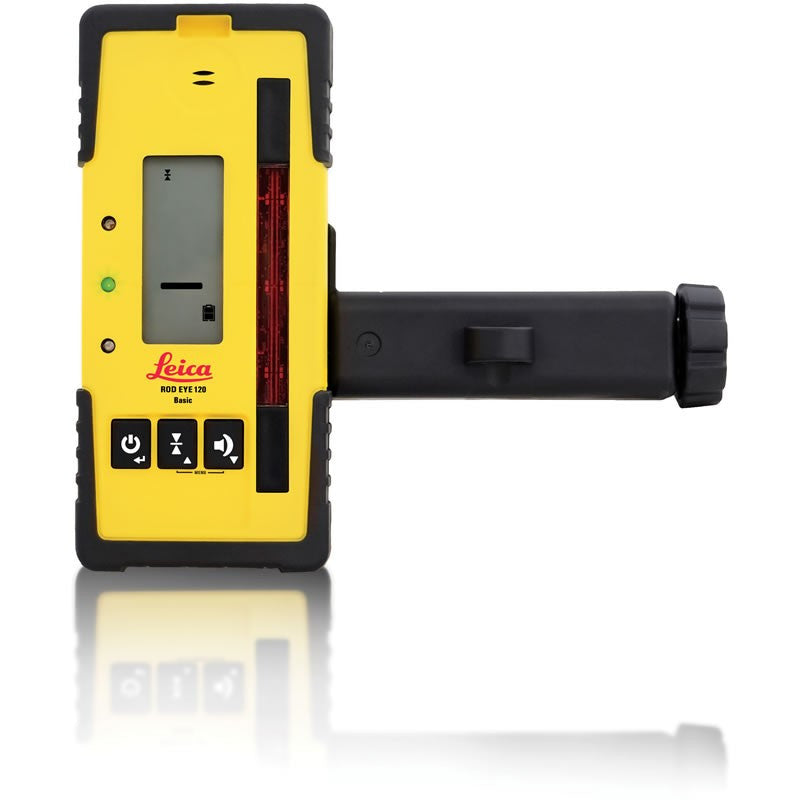

    Grade Rod Bracket A circular level vial, attaches easily to your grade rod

  • Package includes: -

    • 1 x Leica Rod Eye 120 Basic Laser Receiver
    • 1 x Bracket
  •

    Rod Eye Basic

    Rod Eye 120 Basic

    Rod Eye 140 Classic

    Rod Eye 160 Digital

    Technical data

    Working diameter

    600m (2000 ft) 900m (2953 ft) 1.350m (4430 ft) 1.350m (4430 ft)

    Extended detection window

    36mm / 1.4in 70mm / 2.8in 120mm / 5in 120mm / 5in

    Numeric readout height

    - - 90 mm / 3.5 in

    Detectable spectrum

    600 nm to 800 nm 600 nm to 800 nm 600 nm to 800 nm 600 nm to 800 nm

    Detection Accuracies

    Very fine

    - - ± 0.5 mm / ± 0.02 in

    Fine

    ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in

    Medium

    - ± 2.0 mm / ± 0.08 in ± 2.0 mm / ± 0.08 in ± 2.0 mm / ± 0.08 in

    Coarse

    ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in

    Very coarse

    - - ± 5.0 mm / ± 0.20 in
  • Downloads - Leica Rod Eye Receivers

    Leica Rod Eye Family Brochure

    Leica Rod Eye 120 Data Sheet
