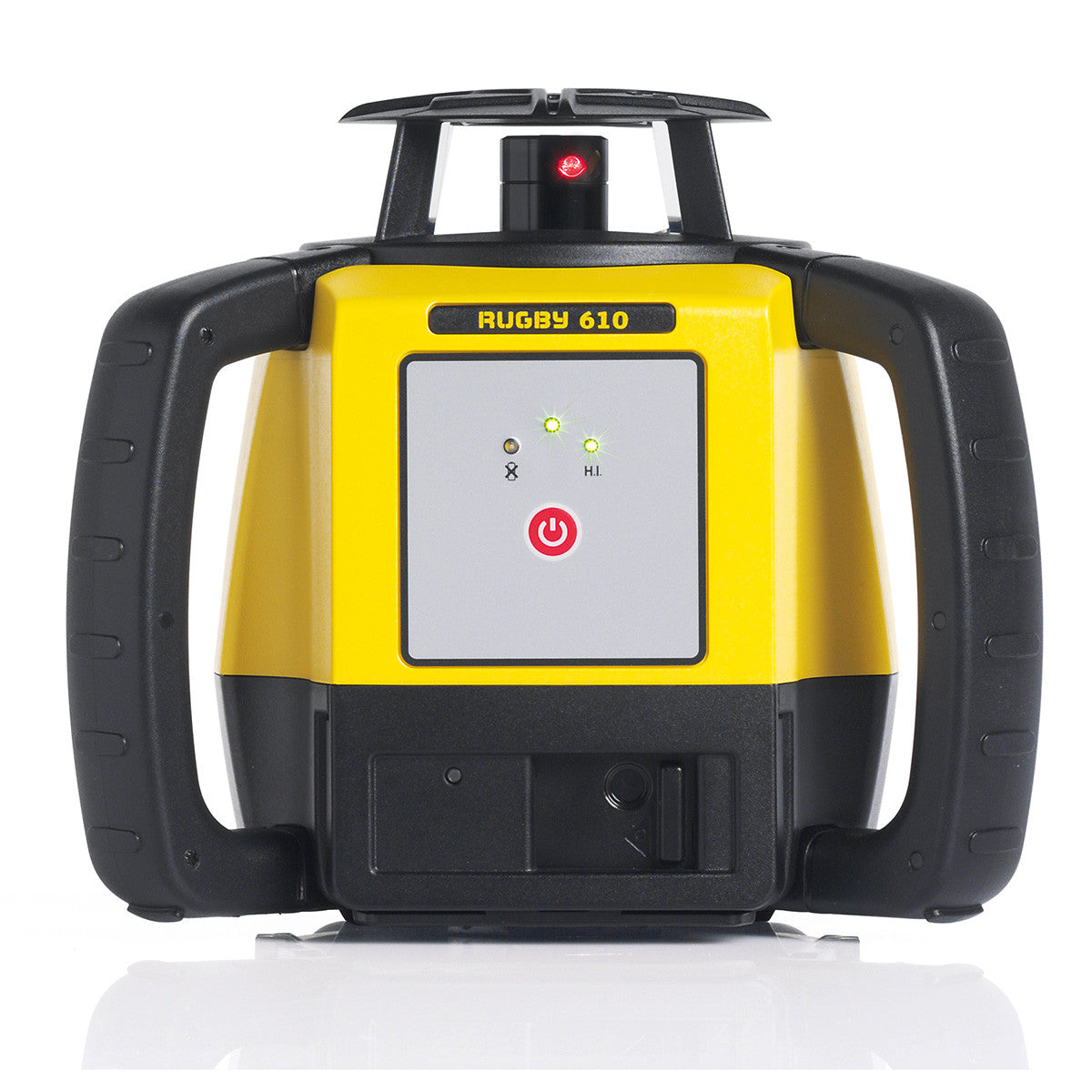

Leica Rugby 610 Laser Level


Price:
£870 exc. VAT

Description

The Leica Rugby 610 laser level is an easy-to-use, no mistakes possible construction laser level.

It is fit, fast and extremely tough, making it the perfect partner for all construction work.

It is a high-quality construction laser level capable of leveling, aligning, squaring and much more besides.

This quality piece of equipment will help to eliminate costly errors and downtime on-site.

Features - Leica Rugby 610

  • One-button simplicity
  • Simple & reliable

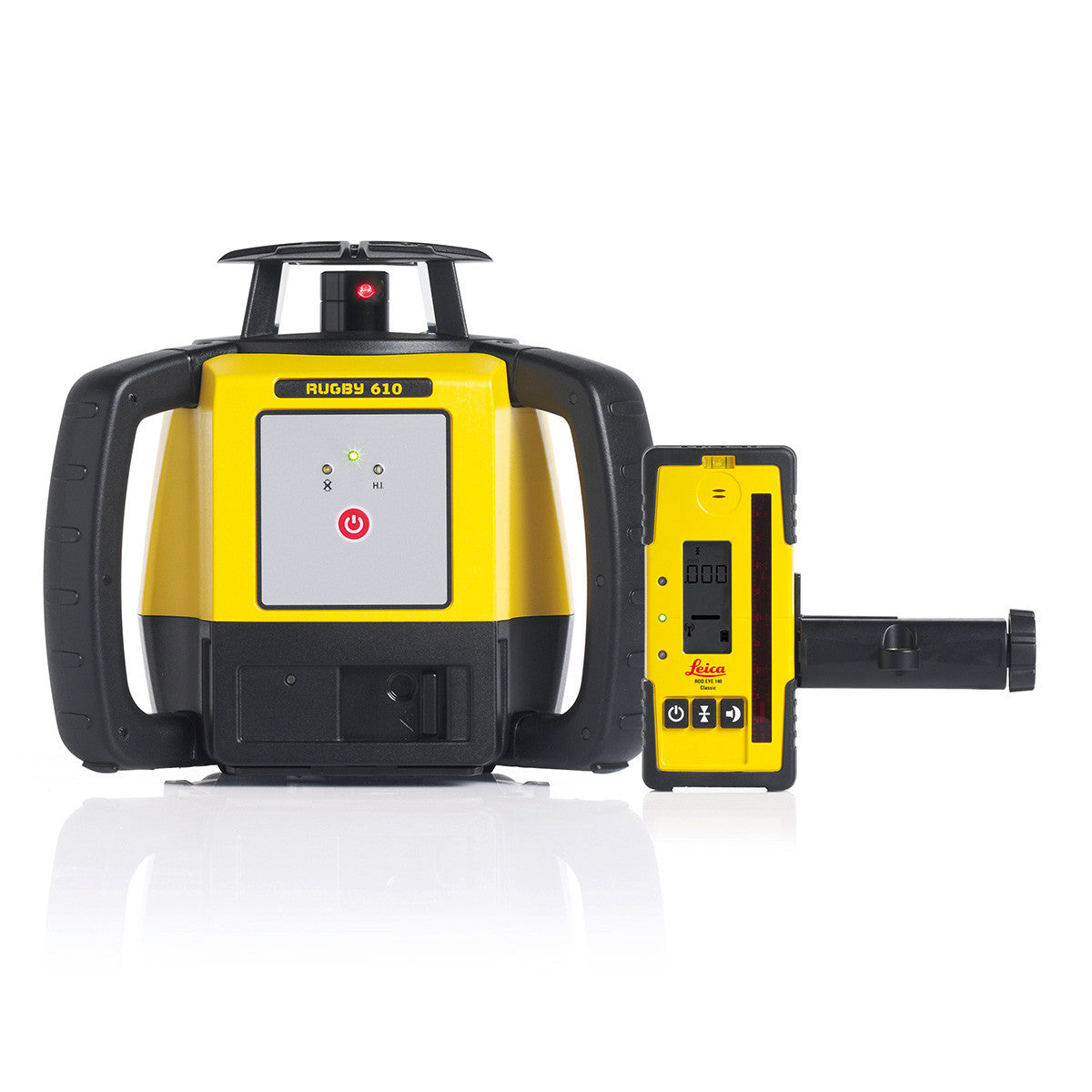

  • Superb performance with all Leica Rod Eye receivers. Extend your working range using the Rod Eye 140 Classic or the Rod Eye 160 Digital
  • The product casts a horizontal laser plane or a laser beam for the purpose of alignment.
  • The laser beam can be detected by means of a laser detector.
  • Remote control of product.
  • Data communication with external appliances

Box Contents

  • Rugby 610 and Carrying Case
  • Rod Eye 160 Receiver
  • Leica A600 Li-ion
  • Leica A100 AC Charger
  • Carry Case
  • User Manual
  • Calibration Certificate - 1 Year

The Leica Rugby 600 Range Comparison Table

Rugby 610 Rugby 620 Rugby 640 Rugby 670 Rugby 680
Dimensions 212 × 239 × 192 mm
Weight 2.38 kg / 5.2 lbs 2.56 kg / 5.6 lbs 2.56 kg / 5.6 lbs 2.56 kg / 5.6 lbs 2.56 kg / 5.6 lbs
Functionality Self-levelling
horizontal,
one button laser
Self-levelling
horizontal & manual
slope in one axis
Self-levelling
horizontal, vertical,
90° and manual
slope in dual axis
Self-levelling
horizontal, dial in
grade in single axis
Self-levelling
horizontal, dial in
grade in dual axis
Product type General construction General construction Multipurpose / H.V. Semi-auto grade Semi-auto grade
Laser class Class 2
Laser type 635 nm (visible)
Plumb up - - Yes - -
Measured at 20°C
(horizontal / vertical)
± 2.2 mm at 30 m
(3/32" at 100 ft)
± 1.5 mm at 30 m (1/16" at 100 ft)
Grade range - - - ± 8% SG ± 8% DG
Smart Slope - - - Yes Yes
Rotation – RPS 10 10 0, 2, 5, 10 10 10
Scanning – degrees - - 10, 45, 90 - -
Scan90 - - Yes - -
Beam down - - Yes - -
Sleep mode - - Yes - -
Range (diameter) – Basic 500 m (1.650 ft) 600 m (2.000 ft) 500 m (1.650 ft) 600 m (2.000 ft) 600 m (2.000 ft)
Range (diameter) – RE140/160 600 m (2.000 ft) 800 m (2.600 ft) 600 m (2.000 ft) 800 m (2.600 ft) 800 m (2.600 ft)
RF remote control (diameter) - - 200 m (650 ft) - -
Li-Ion batt. / hours operation 40+ 40+ 40+ 40+ 40+
Alkaline batt. / hours operation 60+ 60+ 60+ 60+ 60+
Working temperature range –10 to +50 °C
(14 to +122 °F)
–20 to +50 °C
(–4 to +122 °F)
–20 to +50 °C
(–4 to +122 °F)
–20 to +50 °C
(–4 to +122 °F)
–20 to +50 °C
(–4 to +122 °F)
Storage temperature range –20 to +70 °C
(–4 to +158 °F)
–40 to +70 °C
(–40 to +158 °F)
–40 to +70 °C
(–40 to +158 °F)
–40 to +70 °C
(–40 to +158 °F)
–40 to +70 °C
(–40 to +158 °F)
Seal (both excluding and
including battery pack)
IP67 IP67 IP67 IP67 IP67
Warranty 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage)

Leica Rugby - The Toughest Laser Level On Site

Downloads

Leica Rugby 610 Quick Start guide

Leica Rugby 610 User Manual

Leica Rugby 600 Series Brochure
