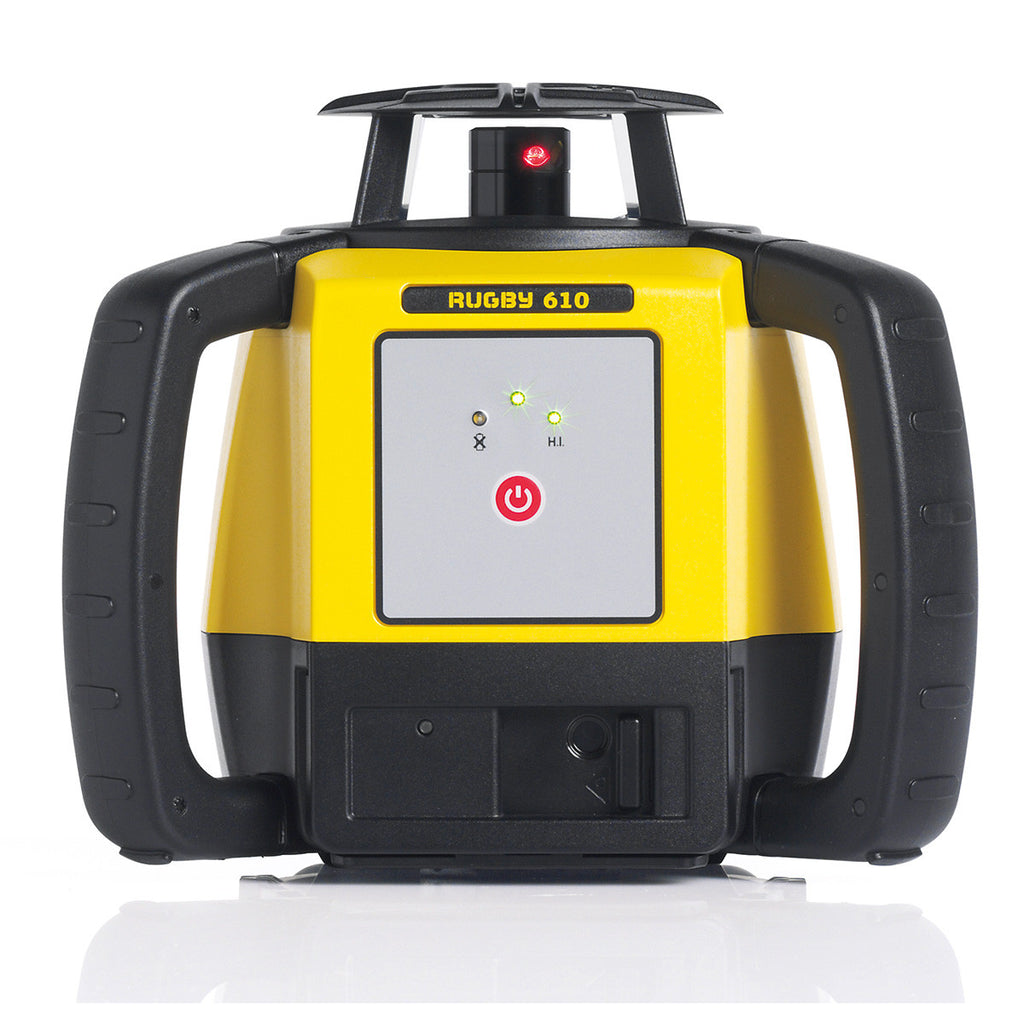

Leica Rugby 610 Laser Level

  • The Leica Rugby 610 laser level is an easy-to-use, no mistakes possible construction laser level.

    It is fit, fast and extremely tough, making it the perfect partner for all construction work.

    It is a high-quality construction laser level capable of leveling, aligning, squaring and much more besides.

    This quality piece of equipment will help to eliminate costly errors and downtime on-site.

    Features - Leica Rugby 610

    • One-button simplicity
    • Simple & reliable
    • Superb performance with all Leica Rod Eye receivers. Extend your working range using the Rod Eye 140 Classic or the Rod Eye 160 Digital
    • The product casts a horizontal laser plane or a laser beam for the purpose of alignment.
    • The laser beam can be detected by means of a laser detector.
    • Remote control of product.
    • Data communication with external appliances

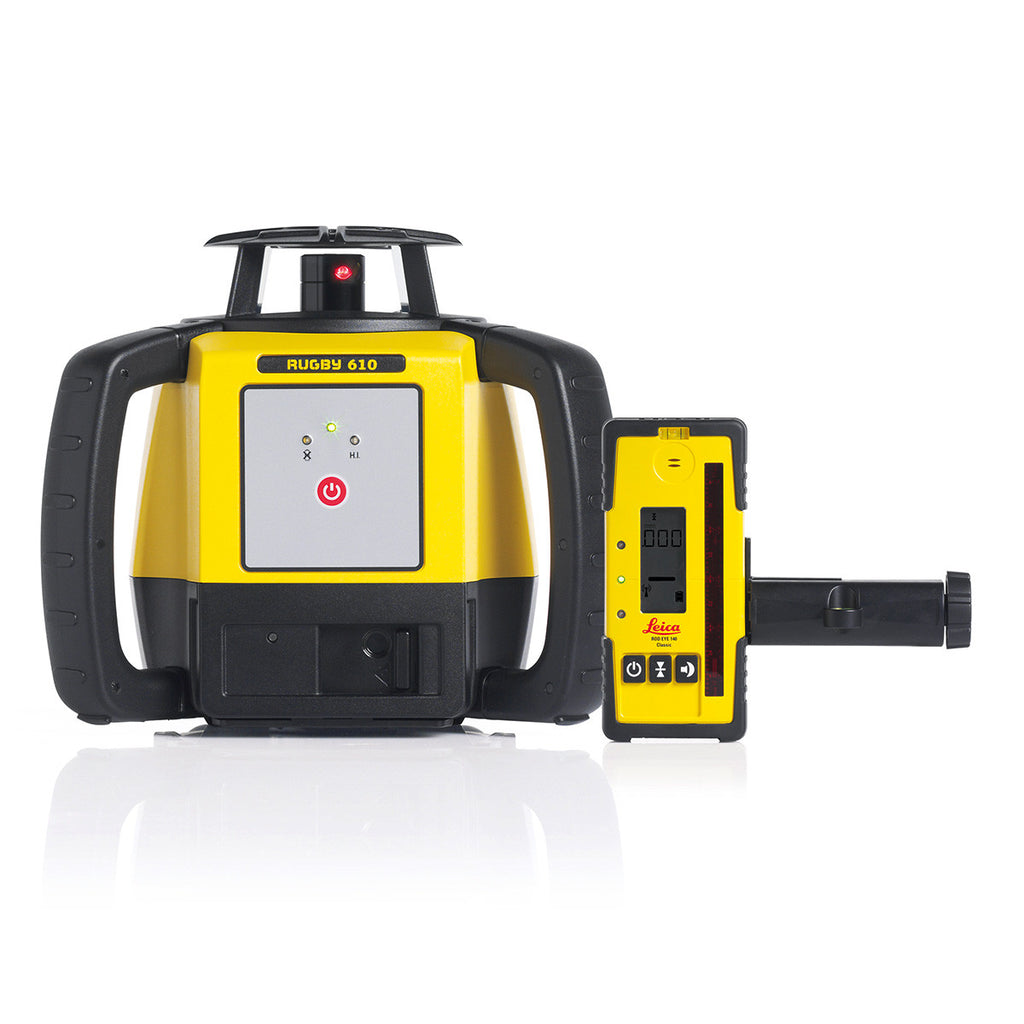

  • Box Contents

    • Rugby 610 Laser Level
    • Battery Pack
      • Non-Rehargeable - A150 Alkaline Battery Pack & Alkaline Battery D-cell (x4) OR
      • Rechargeable - A600 Li-Ion Battery Pack & A100 Charger (+ £70)
    • Receiver
      • Rod Eye Basic Receiver OR
      • Rod Eye 140 Receiver (+ £70) OR
      • Rod Eye 160 Receiver (+ £135)
    • Receiver Bracket
    • Carrying Case
    • User Manual
    • Calibration Certificate - 1 Year
  • Optional Extras

    The accessories available with this product are:

    5m Construction Staff

    5m Construction Staff (£25 exc VAT)

    This leveling staff works well alongside levels and laser levels. Perfect results every time!

    View product

    Leica GST 103 Medium-duty Aluminium Tripod

    Leica GST 103 Medium-duty Aluminium Tripod (£39.95 exc VAT)

    This is the perfect tripod for levels, laser levels and many more besides. Reliable and durable!

    View product

  • Hire

    This laser level is also available to hire.

    Please visit our Laser Level Hire page or call us on 0800 633 5131.

    View Laser Level Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • The Leica Rugby 600 Range Comparison Table

    Rugby 610 Rugby 620 Rugby 640 Rugby 670 Rugby 680
    Dimensions 212 × 239 × 192 mm
    Weight 2.38 kg / 5.2 lbs 2.56 kg / 5.6 lbs 2.56 kg / 5.6 lbs 2.56 kg / 5.6 lbs 2.56 kg / 5.6 lbs
    Functionality Self-levelling
    horizontal,
    one button laser
    Self-levelling
    horizontal & manual
    slope in one axis
    Self-levelling
    horizontal, vertical,
    90° and manual
    slope in dual axis
    Self-levelling
    horizontal, dial in
    grade in single axis
    Self-levelling
    horizontal, dial in
    grade in dual axis
    Product type General construction General construction Multipurpose / H.V. Semi-auto grade Semi-auto grade
    Laser class Class 2
    Laser type 635 nm (visible)
    Plumb up - - Yes - -
    Measured at 20°C
    (horizontal / vertical)
    ± 2.2 mm at 30 m
    (3/32" at 100 ft)
    ± 1.5 mm at 30 m (1/16" at 100 ft)
    Grade range - - - ± 8% SG ± 8% DG
    Smart Slope - - - Yes Yes
    Rotation – RPS 10 10 0, 2, 5, 10 10 10
    Scanning – degrees - - 10, 45, 90 - -
    Scan90 - - Yes - -
    Beam down - - Yes - -
    Sleep mode - - Yes - -
    Range (diameter) – Basic 500 m (1.650 ft) 600 m (2.000 ft) 500 m (1.650 ft) 600 m (2.000 ft) 600 m (2.000 ft)
    Range (diameter) – RE140/160 600 m (2.000 ft) 800 m (2.600 ft) 600 m (2.000 ft) 800 m (2.600 ft) 800 m (2.600 ft)
    RF remote control (diameter) - - 200 m (650 ft) - -
    Li-Ion batt. / hours operation 40+ 40+ 40+ 40+ 40+
    Alkaline batt. / hours operation 60+ 60+ 60+ 60+ 60+
    Working temperature range –10 to +50 °C
    (14 to +122 °F)
    –20 to +50 °C
    (–4 to +122 °F)
    –20 to +50 °C
    (–4 to +122 °F)
    –20 to +50 °C
    (–4 to +122 °F)
    –20 to +50 °C
    (–4 to +122 °F)
    Storage temperature range –20 to +70 °C
    (–4 to +158 °F)
    –40 to +70 °C
    (–40 to +158 °F)
    –40 to +70 °C
    (–40 to +158 °F)
    –40 to +70 °C
    (–40 to +158 °F)
    –40 to +70 °C
    (–40 to +158 °F)
    Seal (both excluding and
    including battery pack)
    IP67 IP67 IP67 IP67 IP67
    Warranty 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage)
  • Leica Rugby - The Toughest Laser Level On Site

  • Downloads

    Leica Rugby 610 Quick Start guide

    Leica Rugby 610 User Manual

    Leica Rugby 600 Series Brochure
