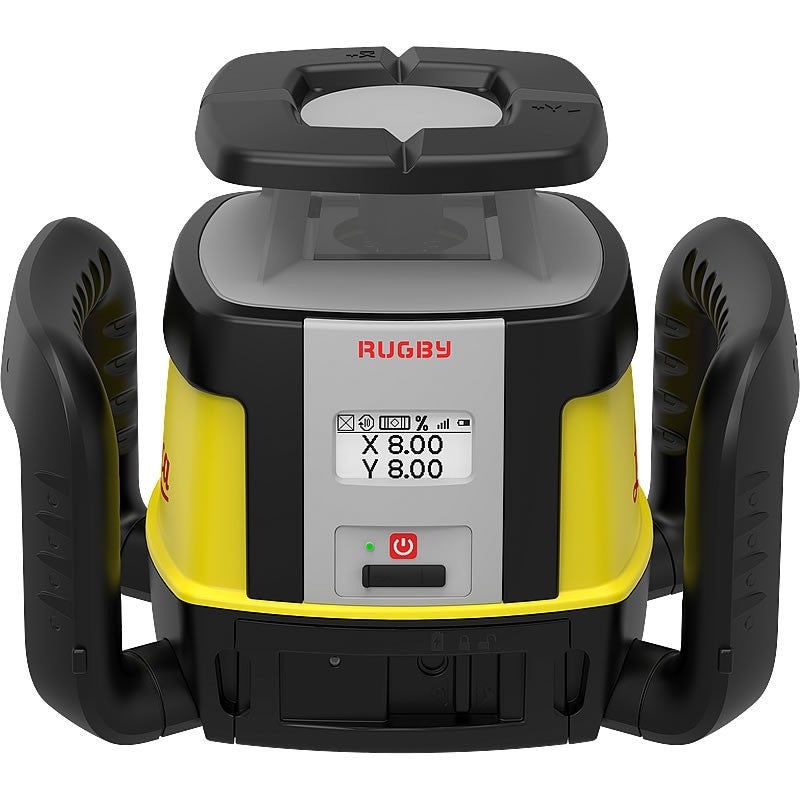

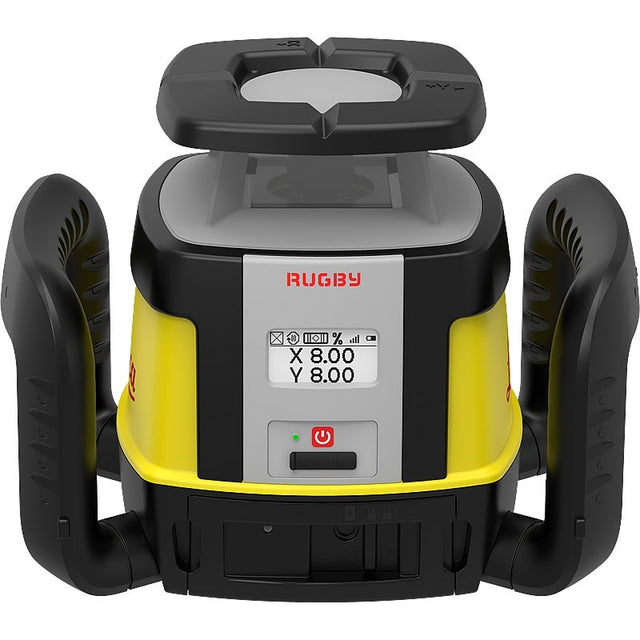

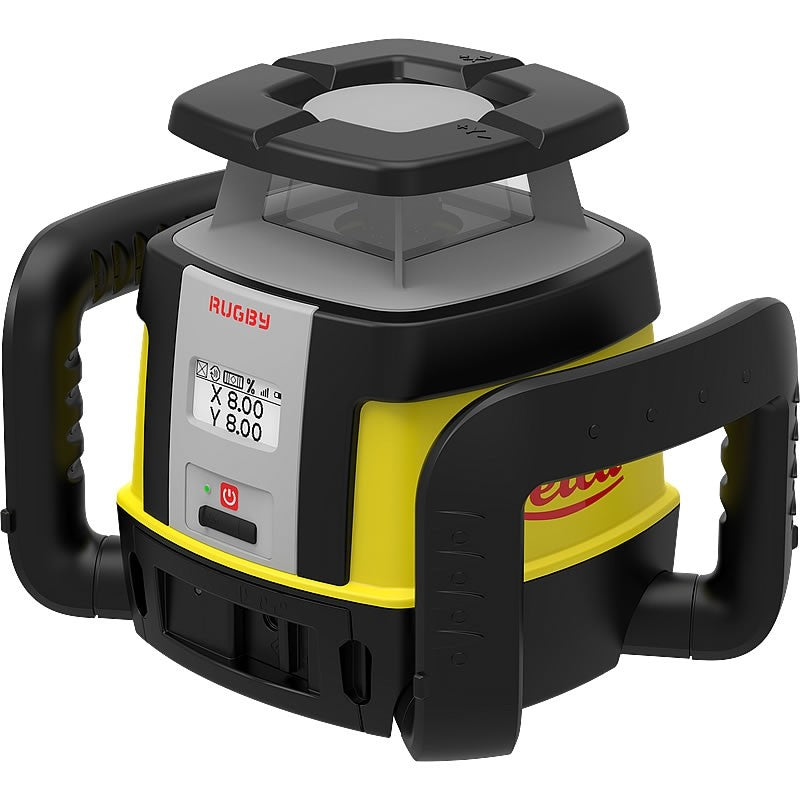

Leica Rugby CLH Laser Level


Upgrade Option: Base Unit - One Button
Price:
£720 exc. VAT

Description

Leica Rugby CLH (horizontal) simplicity allows for effortless use of the capabilities of the laser system.

It saves time by simplifying processes and making you far more productive. Its robust design secures measurement stability and accuracy for your daily tasks.

The upgrade options allow for maximised performance in all levelling applications.

Upgrade Options

  • CLX 200 - With manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task
  • CLX 300 - Adding +-8% semi-automatic grade functionality in single axis with a dial-in option, the upgrade delivers a solid performance in single slope applications
  • CLX 400 - Adding +-8% semi-automatic grade functionality in second axis with a dial-in option, the upgrade delivers a solid performance in dual slope applications



The First Upgradable Laser Level

The maximum flexibility and the ability to quickly adjust to the job’s needs is vital for your projects. With the Leica Rugby CLA (all-round) and CLH (horizontal) you can upgrade your lasers to match your application needs.

You pay for the functionality you need to do your job without paying for the extra features that you don’t use. With additional professional services such as repair and calibration you can secure your laser’s exceptional performance for many years.

Simplicity At Its Best

Leica Rugby CLH simplicity allows for effortless use of the capabilities of the laser system. It saves time by simplifying processes and making you far more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The upgrade options allow for maximised performance in all levelling applications.

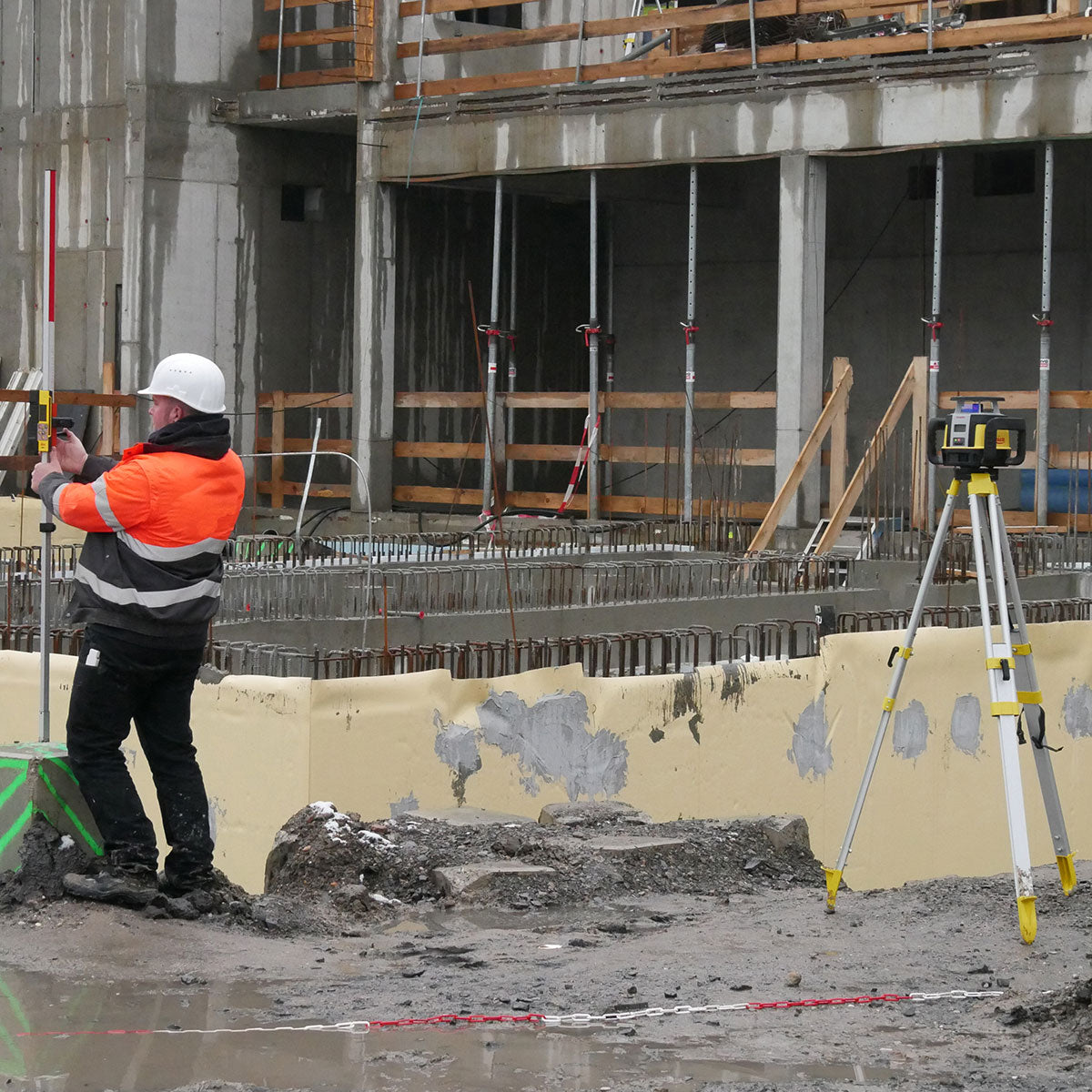

Base Unit: Use it as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications.

Box Contents

  • Rugby CLH Basic Laser Level
  • Li-ion Battery Pack
  • A100 Li-ion Battery Charger
  • Carrying Case
  • User Manual
  • Calibration Certificate - 1 Year

The Leica Rugby 600 Range Comparison Table

Rugby Laser Rugby CLH Rugby CLA
Warranty 5Y / 2Y knockdown 5Y / 2Y knockdown
Grade capability* (X/Y Axes) ±5%, 8% ±15%
Self-levelling accuracy** ± 1.5mm at 30m ± 1.5mm at 30m
Self-levelling range ±6° ±6°
Operating range with Combo, Rod Eye 140/160 1350m (diameter) 1350m (diameter)
Remote range 600m (diameter) 600m (diameter)
Laser class 1 2
Environmental standard IP68 /MIL-STD-810G IP68 /MIL-STD-810G
Operating temperature -20°C to +50°C -20°C to +50°C
Storage temperature -40°C to +70°C -40°C to +70°C
Rotation speed 10,15,20 RPS 0,2,5,10,15,20 RPS
Batteries Li-Ion Li-Ion
Battery operating time** 50h 50h
Battery charging 5h (full charge)
1h fast charge ±8h operating
5h (full charge)
1h fast charge ±8h operating
Dimensions (H × W × D) 230mm, 296mm, 212mm 230mm, 296mm, 212mm
Weight with batteries 3.8Kg 3.8Kg
* up to 45° with adapter up to 45° with adapter
** Accuracy defined at 25°C battery life depending upon environmental conditions
All specifications are dependent on activated functionality
Downloads

Leica Rugby CLH & CLA Laser Level - Brochure

Leica Rugby CLH & CLA Laser Level - Basic Applications

Leica Rugby CLH & CLA Laser Level - Quick Guide

Leica Rugby CLH & CLA Laser Level - User Manual
