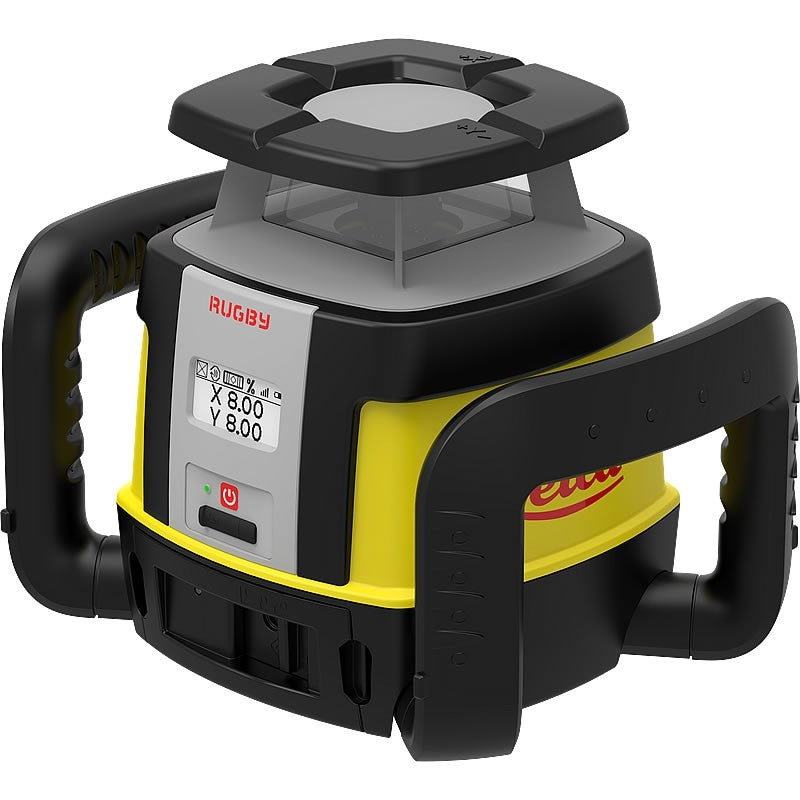

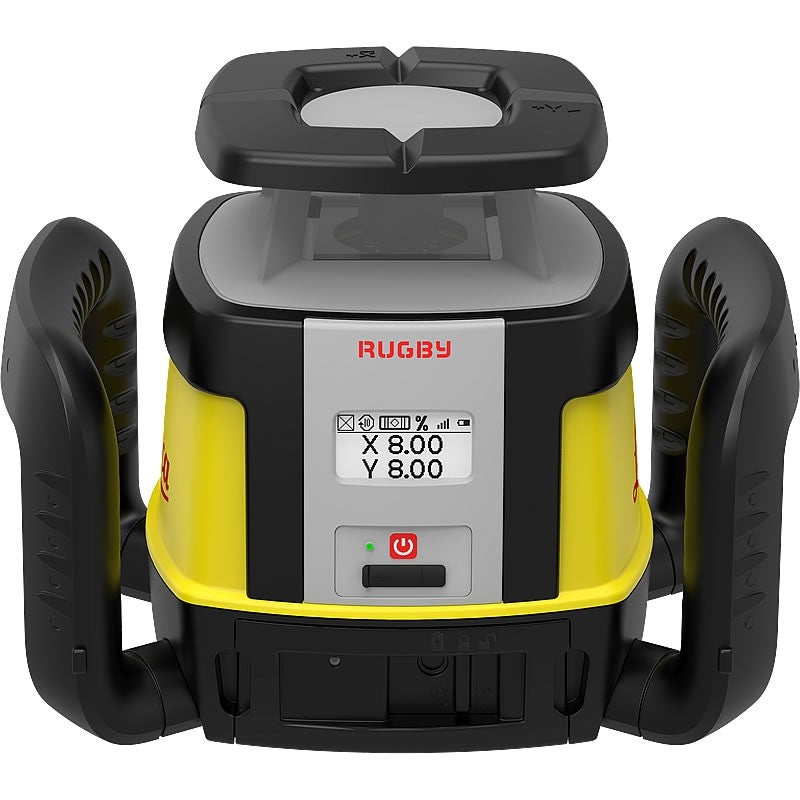

Leica Rugby CLH Laser Level

  • Leica Rugby CLH (horizontal) simplicity allows for effortless use of the capabilities of the laser system.

    It saves time by simplifying processes and making you far more productive. Its robust design secures measurement stability and accuracy for your daily tasks.

    The upgrade options allow for maximised performance in all levelling applications.

    The First Upgradable Laser Level

    The maximum flexibility and the ability to quickly adjust to the job’s needs is vital for your projects. With the Leica Rugby CLA (all-round) and CLH (horizontal) you can upgrade your lasers to match your application needs.

    You pay for the functionality you need to do your job without paying for the extra features that you don’t use. With additional professional services such as repair and calibration you can secure your laser’s exceptional performance for many years.

    Simplicity At Its Best

    Leica Rugby CLH simplicity allows for effortless use of the capabilities of the laser system. It saves time by simplifying processes and making you far more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The upgrade options allow for maximised performance in all levelling applications.

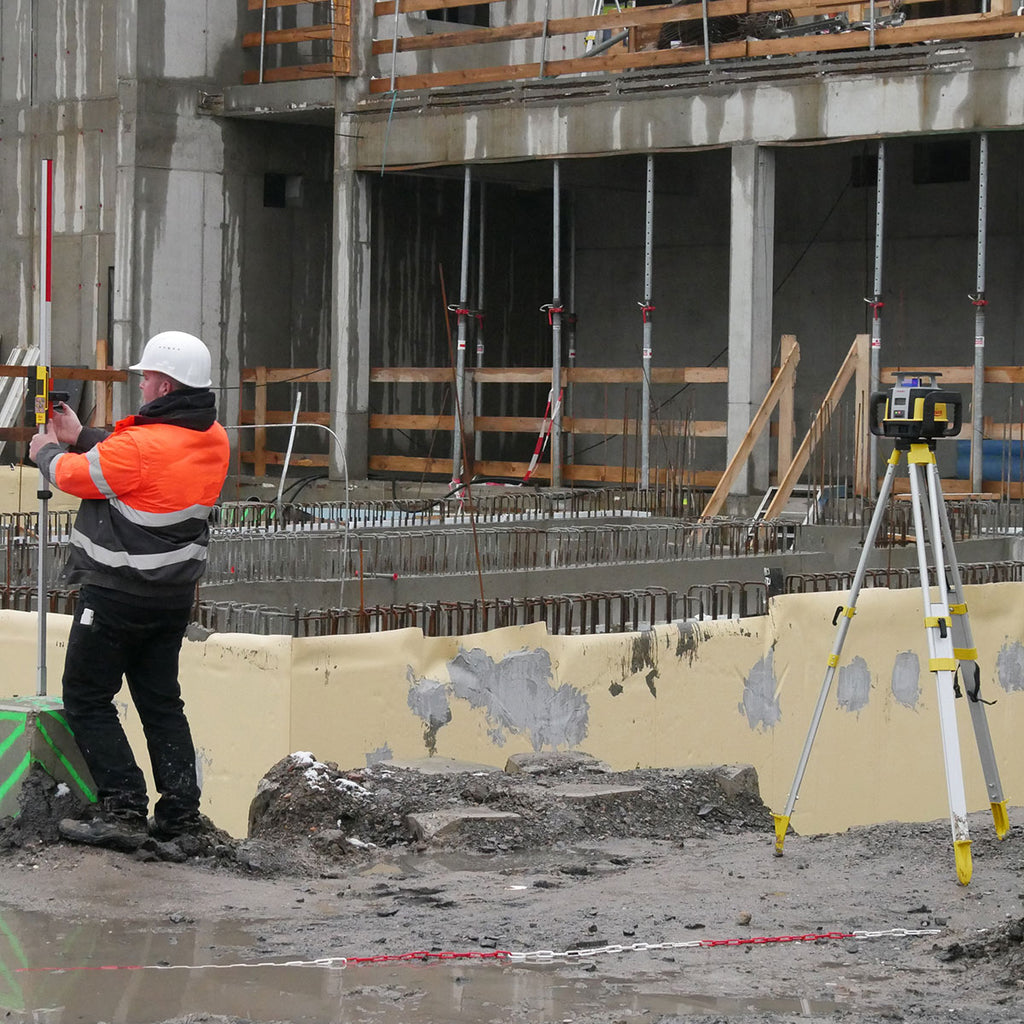

    Base Unit: Use it as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications.

    Upgrade Options:

    • CLX 200: with manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task
    • CLX 300: adding +-8% semi-automatic grade functionality in single axis with a dial-in option, the upgrade delivers a solid performance in single slope applications
    • CLX 400: adding +-8% semi-automatic grade functionality in second axis with a dial-in option, the upgrade delivers a solid performance in dual slope applications
  • Box Contents

    • Rugby CLH Basic Laser Level
    • Li-ion Battery Pack
    • A100 Li-ion Battery Charger
    • Carrying Case
    • User Manual
    • Calibration Certificate - 1 Year
  • Optional Extras

    The accessories available with this product are:

    5m Construction Staff

    5m Construction Staff (£25 exc VAT)

    This leveling staff works well alongside levels and laser levels. Perfect results every time!

    View product

    Leica GST 103 Medium-duty Aluminium Tripod

    Leica GST 103 Medium-duty Aluminium Tripod (£39.95 exc VAT)

    This is the perfect tripod for levels, laser levels and many more besides. Reliable and durable!

    View product

  • Hire

    This laser level is also available to hire.

    Please visit our Laser Level Hire page or call us on 0800 633 5131.

    View Laser Level Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • The Leica Rugby 600 Range Comparison Table

    Rugby Laser Rugby CLH Rugby CLA
    Warranty 5Y / 2Y knockdown 5Y / 2Y knockdown
    Grade capability* (X/Y Axes) ±5%, 8% ±15%
    Self-levelling accuracy** ± 1.5mm at 30m ± 1.5mm at 30m
    Self-levelling range ±6° ±6°
    Operating range with Combo, Rod Eye 140/160 1350m (diameter) 1350m (diameter)
    Remote range 600m (diameter) 600m (diameter)
    Laser class 1 2
    Environmental standard IP68 /MIL-STD-810G IP68 /MIL-STD-810G
    Operating temperature -20°C to +50°C -20°C to +50°C
    Storage temperature -40°C to +70°C -40°C to +70°C
    Rotation speed 10,15,20 RPS 0,2,5,10,15,20 RPS
    Batteries Li-Ion Li-Ion
    Battery operating time** 50h 50h
    Battery charging 5h (full charge)
    1h fast charge ±8h operating
    5h (full charge)
    1h fast charge ±8h operating
    Dimensions (H × W × D) 230mm, 296mm, 212mm 230mm, 296mm, 212mm
    Weight with batteries 3.8Kg 3.8Kg
    * up to 45° with adapter up to 45° with adapter
    ** Accuracy defined at 25°C battery life depending upon environmental conditions
    All specifications are dependent on activated functionality
  • Downloads

    Leica Rugby CLH and CLA Laser Level Brochure
