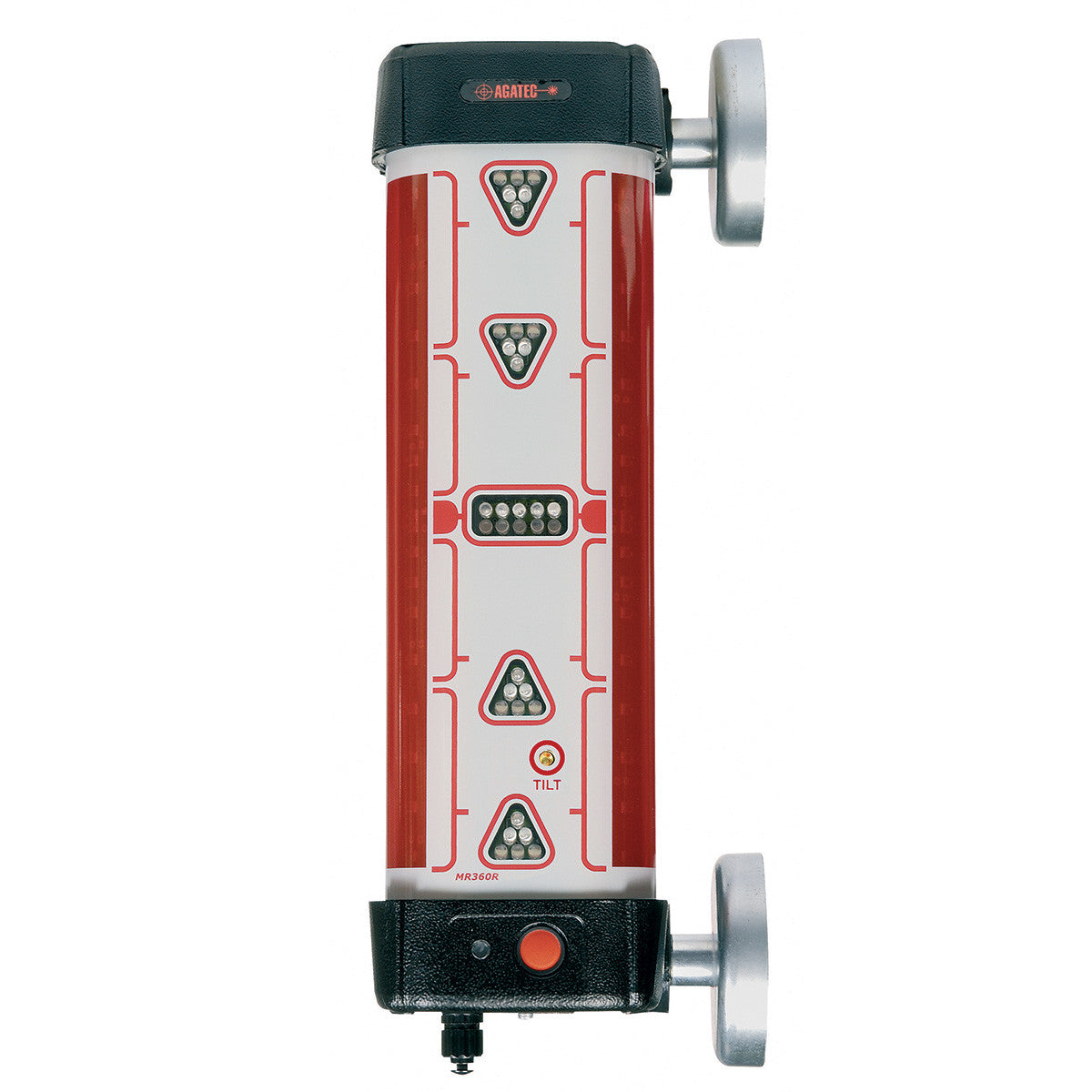

Machine Control MR360 Receiver
The MR360R offers accurate grade information for all visual machine control applications.
Large 360° detection windows pick up any rotating laser, from any angle. Built-in vertical indicator monitors angle of the stick, signaling if it’s plumb or under- or over-extended. Receiver has plumb LED indicator; remote display has direction arrows for plumbing up the dipper stick. Saves money by reducing over - or under-cuts.
LED indicators on receiver
LED indicators show position of cutting edge in relation to the laser reference beam. Seven display channels (indicators) in coarse mode; nine channels in fine mode.Receiver has plumb LED indicator. Rugged, waterproof construction. Built-in shock mounts minimize machine vibrations.
LED Indicators on remote display
Remote display has direction arrows for plumbing up the dipper stick. If used on a dozer or grader, these LEDs can be turned off for a simpler display and longer battery life. Memory stores the last signal received. Arrows indicate which way to move the cutting edge to reach the reference plane.
MD360R Remote Display
The remote display MD360R located in the cabin is connected to the receiver via the RF wireless technology. Clear remote display panel mounts to the windshield with a heavy-duty suction cup or magnetically to the cab or window frame. Won’t block operator’s view. Displays the 9 channels of the receiver, plus the vertical indicator arrows.
Both the receiver and remote have menus, enabling you to scroll through menu choices to change settings. All settings can be done through the remote display, without getting out of the cab. You can even turn off the receiver display from the remote, saving battery life.
The Agatec MR360R offers accurate grade information for all visual machine control applications. Large 360° detection windows pick up any rotation laser, from any angle. Built-in vertical indicator monitors angle of the stick, signalling if it's plumb or over extended. Receiver has plumb LED indicator; remote display has direction arrows for plumbing up the dipper stick. Saves money by reducing over or under-cuts. Choice of receiver channels: switch to the 2nd frequency if there are two systems on a job site.
Features
The MR360R offers accurate grade information for all visual machine control applications. Large 360° detection windows pick up any rotating laser, from any angle.
Built-in vertical indicator monitors angle of the stick, signaling if it's plumb or under- or overextended. Vertical position ensures consistent and accurate grade readings, saving money by reducing over- or under-cutting.
Two models are available: MR360R with heavy-duty clamps and MR360RA with large magnets for quick mount and easy movement from machine to machine.
- Choice of three settings: 3 channels (indicators) in coarse mode; 3 or 5 channels in fine

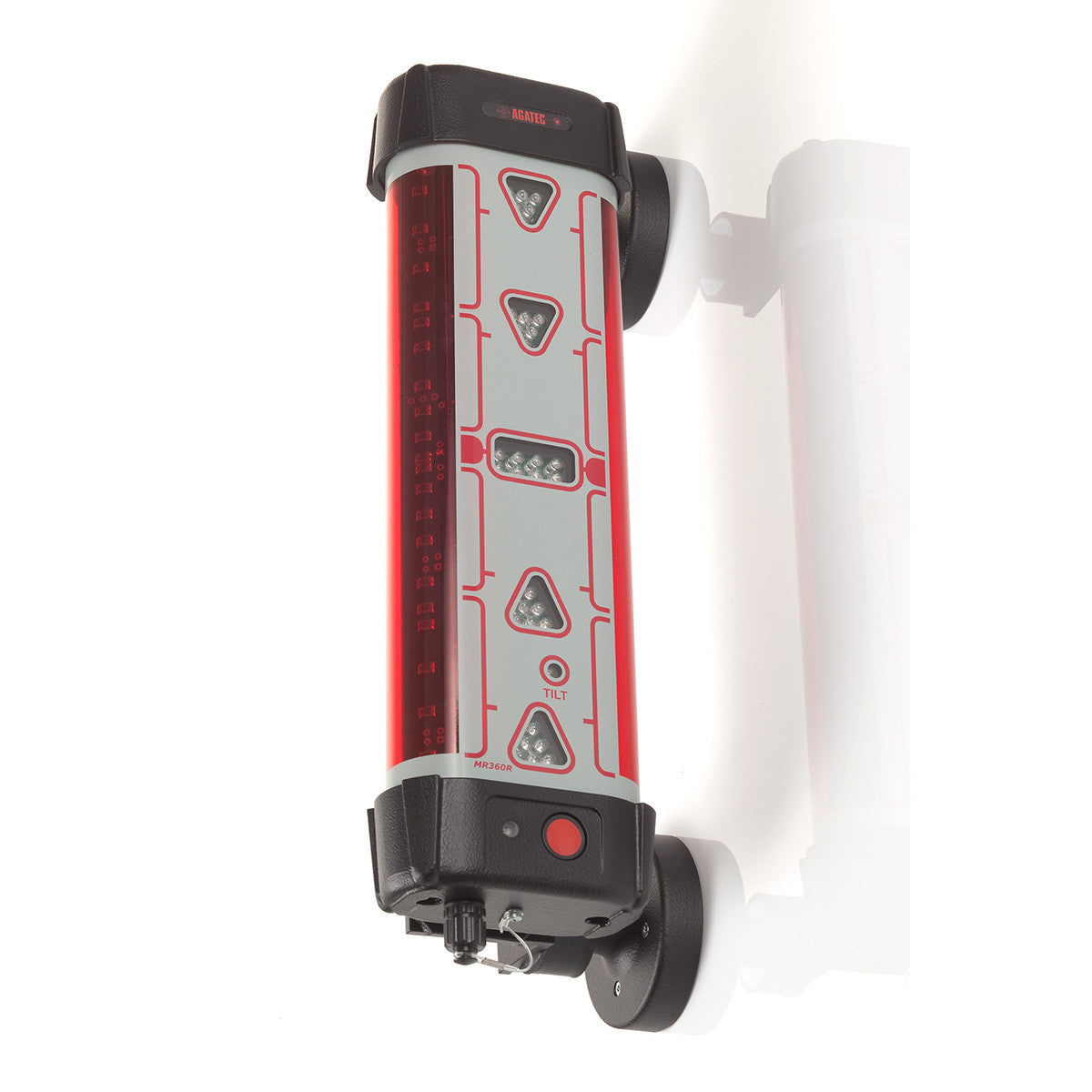

- Magnetic mount allows quick mounting and easy movement from machine to machine
Benefits
- One-person operation
- Automatic shutoff
- Rugged, waterproof constructionWaterproof (IP67)
- Range: 650 ft. (200 m) varies with laser used
- Accuracy: Fine: 6 mm Coarse: 12 mm
- Reception angle: 360°
- Vertical indicator: ± 5°
- Battery life approx. 30 hours - NiMH rechargeable batteries
- Operating temperature -18 to 158 F; (-28 to 70 C)
| MR360R Specifications | |
| Operating distance* | 650 ft (200m) |
| Reception | 360° |
| Capture window | 9.75" height (25cm) |
| Accuracy* | Fine: 1/4" (6mm) typical Coarse: 1/2" (12mm) typical |
| Vertical indicator | ± 5° |
| Waterproof | IP67 |
| Power | NiMh rechargeable battery |
| Battery life | 30 hours |
| Charging time | 12 hours |
| Frequency range | 100' (30m) between MR360R and MD360R |
| Size | 14.75" x 3" x 4.25" (4 lbs w/o clamps) |
* Range & accuracy vary with laser used
Package includes:
- MR360R Rechargeable Receiver with Magnet
- 110/240V Charger for MR360R
- Suction Cup (for MD360R Mount)
- MR360R User Manual
- Carry Case

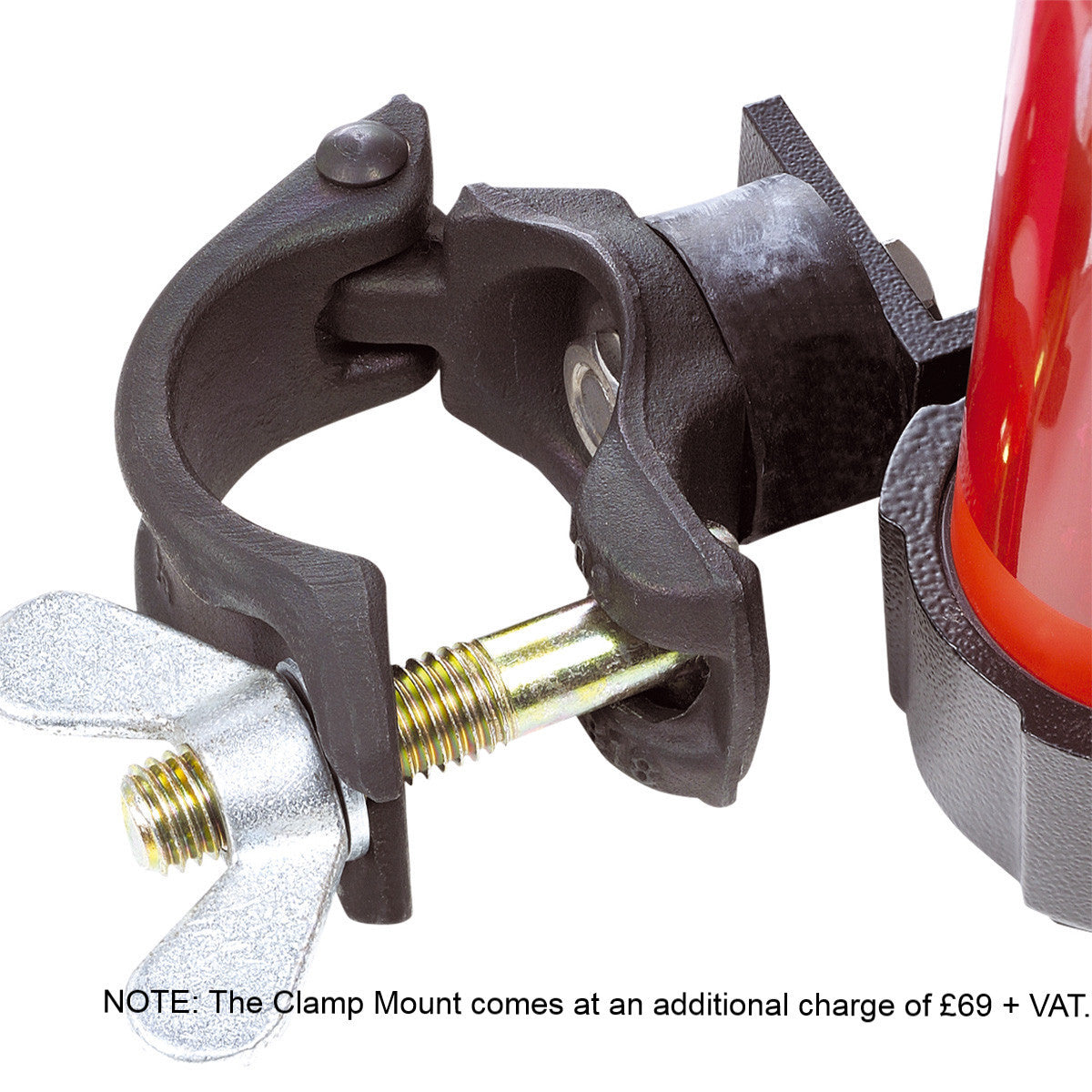

NOTE: The Clamp Mount comes at an additional cost.
