Machine Control MR360 Receiver

  • The MR360R offers accurate grade information for all visual machine control applications.

    Large 360° detection windows pick up any rotating laser, from any angle. Built-in vertical indicator monitors angle of the stick, signaling if it’s plumb or under- or over-extended. Receiver has plumb LED indicator; remote display has direction arrows for plumbing up the dipper stick. Saves money by reducing over - or under-cuts.

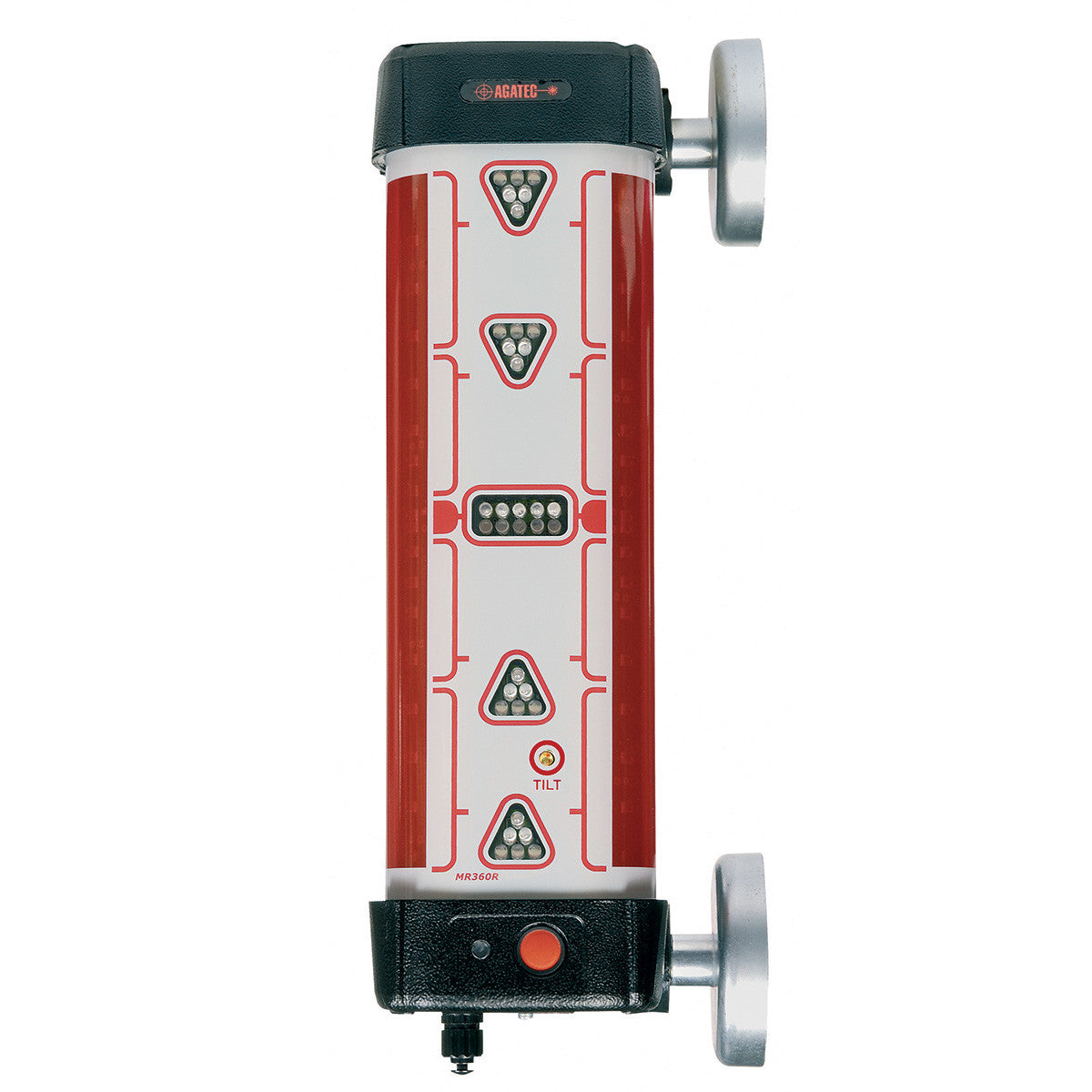

    LED indicators on receiver

    LED indicators show position of cutting edge in relation to the laser reference beam. Seven display channels (indicators) in coarse mode; nine channels in fine mode.Receiver has plumb LED indicator. Rugged, waterproof construction. Built-in shock mounts minimize machine vibrations.

    LED Indicators on remote display

    Remote display has direction arrows for plumbing up the dipper stick. If used on a dozer or grader, these LEDs can be turned off for a simpler display and longer battery life. Memory stores the last signal received. Arrows indicate which way to move the cutting edge to reach the reference plane.

    MD360R Remote Display

    The remote display MD360R located in the cabin is connected to the receiver via the RF wireless technology. Clear remote display panel mounts to the windshield with a heavy-duty suction cup or magnetically to the cab or window frame. Won’t block operator’s view. Displays the 9 channels of the receiver, plus the vertical indicator arrows.

    Both the receiver and remote have menus, enabling you to scroll through menu choices to change settings. All settings can be done through the remote display, without getting out of the cab. You can even turn off the receiver display from the remote, saving battery life.

    The Agatec MR360R offers accurate grade information for all visual machine control applications. Large 360° detection windows pick up any rotation laser, from any angle. Built-in vertical indicator monitors angle of the stick, signalling if it's plumb or over extended. Receiver has plumb LED indicator; remote display has direction arrows for plumbing up the dipper stick. Saves money by reducing over or under-cuts. Choice of receiver channels: switch to the 2nd frequency if there are two systems on a job site.

  • Features

    The MR360R offers accurate grade information for all visual machine control applications. Large 360° detection windows pick up any rotating laser, from any angle.

    Built-in vertical indicator monitors angle of the stick, signaling if it's plumb or under- or overextended. Vertical position ensures consistent and accurate grade readings, saving money by reducing over- or under-cutting.

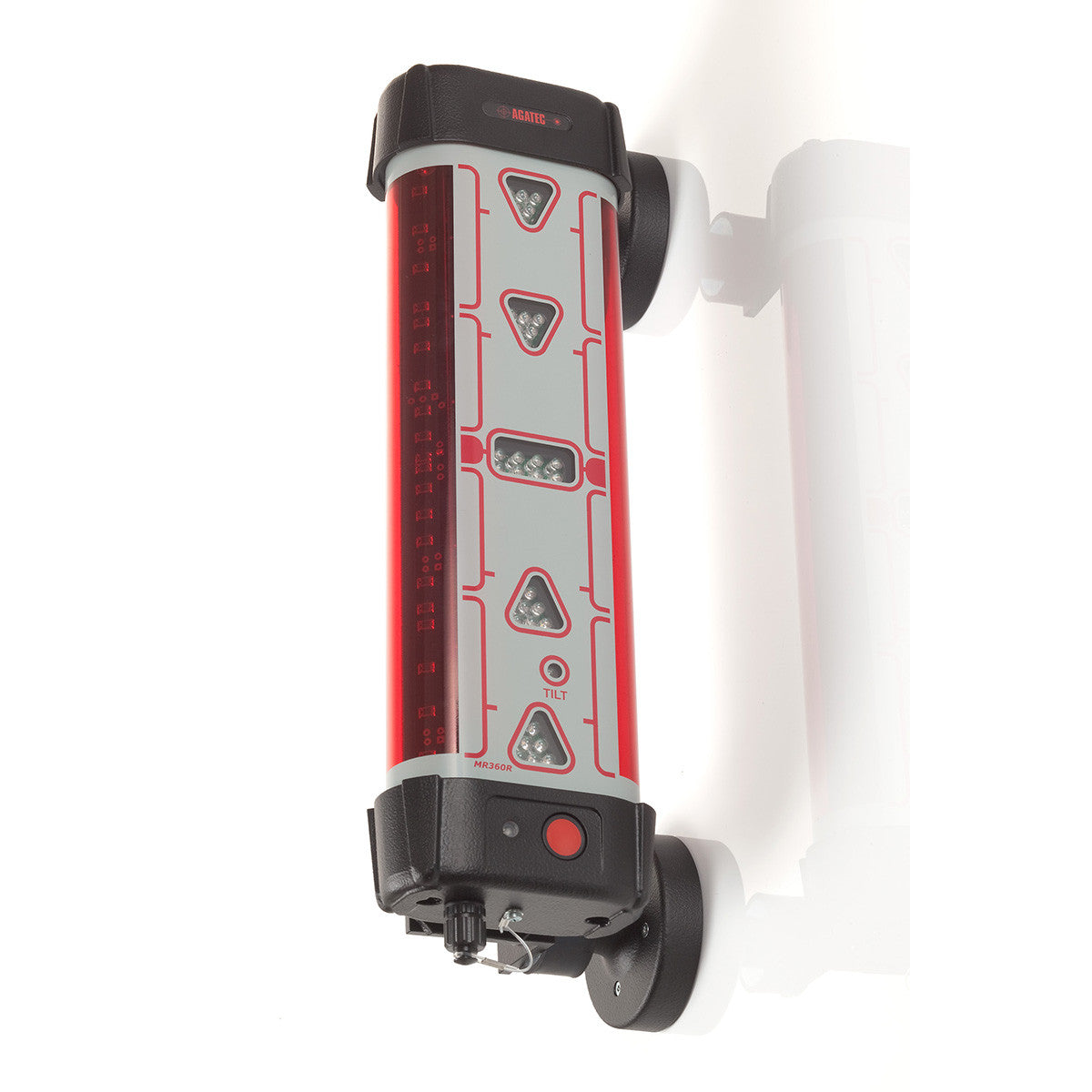

    Two models are available: MR360R with heavy-duty clamps and MR360RA with large magnets for quick mount and easy movement from machine to machine.

    • Choice of three settings: 3 channels (indicators) in coarse mode; 3 or 5 channels in fine
    • Magnetic mount allows quick mounting and easy movement from machine to machine

    Benefits

    • One-person operation
    • Automatic shutoff
    • Rugged, waterproof constructionWaterproof (IP67)
    • Range: 650 ft. (200 m) varies with laser used
    • Accuracy: Fine: 6 mm Coarse: 12 mm
    • Reception angle: 360°
    • Vertical indicator: ± 5°
    • Battery life approx. 30 hours - NiMH rechargeable batteries
    • Operating temperature -18 to 158 F; (-28 to 70 C)
  • MR360R Specifications
    Operating distance* 650 ft (200m)
    Reception 360°
    Capture window 9.75" height (25cm)
    Accuracy* Fine: 1/4" (6mm) typical
    Coarse: 1/2" (12mm) typical
    Vertical indicator ± 5°
    Waterproof IP67
    Power NiMh rechargeable battery
    Battery life 30 hours
    Charging time 12 hours
    Frequency range 100' (30m) between MR360R and MD360R
    Size 14.75" x 3" x 4.25" (4 lbs w/o clamps)

    * Range & accuracy vary with laser used

  • Package includes:

    • MR360R Rechargeable Receiver with Magnet
    • 110/240V Charger for MR360R
    • Suction Cup (for MD360R Mount)
    • MR360R User Manual
    • Carry Case

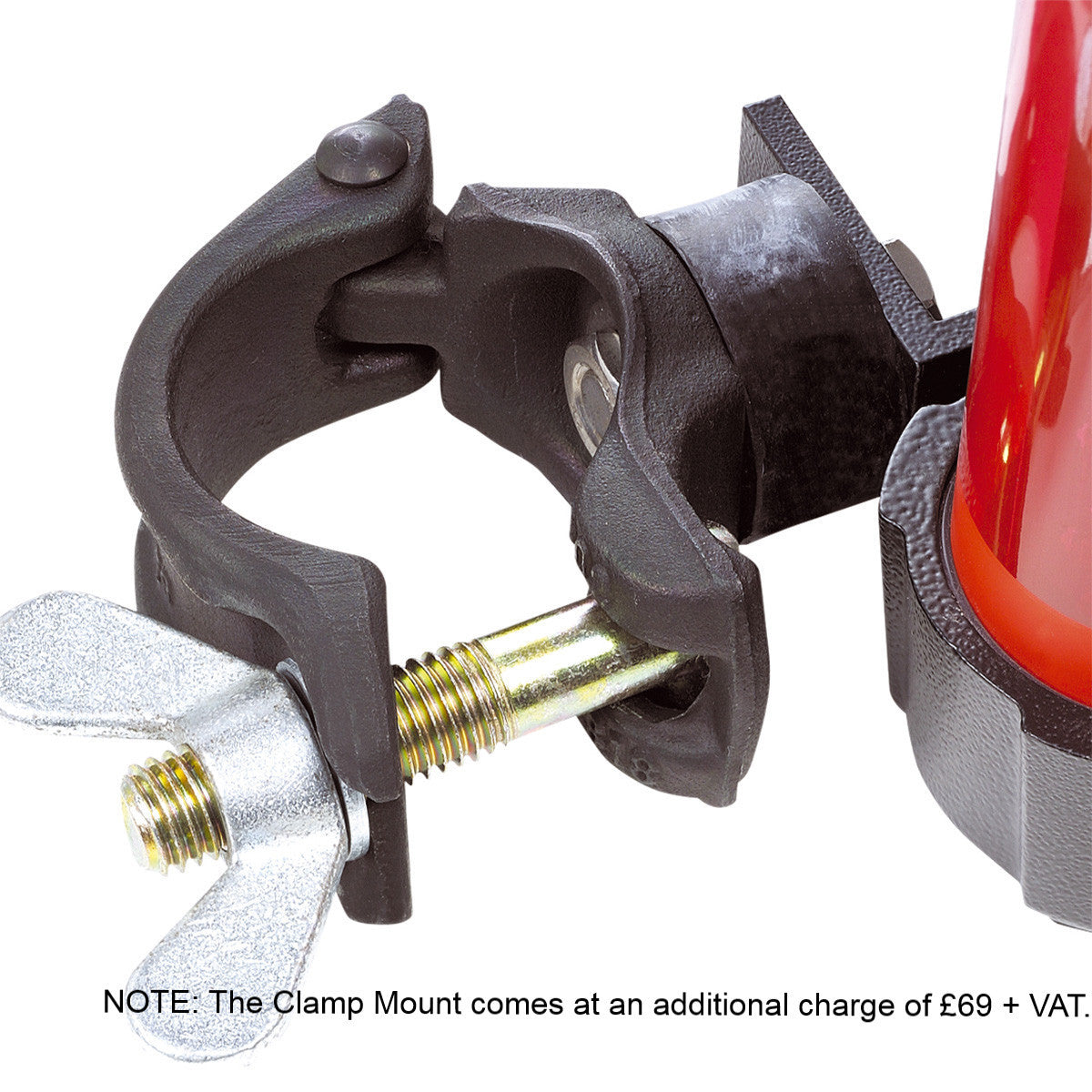

    NOTE: The Clamp Mount comes at an additional cost of £69 + VAT.

  • The Optional Extras available with this product are:

    MD360R Remote Display

    MD360R Remote Display (£349.00 exc VAT)

    The remote display MD360R located in the cabin is connected to the receiver via the RF wireless technology. Clear remote display panel mounts to the windshield with a heavy-duty suction cup or magnetically to the cab or window frame. Won’t block operator’s view. Displays the 9 channels of the receiver, plus the vertical indicator arrows.
