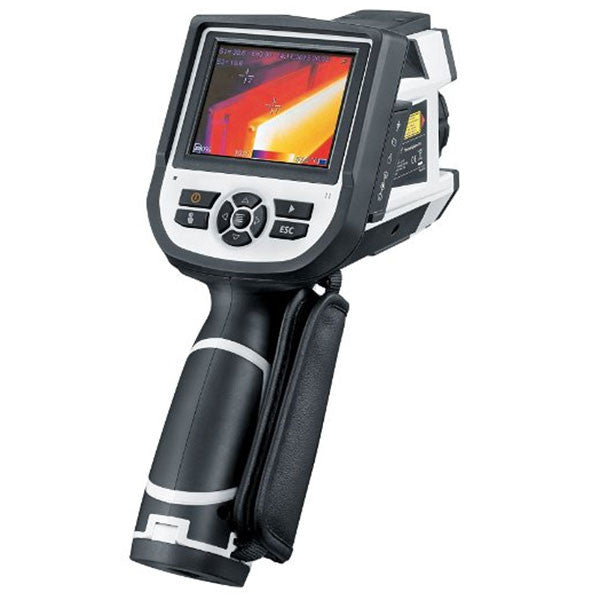

LaserLiner ThermoXplorer Pro

Camera: ThermoXplorer Pro
£2,059.99 exc. VAT


Sturdy thermal camera for professional applications in construction and the electrical industry.

Features of LaserLiner ThermoXplorer pro

Package includes: -

  • ThermoXplorer Pro
  • 2 x Li-ion battery packs
  • Hard case
  • USB cable
  • Video cables
  • 2GB micro-SD

Features - LaserLiner ThermoXplorer Pro

  • Large, high-resolution 3.5″ colour display for analysis
  • 160 x 120 pixel infrared sensor enables detailed and varied image analysis
  • Large measuring range from -20°C to 350°C
  • Analysis in infrared and digital image
  • 11 standard colour palettes with high contrast options for better visualisation
  • Measured value correction for ambient and offset temperature, relative humidity, measuring distance
  • Extended real-time analysis:
  • 4 measuring points, 2 measuring lines (horizontal/vertical), 3 measuring areas (with min/max/avg calculation)
  • Automatic hot/cold point marking and isothermal function for dynamic, visual alarm display
  • Image recordings for documentation with additional voice recording via an integrated microphone
  • Simple and easy to operate thanks to large, easy-to-access menu buttons
IR SENSOR 160 x 120 pixel resolution, uncooled microbolometer, 8-14 μm
IR OPTICS Germanium interchangeable lens, 25° x 19° FOV, 2.73 mrad IFOV, manual focus 0.4 m min.
ACCURACY ± 2°C or ± 2% of measured value
DISPLAY 3.5" colour TFT
IMAGE MODES Infrared, digital
IMAGE FUNCTION 1-2x digital zoom
DIGITAL CAMERA Resolution: 640 x 480 pixels
IMAGE FORMAT JPEG format, max. 640 x 480 pixels
MEMORY FUNCTION Micro-SD card up to 16 GB
TARGET LASER Laser classe 2 < 1 mW
PORTS USB, micro-SD, video
PROTECTION CLASS IP54, drop test 2 m, impact 25g (IEC60068-2-29), vibration 2g (IEC60068-2-6)
POWER SUPPLY / CHARGING TIME / OPERATING TIME Li-Ion pack battery 7,4V / 2,0Ah / approx. 7 hours / approx. 3 hours per battery
DIMENSIONS 298 mm x 104 mm x 149 mm
WEIGHT (incl. battery pack) 1,1 kg

LaserLiner Thermal Imaging Cameras - Family Brochure

LaserLiner ThermoXplorer Pro
