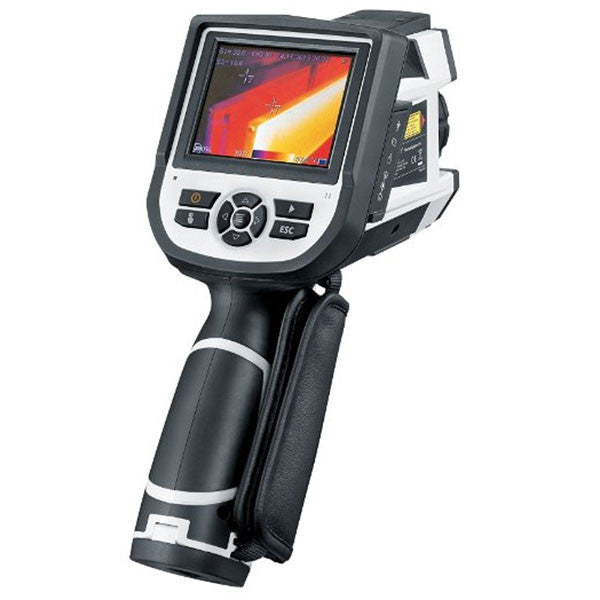

LaserLiner ThermoXplorer Pro

  • Sturdy thermal camera for professional applications in construction and the electrical industry.

    Features of LaserLiner ThermoXplorer pro

    Package includes: -

    • ThermoXplorer Pro
    • 2 x Li-ion battery packs
    • Hard case
    • USB cable
    • Video cables
    • 2GB micro-SD
  • Features - LaserLiner ThermoXplorer Pro

    • Large, high-resolution 3.5″ colour display for analysis
    • 160 x 120 pixel infrared sensor enables detailed and varied image analysis
    • Large measuring range from -20°C to 350°C
    • Analysis in infrared and digital image
    • 11 standard colour palettes with high contrast options for better visualisation
    • Measured value correction for ambient and offset temperature, relative humidity, measuring distance
    • Extended real-time analysis:
    • 4 measuring points, 2 measuring lines (horizontal/vertical), 3 measuring areas (with min/max/avg calculation)
    • Automatic hot/cold point marking and isothermal function for dynamic, visual alarm display
    • Image recordings for documentation with additional voice recording via an integrated microphone
    • Simple and easy to operate thanks to large, easy-to-access menu buttons
  • IR SENSOR 160 x 120 pixel resolution, uncooled microbolometer, 8-14 μm
    IR OPTICS Germanium interchangeable lens, 25° x 19° FOV, 2.73 mrad IFOV, manual focus 0.4 m min.
    THERMAL SENSITIVITY 100 mK NETD, 0.1°C
    ACCURACY ± 2°C or ± 2% of measured value
    MEASUREMENT RANGE -20 °C ... 350 °C
    DISPLAY 3.5" colour TFT
    IMAGE MODES Infrared, digital
    IMAGE FUNCTION 1-2x digital zoom
    DIGITAL CAMERA Resolution: 640 x 480 pixels
    IMAGE FORMAT JPEG format, max. 640 x 480 pixels
    MEMORY FUNCTION Micro-SD card up to 16 GB
    TARGET LASER Laser classe 2 < 1 mW
    PORTS USB, micro-SD, video
    PROTECTION CLASS IP54, drop test 2 m, impact 25g (IEC60068-2-29), vibration 2g (IEC60068-2-6)
    POWER SUPPLY / CHARGING TIME / OPERATING TIME Li-Ion pack battery 7,4V / 2,0Ah / approx. 7 hours / approx. 3 hours per battery
    DIMENSIONS 298 mm x 104 mm x 149 mm
    WEIGHT (incl. battery pack) 1,1 kg
