CCTV Drain Inspection Camera

Length: 20 Metre Drain Camera
£915 exc. VAT

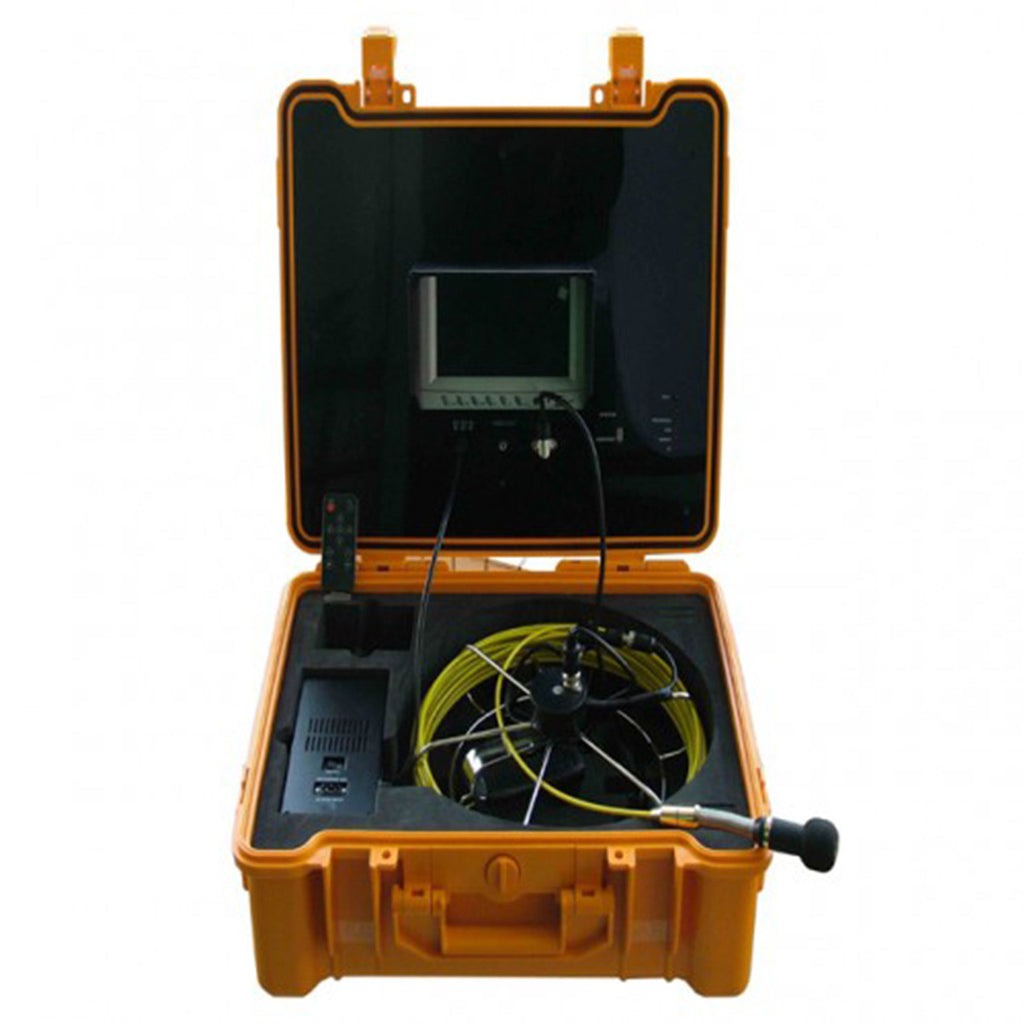

The Drain Inspection Camera is supplied in the new design Industrial class case. The system comes in its own storage box with a built-in LCD screen to review, monitor and record video footage in real-time.

Video footage can be recorded directly onto a USB memory stick (No larger than 2GB) allowing for video footage to be both viewed, stored and played back. With a Video out facility recodings can also be made directly to a media player or other recording device. The systems comes with software which has a CODEC on to allow users to view video on a PC. (At present there is no software to use this system on an Apple Mac computer).

The LCD screen, camera and DVR can be powered either from the 12v rechargeable battery or from a UK plug adaptor. The inspection camera is mounted on a spring and connects to a fibreglass cable. Once connected, the user can view the images in colour on the built-in LCD screen.

CCTV Drain Inspection Camera Manual

Camera Specifications:
- 420 TV line resolution colour CCD
- Sapphire glass lens cover
- 60° camera vision angle
- Camera diameter 22mm (35mm including foam cover)
- 8 Infrared LEDs
- 20cm total length including spring and connector

Cable Wheel Specifications:
- Stainless steel wheel with special structure for connection to the monitor
- 20m/40m fibreglass rod cable
- Gold touch-point connector to camera
- 13cm rubber covered handle
- 33cm wheel diameter

Monitor Specification:
- 18cm (7") TFT LCD monitor
- 13cm (5") H x 20cm (7.75") W x 2.5cm (1") D
- 320x960 pixel resolution
- AC/DC power supply
- Storage battery used
- -28° C - 49° C operating temperature

Package includes: -

  • Inspection camera with 8 LEDs
  • USB digital video recorder with remote control
  • 20m fibreglass cable and stainless steel reel
  • 12v rechargeable battery
  • 18cm (7") TFT LCD screen
  • Sturdy storage box into which all items mount/fit
