Description
NOTE: This cable detector is no longer available to buy.
We recommend that you view the new Leica ULTRA and Leica DD Cable Detectors.

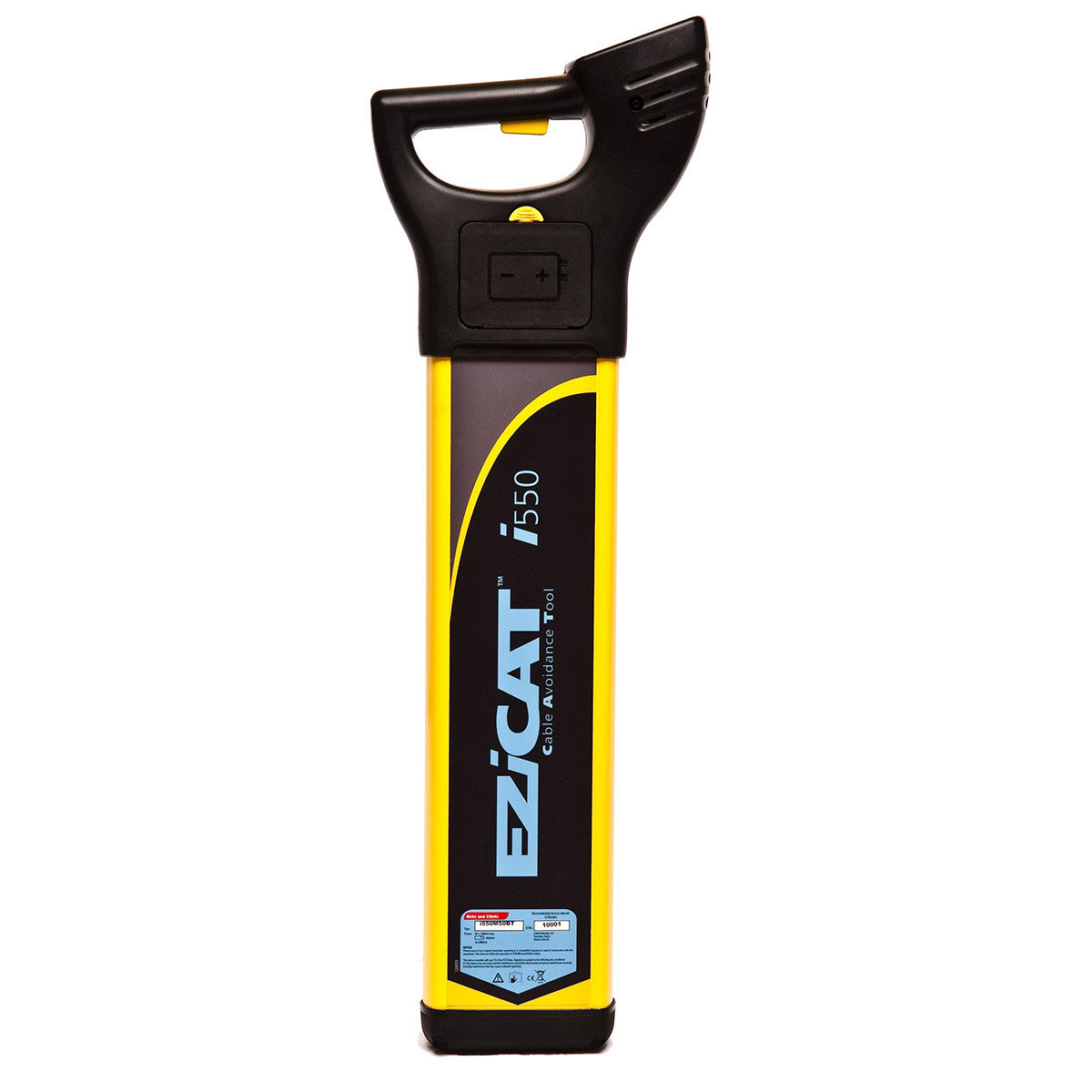

The EZiCAT i550 locator can be purchased with the added benefit of Bluetooth wireless connectivity. It will allow the EZiCAT to integrate seamlessly with mobile mapping technology to log survey data.
Box Contents
Package includes: -
- EZiCAT™ i550 Cable Locator
- Six AA (LR6) Batteries
- Quickstart Reference Guide
- Safety Concepts Manual
- CD‐ROM containing User Manual & Certificate of Conformity
|
Features |
EZiCAT i500 |
EZiCAT i550 |
EZiCAT i600 |
EZiCAT i650 |
|---|---|---|---|---|
|
High Contrast LCD Display |
✓ |
✓ |
✓ |
✓ |
|
Automatic Sensitivity Adjustment |
✓ |
✓ |
✓ |
✓ |
|
5 Operating Modes - including 'Auto Mode' |
✓ |
✓ |
✓ |
✓ |
|
'Hazard Zone' - Shallow Service Warning |
✓ |
✓ |
✓ |
✓ |
|
In-built User Activated Self-Test Function |
✓ |
✓ |
✓ |
✓ |
|
Peak Assist Function |
✓ |
✓ |
✓ |
✓ |
|
Bluetooth Wireless Data Transfer |
✓ |
✓ |
||
|
Always Starts in 'Power Mode' for Safety |
✓ |
✓ |
||
|
Automatic Pinpointing |
✓ |
✓ |
||
|
Service Depth Indication |
✓ |
✓ |
EZiCAT Intelligent Features
Automatic controls - Making the EZiCAT easy to use, requiring minimal user training.
Starts in Power Mode - Ensures the most potentially dangerous current carrying services are detected first for maximum operator safety.
Auto Mode - Automatically locates power or radio signals, helping to confirm the presence of services upon initial site occupation making cable detection easier and safer!
Hazard Zone - Buried utilities close to the surface pose a significant safety risk to site works. The new Hazard Zone function provides an additional warning to the close proximity of buried services, alerting users to the immediate danger.
Pinpoint assist - Maintains the highest peak reading obtained on the signal strength indicator for a period of time, allowing the operator to quickly and accurately pinpoint the service position.
In‐built test function - Allowing operators to test the hardware and software functionality of the EZiCAT before use.
Service Due indicator - Wrench icon displayed after 12 months.
Highly visible digital LCD display - with built‐in light sensor, automatically enabling the backlight in dark conditions.
Robust, light weight design - EZiCAT i‐Series locators are specifically engineered for tough site conditions.
Additional Information
• Dual mode active tracing for on‐site flexibility
• Controls: On/Off, Mode select, ’i‐button’ Information select & view
• Frequencies: Power 50/60 Hz, Radio 15‐60 kHz, Generator 8 & 33 kHz
• Depth range: Power/Generator 3 metres, Radio 2 metres
• Dust and water protection to IP54
