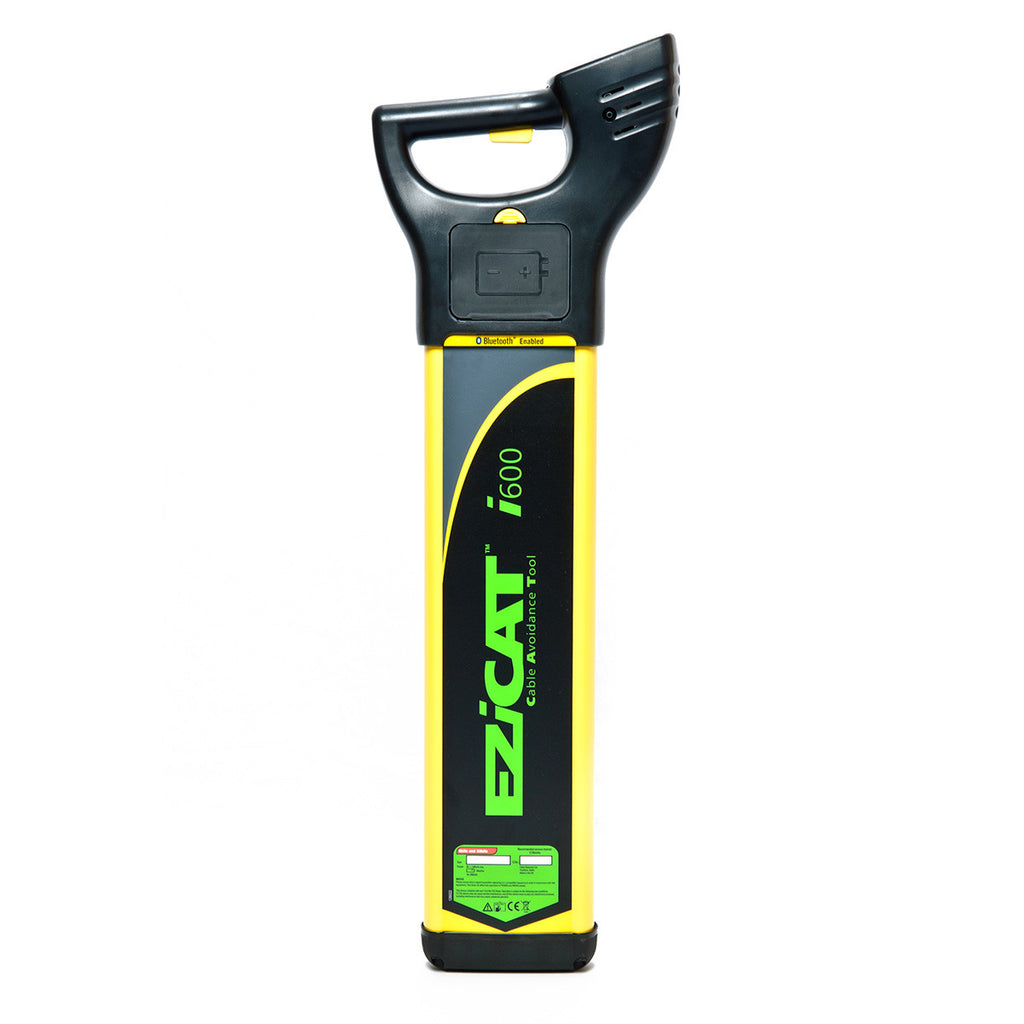

EZiCAT™ i600 Cable Locator

Price on Application


NOTE: This cable detector is no longer available to buy.

We recommend that you view the new Leica ULTRA and Leica DD Cable Detectors.

View New Cable Detectors »


Data Logging

Both the EZiCAT i600 and i650 record and store detection information whilst in use. The locators start to record information every second after completion of the initial start-up routine. These records (logs) are stored in the locator’s memory and can be retrieved and transferred via Bluetooth to a PC for analysis. The locators are capable of storing approximately 80 hours of records.

Bluetooth Wireless Connectivity

Both the EZiCAT i600 and i650 locators have the added benefit of Bluetooth wireless connectivity. It allows the EZiCAT to integrate seamlessly with mobile mapping technology to log survey data, in addition to enabling wireless Bluetooth data transfer.

Box Contents

Package includes: -

  • EZiCAT™ i600 Cable Locator
  • Six AA (LR6) Batteries
  • Quickstart Reference Guide
  • Safety Concepts Manual
  • CD‐ROM containing User Manual & Certificate of Conformity


EZiCAT i500

EZiCAT i550

EZiCAT i600

EZiCAT i650

High Contrast LCD Display

Automatic Sensitivity Adjustment

5 Operating Modes - including 'Auto Mode'

'Hazard Zone' - Shallow Service Warning

In-built User Activated Self-Test Function

Peak Assist Function

Bluetooth Wireless Data Transfer

Always Starts in 'Power Mode' for Safety

Automatic Pinpointing

Service Depth Indication

EZiCAT Intelligent Features

Automatic controls - Making the EZiCAT easy to use, requiring minimal user training.

Starts in Power Mode

Ensures the most potentially dangerous current carrying services are detected first for maximum operator safety.

Auto Mode

Automatically locates power or radio signals, helping to confirm the presence of services upon initial site
occupation making cable detection easier and safer!

Hazard Zone

Buried utilities close to the surface pose a significant safety risk to site works. The new Hazard Zone function
provides an additional warning to the close proximity of buried services, alerting users to the immediate danger.

Pinpoint assist

Maintains the highest peak reading obtained on the signal strength indicator for a period of time, allowing the
operator to quickly and accurately pinpoint the service position.

Signal Strength Indicator

All EZiCAT i-Series locators feature numeric signal strength readout, specifically designed for easy Sonde location and use with Signal generator.

Inbuilt test function.

Allowing operators to test the hardware and software functionality of the EZiCAT before use.

Service Due indicator

Wrench icon displayed after 12 months.

Highly visible digital LCD display

with built‐in light sensor, automatically enabling the backlight in dark conditions.

Robust, light weight design

EZiCAT i‐Series locators are specifically engineered for tough site conditions.

Additional Information

  • Dual mode active tracing for on‐site flexibility
  • Controls: On/Off, Mode select, ’i‐button’ Information select & view
  • Frequencies: Power 50/60 Hz, Radio 15‐60 kHz, Generator 8 & 33 kHz
  • Depth range: Power/Generator 3 metres, Radio 2 metres
  • Dust and water protection to IP54

Cable Detection EZiCAT™ Brochure

Cable Detection EZiCAT™ User Manual
