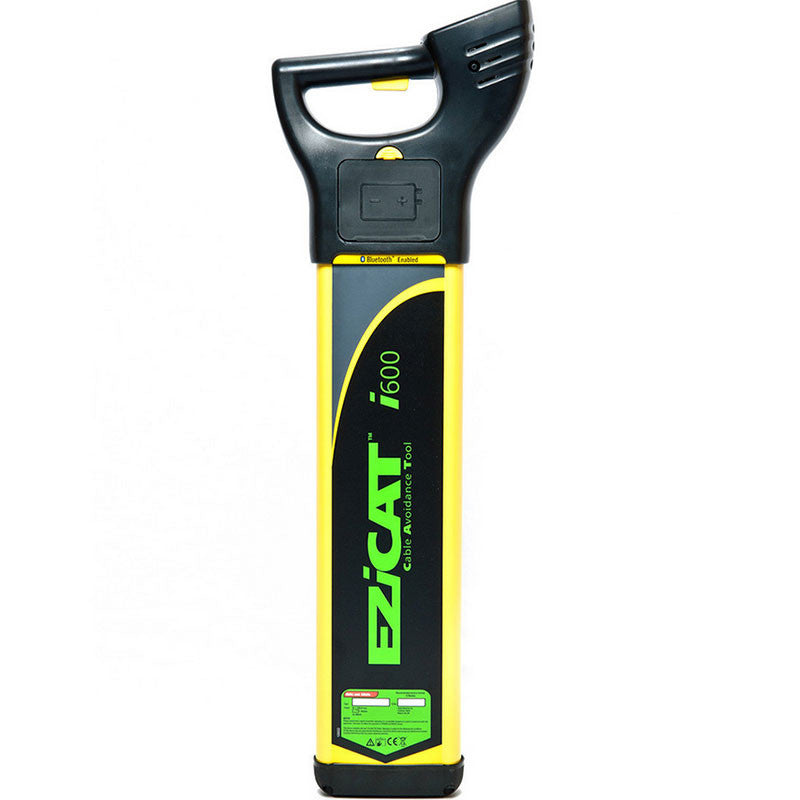

EZiCAT™ i600 xf Cable Locator

  • As with all our cable locators the EZiCAT i600 xf is robust and easy to use. Packed full of intelligent, beneficial features plus extra lower frequencies make tracing buried utilities over long distances easy and efficient.

    The intelligent EZiCAT i600 xf cable locator has fully integrated data logging capability, providing you with information on how and when the locator has been used. This information can then be transferred via Bluetooth® to LOGiCAT software, making downloading and analysing the data quick and easy. This data is useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

    The Network Rail approved cable locator is suitable for a wide range of applications and can be used with the EZiTEX xf-Series signal transmitters and EZiSYSTEM accessories for increased accuracy and applications.

    Box Contents

    Package includes: -

    • EZiCAT™ i600 xf Cable Locators
    • Six AA (LR6) Batteries
    • Quickstart Reference Guide
    • Safety Concepts Manual
    • CD-ROM containing User Manual & Certificate of Conformity
  • Features EZiCAT i500 xf EZiCAT i550 xf EZiCAT i600 xf EZiCAT i650 xf EZiCAT i750 xf
    High Contrast LCD Display
    Automatic Sensitivity Adjustment
    4 Operating Modes - including Auto Mode
    Mode Lock
    Hazard Zone - Shallow Service Warning
    In-built User Activated Self Test
    Peak Assist Function
    Signal Strength Indicator
    Service Depth Indication
    Current Level Indication
    Data Logging
    Bluetooth Connectivity
    Selectable Bluetooth Option
    GPS Technology
  • EZiCAT i600 xf Intelligent Features

    All EZiCAT xf-Series locators always start in the last mode used and have with two lower frequencies (512Hz and 640Hz), making them ideal for tracing buried utilities over long distances.

    The EZiCAT i600 xf has data logging capability, which helps you to see when and how the locator has been used. This is very useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

    As with all EZiCAT locators the EZiCAT i600 xf  has all the well-known features you need to locate buried utilities effectively along with the unique 'Automatic Pinpointing' feature which makes locating buried utilities easy and simple. You don't need to manually adjust the sensitivity of the locator because the locator does this for you automatically. Ensuring that you are using the optimum sensitivity for the environment you are locating in. To access and analyse the data collected by the locator you will also need the LOGiCAT software or you will need to integrate te EZICAT i600 xf with mobile mapping technology to log the survey data.

  • Applications

    TThe EZiCAT i600 xf is can be used before any excavation work to avoid striking a buried utility but is ideal for tracing buried cables and pipes over long distances.

    This locator will increase your on-site safety, save you time, with the unique 'Automatic Pinpointing' feature, and save you money by reducing cable strikes.

    You can use the locator to detect a number of different cables or pipes:

    • Electricity cables
    • Data / telecomms cables
    • Conductive pipes (including; steel, cast iron etc.)
    • Non-conductive pipes or cables (including; clay, concrete etc.) when used in conjunction with Cable Detection's accessories and/or EZiTEX xf-Series signal transmitter to detect them.
  • Hire

    This cable detector is also available to hire.

    Please visit our Cable Detector Hire page or call us on 0800 633 5131.

    View Cable Detector Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • Downloads

    Cable Detection EZiCAT™ xf Series Brochure
