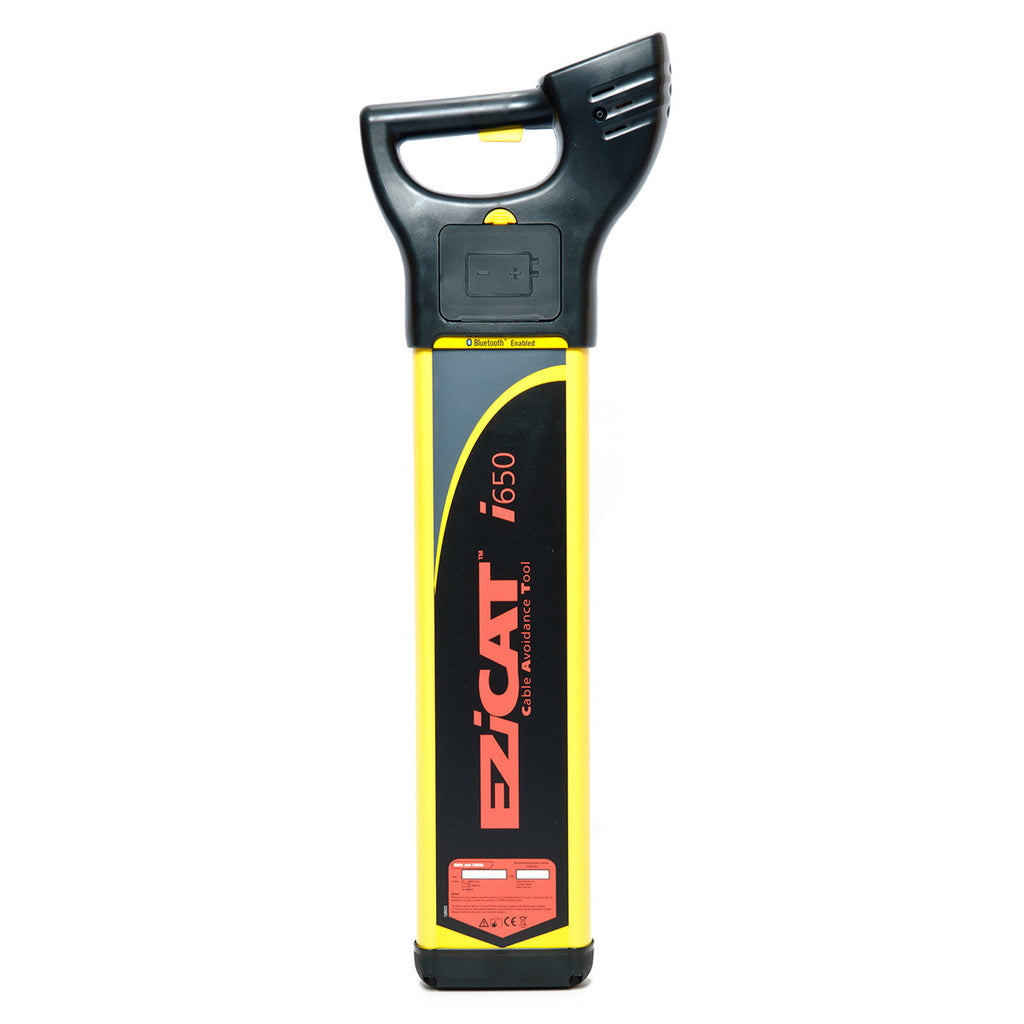

EZiCAT™ i650 Cable Locator

  • The new EZiCAT i650 provides a unique data capture and on board memory function, allowing verification of the locators use and the ability to recall records following a near miss, service strike or similar incident.

    The EZiCAT i650 locates buried conductive services by receiving electromagnetic signals which radiate from them. The EZiCAT's intelligent software interprets the signal data and provides the operator with an audiable response to the location and direction of buried utilities. The operator can mark the ground or use a GIS mapping device to note the location.

    With the unique LOGiCAT Software, records can be retrieved and collated helping to increase on site safety, whilst identifying training needs.

    The EZiCAT i650 makes locating underground cables and pipes a simple and efficient task, increasing your onsite safety and ultimately saving time and money.

    Buried service location has never been so easy…

    Box Contents

    Package includes: -

    • EZiCAT™ i650 Cable Locator
    • Six AA (LR6) Batteries
    • Quickstart Reference Guide
    • Safety Concepts Manual
    • CD‐ROM containing User Manual & Certificate of Conformity
  • Features

    EZiCAT i500

    EZiCAT i550

    EZiCAT i600

    EZiCAT i650

    High Contrast LCD Display

    Automatic Sensitivity Adjustment

    5 Operating Modes - including 'Auto Mode'

    'Hazard Zone' - Shallow Service Warning

    In-built User Activated Self-Test Function

    Peak Assist Function

    Bluetooth Wireless Data Transfer

    Always Starts in 'Power Mode' for Safety

    Automatic Pinpointing

    Service Depth Indication

  • EZiCAT i650 New Features

    Data Logging

    Both the EZiCAT i600 and i650 record and store detection information whilst in use. The locators start to record information every second after completion of the initial start-up routine. These records (logs) are stored in the locator’s memory and can be retrieved and transferred via Bluetooth to a PC for analysis. The locators are capable of storing approximately 80 hours of records.

    Bluetooth Wireless Connectivity

    Both the EZiCAT i600 and i650 locators have the added benefit of Bluetooth wireless connectivity. It allows the EZiCAT to integrate seamlessly with mobile mapping technology to log survey data, in addition to enabling wireless Bluetooth data transfer.

    Depth Indication

    When using the EZiCAT in conjunction with the EZiTRACE or Sonde in 8 or 33 kHz modes, operators can determine the depth of the buried utility, providing a clear advantage when conducting ground surveys.

    EZiCAT Intelligent Features

    Automatic controls

    Making the EZiCAT easy to use, requiring minimal user training.

    Starts in Power Mode

    Ensures the most potentially dangerous current carrying services are detected first for maximum operator safety.

    Auto Mode

    Automatically locates power or radio signals, helping to confirm the presence of services upon initial site
    occupation making cable detection easier and safer!

    Hazard Zone

    Buried utilities close to the surface pose a significant safety risk to site works. The new Hazard Zone function
    provides an additional warning to the close proximity of buried services, alerting users to the immediate danger.

    Pinpoint assist

    Maintains the highest peak reading obtained on the signal strength indicator for a period of time, allowing the
    operator to quickly and accurately pinpoint the service position.

    Signal Strength Indicator

    All EZiCAT i-Series locators feature numeric signal strength readout, specifically designed for easy Sonde location and use with Signal generator.

    Inbuilt test function.

    Allowing operators to test the hardware and software functionality of the EZiCAT before use.

    Service Due indicator

    Wrench icon displayed after 12 months.

    Highly visible digital LCD display

    with built‐in light sensor, automatically enabling the backlight in dark conditions.

    Robust, light weight design

    EZiCAT i‐Series locators are specifically engineered for tough site conditions.

    Additional Information

    • Dual mode active tracing for on‐site flexibility
    • Controls: On/Off, Mode select, ’i‐button’ Information select & view
    • Frequencies: Power 50/60 Hz, Radio 15‐60 kHz, Generator 8 & 33 kHz
    • Depth range: Power/Generator 3 metres, Radio 2 metres
    • Dust and water protection to IP54
  • Optional Extras

    The Optional Extras available with this product are:

    Ezitex T100 Dual Frequency Signal Generator

    Ezitex T100 Dual Frequency Signal Generator (£445 exc VAT)

    Designed in conjunction with the EZiCAT locators, to easily and accurately trace the route of, or locate, an underground cable or metal pipe that does not carry a naturally present signal.

    View product

    Cable Detection Carry Bag

    Cable Detection Carry Bag (£65 exc VAT)

    The.Cable Detection Carry Bag is made for use with EZiCAT Cable Locators and the EZiTEX signal generator. Light and comfortable to carry.

    View product

    Cable Detection Property Connection Cable

    Cable Detection Property Connection Cable (£105 exc VAT)

    The Property Connection Set connects an EZiTEX signal generator to the live electricity mains cable within the property in order to apply a signal to it.

    View product

    Cable Detection Signal Clamp

    Cable Detection Signal Clamp (£195 exc VAT)

    The Signal Clamp is a lightweight, robust 100mm clamp used to apply a traceable signal to buried cables and pipes, when used together with an EZiTEX signal generator.

    View product

  • Hire

    This cable detector is also available to hire.

    Please visit our Cable Detector Hire page or call us on 0800 633 5131.

    View Cable Detector Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • Downloads

    Cable Detection EZiCAT™ Brochure

    Cable Detection EZiCAT™ User Manual
