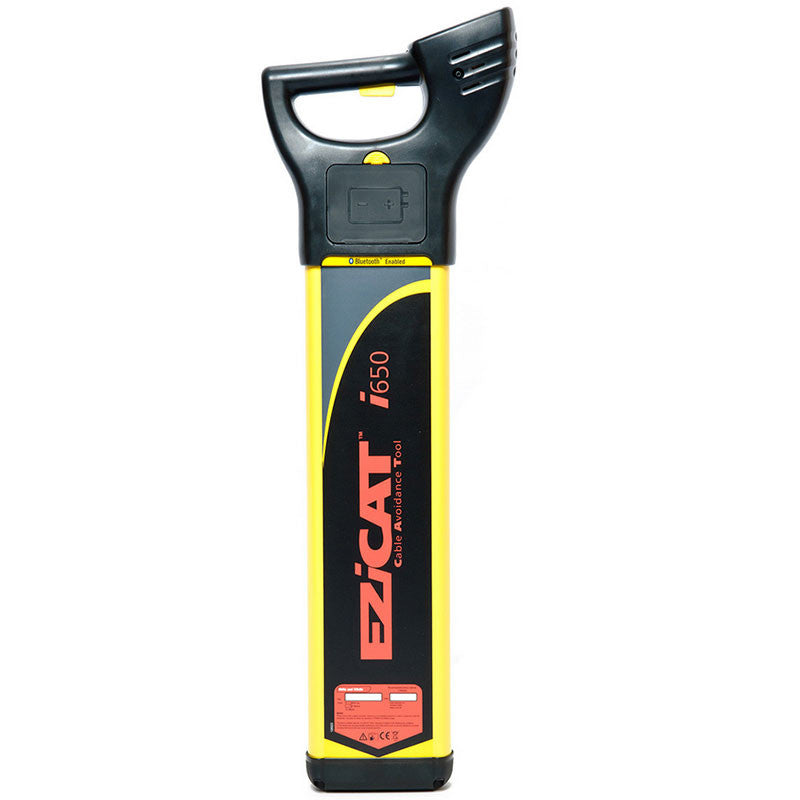

EZiCAT™ i650 xf Cable Locator


NOTE: This cable detector is no longer available to buy.

We recommend that you view the new Leica ULTRA and Leica DD Cable Detectors.

View New Cable Detectors »



As with all our cable locators the EZiCAT i650 xf is robust and easy to use. Packed full of all the intelligent, beneficial features included in the EZiCAT i600 xf but with the added benefit of depth estimation. Plus extra lower frequencies make tracing buried utilities over long distances easy and efficient.

The intelligent EZiCAT i650 xf cable locator has fully integrated data logging capability, providing you with information on how and when the locator has been used. This information can then be transferred via Bluetooth® to LOGiCAT software, making downloading and analysing the data quick and easy. This data is useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

The Network Rail approved cable locator is suitable for a wide range of applications and can be used with the EZiTEX xf-Series signal transmitters and EZiSYSTEM accessories for increased accuracy and applications.

Box Contents

Package includes: -

  • EZiCAT™ i650 xf Cable Locators
  • Six AA (LR6) Batteries
  • Quickstart Reference Guide
  • Safety Concepts Manual
  • CD-ROM containing User Manual & Certificate of Conformity
Features EZiCAT i500 xf EZiCAT i550 xf EZiCAT i600 xf EZiCAT i650 xf EZiCAT i750 xf
High Contrast LCD Display
Automatic Sensitivity Adjustment
4 Operating Modes - including Auto Mode
Mode Lock
Hazard Zone - Shallow Service Warning
In-built User Activated Self Test
Peak Assist Function
Signal Strength Indicator
Service Depth Indication
Current Level Indication
Data Logging
Bluetooth Connectivity
Selectable Bluetooth Option
GPS Technology

EZiCAT i650 xf Intelligent Features

All EZiCAT xf-Series locators always start in the last mode used and have with two lower frequencies (512Hz and 640Hz), making them ideal for tracing buried utilities over long distances.

The EZiCAT i650 xf has data logging capability, which helps you to see when and how the locator has been used. This is very useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

As with all EZiCAT locators the EZiCAT i650 xf  has all the well-known features you need to locate buried utilities effectively along with the unique 'Automatic Pinpointing' feature which makes locating buried utilities easy and simple. You don't need to manually adjust the sensitivity of the locator because the locator does this for you automatically. Ensuring that you are using the optimum sensitivity for the environment you are locating in.

To access and analyse the data collected by the locator you will also need the LOGiCAT software or you will need to integrate te EZICAT i650 xf with mobile mapping technology to log the survey data.

Box Contents

Package includes: -

  • EZiCAT™ i650 xf Cable Locators
  • Six AA (LR6) Batteries
  • Quickstart Reference Guide
  • Safety Concepts Manual
  • CD-ROM containing User Manual & Certificate of Conformity

Applications

The EZiCAT i650 xf is can be used before any excavation work to avoid striking a buried utility but is ideal for tracing buried cables and pipes over long distances. This locator will increase your on-site safety, save you time, with the unique 'Automatic Pinpointing' feature, and save you money by reducing cable strikes.

You can use the locator to detect a number of different cables or pipes:

  • Electricity cables
  • Data / telecomms cables
  • Conductive pipes (including; steel, cast iron etc.)
  • Non-conductive pipes or cables (including; clay, concrete etc.) when used in conjunction with Cable Detection's accessories and/or EZiTEX xf-Series signal transmitter to detect them.
Downloads

Cable Detection EZiCAT™ xf Series Brochure
