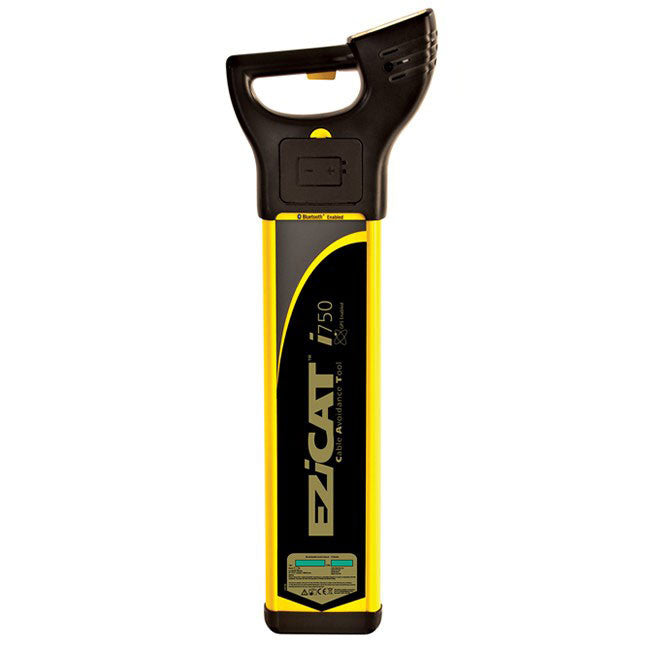

EZiCAT™ i750 Cable Locator

  • As with all our cable locators the EZiCAT i750 is robust and easy to use.

    Packed full of all the well-known, beneficial features included in the EZiCAT i700 but with the additional benefit of depth estimation.

    The EZiCAT i750 makes avoiding and locating buried utilities an easy and efficient task.

    The intelligent EZiCAT i750 cable locator has fully integrated GPS technology and data logging capability, providing you with information on where, when and how the locator has been used. This information can then be transferred via Bluetooth® to LOGiCAT software, making downloading and analysing the data quick and easy. This data is useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

    The cable locator is suitable for a wide range of applications and can be used with the EZiTEX signal transmitters and EZiSYSTEM accessories for increased accuracy and applications.

    Box Contents

    Package includes: -

    • EZiCAT™ i750 Cable Locator
    • Six AA (LR6) Batteries
    • Quickstart Reference Guide
    • Safety Concepts Manual
    • CD‐ROM containing User Manual & Certificate of Conformity
  • Features

    EZiCAT 700 i-Series
    (i700 & i750)

    EZiCAT 750xf



    Frequency/ mode

    Power 50 Hz or 60 Hz, Radio 15 kHz to 60kHz,
    Transmitter 8 kHz and 33 kHz, Auto = Power + Radio modes

    Power 50 Hz or 60 Hz, Radio 15 kHz to 60kHz,
    Transmitter 8 kHz, 33 kHz, 512 Hz & 640 Hz Auto = Power + Radio modes



    Depth estimation

    Available on the i750 only
    10% of depth in line or sonde mode
    Line & sonde modes - 0.3m – 3m depth range

    10% depth in line or sonde mode Line mode – 0.3m – 3m
    Sonde mode – 0.3m to 9.99m

    Typical depth detection range

    Power mode to 3m, Radio mode to 2m, Transmitter mode – dependant on transmitter or sonde type



    Batteries



    6 x AA alkaline (IEC LR6), supplied



    Battery life



    40 hours intermittent use (at 20°C)



    Weight



    2.7kg including batteries



    Dimensions



    760mm (H) x 85mm (D) x 250(W)



    Protection



    Conforms to IP54



    Bluetooth®



    Enabled



    Compatibility



    CSV file compatibility program



    Memory size



    64 MB memory



    GPS type

    Chipset*: u-blox®GPS, Technical Data: Type: L1 frequency, C/A code



    GPS accuracy**



    Position 2.5m CEP, SBAS 2.0m CEP



    GPS start time



    Cold 34s typical, Warm 34s typical, Hot 1s typical

  • Intelligence Features

    The intelligent EZiCAT i750 has integrated GPS technology and data logging capability, which helps you to see where, when and how the locator has been used.

    This is very useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

    The EZiCAT i750 has all the well-known features you need to locate buried utilities effectively, along with the unique 'Automatic Pinpointing' feature which makes locating buried cables and pipes easy and simple.

    You don't need to manually adjust the sensitivity of the locator because the intelligent locator does this for you.

    Ensuring that you are using the optimum sensitivity for the environment you are locating in. To access and analyse the data collected by the locator you will also need the LOGiCAT software or you will need to integrate the EZiCAT i750 with mobile mapping technology to log the survey data.

  • Applications

    The EZiCAT i750 is ideal to use before any excavation work to avoid striking a buried utility, especially if you need an estimation of the depth of the utility.

    This locator will increase your on-site safety, save you time, through the unique 'Automatic Pinpointing' feature, and save you money by reducing cable strikes.

    You can use the locator to detect a number of different cables or pipes:

    • Electricity cables
    • Data / telecomms cables
    • Conductive pipes (including; steel, cast iron etc.)
    • Non-conductive pipes or cables (including; clay, concrete etc.) when used in conjunction with Cable Detection's accessroies and/or EZiTEX signal transmitters to detect them

    Please Note: If you need an estimation of the depth of the utility you will need to use the EZiCAT i750 in conjunction with one of the EZiTEX signal transmitters.

  • Optional Extras

    The Optional Extras available with this product are:

    Ezitex T100 Dual Frequency Signal Generator

    Ezitex T100 Dual Frequency Signal Generator (£445 exc VAT)

    Designed in conjunction with the EZiCAT locators, to easily and accurately trace the route of, or locate, an underground cable or metal pipe that does not carry a naturally present signal.

    View product

    Cable Detection Carry Bag

    Cable Detection Carry Bag (£65 exc VAT)

    The.Cable Detection Carry Bag is made for use with EZiCAT Cable Locators and the EZiTEX signal generator. Light and comfortable to carry.

    View product

    Cable Detection Property Connection Cable

    Cable Detection Property Connection Cable (£105 exc VAT)

    The Property Connection Set connects an EZiTEX signal generator to the live electricity mains cable within the property in order to apply a signal to it.

    View product

    Cable Detection Signal Clamp

    Cable Detection Signal Clamp (£195 exc VAT)

    The Signal Clamp is a lightweight, robust 100mm clamp used to apply a traceable signal to buried cables and pipes, when used together with an EZiTEX signal generator.

    View product

  • Hire

    This cable detector is also available to hire.

    Please visit our Cable Detector Hire page or call us on 0800 633 5131.

    View Cable Detector Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • Downloads

    Cable Detection EZiCAT™ 700 Series Tech Data
