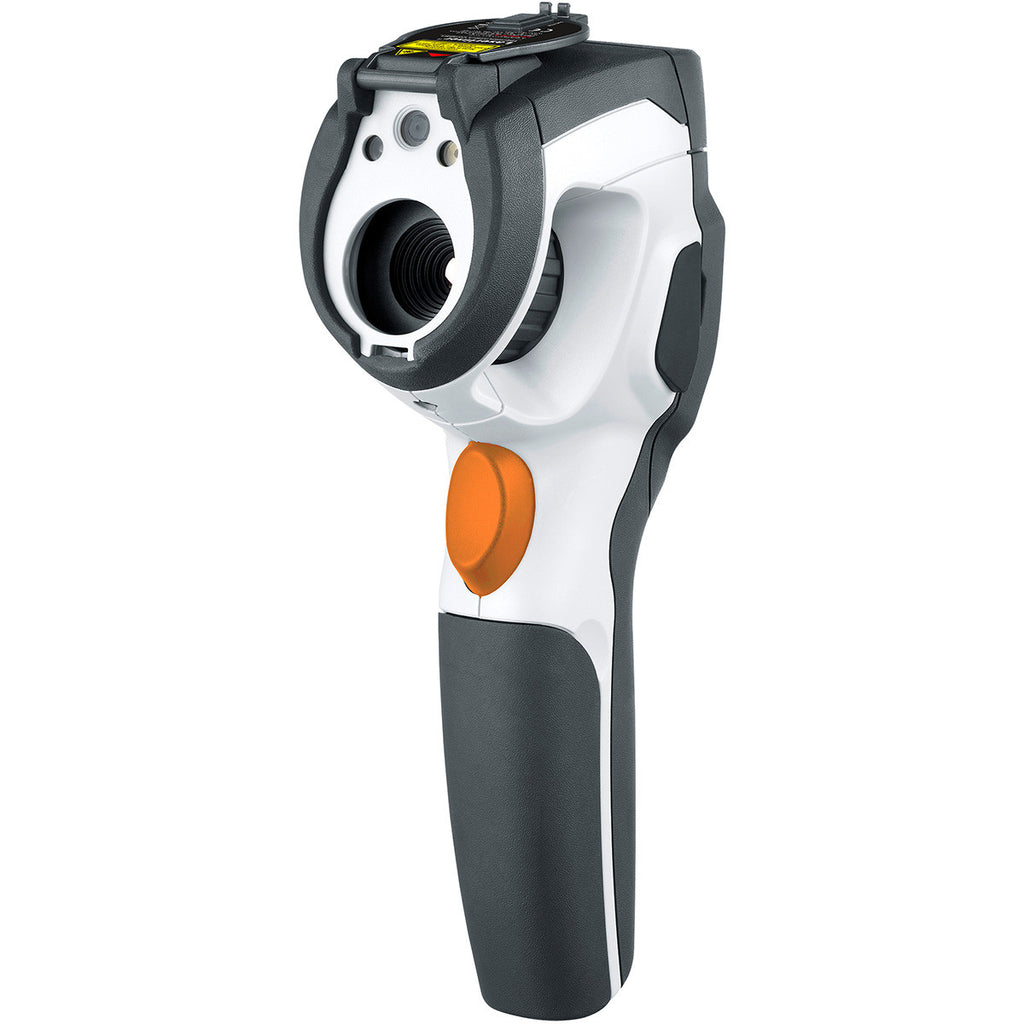

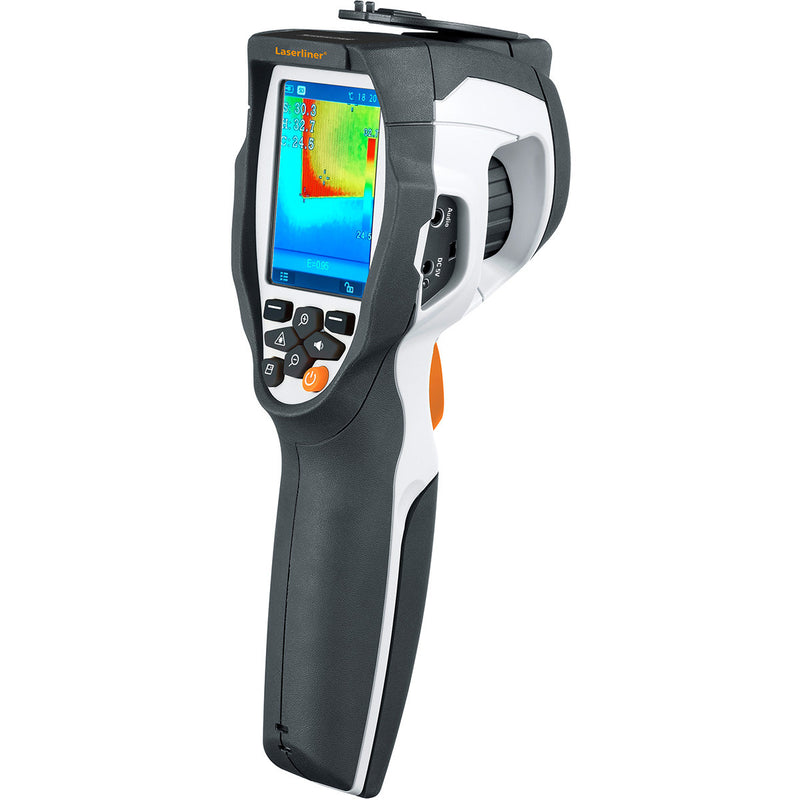

LaserLiner ThermoCamera Compact

  • The LaserLiner ThermoCamera Compact is a handheld thermal imaging camera.

    It can be used for applications in construction, electrical engineering and mechanical engineering.

    LaserLiner ThermoCamera Compact Features

    Package includes: -

    • ThermoCamera Compact
    • Li-ion Battery
    • USB Cable
    • Video Cable
    • 8GB Micro SD
  • Features - LaserLiner ThermoCamera Compact

    • High-resolution 2.8″ colour display for reliable evaluation and analysis of temperature conditions
    • Infrarod sensor with 80 x 80 pixel resolution and focusable infrared lens for detailed and varied image analysis
    • Large measuring range from -20 °C to 350 °C, adjustable emissivity range from 0.01 to 1.0 or selection from material table
    • Analysis in various image modes:
    • Full screen: Infrared image, camera
    • Picture-in-picture: Infrared/visual image
    • Dual-image: Infrared/camera crossfade
    • Selectable standard colour pallets: IRON, IRON-INV, RAINBOW, GREY, GREY-INV
    • Central measuring point for temperature analysis and additional automatic hot/cold spot marking
    • Measured value correction for ambient and reflected temperature for easy compensation of error effects
    • Built-in USB 2.0 PC interface for smooth data exchange and additional PC camera function
    • Simple and easy to operate thanks to easy-to-access menu buttons
  • IR-SENSOR 80 x 80 measuring points, 25 fps uncooled microbolometer, 8-14μm
    IR OPTICS Germanium interchangeable lens 17° x 17° (FOV) 3,78 mrad (IFOV) adjustable focus 0,5 m - 5 m
    ACCURACY ± 2°C or ± 2% of measured value
    MEASUREMENT RANGE –20°C...+150°C LO - RANGE 0°C...+350°C HI - RANGE
    DISPLAY 2.8" colour TFT
    IMAGE MODES Infrared, VIS, Picture-in-picture
    IMAGE FUNCTION 1-32x digital zoom
    FORMAT MPEG-4 standard, max. 1280 x 960 Pixel, 30fps > 60 min. on memory card
    MEMORY FUNCTION Micro-SD-Card - up to 16 GB
    LED White LED, object lighting
    TARGET LASER Laser classe 2 < 1 mW
    MENU Choice of 9 languages
    PORTS USB, micro-SD, video (HDMI), audio, microphone/headphone
    PROTECTION CLASS IP65, drop test 2 m, impact 25 g (IEC60068-2-29), vibration 2 g (IEC60068-2-6)
    RELATIVE HUMIDITY 10%rH … 90%rH, no condensation
    POWER SUPPLY / CHARGING TIME / OPERATING TIME Li-Ion pack battery 3.7V/2,6Ah / approx. 4 h / charg. electronic system, DC 5V
    DIMENSIONS 97 mm x 77 mm x 244 mm
    WEIGHT (incl. batteries) 0,500 kg
