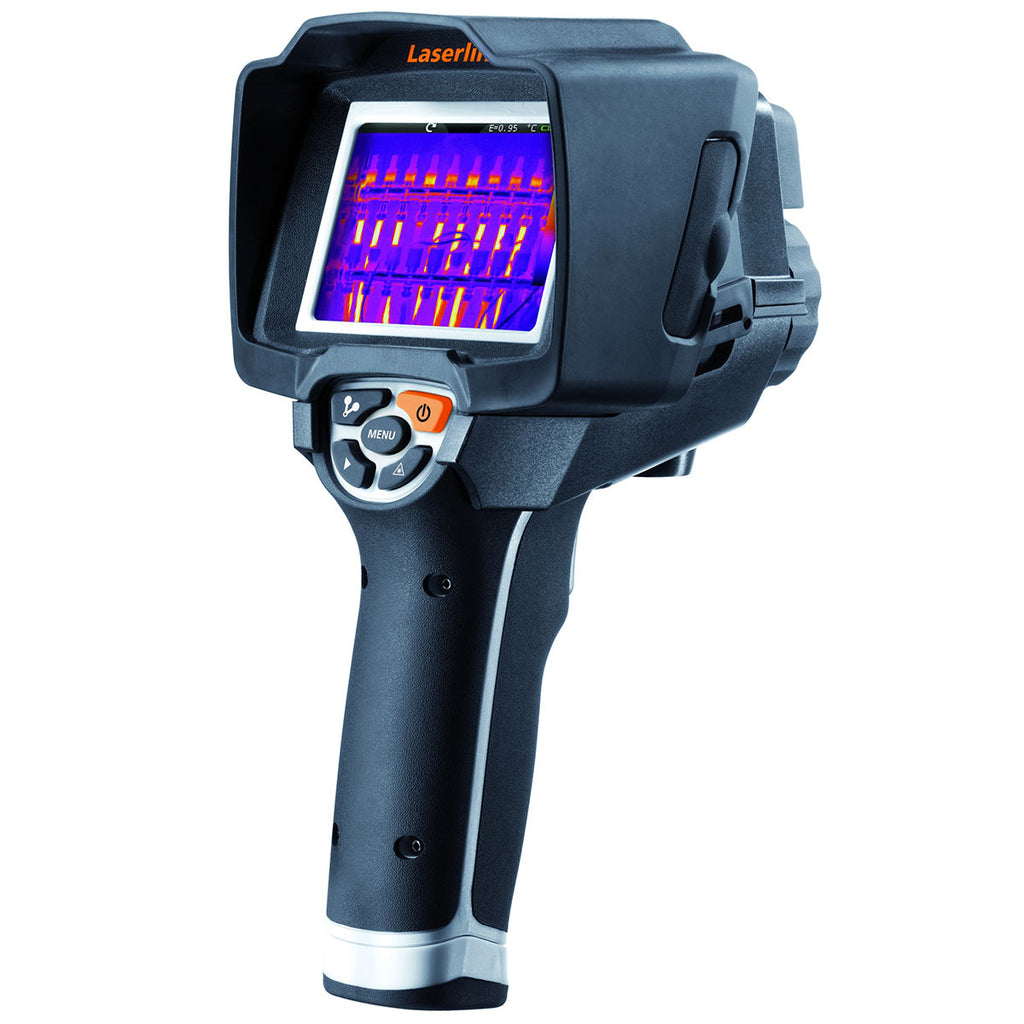

LaserLiner ThermoCamera-Vision

  • High-resolution thermal camera for professional applications in construction, photovoltaics, electrical engineering and mechanical engineering.

    Features of Laserliner ThermoCamera-Vision

    Package includes: -

    • ThermoCamera-Vision
    • Carry Case
    • 2 x Li-IOn battery pack
    • 4GB Micro-SD card
    • Micro-SD adapter
    • USB cable
    • Video/audio cable
    • Tripod adapter
    • Headphones
    • Power supply / battery charger
    • External charging station
    • Software
  • Features - LaserLiner ThermoCamera-Vision

    • Large, high-resolution 3.5″ colour display with touch screen for direct control and analysis
    • 160 x 120 pixel infrared sensor with focusable interchangeable lens (optional) enables detailed and varied image analysis
    • 50 fps high-speed infrared sensor suitable for fast and dynamic procedures
    • Large measuring range from -20°C to 400°C
    • Analysis in various image modes:
    • Full screen: Infrared image, camera

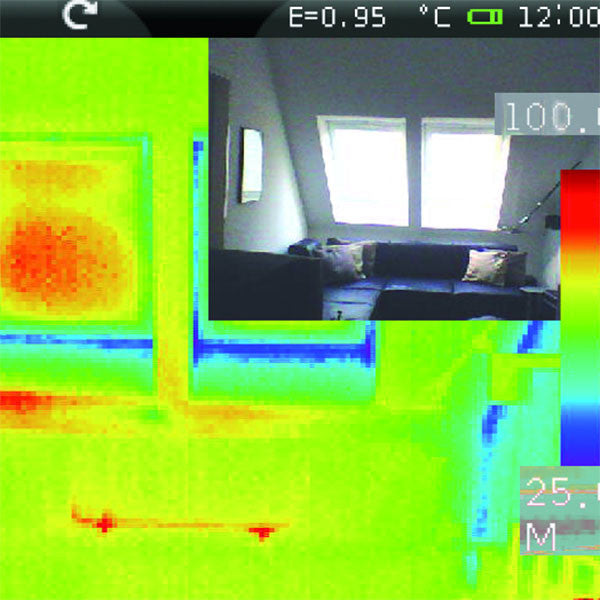

    • Picture-in-picture: Infrared/camera, camera/infrared
    • Dual-image: Infrared/camera crossfade
    • Standard colour ranges as well as user-specific colour ranges
    • Measured value correction for ambient and offset temperature, relative humidity, measuring distance
    • Extended real-time analysis:
      • 3 measuring points, 2 measuring lines (horizontal/vertical),
      • 3 measuring areas (with min/max/avg with min/max/avg calculation)
    • Automatic hot/cold point marking and isothermal function
    • Image and video recordings for documentation with additional voice recording and text notes
  • IR SENSOR uncooled microbolometer, 8-14 μm, 160 x 120 pixel resolution, 50 fps 80 mK NETD ± 2°C or ± 2% of measured value -20 °C ... 150 °C / 0 °C ... 400 °C
    IR OPTICS Germanium interchangeable lens, 33° x 24° FOV 3.33 mrad IFOV, manual focus 0.3 m min.
    DIGITAL CAMERA Resolution: 640 x 480 pixels
    DISPLAY 3.5" colour TFT touch screen display
    IMAGE MODES Infrared, Digital, Picture-in-picture, MIX image
    IMAGE FUNCTION 1-2x digital zoom, rotation 0° - 360°, in steps of 1°
    FORMAT JPEG format, max. 640 x 480 pixels MPEG-4 Standard, 640 x 480 pixels, 30 fps
    MEMORY FUNCTION Micro-SD card up to 16 GB
    LED white LED, object lighting
    TARGET LASER Laser classe 2, < 1 mW
    PORTS USB, micro-SD, video, audio, headphones-microphone
    PROTECTION CLASS IP65, drop test 2 m, Impact 25 g (IEC60068-2-29) Vibration 2 g (IEC60068-2-6)
    POWER SUPPLY / CHARGING TIME Li-Ion pack battery 7.4V / 2.7Ah / 7 hours
    DIMENSIONS 243 mm x 103 mm x 160 mm
    WEIGHT 920 g (incl. battery pack)
