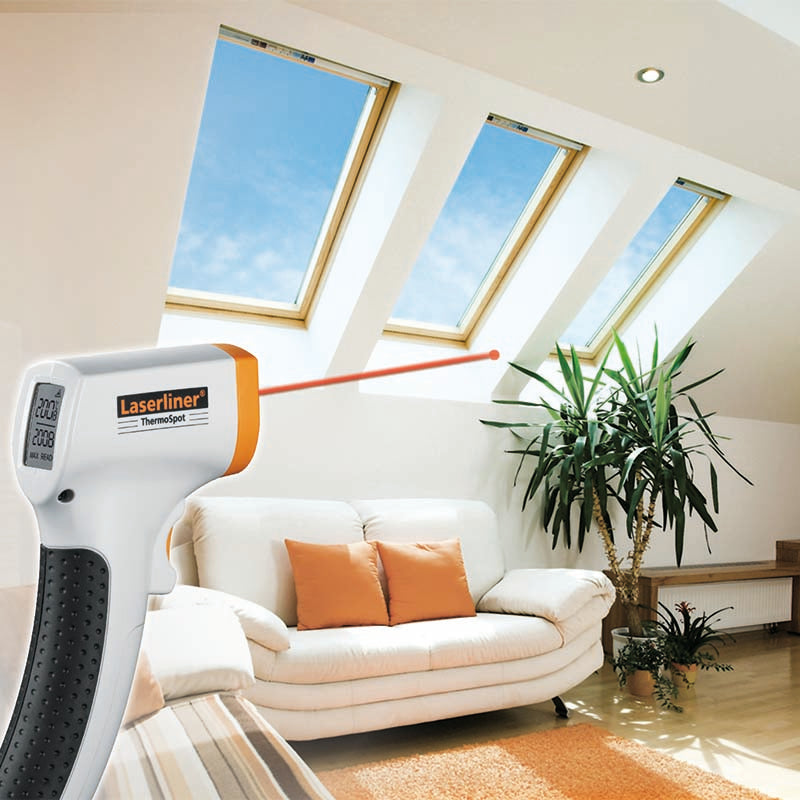

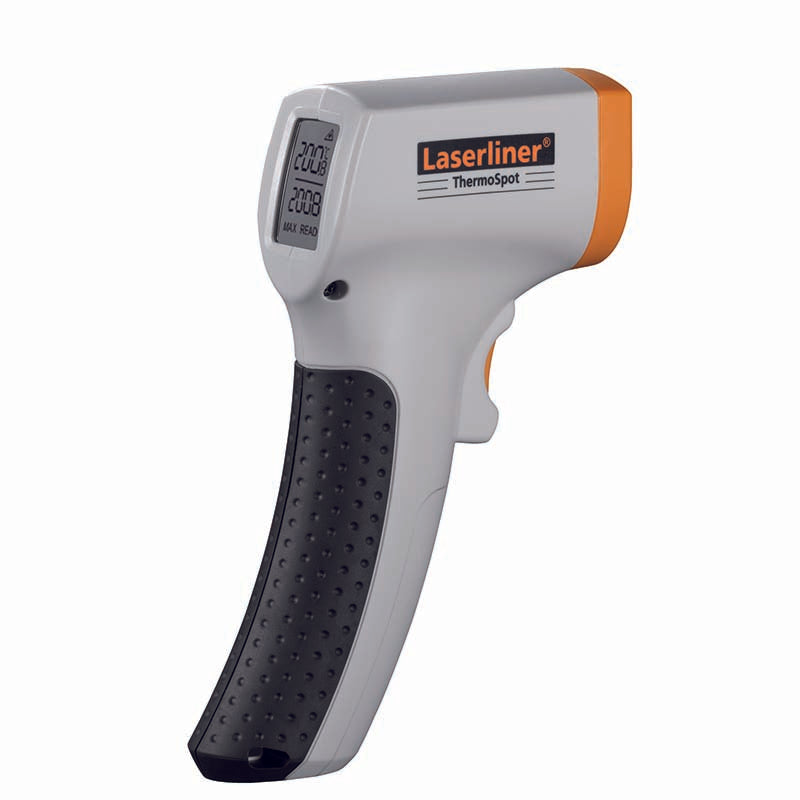

LaserLiner ThermoSpot Laser


  • The LaserLiner ThermoSpot Laser is a non-contact infrared temperature measurement with a laser for focusing.

    This temperature measurement method is ideal for sensitive surfaces as well as for hazardous applications such as moving machine parts or live electrical installations.

  • LaserLiner ThermoSpot Laser Features

    • Features - LaserLiner ThermoSpot Laser

      • Functions: Surface temperature
      • Non-contact temperature measurement: This temperature measurement method is ideal for sensitive surfaces as well as for hazardous applications such as moving machine parts or live electrical installations.
      • Focussing with a laser: Highlighting the point to be measured and allowing you to focus very precisely.
      • Max. function: The highest measured value is indicated on the display whilst the measurement is being taken.
      • Data hold function: The most recent measured value is saved temporarily.
      • Large temperature measurement range: From -38 °C to 365 °C
      • Measured value display can be switched from °C to °F.
    • MEASUREMENT RANGE -20 °C to 315 °C
      ACCURACY ± 1,5 °C (-10 °C to 60 °C) ± 2 °C (< -10 °C and > 60 °C) or ± 2 % whichever value is greater
      OPTIC 8:1 (8 m distance : 1 m measured spot)
      RESOLUTION 0.1°C
      EMISSION RATIO 0,95
      LASER WAVELENGTH 650 nm
      LASER CLASS  2M, < 5 mW
      OPERATING TEMPERATURE 0° – 40°C
      POWER SUPPLY 9 V E block
      DIMENSIONS (B X H X D) 108 x 161 x 38 mm
      WEIGHT 0,185 kg
    • Downloads

      LaserLiner ThermaSpot Laser - Data Sheet

      LaserLiner ThermoSpot Laser - Product Manual
