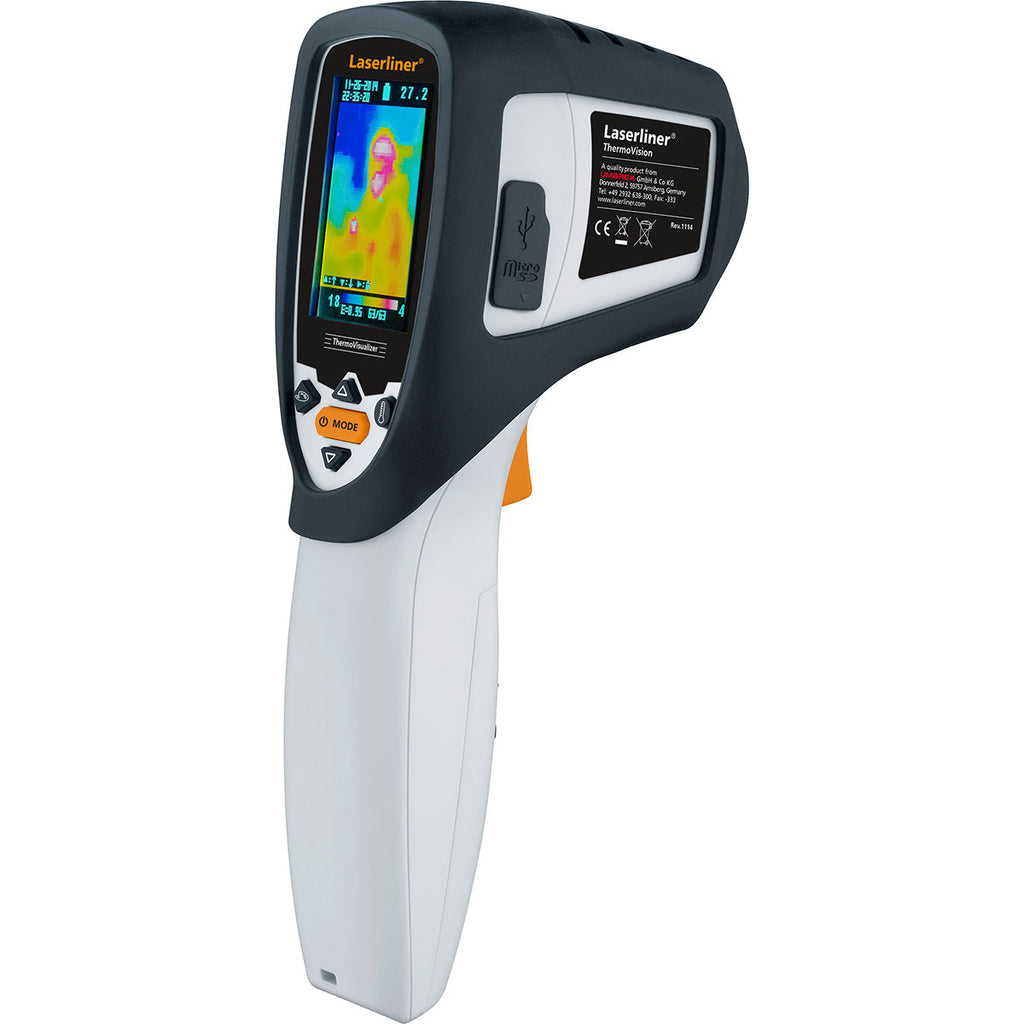

LaserLiner ThermoVisualizer



  • Visualisation of temperature curves for use in construction, electrical engineering, industrial applications and person diagnosis in compact design.

    LaserLiner ThermoVisualizer Features

    Package includes: -

    • ThermoVisualizer
    • Batteries
    • USB Cable
  • Features - LaserLiner ThermoVisualizer

    • Large, high-resolution 2.8″ colour display for analysis
    • High-quality infrared sensor enables quick and easy measurement for evaluating temperature profiles
    • Large measuring range from -20°C to 250°C
    • Adjustable emissivity range from 0.01 to 1.0 for precision measurement of material properties
    • Measuring point for temperature analysis, min/max display, measured data for each image
    • Selectable standard colour pallets: IRON, RAINBOW, HIGH CONTRAST and GREY SCALE
    • Data storage on SD card
    • Built-in USB 2.0 PC interface for smooth data exchange and transfer of real-time measurement data
    • Simple and easy to operate thanks to easy-to-access menu buttons
  • IR SENSOR Thermoarray-Sensor 8-14μm < 0.1°C @ +30°C temperature resolution
    IR OPTICS High-quality IR-lens 40° x 40° (FOV), standard-focus 0,5 m - 5 m
    THERMAL SENSITIVITY NETD, 0.1°C
    ACCURACY ± 2°C or ± 2% of measured value
    MEASUREMENT RANGE -20 °C ... 250 °C
    DISPLAY 2.8" colour TFT, 240 x 320 Pixel
    IMAGE REFRESH RATE 9 frames / sec.
    FORMAT JPEG format, up to 60.000 frames / GB
    MEMORY FUNCTION Micro-SD card up to 8 GB
    PORTS USB, micro-SD
    PROTECTION CLASS IP54
    OPERATING TEMPERATURE -20°C … 50°C
    STORAGE TEMPERATURE -40°C … 70°C
    RELATIVE HUMIDITY 15%rH … 85%rH, no condensation
    POWER SUPPLY / OPERATING TIME 4 x AA alkaline batteries / approx. 6 h
    DIMENSIONS 97 mm x 74 mm x 234 mm
    WEIGHT (incl. batteries) 0,410 kg
  • Downloads

    LaserLiner Thermal Imaging Cameras - Family Brochure

    LaserLiner ThermoVisualizer Brochure
