Leica Combo Laser Receiver & Remote


Price:
£365 exc. VAT

Description

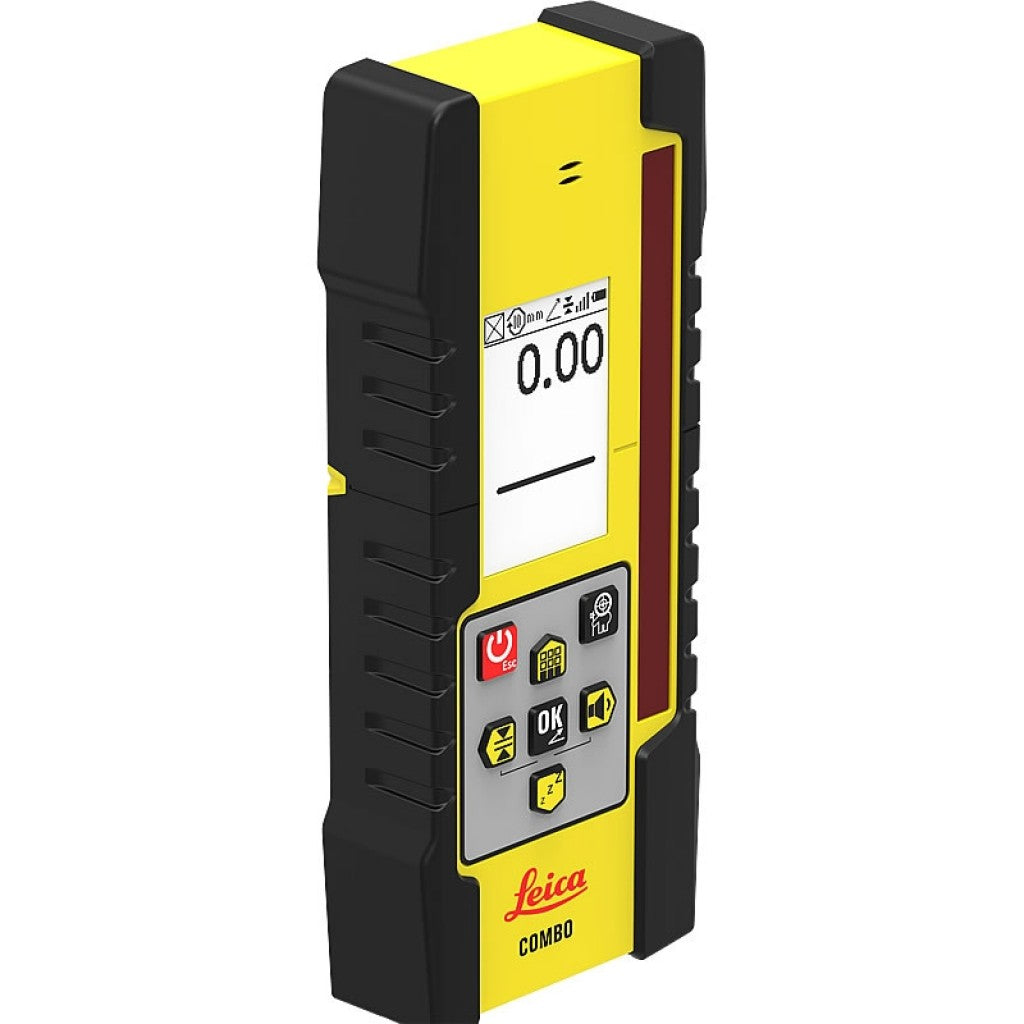

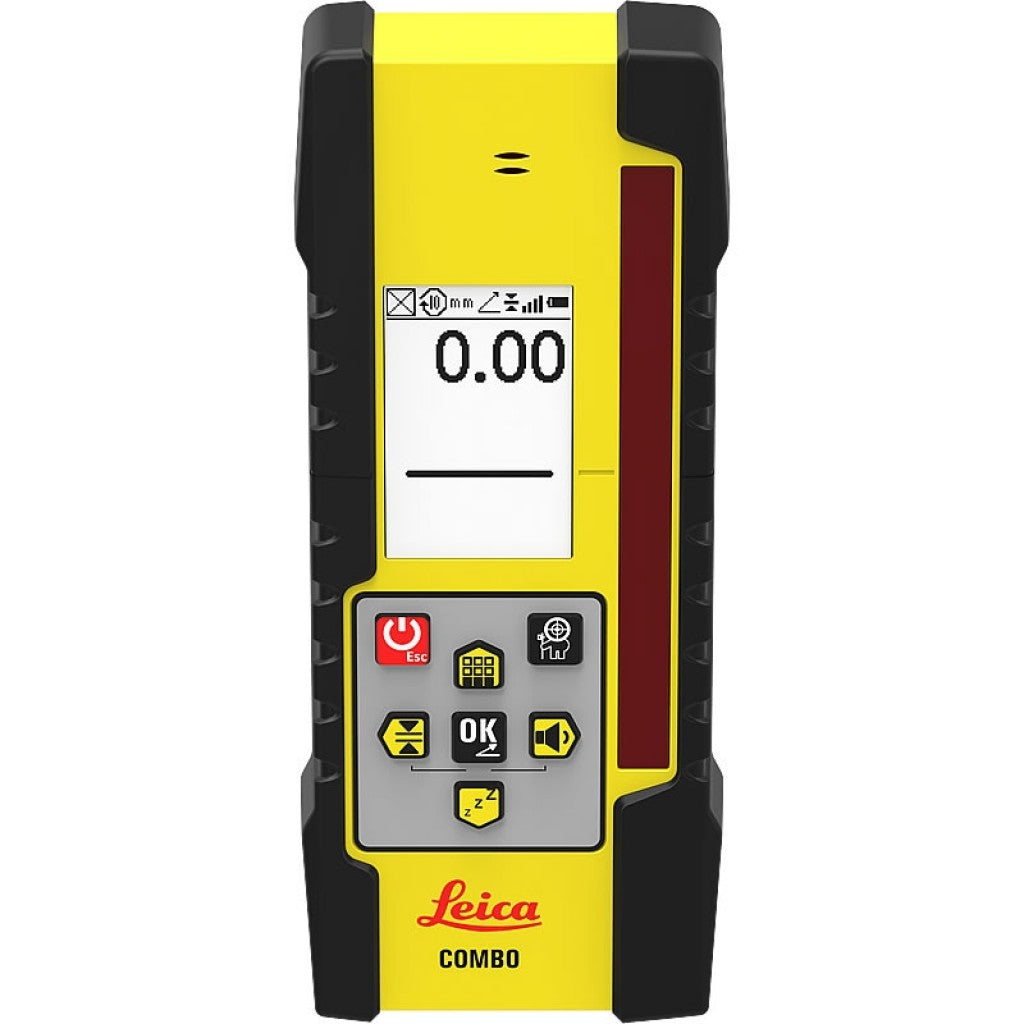

Leica Combo is a receiver and a remote combined in one device. Save time and work conveniently with offset and adjustable sensor window thanks to the new features in the Combo.

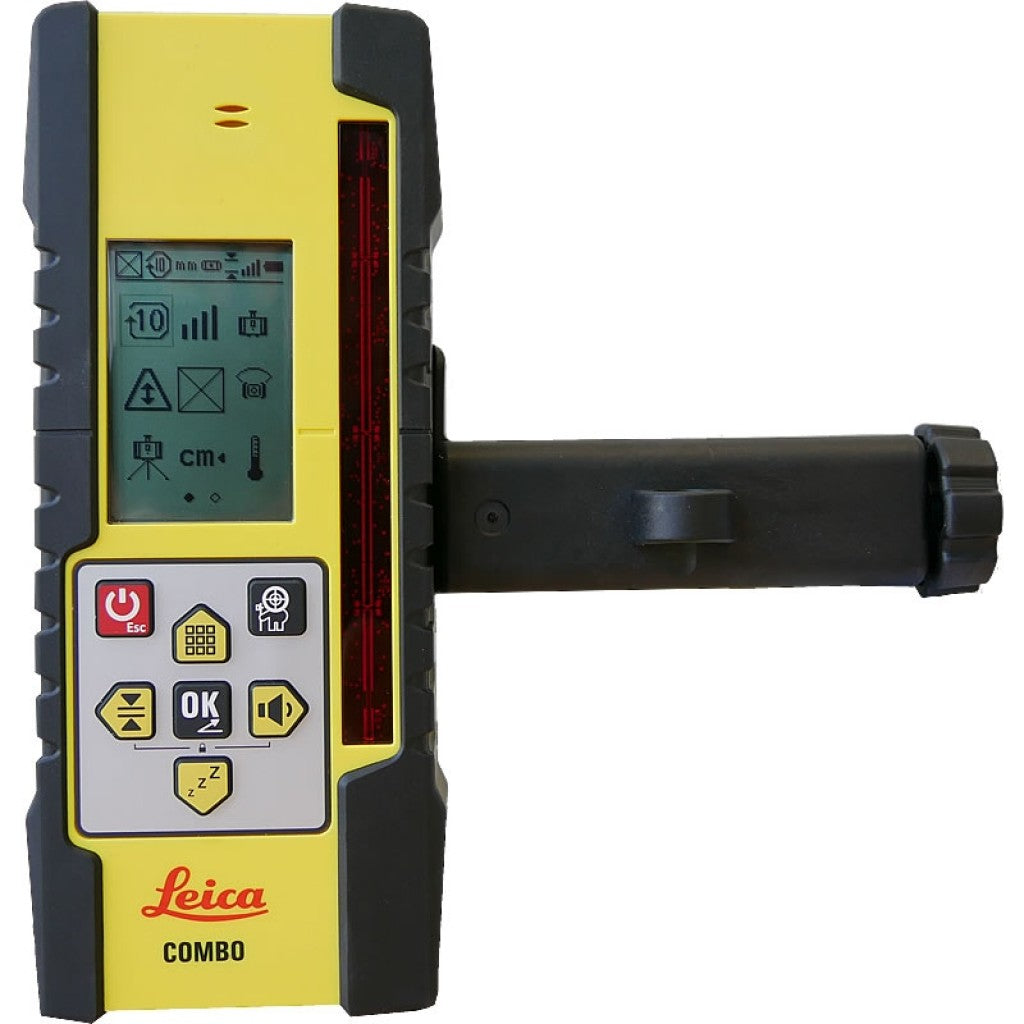

Bracket included.

Features & Benefits:

  • Receiver and Remote combined
  • Anti-strobe feature assures highest detection reliability by rejecting strobe light
  • Big display on both sides
  • Sealed housing
  • Most rugged housing - designed to last - IP 67
  • Center line on all sides
  • Re-chargeable battery
  • USB-C interface for charging
  • Improved radio
  • Same bracket interface as existing rod eye receivers
  • Clear animated icons
  • Real time acting
  • New pairing via menu
  • Offset function
  • Adjustable sensor window size
  • Information table
  • Animated Icons

Specifications

Combo (Receiver/Remote)
Warranty 3Y
Anti-Strobe
Working range Receiver 1350m (diameter)
Working range Remote 600m (diameter)
Detection window 120mm
Digital read out
Offset function
Variable detection window length
Automatic shut off
Audio volumes
Detection bandwidth 0.5, 1, 2, 5mm
Environmental standard IP 67
Batteries Li-Ion 3.7V
Battery operating time** 50h
Battery charging 5h (full charge), 1h fast charge ±8h operating
Rechargable battery
Charging option with Power bank (USB-C)
Operating temperature -20°C to +50°C
Storage temperature -40°C to +70°C
Dimensions (H × W × D) 205mm, 86mm, 32mm
Weight with batteries 0.4Kg
** Accuracy defined at 25°C, battery life depending upon environmental conditions

Package includes: -

  • 1 x Leica Rod Eye Basic Receiver
  • 1 x Bracket



Rod Eye Basic

Rod Eye 140 Classic

Rod Eye 160 Digital

Rod Eye 180 Digital RF

Technical data

Working diameter

600m (2000 ft) 1.350m (4430 ft) 1.350m (4430 ft) 1.350m (4430 ft)

Extended detection window

36mm / 1.4in 120mm / 5in 120mm / 5in 120mm / 5in

Numeric readout height

- - 90 mm / 3.5 in 90 mm / 3.5 in

Detectable spectrum

600 nm to 800 nm 600 nm to 800 nm 600 nm to 800 nm 600 nm to 800 nm

Detection Accuracies

Very fine

- - ± 0.5 mm / ± 0.02 in ± 0.5 mm / ± 0.02 in

Fine

± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in

Medium

- ± 2.0 mm / ± 0.08 in ± 2.0 mm / ± 0.08 in ± 2.0 mm / ± 0.08 in

Coarse

± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in

Very coarse

- - ± 5.0 mm / ± 0.20 in ± 5.0 mm / ± 0.20 in
Downloads - Leica Rod Eye Receivers

Leica Rod Eye Family Brochure

User Manual - Leica Rod Eye 160
