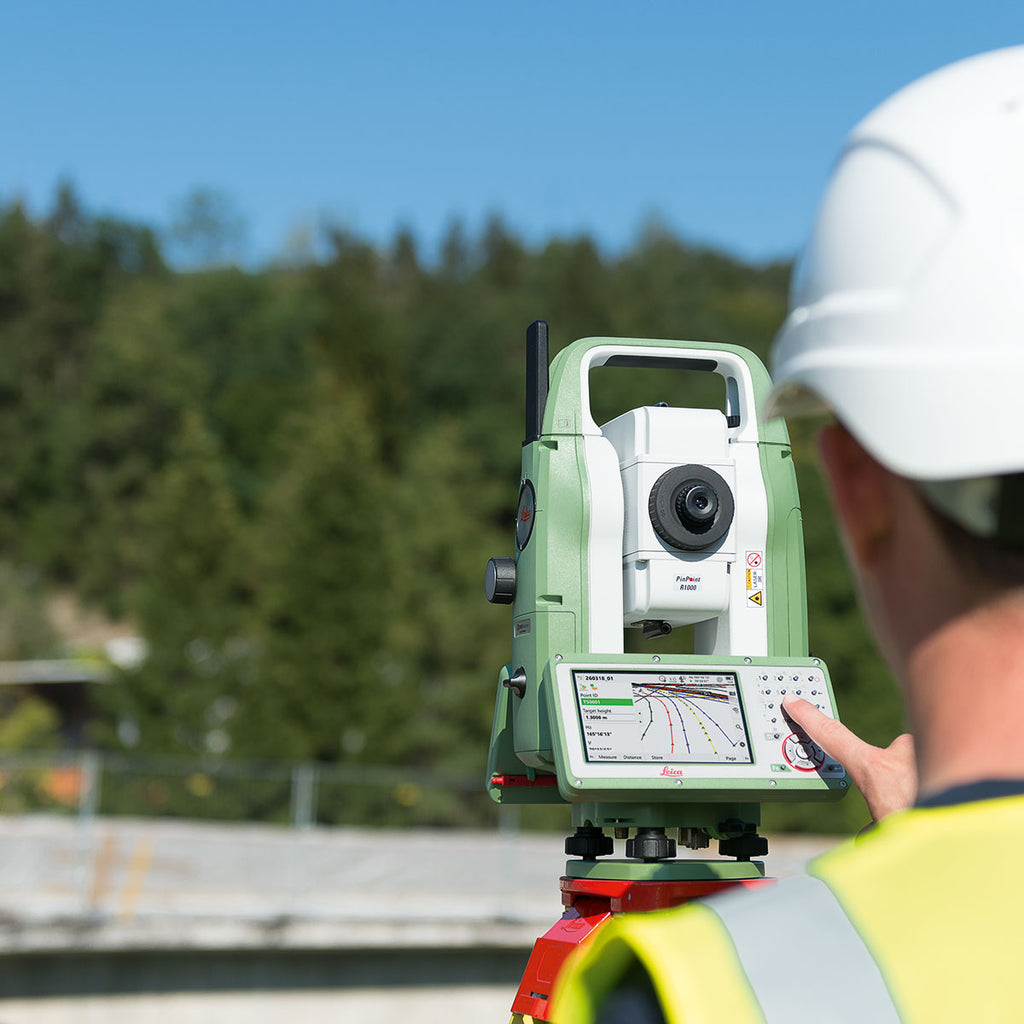

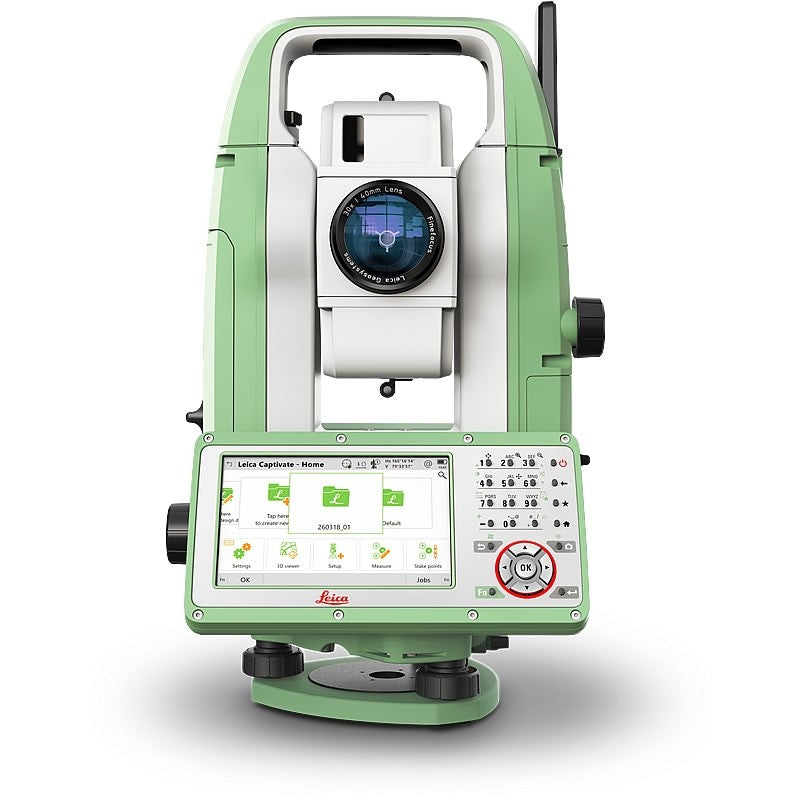

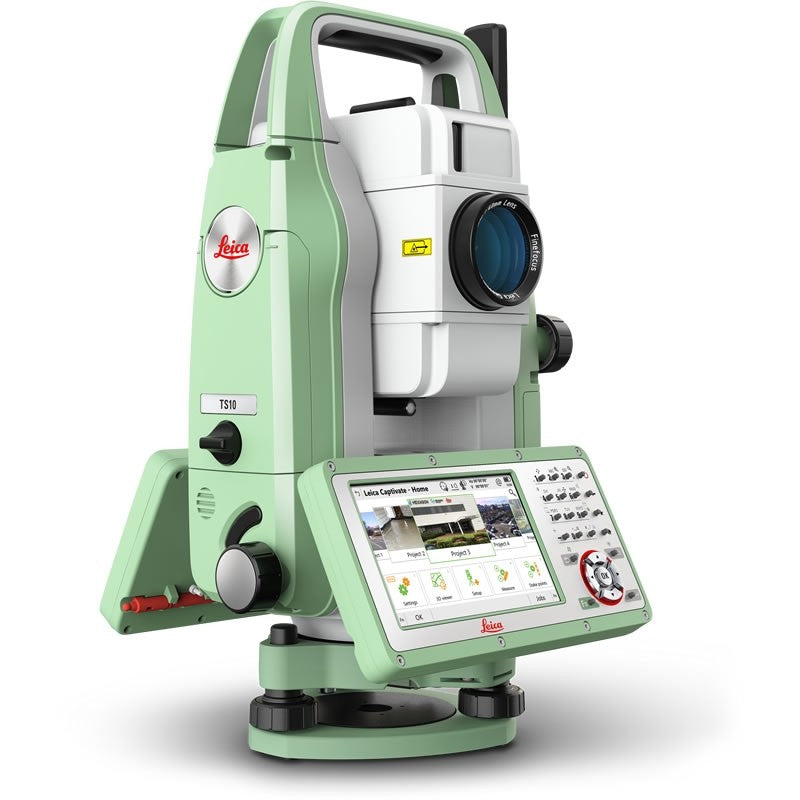

Leica FlexLine TS10 Total Station

  • The Leica TS10 is a high-end manual total station, enabling you to carry our high-demand survey tasks with Leica Captivate Software.

    The TS10 offers the world’s first AutoHeight feature as an option. AutoHeight enables the instrument to automatically measure, read and set its instrument height. Prevent time consuming manual effort and eliminate critical errors during the instrument setup when this revolutionary feature uses a laser from the instrument to measure to the ground and automatically passes the measurement to the software.

    The TS10 is equipped with the Leica Captivate field software, a comprehensive application-based software package. This intuitive, familiar software helps you to capture even more points than before. You are also able to tie into the modern 3D dataflow and rigorous quality assurance and control routines.

    Now with optional mobile internet access the TS10 connects to the office for a seamless dataflow and to Leica Geosystems trusted global service and support at the touch of a button. With the Active Customer Care program and customer portal, users have access to latest software updates, service and support as well as to mySecurity. With mySecurity activated, the locking mechanism ensures the device is disabled and can no longer be used.

    Work Faster

    Measure more points per day due to faster measurement and stakeout procedures (endless drives, trigger key, drives on both sides, pinpoint EDM and more), supported by our easy-to-use and familiar FlexField software. Speed up your learning curve onsite, take advantage of the great ergonomics and reliable measurements. Reduce errors and rework.

    Use it trouble-free

    Increase productivity and minimise downtime by relying on instruments that simple work and come with a global service and support network.

    Choose products that are built to last

    Even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold), FlexLine still operates with the same high level of accuracy and reliability.

    Control your investment

    Instrument quality has been our standard for almost 200 years, which is why you can count on a lower investment over the entire instrument lifetime and do not have to worry about unexpected costs.

    Profit from mobile connectivity

    Leica AutoHeight With optional mobile internet access, you can share your data online much faster, receive design data from your designers and engineers onsite, and use Leica Geosystems Services such as Leica Exchange or Leica Active Assist.

    Save time with AutoHeight

    This revolutionary feature enables your TS10 to automatically measure, read and set its own height. This functionality minimises errors and accelerates the setup process onsite.

  • TS02plus TS06plus TS09plus Viva TS11
    1" angular accuracy - O O o
    Enhanced measurement accuracy to prism 1.5 mm + 2 ppm 1.5 mm + 2 ppm 1.5 mm + 2 ppm 1.0 mm + 1.5 ppm
    Reflectorless measurement range 500 m option 500 m included / 1000 m option 500 m included / 1000 m option 500 m included / 1000 m option
    Display with graphics and display illumination Black & White high resolution Black & White high resolution Q-VGA Color & Touch Full-VGA Color & Touch
    Full alpha-numerical keyboard with function keys - Tick icon Tick icon Tick icon
    Second Keyboard O O O O
    Keyboard illumination - - Tick icon Tick icon
    Electronic Guide Light - O Tick icon Tick icon
    USB Type A and mini B - Tick icon Tick icon Tick icon
    Bluetooth® Wireless - Tick icon Tick icon Tick icon
    SD Card - - - Tick icon
    Imaging capability - - - O
    Smart Station capability - - - O
    Onboard software (package content) FlexField plus (standard) FlexField plus (advanced) FlexField plus (full) SmartWorx Viva (pro)
