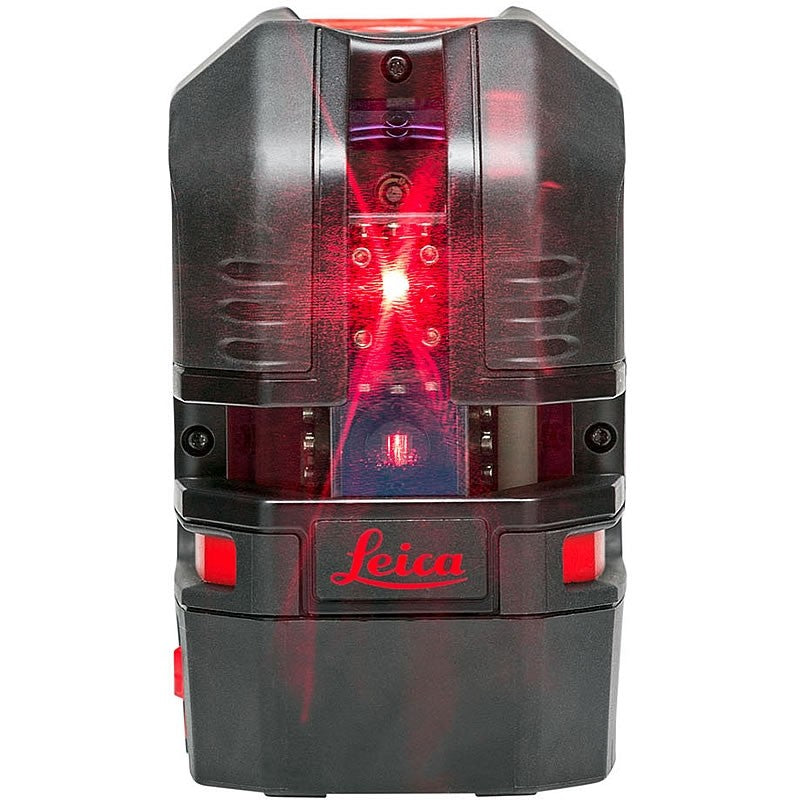

Leica Lino L2P5 Cross Line Point Laser

  • The all-in-one cross line and point laser tool

    Cross Line and Point Laser

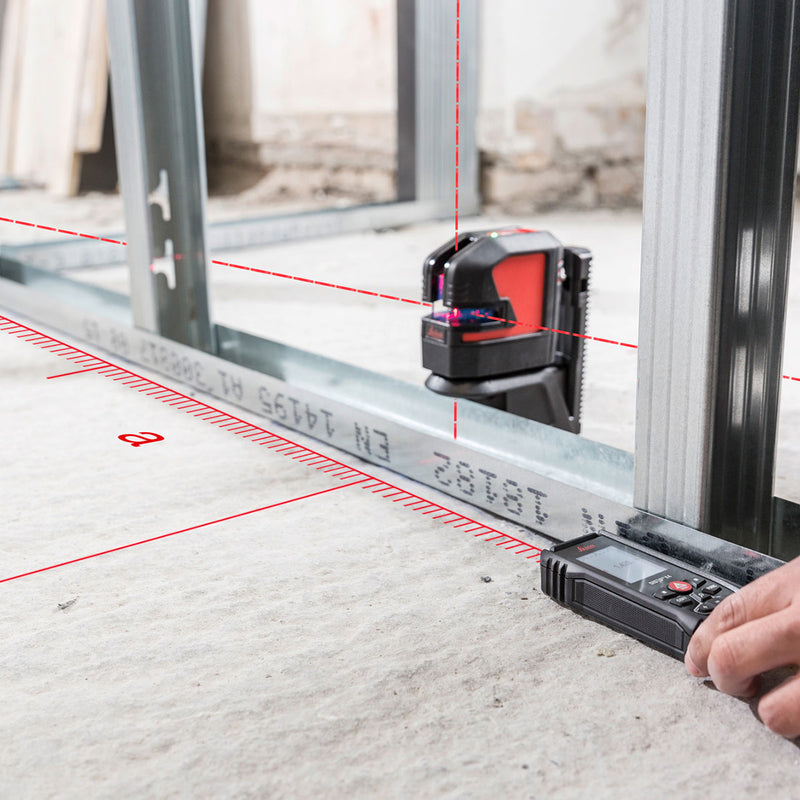

    The Leica Lino L2P5 is a self-levelling cross-line and point laser. This Lino is ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations as well as plumb point projection, setting out or transferring measured points.

    Working Range

    Leica optics enable the Lino L2P5 to project very bright and clearly visible laser lines and dots. Depending on the lighting conditions, the working range is up to 25 metres. This range can be easily extended up to 80 metres by using the laser receiver.

    Magnetic Positioning

    This two-in-one laser level has magnetic adapters which allow you to position the instrument quickly and with absolute precision. You can easily attach it within U-profiles, to edges, or any magnetic surfaces.


    The Leica L2P5 is a self-levelling cross and line laser. This means it automatically adjusts its positioning up to ± 4° when slightly out of level without any manual alignment.

    Continuous Power

    Your Leica Lino L2P5 laser has a triple power concept. It runs with Li-Ion batteries for up to 44 hours on one charge. It can also be powered by alkaline batteries or its charger.

    Rugged design

    The Leica Lino L2P5 is designed and built to support today’s jobsite conditions. It is dust and spray water protected to IP 54 standards.

  • Features - Leica Lino L2P5 Cross Line Point Laser

    Range up to 25m depending on lighting conditions
    Range with laser receiver up to 80m depending on lighting conditions
    Levelling accuracy @ 5 m ± 0.2 mm /m
    Self-levelling range ± 4°
    Self-levelling time < 3s
    Number of laser dots 4
    Number of laser lines 2
    Beam direction vertical, horizontal, up, down, left, right
    Laser line width at 5m < 2mm
    Laser type 635 nm, class 2 (red)
    Battery type Li-Ion rechargeable (or AA 3 × 1.5 V)
    Operating time up to 44h (Li-Ion) depending on laser mode
    Protection class IP54
    Operating temperature -10 to 50 °C
    Storage temperature -25 to 70 °C
    Dimensions 110 × 60 × 100 mm
    Weight with batteries 530 g
    Tripod thread Lino 1/4"
    Tripod thread adapter 1/4" + 5/8"

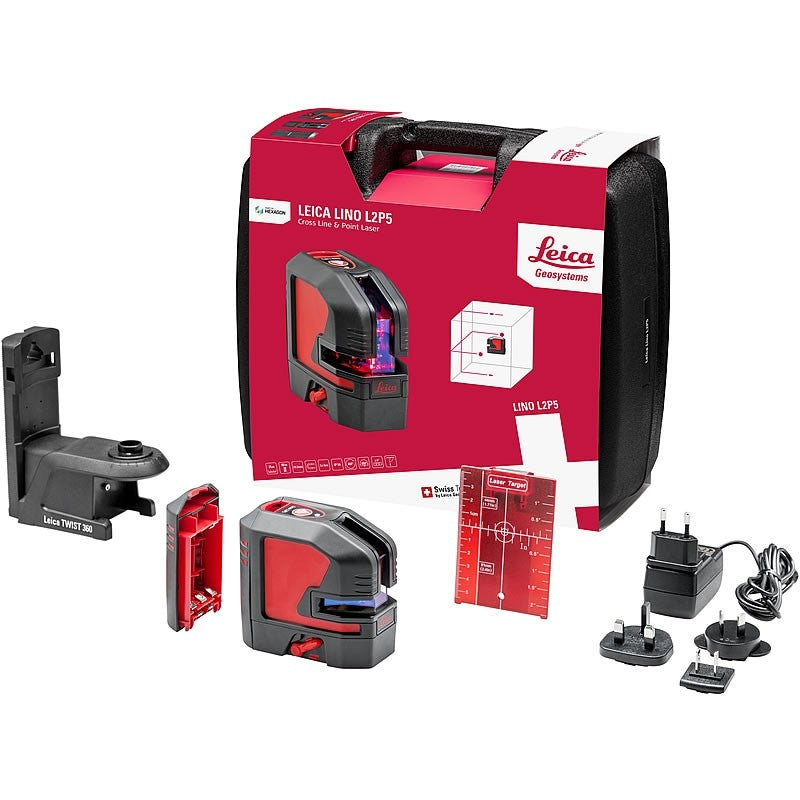

  • Package Contents

    • Lino L2P5 Laser
    • Twist 360 Magnetic Adapter
    • Target Plate
    • Li-Ion Battery
    • Charger
    • Alkaline Battery Tray
    • Carrying Case
    • Quickstart Guide
  • Hire

    This laser level is also available to hire.

    Please visit our Laser Level Hire page or call us on 0800 633 5131.

    View Laser Level Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • Downloads

    Leica Lino L2P5 & L2P5G Cross Line Point Laser User Manual
