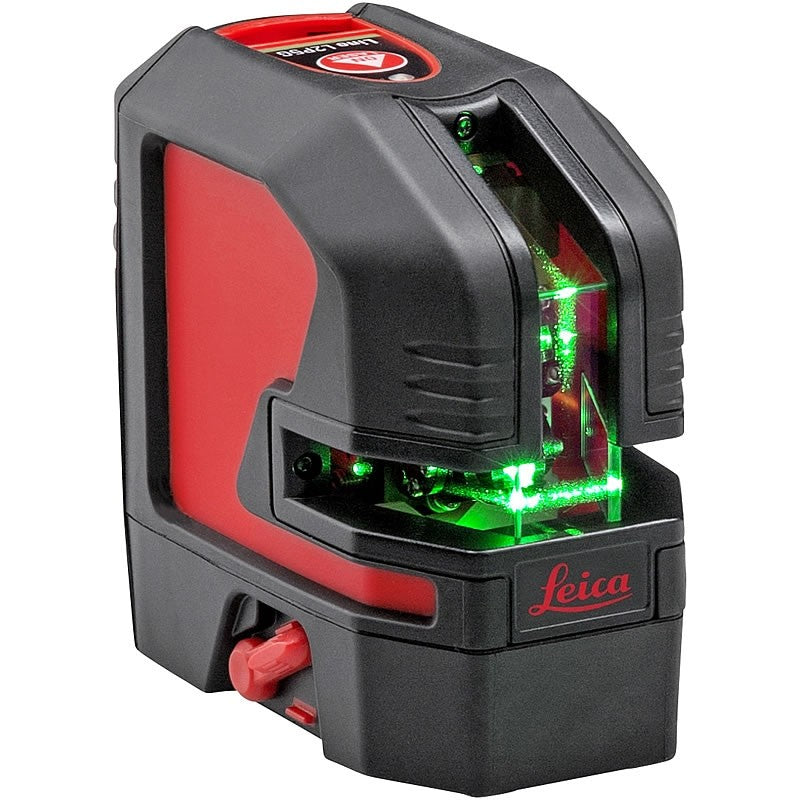

Multi-functional green cross line and point laser
The Leica Lino L2P5G uses the best green laser technology and combines it with the functionalities of a cross line laser and a point laser. Its green laser beams and points are up to four times more visible to the human eye compared to red ones, which makes it the ideal tool for bright environments and large rooms.
The Leica Lino L2P5G uses the latest green laser technology which projects clearer and crisper laser lines at exact right angles to one another. This allows for the highest accuracy of detailed interior tasks.
The large glass optics of this multi-functional tool allow for perfect levelling and alignment over long distances. The working range is up to 35 metres depending on the lighting conditions, and can easily be extended up to 80 metres using the laser receiver Leica RGR 200.
The Leica Lino L2P5G is quickly and easily attached to a variety of surfaces. Its magnetic adapter fits into U-profiles and with the addition of the UAL 130 adapter the device is easily attached to edges, metal poles, and bars.
The cross-line and point lasers of the Leica Lino L2P5G are always level once positioned. The tilt is automatically adjusted when within a ± 4° limit. Outside this limit an alert indicates that the positioning needs to be adjusted.
Li-Ion batteries allow this all-round laser tool to run up to 28 hours on just one charge. Alternatively, it can be powered by Alkaline batteries or by its charger.
Construction Site Proof
The Leica Lino L2P5G has a rugged design and is dust and spray water protected to IP 54 standards. This makes it a great tool to speed up the workflow and increase productivity on today’s construction sites.
Features - Leica Lino L2P5 Cross Line Point Laser
||up to 35m depending on lighting conditions
|Range with laser receiver
||up to 80m depending on lighting conditions
|Levelling accuracy @ 5 m
||± 0.2 mm /m
|Number of laser dots
|Number of laser lines
||vertical, horizontal, up, down, left, right
||± 0.2 mm /m
|Laser line width at 5m
||525 nm, class 2 (green)
||Li-Ion rechargeable (or AA 3 × 1.5 V)
||up to 28 h (Li-Ion) depending on laser mode
||-10 to 50 °C
||-25 to 70 °C
||110 × 60 × 100 mm
|Weight with batteries
|Tripod thread Lino
|Tripod thread adapter
||1/4" + 5/8"

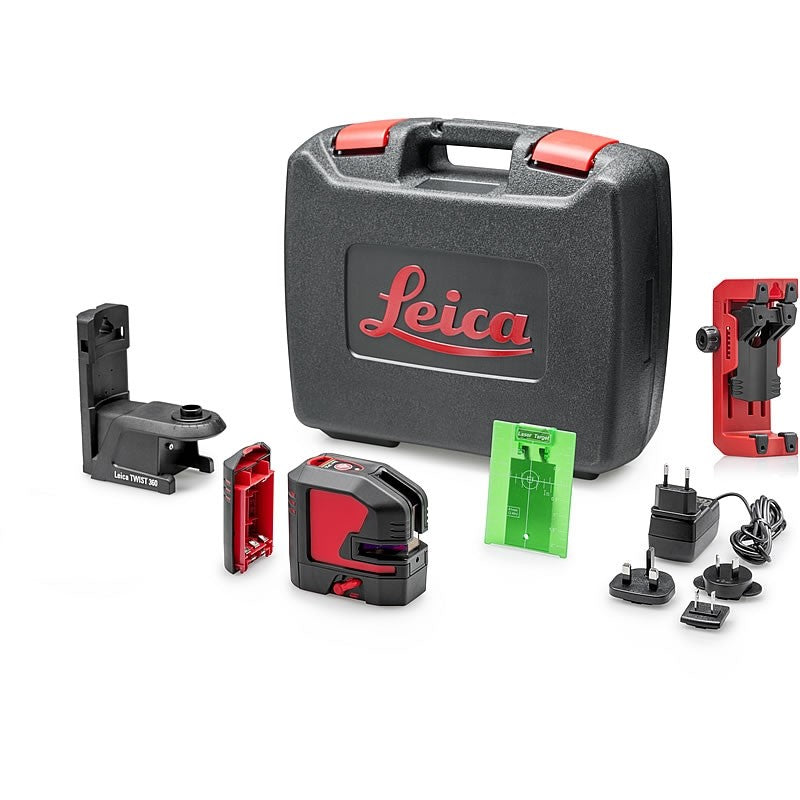

- Lino L2P5G Laser
- Twist 360 Magnetic Adapter
- UAL 130 Universal Wall Mount Adapter
- Target Plate
- Li-Ion Battery
- Alkaline Battery Tray
- Carrying Case
- Quickstart Guide
Leica Lino L2P5 & L2P5G Cross Line Point Laser User Manual
