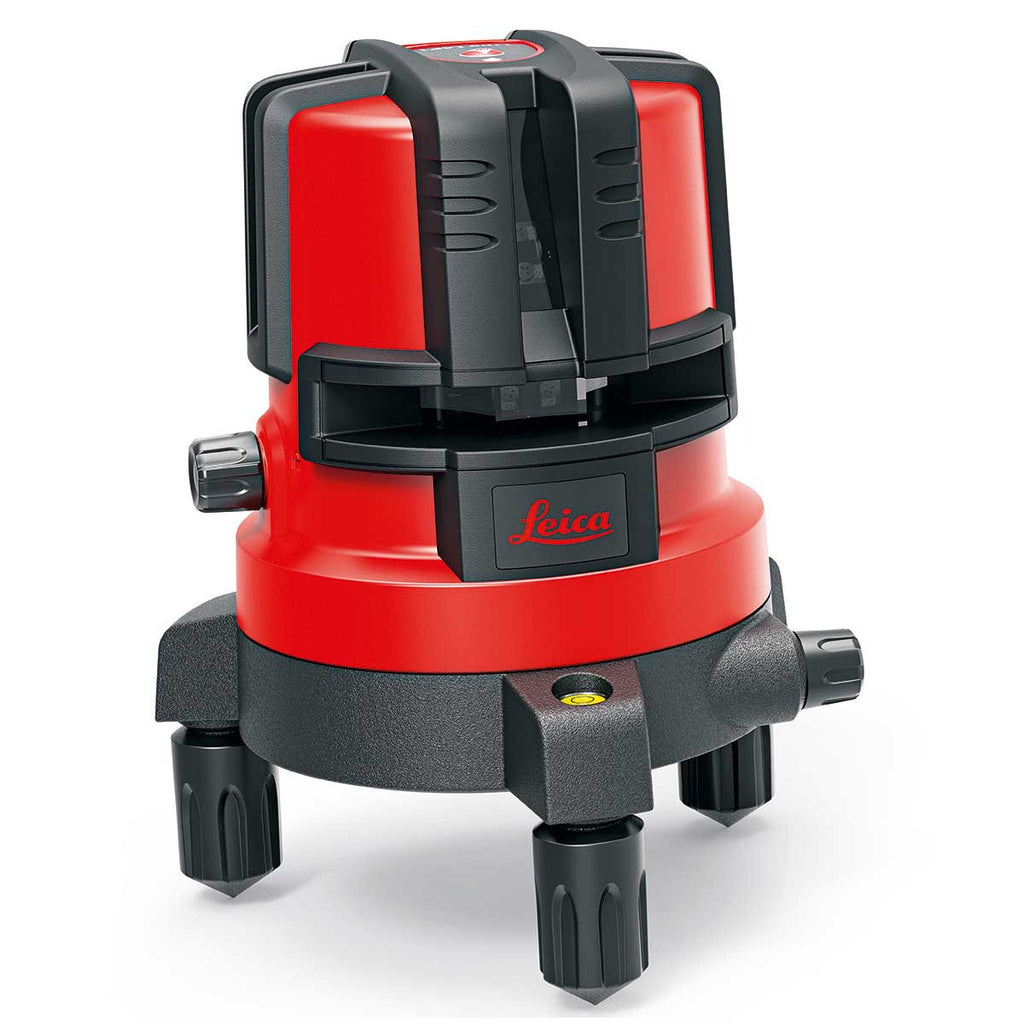

Leica Lino L4P1 Multi Line Laser

  • The most powerful multi line laser for leveling, alignment and layout tasks.

    The 360° rotation base with precise fine adjustment supports easy 90° layouts of whole rooms. The smart Li-Ion power concept allows non-stop working up to 24 hours.

    • 24hr battery life on a single charge
    • Li-Ion exchangeable with Alkaline batteries
    • 360° rotating base for high-speed layouts
    • Easy leveling and aligning
    • Simple 90° layout with bright laser lines
    • Quick plumbing - easy point transfer from floor to ceiling
  • Example Text.

    Features

    • Powerful & versatile for all interior applications - The Lino L4P1 displays 180° vertical and horizontal lines with 5 layout points. Only one device is needed for easy levelling and aligning, for simple 90° layouts with bright lines or for quick plumbing.
    • 24hr battery life on a single charge of Li-Ion battery - Innovative Li-Ion power: No interruption of workflow occur through battery charging. Rechargeable Li-Ion is cost saving - no need to constantly exchange alkaline batteries.
    • Smart Power: Li-Ion is exchangeable with Alkaline - "Always ready to work" - even when your colleague forgets to charge the Li-Ion batteries, you can always exchange easily to standard Alkaline batteries.
    • 360° rotation base for high-speed 90° layouts - The L4P1 can be rotated 360° over a selected point. The precise fine adjustment supports quick targeting of the vertical laser lines for high-speed layouts of whole rooms.
    • Extended working range - With the Leica RVL 80 receiver the lines can be detected up to 80m.

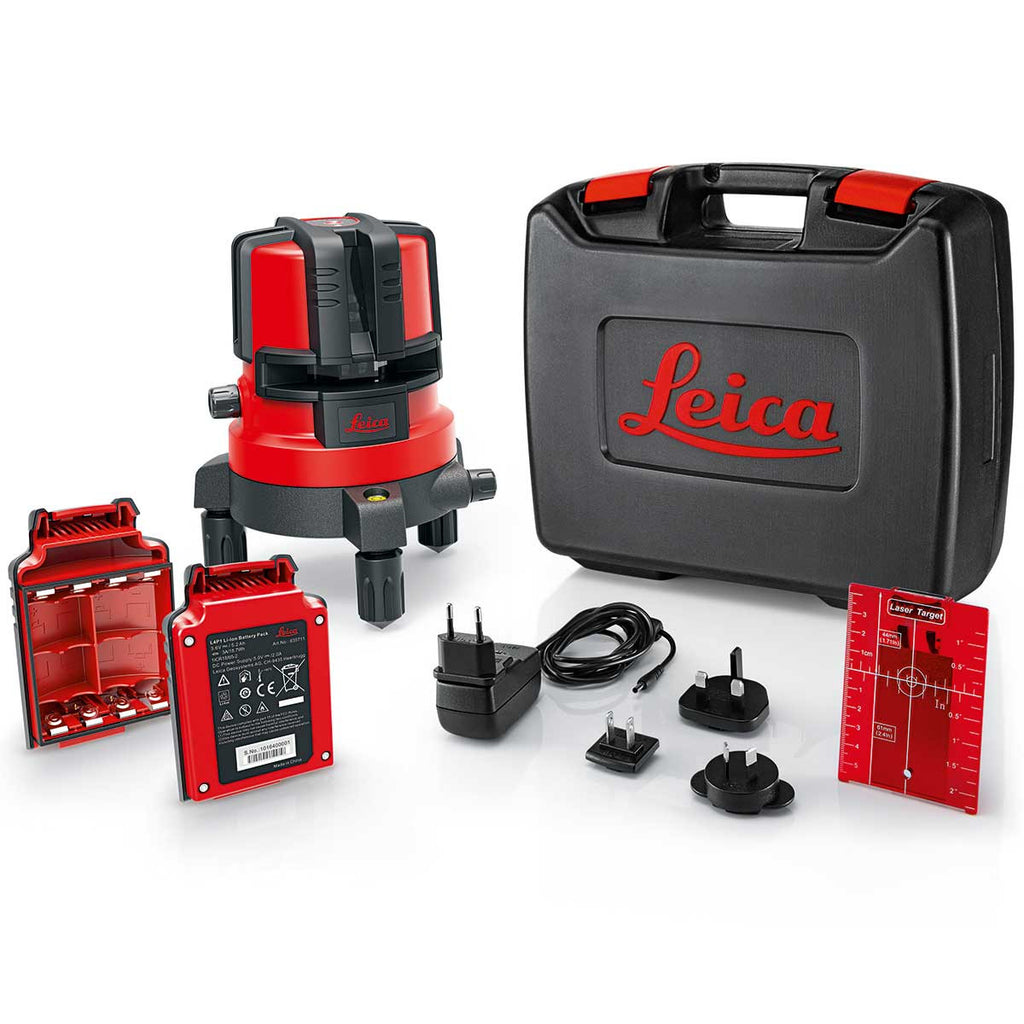

  • Box Contents

    Package includes: -

    • Leica Lino L4P1 Multi Line Laser
    • Li-Ion Battery Pack
    • Charger with different plugs for world-wide use
    • Alkaline Battery Tray
    • Target Plate
    • Hard Case
  • Optional Extras

    The Optional Extras available with this product are:

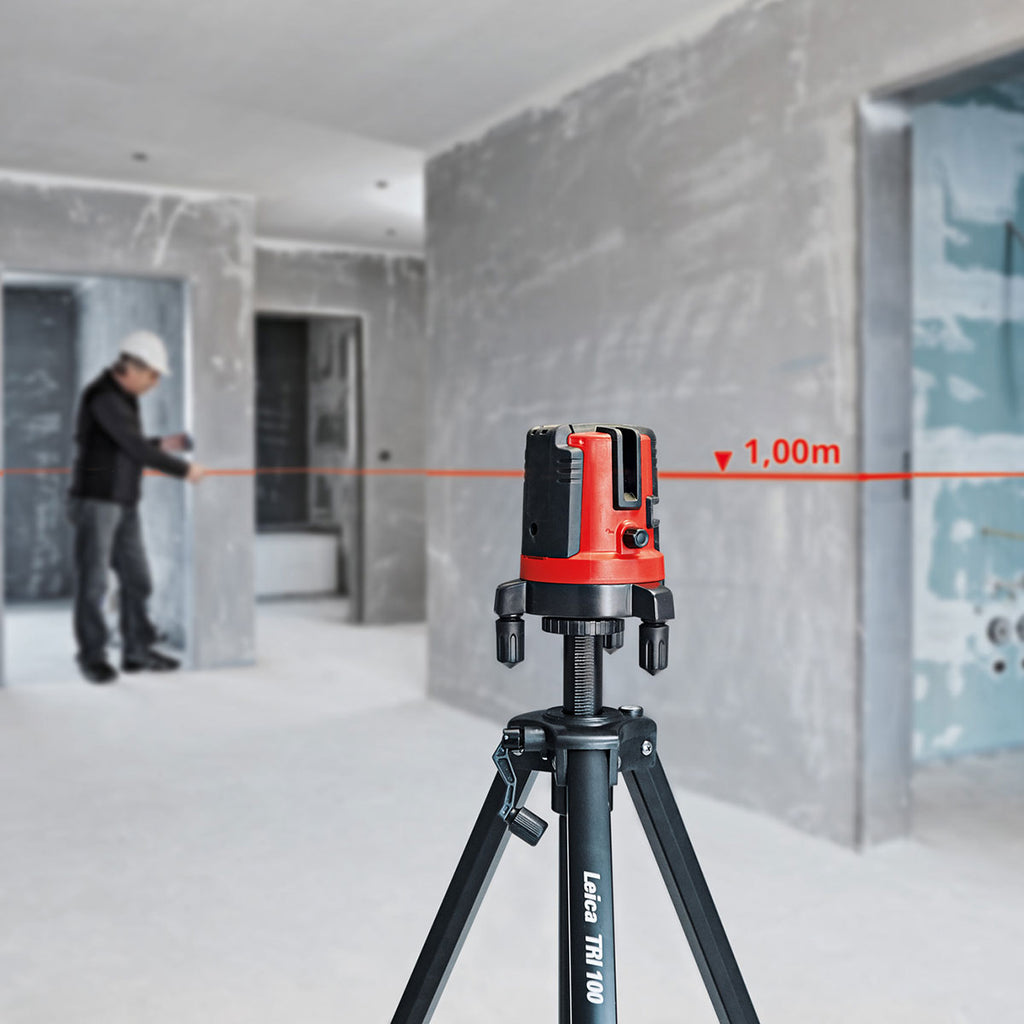

    Leica TRi100 Tripod close up

    Leica Tripod TRi100 (£61.00 exc VAT)

    Aluminum tripod with easy fine adjustment. For use with the Leica Lino and Leica DISTO ranges.

    View product

  • Technical Specifications:
    Laser 4 Lines, 1 Point
    Range * Up to 15m / 50 ft
    Range with Detector Up to 80m / 260 ft
    Leveling Accuracy 1mm @ 5m / 0.04” @ 16 ft
    Self-leveling Range ± 3°
    Laser Type Laser Class 2, 635nm
    Battery Type Rechargeable Li-Ion Batteries (and Alkaline Batteries 4xAA, 1.5v)
    Battery Life Li-Ion Batteries 24 hrs
    Protection Class IP 54 (dust- and splash water protected)
    Tripod Thread 1/4”, 5/8”
    Weight with Batteries 1173g
  • Hire

    This laser level is also available to hire.

    Please visit our Laser Level Hire page or call us on 0800 633 5131.

    View Laser Level Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • Downloads

    Leica Lino L4P1 Brochure
