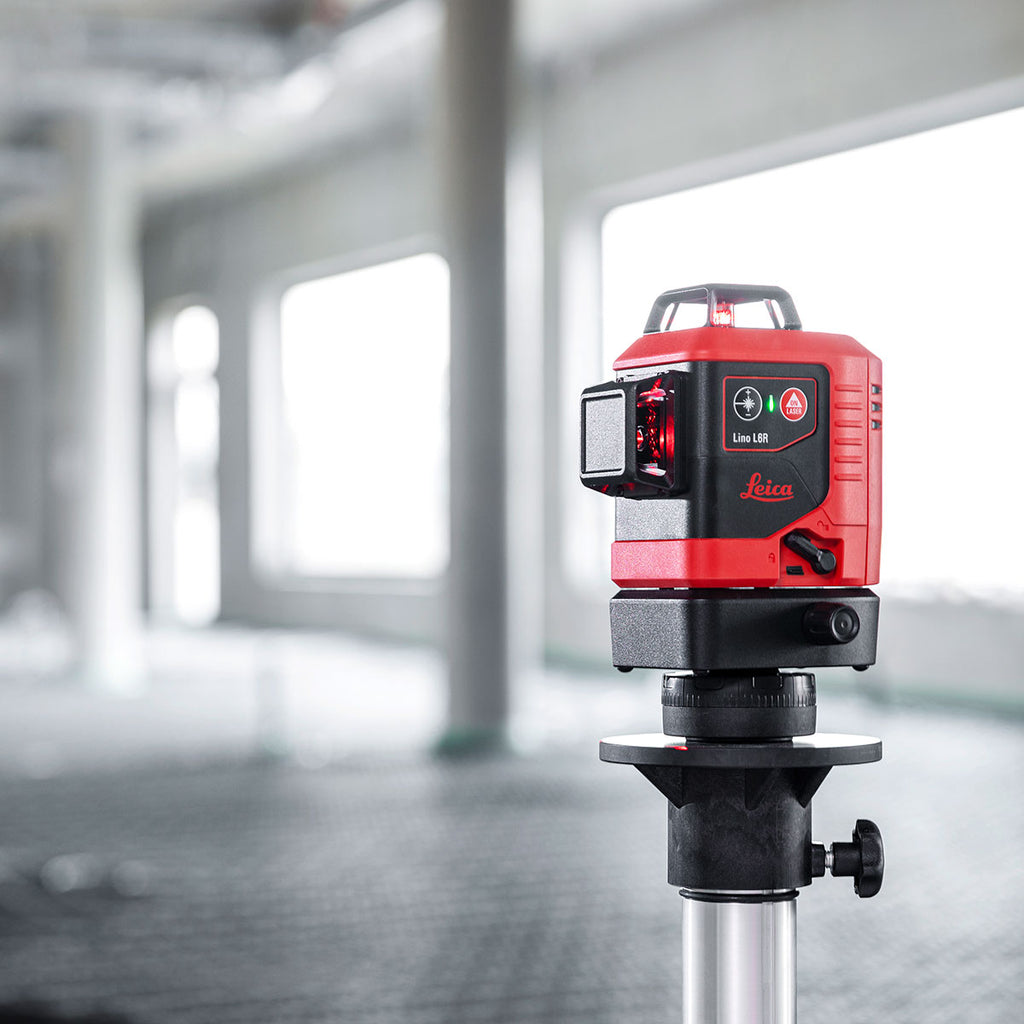

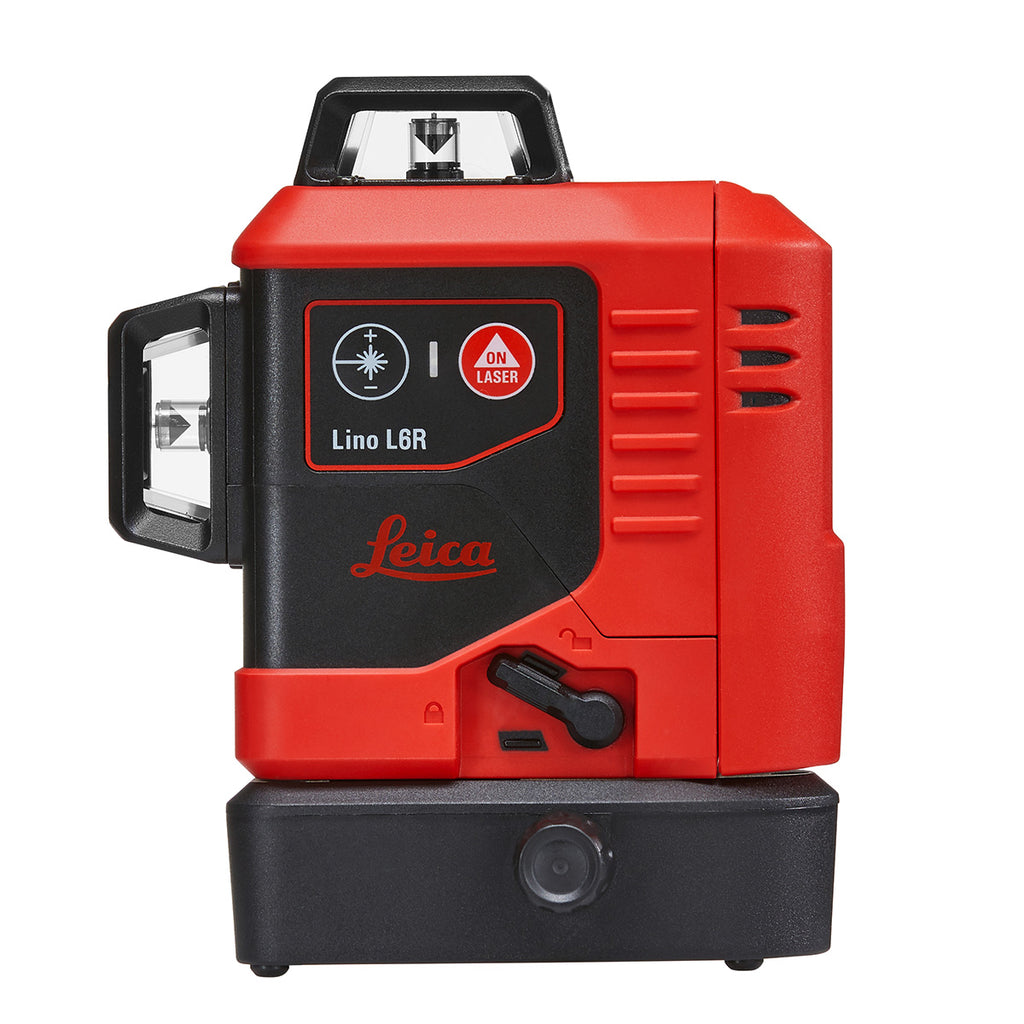

Leica Lino L6R Multi-Line Laser (Red beam)


Price:
£425 exc. VAT

Description

Leica Lino L6R and L6G Brochure

Leica Lino L6R and L6G User Manual

Features

  • Horizontal and two vertical 360° red laser lines
  • High visibility due to red Ultra-power laser diodes
  • Self-levelling over wide range

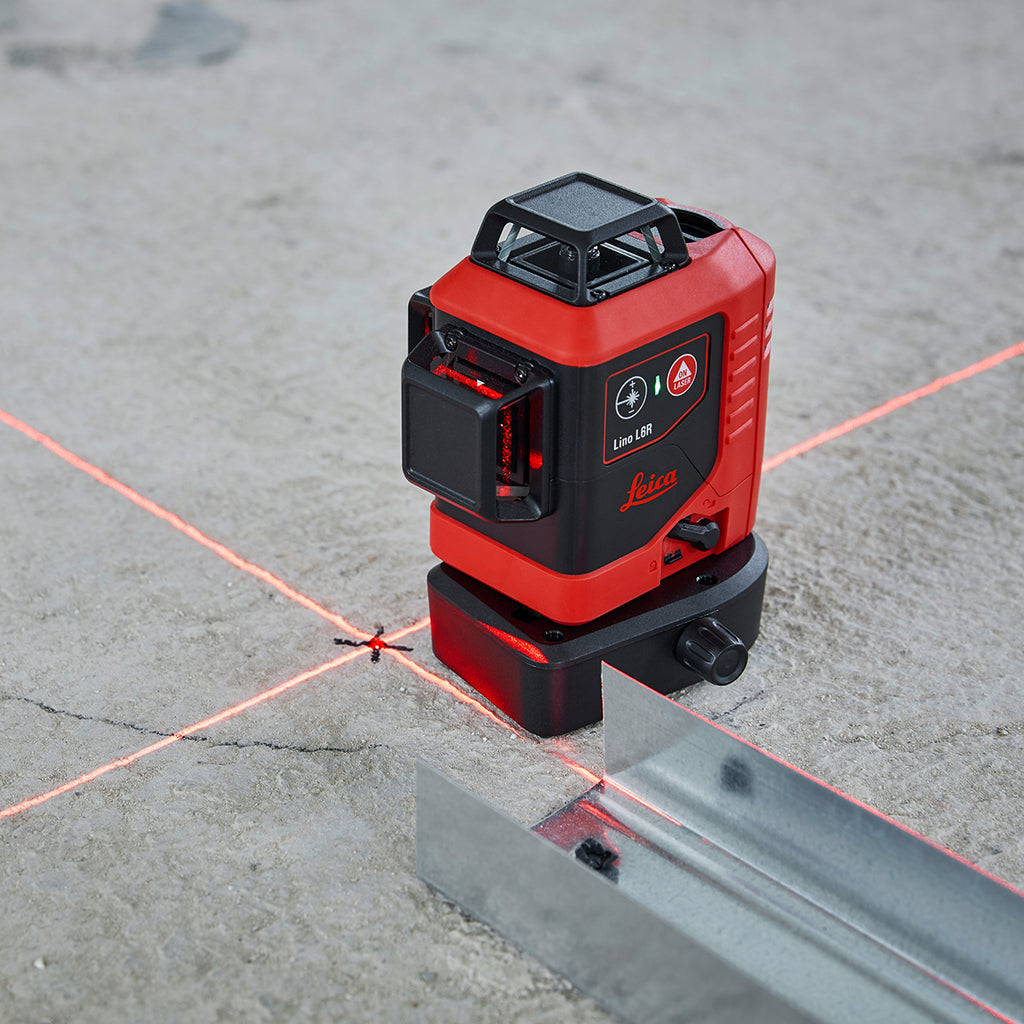

  • Fixed plumb point due to integrated base
  • Adjustable strength of laser lines
  • Operating range of up to 25 metres
  • Li-Ion power for up to 36 h operation
  • Uninterrupted working with Triple-Power concept
  • Smart magnetic adapters for easy positioning

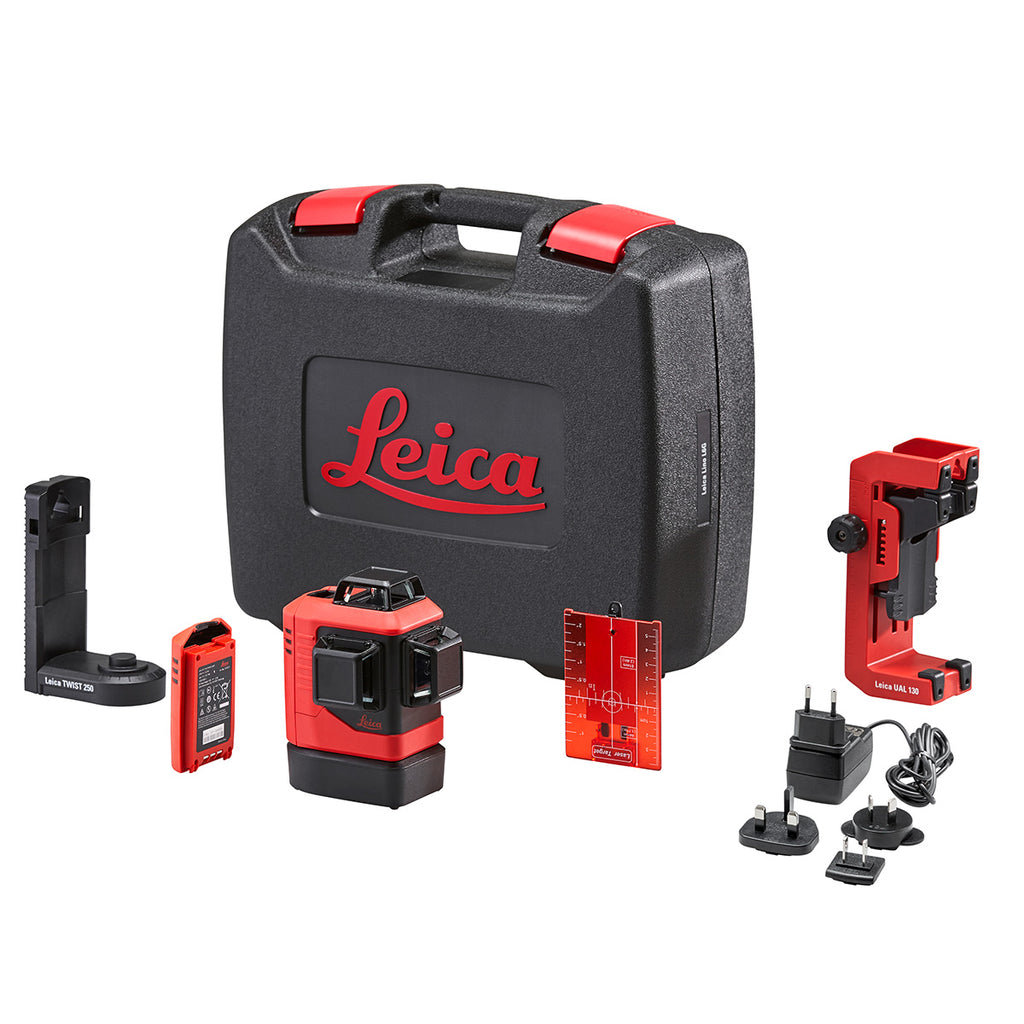

Supplied With

  • Lino L6R Line Laser
  • Leica TWIST 250 adapter | UAL 130 wall-mount
  • Li-Ion battery pack incl. charger & plugs | Alkaline battery tray
  • Laser target plate, rugged carry case
  • Safety instructions, quick start guide, calibration certificate & warranty card
  • 3 year warranty

Product Specification

Range up to 25 m* (70 m with receiver)
Levelling accuracy ± 0.2 mm  / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Intersectional points up, down, right, left, front, back (90° / 180°)
Beam direction Horizontal 360° | Vertical 2 x 360°
Laser line width at 5m < 2 mm
Laser type 635 nm  / class 2 (red)
Battery type Lino Li-Ion battery pack 5200 mAh / 18.7 Wh or 3xAA Alkaline
Operating time < 36h
Protection class IP 54
Dimensions

110 × 60 × 100 mm

Weight with batteries

781 g

Tripod thread Lino 1/4 in (5/8 in with adapter)
