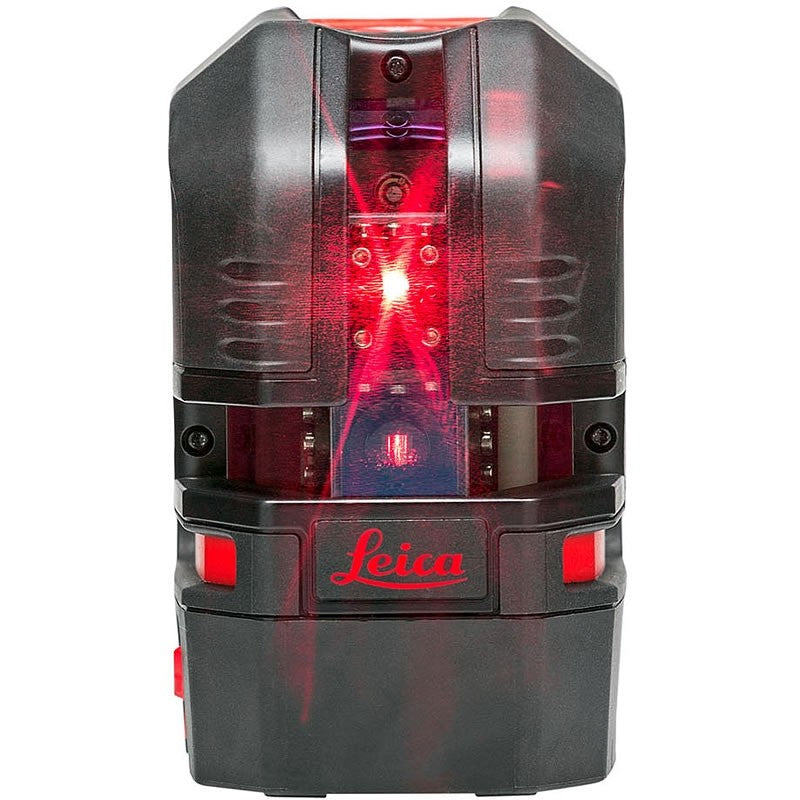

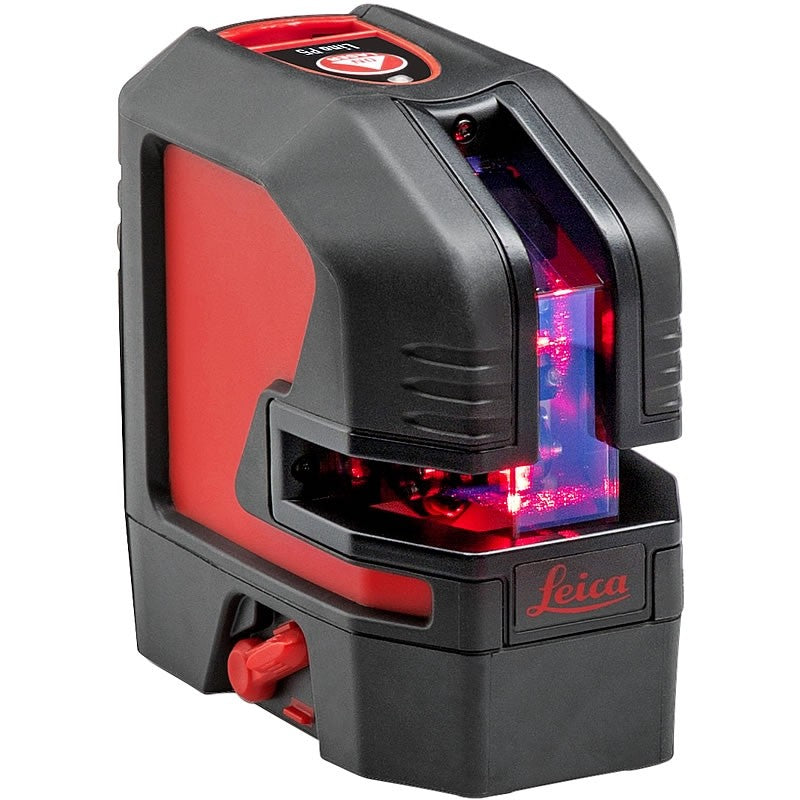

Leica Lino P5 Point Laser



  • Precise laser projection, right to the point

    The Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.

    One Button Operation

    The Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.

    Quick Positioning

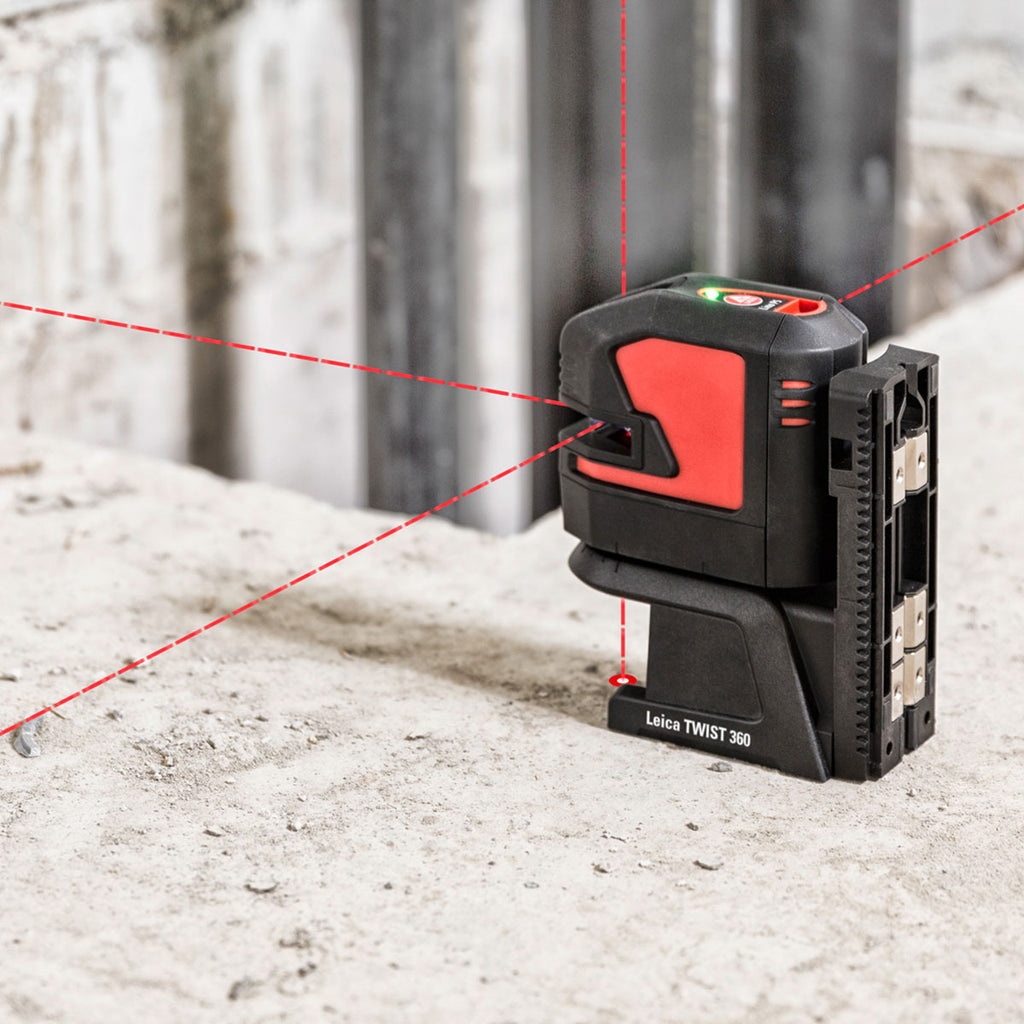

    Magnetic smart adapters allow you to quickly attach your Leica Lino P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster.

    Self-Levelling

    The Leica Lino P5 automatically adjusts its positioning if it is slightly out of level to ensure the correct transfer of angles and reference points up to ± 4°. Flashing laser points mean that the tilt is outside this limit.

    Leica 3 Year WarrantyTriple Power Concept

    The Leica Lino P5 laser has a triple power concept. It comes with Alkaline batteries but it can be operated with the addition of a Li-Ion battery pack, too.

    Rugged Design

    The Leica Lino P5 is dust and spray water protected to IP 54 standards. This makes it a tough instrument suitable for all your jobs.

  • Features - Leica Lino P5 Point Laser

    Specifications:
    Range up to 30m depending on lighting conditions
    Levelling accuracy @ 5 m ± 0.2 mm /m
    Self-levelling range ± 4°
    Self-levelling time < 3s
    Number of laser dots 5
    Beam direction up, down, forward, right, left
    Dot accuracy ± 0.2 mm /m
    Laser type 635 nm, class 2 (red)
    Battery type AA (3 × 1.5 V) or Li-Ion rechargeable
    Operating time up to 37h (AA) depending on laser mode
    Protection class IP54
    Operating temperature -10 to 50 °C
    Storage temperature -25 to 70 °C
    Dimensions 110 × 60 × 100 mm
    Weight with batteries 495 g
    Tripod thread Lino 1/4"
    Tripod thread adapter 1/4" + 5/8"

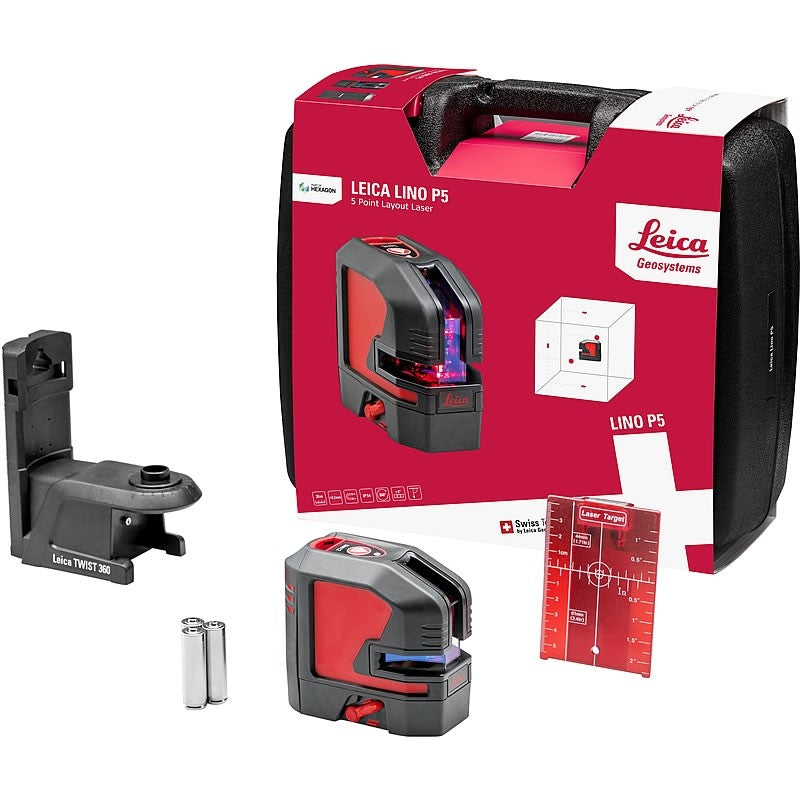

  • Package Contents

    • Lino P5 Point Laser
    • Twist 360 Adapter
    • Target Plate
    • Alkaline Batteries (3x AA)
    • Carrying Case
    • Quickstart Guide
  • Hire

    This laser level is also available to hire.

    Please visit our Laser Level Hire page or call us on 0800 633 5131.

    View Laser Level Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • Downloads

    Leica Lino P5 Point Laser User Manual
