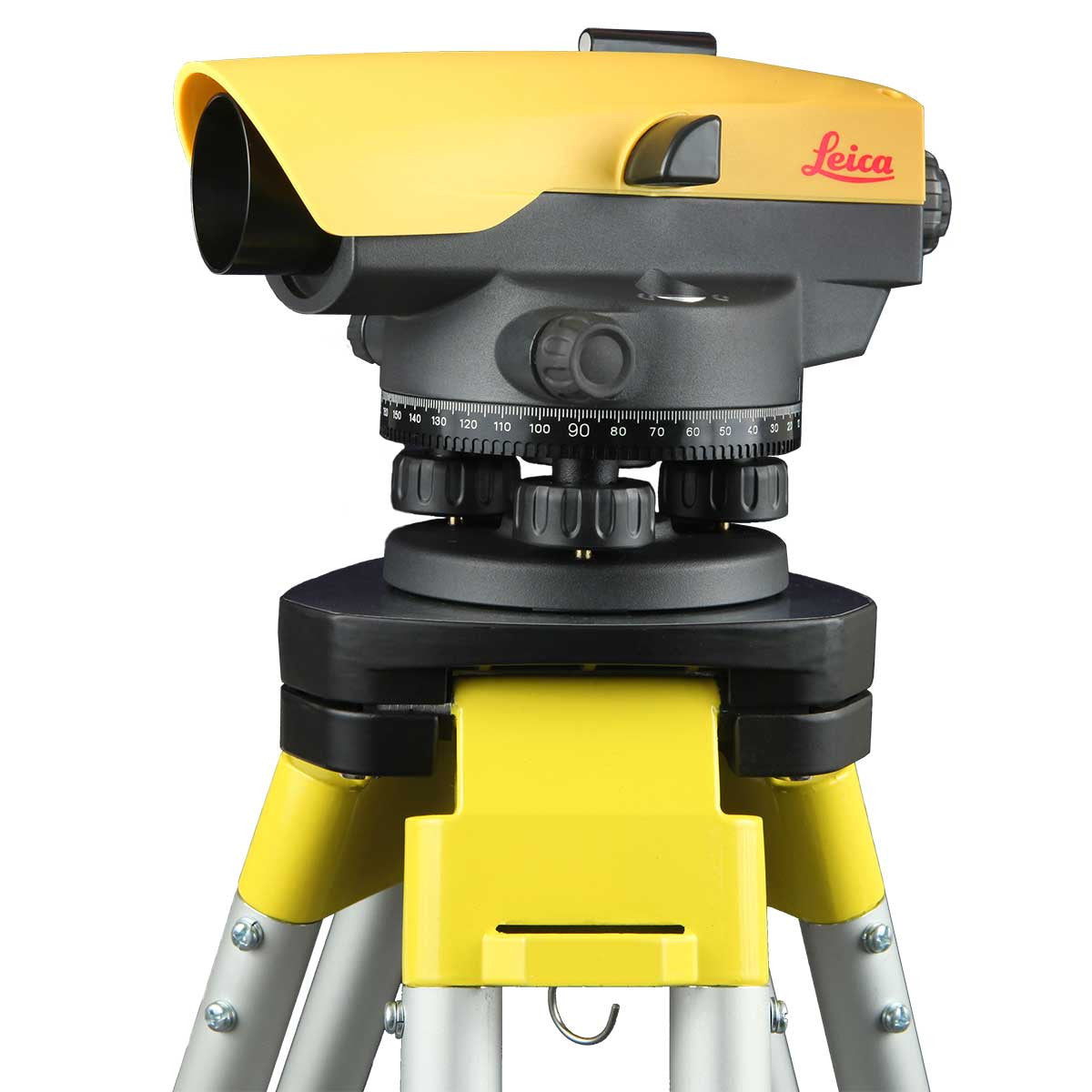

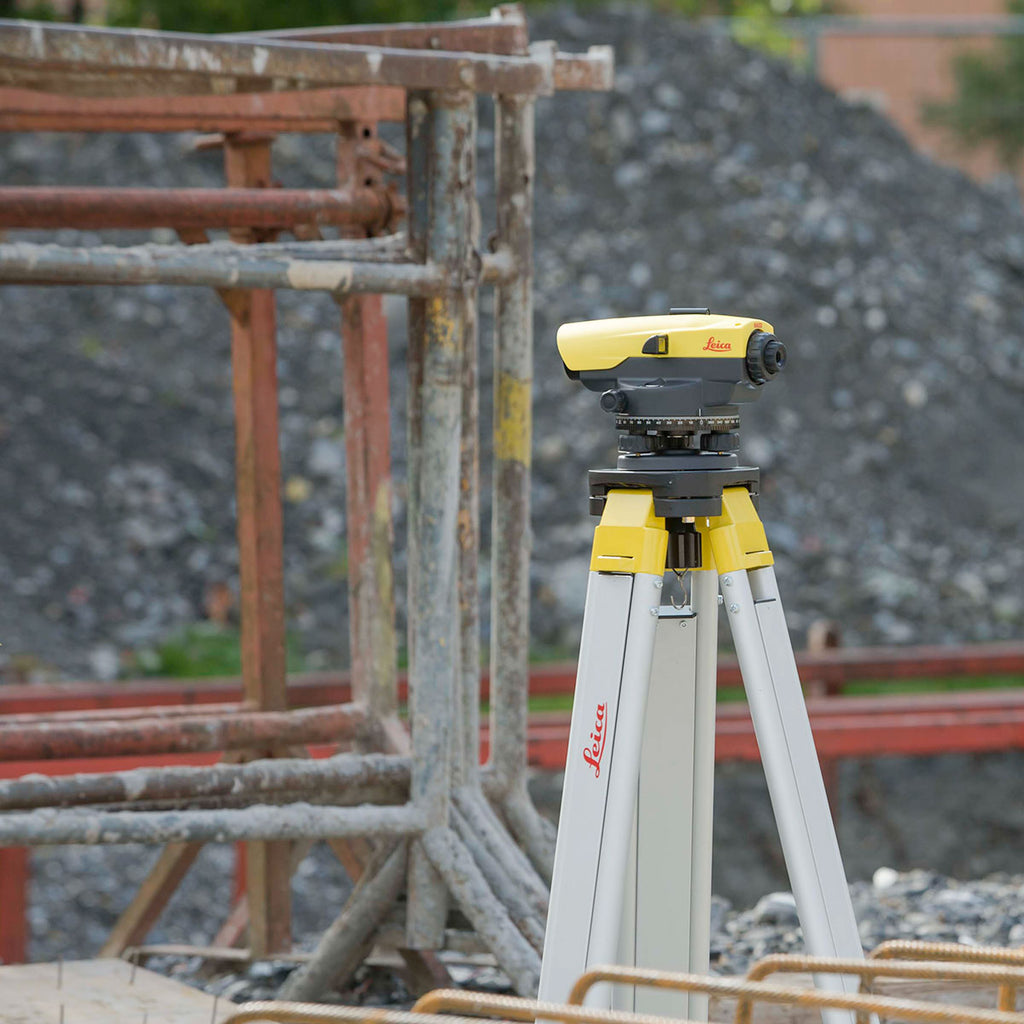

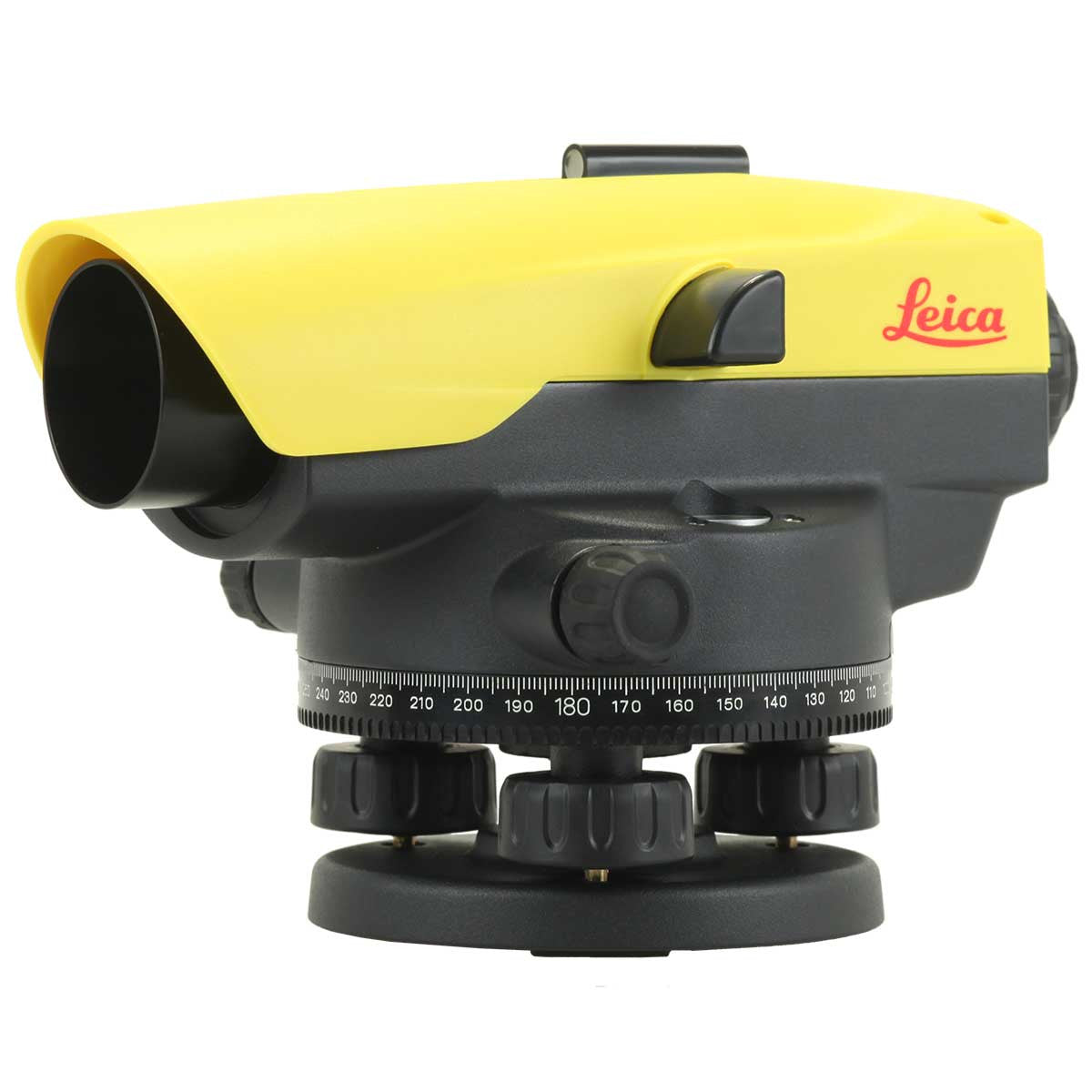

Leica NA524 Automatic Level

  • With the many obstructions and uneven surfaces, construction and building sites are full of levelling challenges. To ensure the straightest and safest construction possible, you need a reliable instrument for all your levelling needs.

    On your terms, on your site, Leica Geosystems is your trusted partner and the Leica NA500 Series provides you with reliable levels for accurate measurements and high quality results.

  • Accurate. Focused. Protected.

    • Leica Geosystems is a pioneer in manufacturing levels and understands the needs of construction workers
    • Whatever your need, basic or more, Leica levels are your answer
    • With a unique design, these levels produce the highest quality results at the best price value
    • The unique design of the Leica NA500 Series reflects the high quality of technology featured inside each level
    • The Leica NA500 Series is ruggedly made to withstand the harshest elements
    • These levels, while highly accurate, provide quick and easy measurements
    • Unbeaten warranty and service offering
    • Leica Geosystems offers solutions for all your construction needs
  • Box Contents

    • Leica NA500 Automatic Level
    • Carry Case
    • User Manual
    • Calibration Certificate - 1 Year
  • Optional Extras

    The Optional Extras available with this product are:

    5m Construction Staff

    5m Construction Staff (£25 exc VAT)

    This leveling staff works well alongside levels and laser levels. Perfect results every time!

    View product

    Leica GST 103 Medium-duty Aluminium Tripod

    Leica GST 103 Medium-duty Aluminium Tripod (£39.95 exc VAT)

    This is the perfect tripod for levels, laser levels and many more besides. Reliable and durable!

    View product

  • Model NA520 NA524 NA532
    Standard deviation for 1 km double levelling (ISO17123-2) 2.5 mm 1.9 mm 1.6 mm
    Telescope image
    Magnification 20 x 24 x 32 x
    Objective aperture
    36 mm
    Shortest target distance from instrument axis
    < 1.0 m
    Field of view at 100 m
    < 2.1 m
    Multiplication factor
    Additive constant 0
    Working range
    ± 15’
    Setting accuracy (standard deviation)
    < 0.5’’
    8’ / 2 mm
    Horizontal circle
    Graduation interval
    Weight (net)
    1.5 kg
    Operating temperature range
    –20°C to +50°C
  • Hire

    This level is also available to hire.

    Please visit our Level Hire page or call us on 0800 633 5131.

    View Level Hire »

  • Calibration & Repair

    This item requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »
