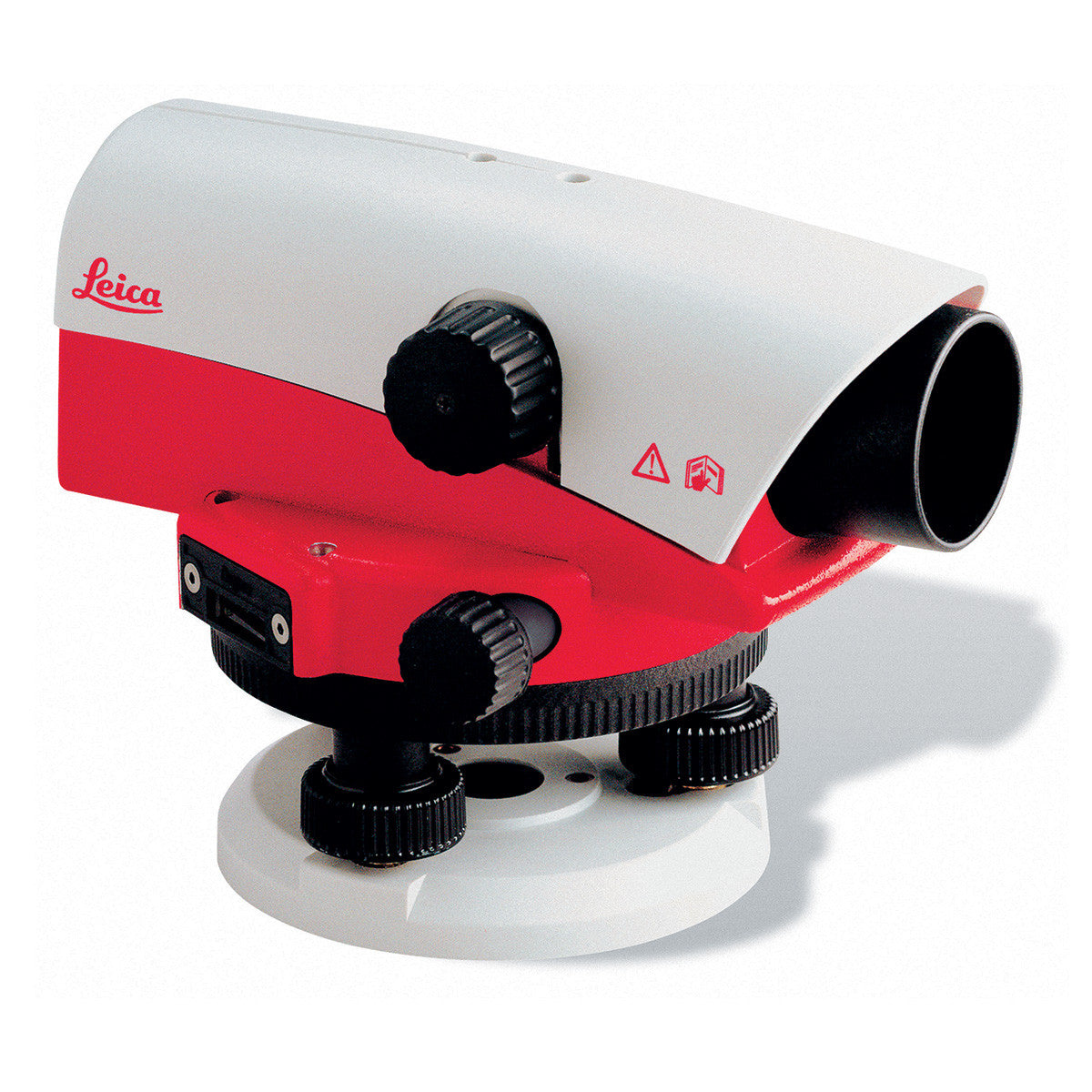

Leica NA724 Automatic Level

  • Built for builders, engineers and surveyors
    Leica NA724 - The automatic level for all applications on the construction site. 24x telescopic magnification.

    Nothing stops a Leica NA724 level. A short drop onto the ground, a fall into water, vibration from heavy machinery - with a Leica NA724 level you just carry on working. No time-consuming checking or readjustment required. And, the 'best in class' optics enable you to always work as precisely as possible, even in twilight.

  •

    NA720

    NA724

    NA728

    NA730

    NA730 +

    Accuracy

    Magnification

    x 20

    x 24

    x 28

    x 30

    x 30

    Per km double run

    2.5 mm

    2 mm

    1.5 mm

    1.2 mm

    0.7 mm

    Single measurement - Target distance 30m

    1.5 mm

    1.2 mm

    1 mm

    0.8 mm

    0.4 mm

    Compensator

    Setting accuracy

    < 0.5"

    < 0.5"

    < 0.3"

    < 0.3"

    < 0.3"

    Working range

    ± 15'

    ± 15'

    ± 15'

    ± 15'

    ± 15'

    Environmental

    Impact standard

    ISO 9022-33-5

    ISO 9022-33-5

    ISO 9022-33-5

    ISO 9022-33-5

    ISO 9022-33-5

    Resistance to water and dust ingres

    IP57

    IP57

    IP57

    IP57

    IP57

    Temperature Range

    Operation

    -20° to +50°C

    -20° to +50°C

    -20° to +50°C

    -20° to +50°C

    -20° to +50°C

    Storage

    -40° to +70°C

    -40° to +70°C

    -40° to +70°C

    -40° to +70°C

    -40° to +70°C

    Dimensions & Weight

    Dimensions

    19x12x12 cm

    19x12x12 cm

    21x12x12 cm

    21x12x12 cm

    21x12x12 cm

    Weight

    1.6 kg

    1.6 kg

    1.7 kg

    1.7 kg

    1.7 kg

  • The Optional Extras available with this product are:

    5m Construction Staff

    5m Construction Staff (£25 exc VAT)

    This leveling staff works well alongside levels and laser levels. Perfect results every time!

    View product

    Leica GST 103 Medium-duty Aluminium Tripod

    Leica GST 103 Medium-duty Aluminium Tripod (£39.95 exc VAT)

    This is the perfect tripod for levels, laser levels and many more besides. Reliable and durable!

    View product

  • Downloads

    Leica NA700 Series Brochure
