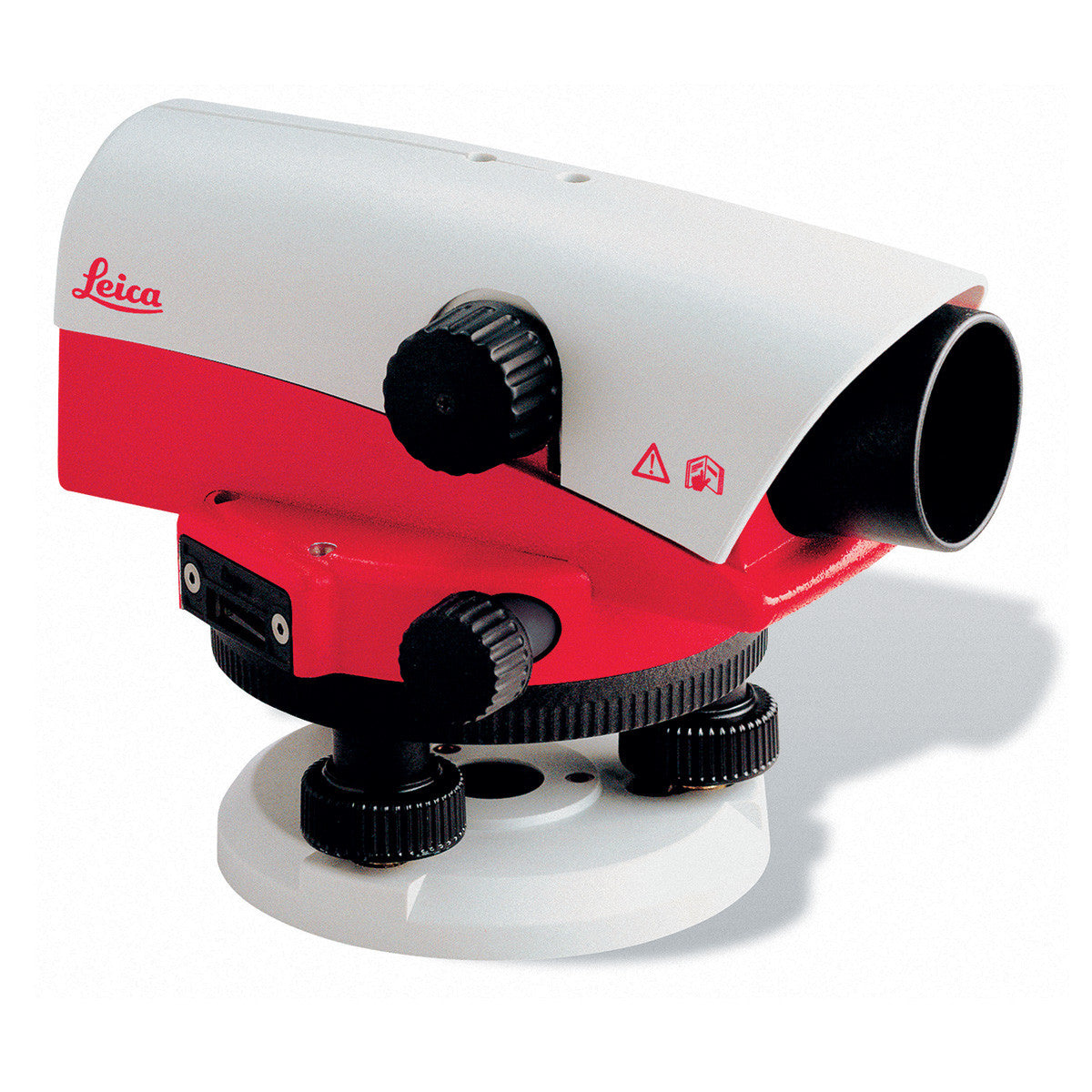

Leica NA730 plus Automatic Level

  • Specifically built for builders, engineers and surveyors

    The Leica NA730 plus automatic level is the most durable level on the market.

    You can drop it, submerge it in water or vibrate it with heavy machinery and the Lecia NA730 plus will just keep on working.

    No time-consuming checking or readjustment required.

    Also, the 'best in class' optics enable you to always work as precisely as possible, even in twilight.

    30x telescopic magnification.

  •

    NA720

    NA724

    NA728

    NA730

    NA730 +

    Accuracy

    Magnification

    x 20

    x 24

    x 28

    x 30

    x 30

    Per km double run

    2.5 mm

    2 mm

    1.5 mm

    1.2 mm

    0.7 mm

    Single measurement - Target distance 30m

    1.5 mm

    1.2 mm

    1 mm

    0.8 mm

    0.4 mm

    Compensator

    Setting accuracy

    < 0.5"

    < 0.5"

    < 0.3"

    < 0.3"

    < 0.3"

    Working range

    ± 15'

    ± 15'

    ± 15'

    ± 15'

    ± 15'

    Environmental

    Impact standard

    ISO 9022-33-5

    ISO 9022-33-5

    ISO 9022-33-5

    ISO 9022-33-5

    ISO 9022-33-5

    Resistance to water and dust ingres

    IP57

    IP57

    IP57

    IP57

    IP57

    Temperature Range

    Operation

    -20° to +50°C

    -20° to +50°C

    -20° to +50°C

    -20° to +50°C

    -20° to +50°C

    Storage

    -40° to +70°C

    -40° to +70°C

    -40° to +70°C

    -40° to +70°C

    -40° to +70°C

    Dimensions & Weight

    Dimensions

    19x12x12 cm

    19x12x12 cm

    21x12x12 cm

    21x12x12 cm

    21x12x12 cm

    Weight

    1.6 kg

    1.6 kg

    1.7 kg

    1.7 kg

    1.7 kg

  • The Optional Extras available with this product are:

    5m Construction Staff

    5m Construction Staff (£25 exc VAT)

    This leveling staff works well alongside levels and laser levels. Perfect results every time!

    View product

    Leica GST 103 Medium-duty Aluminium Tripod

    Leica GST 103 Medium-duty Aluminium Tripod (£39.95 exc VAT)

    This is the perfect tripod for levels, laser levels and many more besides. Reliable and durable!

    View product

  • Downloads

    Leica NA700 Series Brochure
