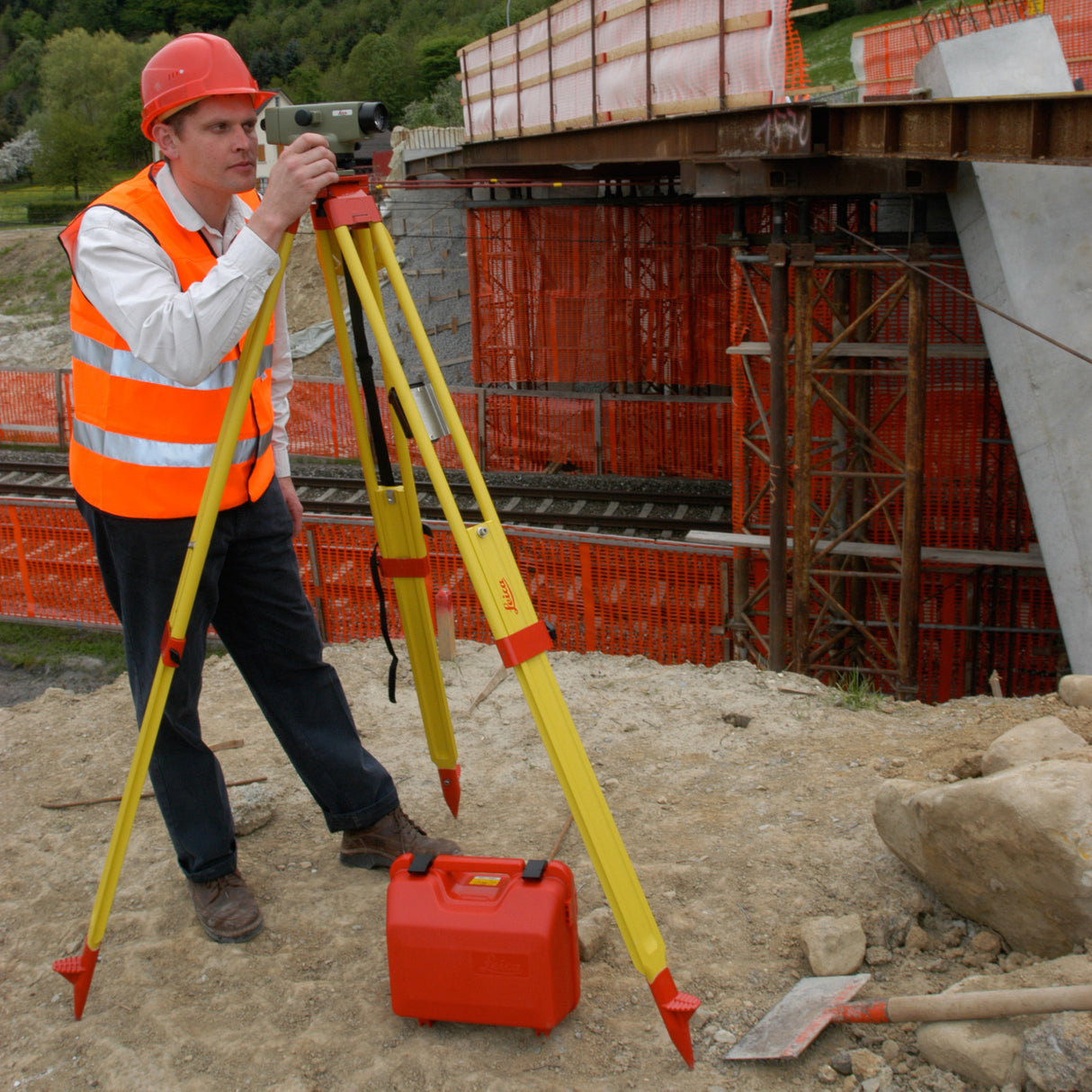

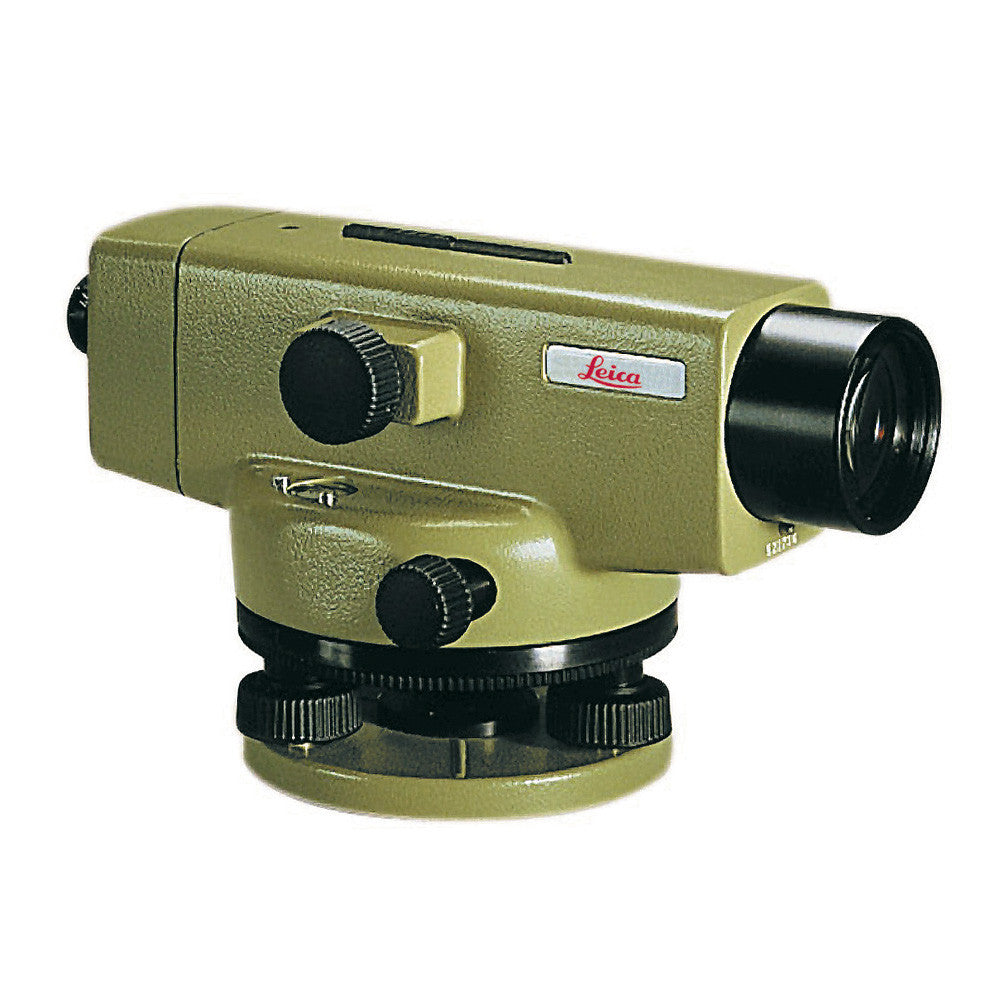

Leica NAK2 Precise Level

  • Leica NA2 and Leica NAK2 are two universal automatic levels meet all the requirements of precision leveling.

    Leica's top-class optical quality gives the NA2 & NAK2 a bright high contrast image.
    • push button compensator check
    • endless horizontal drive for left and right handed users
    • coarse and fine focusing knob
    • play-free footscrews
    • optional eyepieces available
    • top-class optics

    To improve accuracy a parallel plate micrometer can be fitted over the telescope objective. The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm. This makes the NA2 and NAK2 an ideal precise level for deformation studies or industrial measuring tasks.

    The NAK2 model has an internal glass circle for reading horizontal angles. Combined with the stadia calculation of distances from staff readings the NAK2 circle adds the application benefit of detail survey work.

  • Technical Data

    NA2 / NAK2

    Accuracy* 0.7 mm (dependent on staff, technique)
    0.3 mm (with parallel-plate micrometer)
    Magnification standard: 32x
    FOK73 eyepiece (optional): 40x
    Shortest focusing distance

    1.6 m

    Compensator setting accuracy

    0.3''

    * Per 1km double run

  • The Optional Extras available with this product are:

    5m Construction Staff

    5m Construction Staff (£25.00 exc VAT)

    5m, 4 section, lightweight aluminium staff complete with sleeve.

    View product

    Leica FOK73 Eyepiece for use with the NA2 and NAK2 precise levels.

    FOK73 Eyepiece (£139.95 exc VAT)

    The Leica FOK73 Eyepiece is specifically for use with the NA2 and NAK2 Precise Levels. It offers a vast improvement on magnification from x32 to x40.

    View product

    Leica GST05 Wooden Tripod

    GST05 Wooden Tripod (£149.95 exc VAT)

    Light duty tripod with water-tight plastic wrap for complete protection. Suitable for TPS-Instruments with angular measurement accuracy above 5”, reflectors and GNSS antennas.

    View product

    GPLE2N Nedo Invar Staff

    GPLE2N Nedo Invar Staff (£470.00 exc VAT)

    A 2m long GPLE2N invar rod set with circular level. This aluminium invar staff provides accurate leveling results.

    View product

    Leica GPM3 Parallel Plate Micrometer

    Leica GPM3 Parallel Plate Micrometer (£1200.00 exc VAT)

    The Leica GPM3 Parallel Plate Micrometer can be used with the Leica NA2 and NAK2 Precise Levels. To improve accuracy the GPM3 parallel plate micrometer can be fitted over the telescope objective.

    View product

  • Downloads

    Leica NA2/NAK2 Brochure
