Description

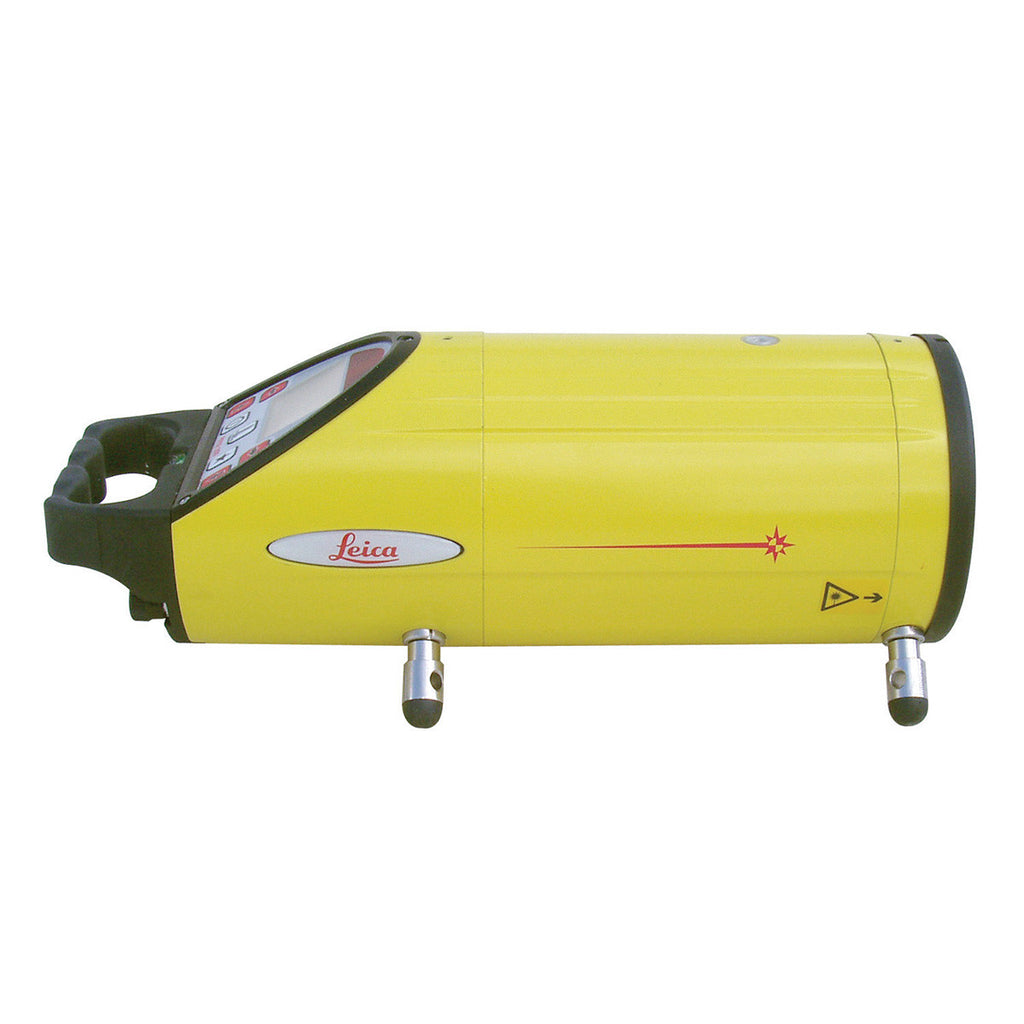

Powerful and compact, the Leica Piper is the only pipe laser that fits inside a 100 mm (four inch) pipe.
It is built with solid cast-aluminum housings, and is loaded with features that will improve productivity and minimize downtime on the job-site.
It is ideal anywhere line and grade is required. It has a large clear display that makes it easier for contractors to read grade, line position, battery status, and level indication.
The intelligent battery monitors the amount of charge/discharge so that contractors always know how much battery life they have left.

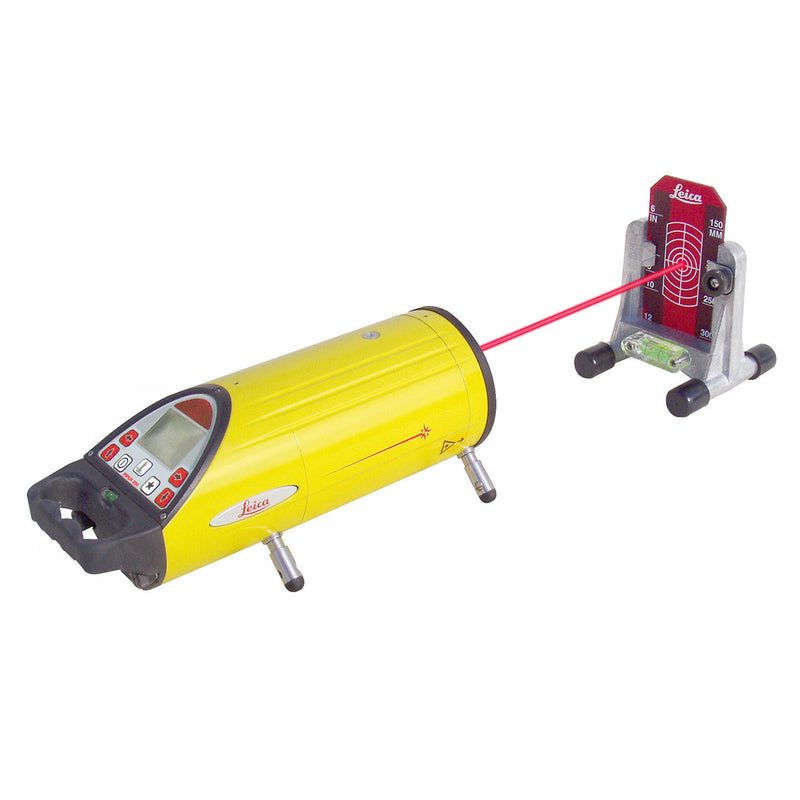

The Leica Piper's bright, visible beam is focused to maintain its crisp, clear spot and size over long distances.
Automatic grade compensation easily identifies and corrects grade errors. It automatically self-levels over a full grade range, and eliminates the need to tip the laser for steep slopes.
It can be used: -

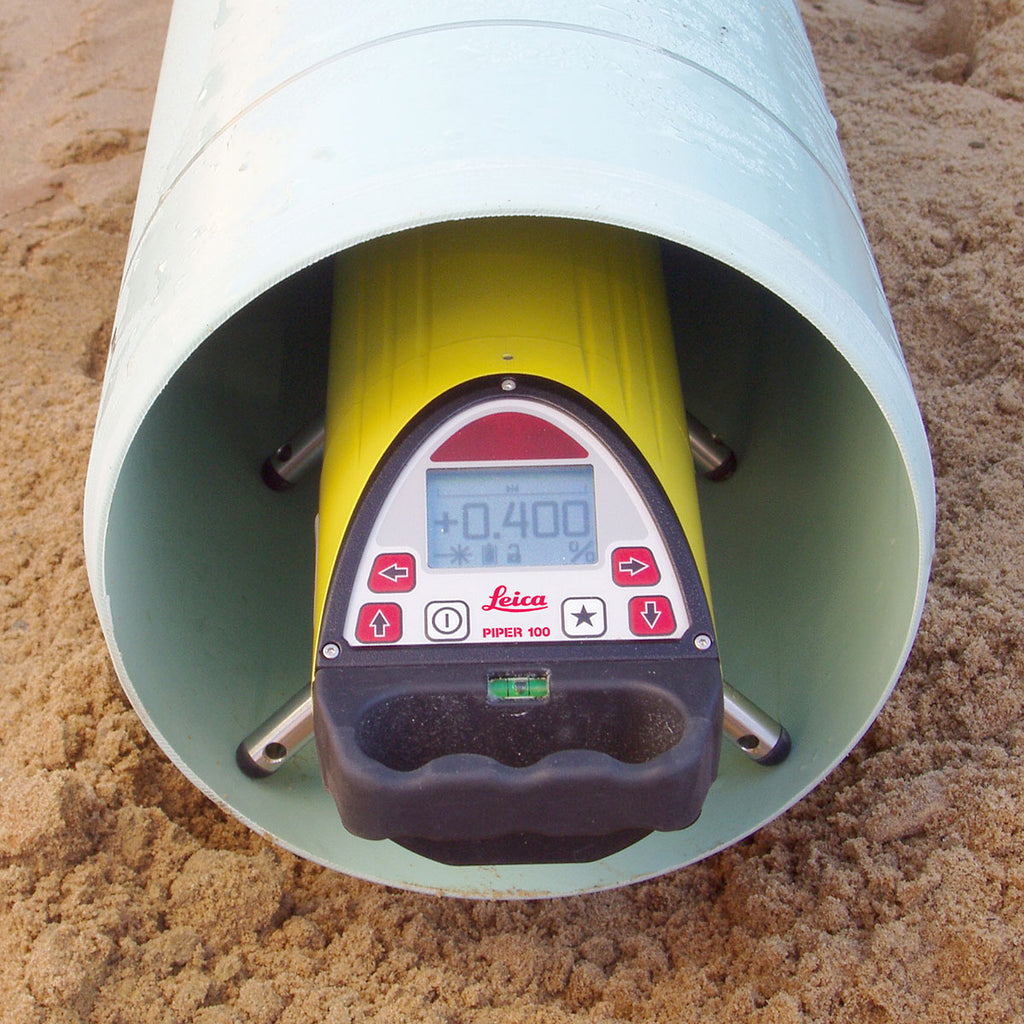

- In the pipe - Self-centering, rubber tipped feet ensure the Piper stays working.Rock solid construction with cast aluminum housing for the toughest job-site conditions. Compact and powerful, the Piper is the only pipe laser that fits inside a 100 mm/4 in pipe.
- Over the top - Optional scope and mount kit for above ground setups. Versatile, yet simple to operate and user friendly.
- In the manhole - Its unique design and wide stable base make the Piper easy to set up even in the smallest invert. The Piper is 100 % waterproof with a positive pressure nitrogen seal
Features - Leica Piper 100 Pipe Laser
- Wide line adjustment - A full 20 ft (6 m) of line travel at 100 ft (30 m).
- Easy grade entry - Simply press the up/down arrows to change grade or use direct digit entry to make large grade changes quickly. Press both buttons together to easily reset grade to zero.
- Off level warning - The beam blinks when the Piper is jarred or disturbed.
- Line and grade locks - To prevent unwanted changes after the Piper has been setup.
- Intelligent battery - Monitors amounts of charge and discharge to give an accurate level of the Piper’s long battery life.
- Battery saving mode - Press the sleep button (Remote) to turn off the beam.
- Lighted pivot point - Press the light button (Remote) to turn on the top pivot point LED.
- Strobe mode - Press the strobe button (Remote) to strobe the laser beam for increased visibility.

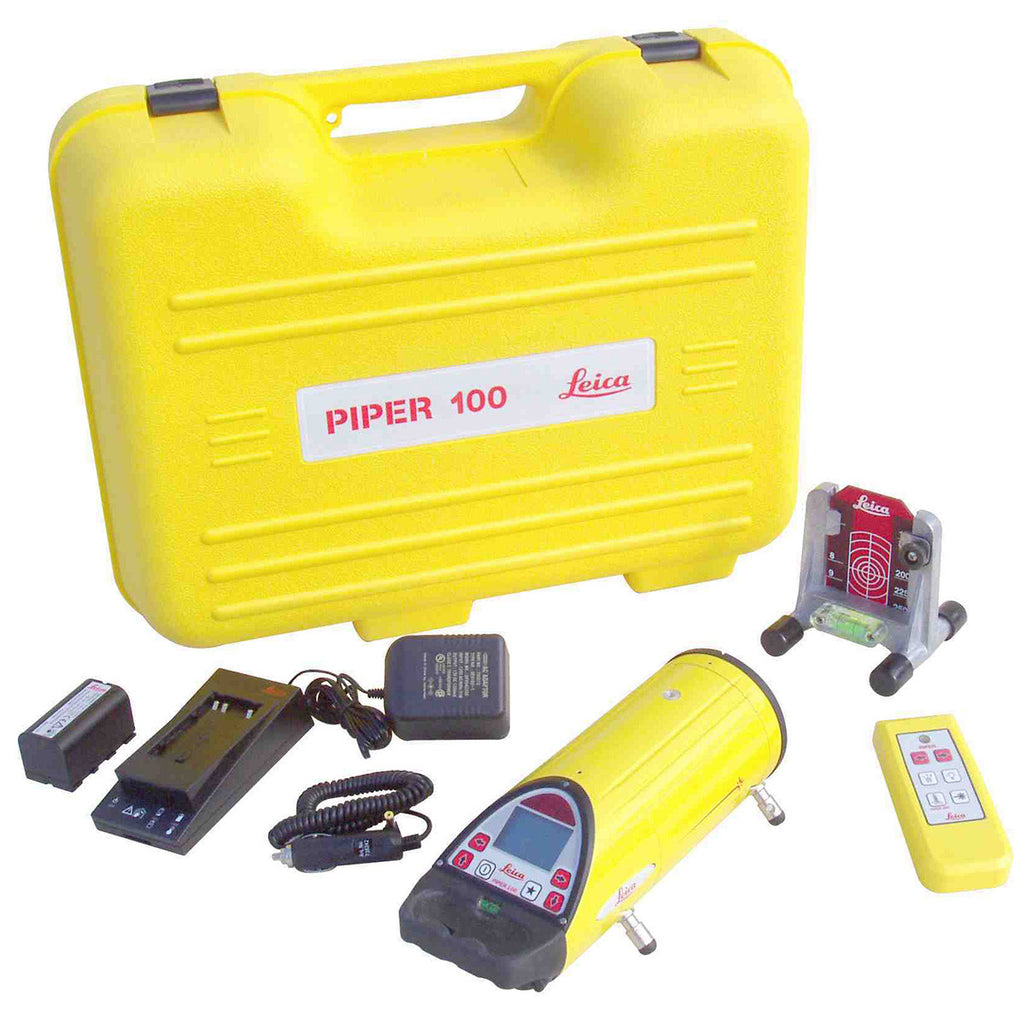

Box Contents
Package includes:
- Leica Piper 100
- Carrying Case
- User Manual
However, you do have the option to add whichever accessories you might need including battery, charger, remote control, target assembly, mount assembly and bracket.
Features |
Piper 100 |
Piper 200 |
---|---|---|
Beam |
Highly visible red beam |
Highly visible red beam |
Display |
Large, easy to read LCD display |
Large, easy to read LCD display |
Alignmaster* |
No |
Yes |
Line and Grade Locks |
Yes |
Yes |
Wide Line Adjustment |
Yes |
Yes |
Self-levelling |
Over full range |
Over full range |
Grade entry |
Direct or by digit |
Direct or by digit |
Remote control |
Yes, wireless |
Yes, wireless |
Housing |
Rock solid metal |
Rock solid metal |
Battery pack |
Rechargeable Lithium-Ion |
Rechargeable Lithium-Ion |
Waterproof |
100% |
100% |
* Alignmaster™ - Patented automatic targeting system searches and finds the target for second day setups.
Leica Piper 100 and 200 Pipe Lasers
Downloads
Leica Piper Series - User Guide
