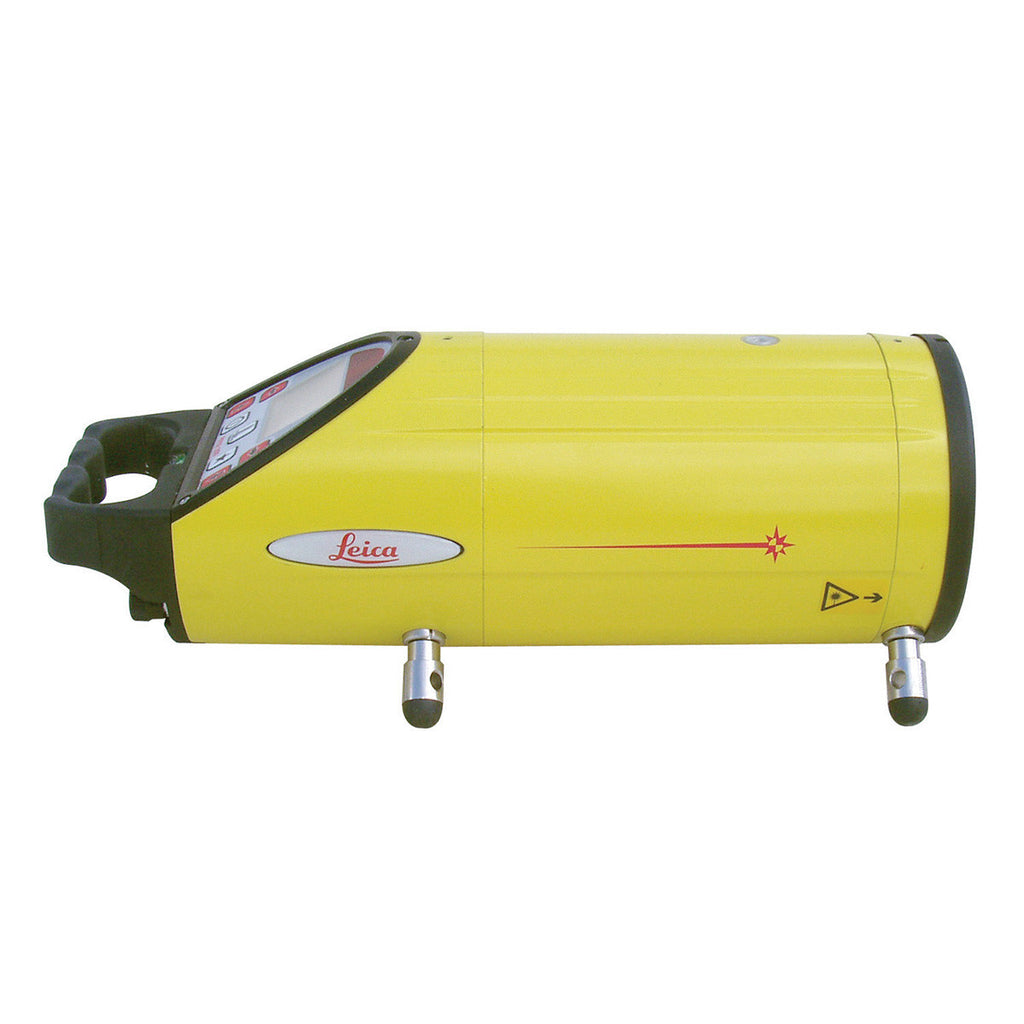

Leica Piper 200 Pipe Laser

  • Powerful and compact, the Leica Piper is the only pipe laser that fits inside a 100 mm (four inch) pipe.

    Piper 200 with Alignmaster™ - Patented automatic targeting system searches and finds the target for second day setups.

    It is built with solid cast-aluminum housings, and is loaded with features that will improve productivity and minimize downtime on the job-site.

    It is ideal anywhere line and grade is required. It has a large clear display that makes it easier for contractors to read grade, line position, battery status, and level indication.

    The intelligent battery monitors the amount of charge/discharge so that contractors always know how much battery life they have left.

    The Leica Piper's bright, visible beam is focused to maintain its crisp, clear spot and size over long distances.

    Automatic grade compensation easily identifies and corrects grade errors. It automatically self-levels over a full grade range, and eliminates the need to tip the laser for steep slopes.

    It can be used: -

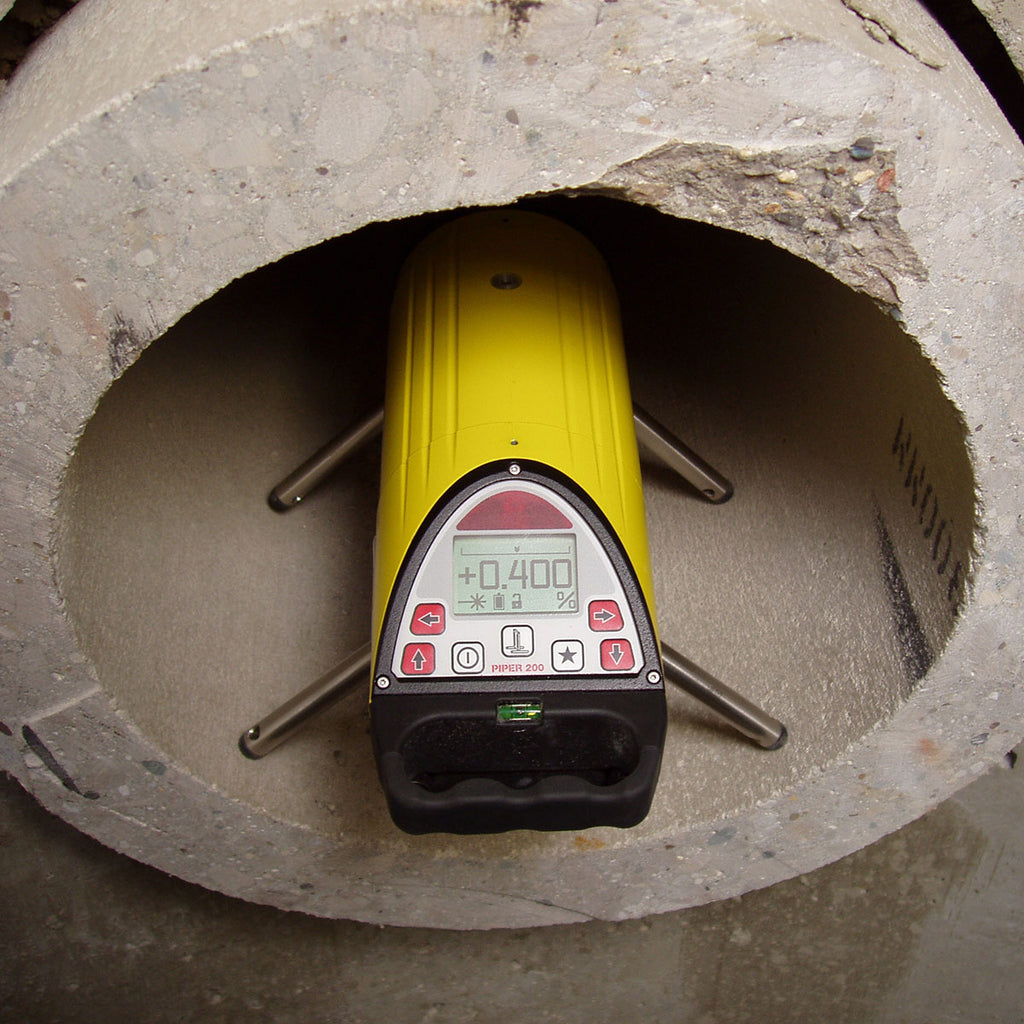

    • In the pipe - Self-centering, rubber tipped feet ensure the Piper stays working.Rock solid construction with cast aluminum housing for the toughest job-site conditions. Compact and powerful, the Piper is the only pipe laser that fits inside a 100 mm/4 in pipe.
    • Over the top - Optional scope and mount kit for above ground setups. Versatile, yet simple to operate and user friendly.
    • In the manhole - Its unique design and wide stable base make the Piper easy to set up even in the smallest invert. The Piper is 100 % waterproof with a positive pressure nitrogen seal
  • Features - Leica Piper 200 Pipe Laser

    • Alignmaster™ - Patented automatic targeting system searches and finds the target for second day setups.
    • Wide line adjustment - A full 20 ft (6 m) of line travel at 100 ft (30 m).
    • Easy grade entry - Simply press the up/down arrows to change grade or use direct digit entry to make large grade changes quickly. Press both buttons together to easily reset grade to zero.
    • Off level warning - The beam blinks when the Piper is jarred or disturbed.
    • Line and grade locks - To prevent unwanted changes after the Piper has been setup.
    • Intelligent battery - Monitors amounts of charge and discharge to give an accurate level of the Piper’s long battery life.
    • Battery saving mode - Press the sleep button (Remote) to turn off the beam.
    • Lighted pivot point - Press the light button (Remote) to turn on the top pivot point LED.
    • Strobe mode - Press the strobe button (Remote) to strobe the laser beam for increased visibility.

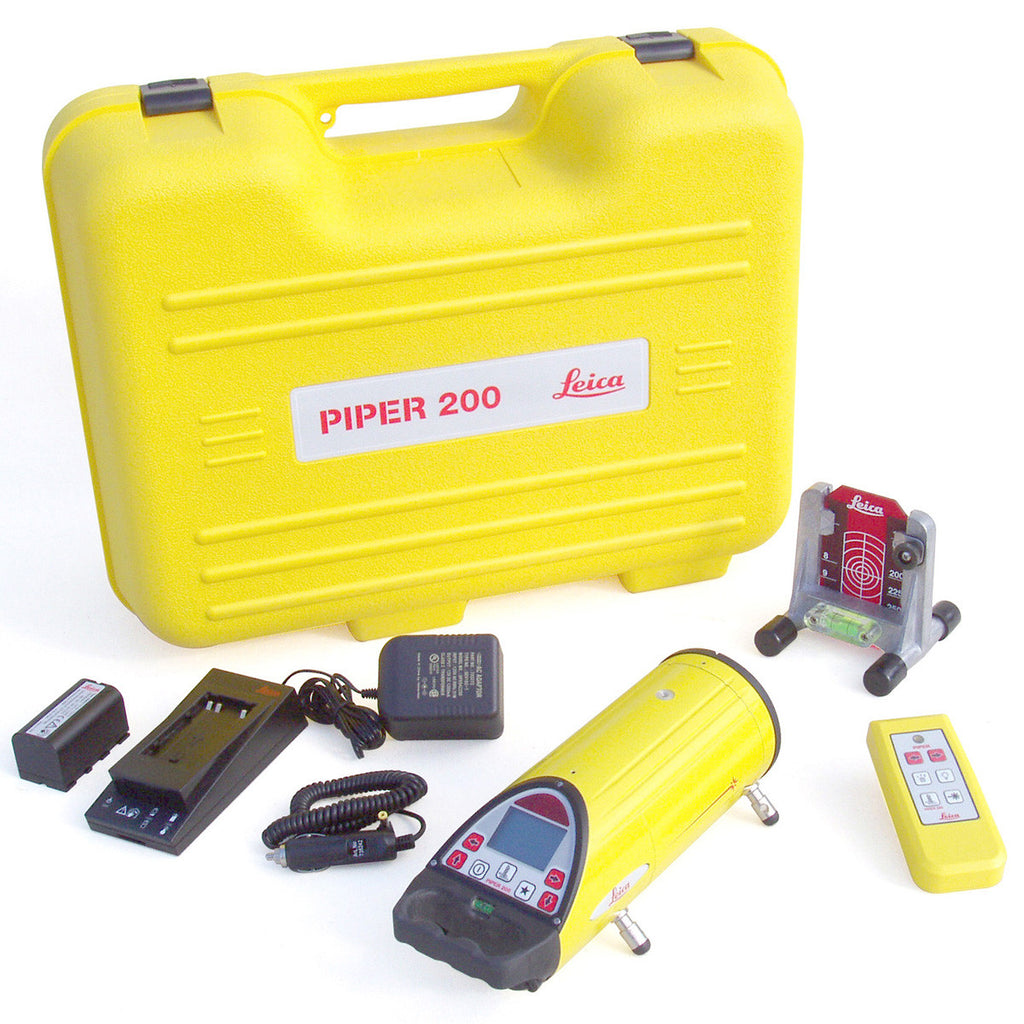

  • Box Contents

    • Leica Piper 200
    • Carry case
    • Battery & Charger
      • None OR
      • Battery (GEB211) and Charger (GKL211) (+ £213.89)
    • Remote control
      • None OR
      • IR Remote Control (+ £88.95)
    • Piper Feet
      • None OR
      • 4x Feet 6" / 150mm (+ £14.95) OR
      • 4x Feet 8" / 200mm (+ £14.95) OR
      • 4x Feet 9" / 225mm (+ £14.95) OR
      • 4x Feet 10" / 250mm (+ £21.95) OR
      • 4x Feet 12" / 300mm (+ £21.95)
    • User Manual
    • 1-Year Calibration Certificate
  • Optional Extras

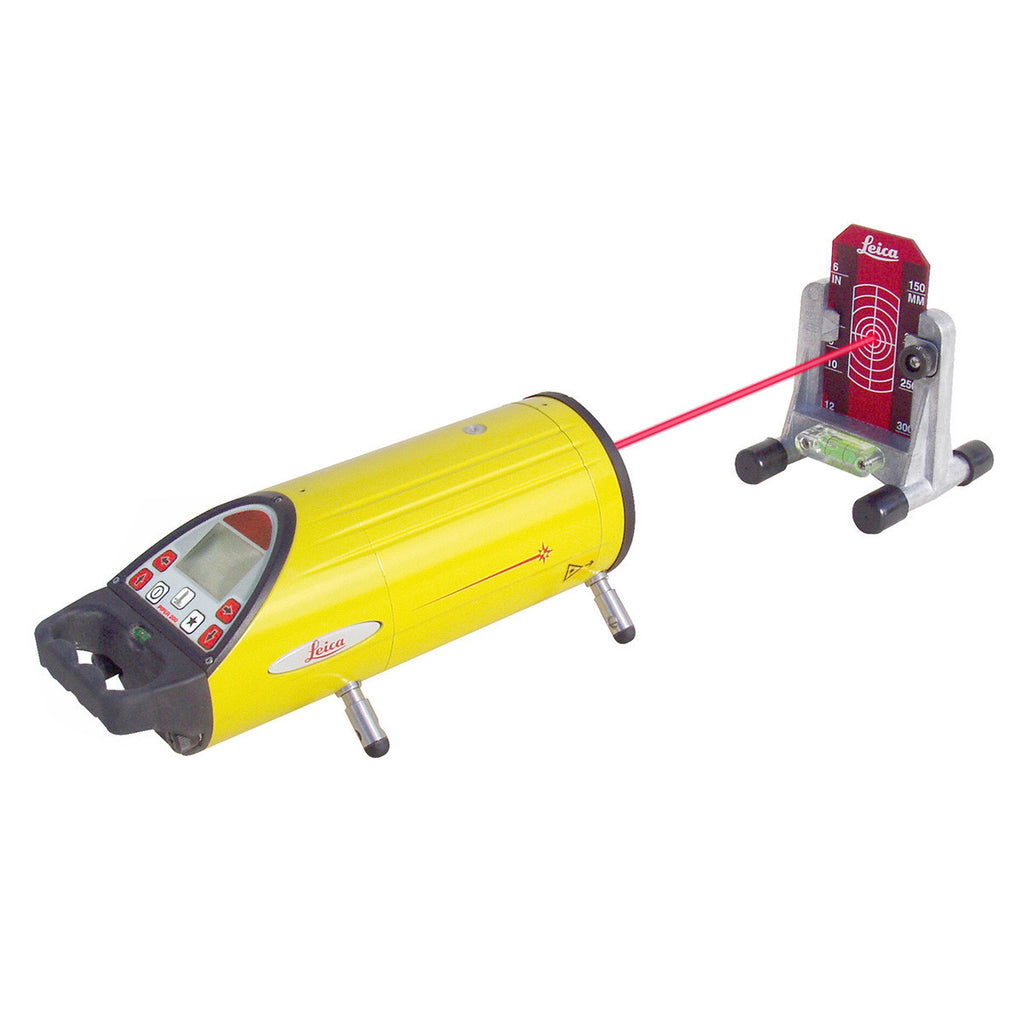

    Leica Piper Target Assembly - 100mm

    Leica Piper Target Assembly - 100mm (£34.50 exc VAT)

    Leica Piper Target Assembly 100mm. For use within a 100mm pipe.

    View product

    Leica Target Assembly - 300mm

    Leica Target Assembly - 300mm (£82.00 exc VAT)

    This red target is specifically for use with the Leica Piper 100 and 200 pipe lasers. The sturdy frame comes with its own bubble level. Target is replaceable.

    View product

    Leica Piper Scope and Mount Assembly

    Leica Piper Scope & Mount Assembly (£95.00 exc VAT)

    Specifically for use with the Leica Piper 100 and 200 pipe lasers. Telescope sight with 4 x 28 magnification. Improves alignment when working over long distances.

    View product

    Leica Trivet Assembly with Mounting Bracket

    Leica Trivet Assembly with Mounting Bracket (£225.00 exc VAT)

    The Leica Trivet Assembly with Mounting Bracket provides a strong base for work on the ground. Can be used with the Leica Piper 100 and 200 Pipe Lasers. There are markings on the pole to help you adjust the height of the laser.

    View product

  • Hire

    This laser level is also available to hire.

    Please visit our Laser Level Hire page or call us on 0800 633 5131.

    View Laser Level Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  •  Features

    Piper 100

    Piper 200

    Beam

    Highly visible red beam

    Highly visible red beam

    Display

    Large, easy to read LCD display

    Large, easy to read LCD display

    Alignmaster*

    No

    Yes

    Line and Grade Locks

    Yes

    Yes

    Wide Line Adjustment

    Yes

    Yes

    Self-levelling

    Over full range

    Over full range

    Grade entry

    Direct or by digit

    Direct or by digit

    Remote control

    Yes, wireless

    Yes, wireless

    Housing

    Rock solid metal

    Rock solid metal

    Battery pack

    Rechargeable Lithium-Ion

    Rechargeable Lithium-Ion

    Waterproof

    100%

    100%

    * Alignmaster™ - Patented automatic targeting system searches and finds the target for second day setups.

  • Leica Piper 100 and 200 Pipe Lasers

  • Downloads

    Leica Piper Series - Brochure

    Leica Piper Series - User Guide

    Leica Piper Series - User Manual

    Gradient Chart
