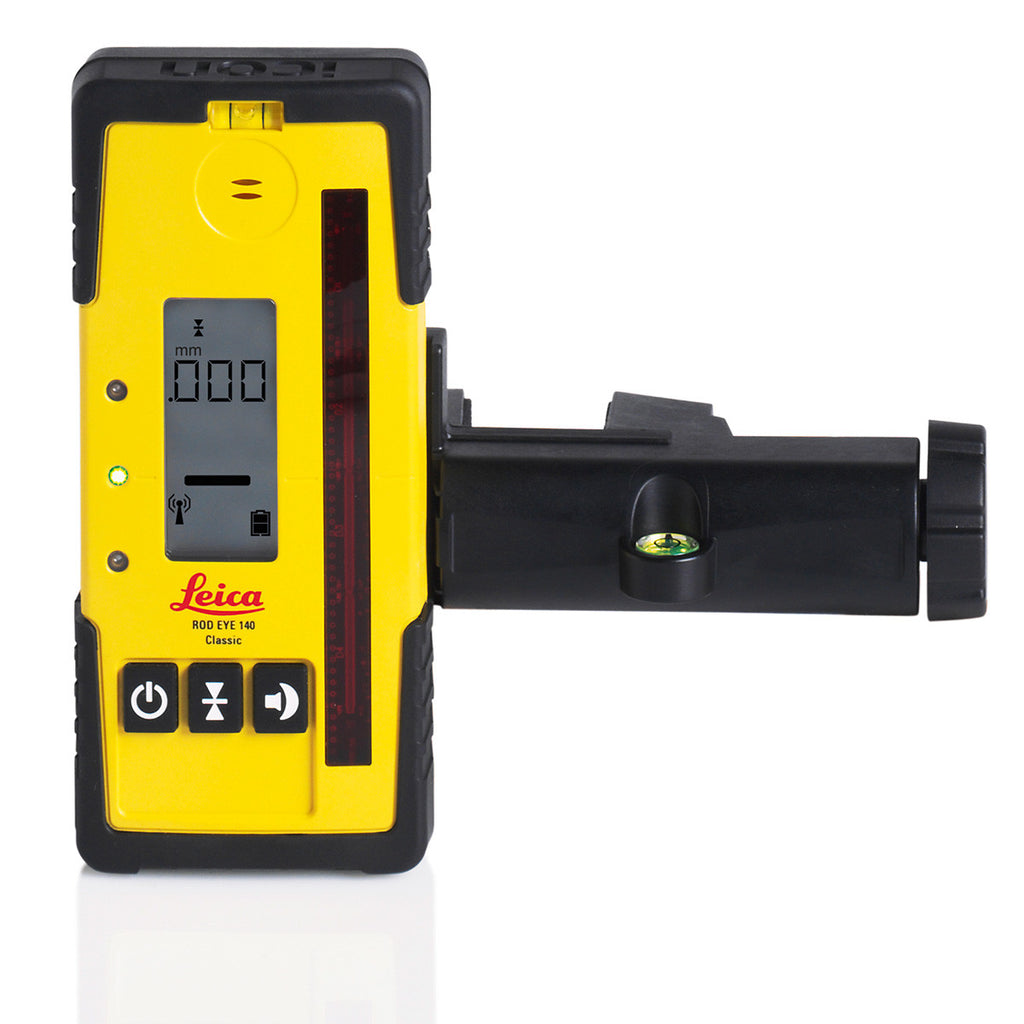

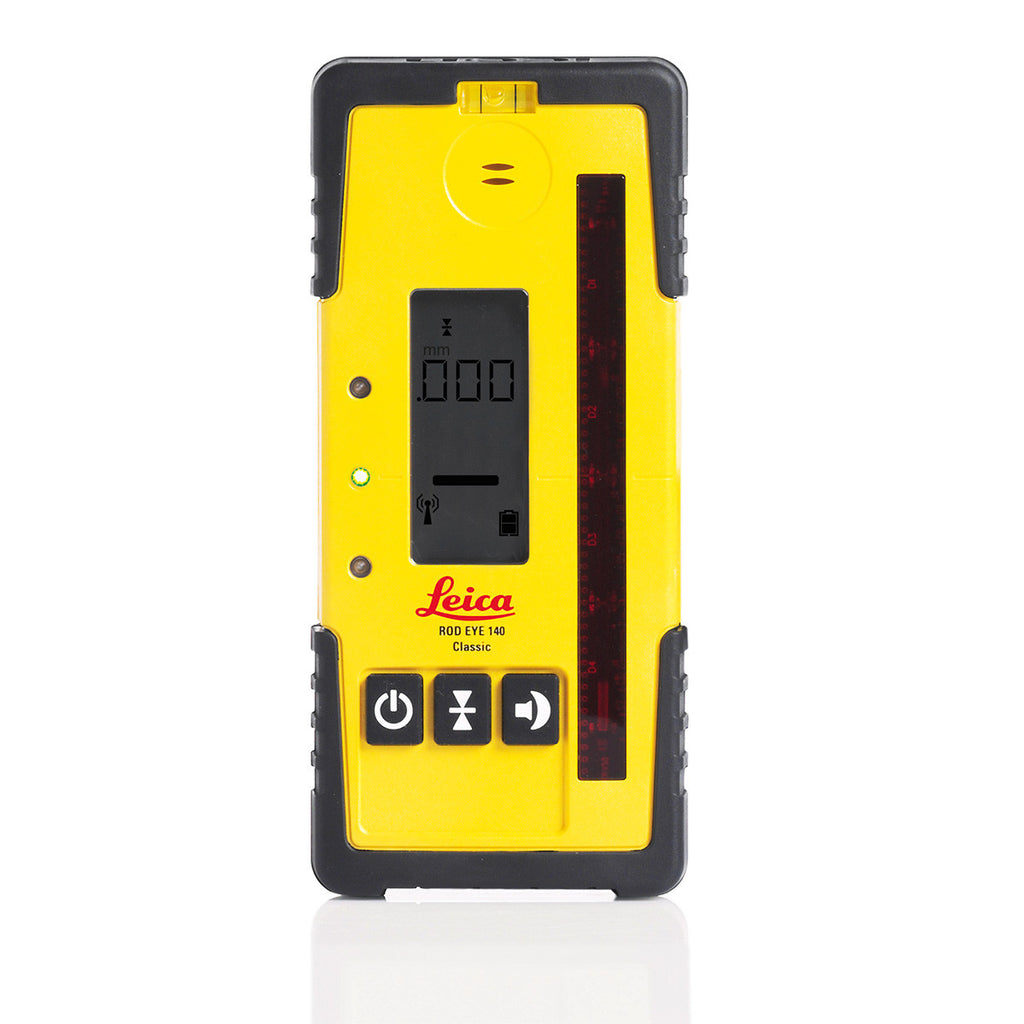

Leica Rod Eye 140 Classic Receiver

  • Classic laser receiver, High application performance and strobe rejection.

  • Working diameter (laser dependent): 1350 m / 4430 ft
    Detection height: 120 mm / 5 in
    Detectable spectrum: 600 nm to 800 nm

    Detectable accuracies

    Fine: ± 1.0 mm / ± 0.04 in
    Medium: ± 2.0 mm / ± 0.08 in
    Coarse: ± 3.0 mm / ± 0.12 in

    Audio volumes: 105 dBA / 65dBA / Off
    Automatic shut off: 10 minutes
    Arrow display: 11 channels
    Anti-strobe protection: Yes
    Memory, last beam strike: Yes
    Beam finding (double beep): Yes
    Laser low battery indicator: Yes
    Warranty: Three years
    Environmental: IP67
    Batteries: 50+ hours (2 x 1.5 V "AA" )
    Dimensions: 173 x 76 x 29 mm / 6.8 x 3.0 x 1.1 in
    Operating temperature: -20°C to +50°C / -4°F to +122°F
    Storage temperature (except batteries): -40°C to +70°C / -40°F to +158°F
    LCD Indication Two, large graphic displays on the front and back of the receiver.
    LED Indication Three bright LED’s can be used as a ready reference for the receiver position.
    Menu Function Additional options are available to set your functional preferences.
    Level Vial Ensures good alignment and improves your reading accuracy.
    Exceptional Reception The extra long reception window includes the unique technology that provides the accurate digital input.
    Audio Indication Three audio settings. Up to 110 decibels for noisy jobs.
    Versatile Rod Bracket A rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb.
    Protective Overmold Protects the receiver from drops in tough jobsite conditions.

    Special Features

    Anti-strobe Protecton Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.
    Beam Finding Passing the receiver through the laser beam will cause the receiver to beep twice quickly.
    Out of Beam Display If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.
    Laser Low Battery A small laser icon on the receiver display alerts the user when the batteries are getting low.
  • Package includes: -

    • 1 x Leica Rod Eye Basic Receiver
    • 1 x Bracket
  •

    Rod Eye Basic

    Rod Eye 140 Classic

    Rod Eye 160 Digital

    Rod Eye 180 Digital RF

    Technical data

    Working diameter

    600m (2000 ft) 1.350m (4430 ft) 1.350m (4430 ft) 1.350m (4430 ft)

    Extended detection window

    36mm / 1.4in 120mm / 5in 120mm / 5in 120mm / 5in

    Numeric readout height

    - - 90 mm / 3.5 in 90 mm / 3.5 in

    Detectable spectrum

    600 nm to 800 nm 600 nm to 800 nm 600 nm to 800 nm 600 nm to 800 nm

    Detection Accuracies

    Very fine

    - - ± 0.5 mm / ± 0.02 in ± 0.5 mm / ± 0.02 in

    Fine

    ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in

    Medium

    - ± 2.0 mm / ± 0.08 in ± 2.0 mm / ± 0.08 in ± 2.0 mm / ± 0.08 in

    Coarse

    ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in

    Very coarse

    - - ± 5.0 mm / ± 0.20 in ± 5.0 mm / ± 0.20 in
