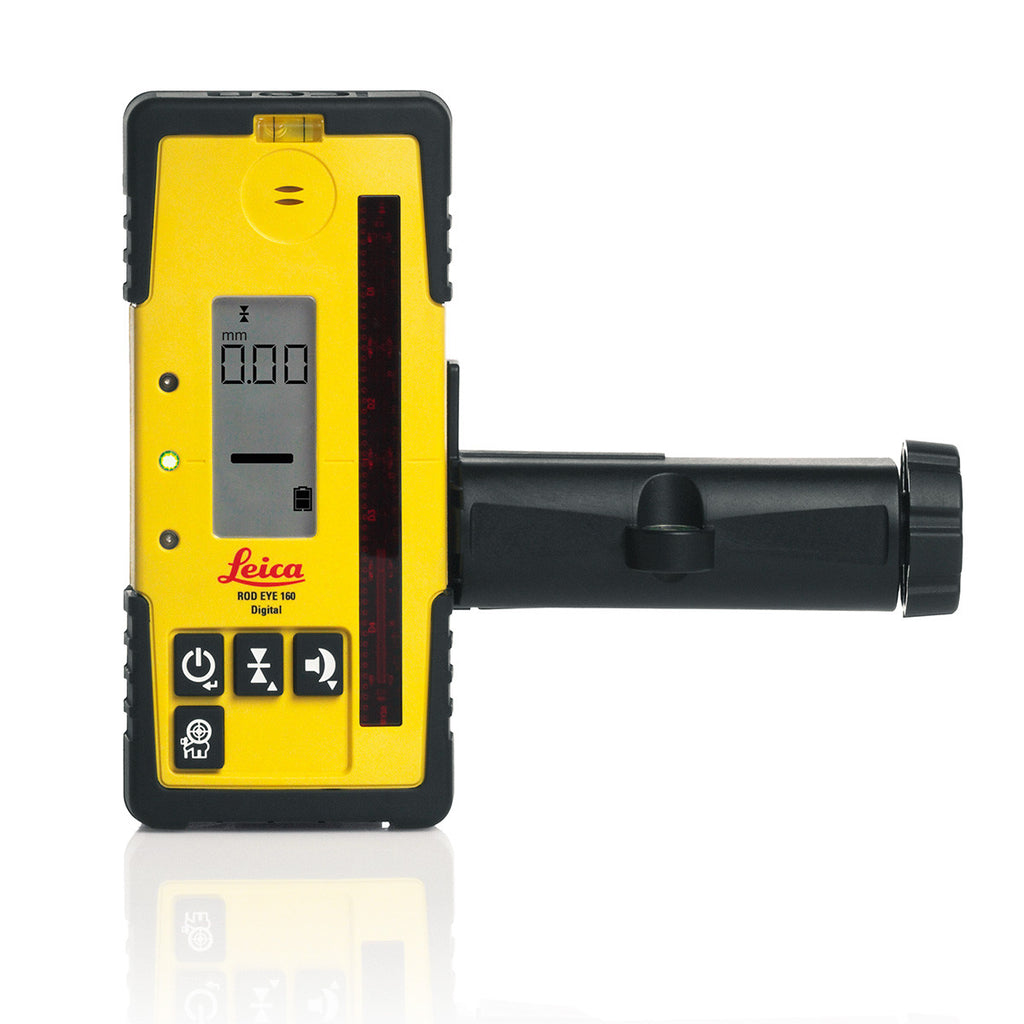

Leica Rod Eye 160 Digital Receiver


Price:
£255 exc. VAT

Description

Professional receiver with digital readout, millimetre accuracy and strobe rejection.

Specifications

Working diameter (laser dependent): 1350 m / 4430 ft
Detection height: 120 mm / 5 in
Numeric readout height: 90 mm / 3.5 in
Detectable spectrum: 600 nm to 800 nm

Detectable accuracies

Very fine: ± 0.5 mm / ± 0.02 in
Fine: ± 1.0 mm / ± 0.04 in
Medium: ± 2.0 mm / ± 0.08 in
Coarse: ± 3.0 mm / ± 0.12 in
Very coarse: ± 5.0 mm / ± 0.20 in
Audio volumes: 105 dBA / 95 dBA / 65dBA / Off
Automatic shut off: 10 minutes
Digital readout: Units: mm, cm, in, in (fractions), ft
Arrow display: 15 channels
Anti-strobe protection: Yes
Memory, last beam strike: Yes
Beam finding (double beep): Yes
Laser low battery indicator: Yes
Warranty: Three years
Environmental: IP67
Batteries: 50+ hours (2 x 1.5 V "AA" )
Dimensions: 173 x 76 x 29 mm / 6.8 x 3.0 x 1.1 in
Operating temperature: -20°C to +50°C / -4°F to +122°F
Storage temperature (except batteries): -40°C to +70°C / -40°F to +158°F
Digital Readout The large numbers are clear and easy to read, so you can stay on grade. The 21 step arrow displays provide a graduated reference as you lock on the laser beam.
LCD Indication Two, large graphic displays on the front and back of the receiver.
LED Indication Three bright LED’s can be used as a ready reference for the receiver position.
Capture Function The capture button allows the user to store and display a measurement.
Menu Function Additional options are available to set your functional preferences.
Level Vial Ensures good alignment and improves your reading accuracy.
Exceptional Reception The extra long reception window includes the unique technology that provides the accurate digital input.
Audio Indication Four audio settings. Up to 110 decibels for noisy jobs.
Units of Measure Digital information is displayed above and below grade in mm, cm, inches, fractions of inches and feet.

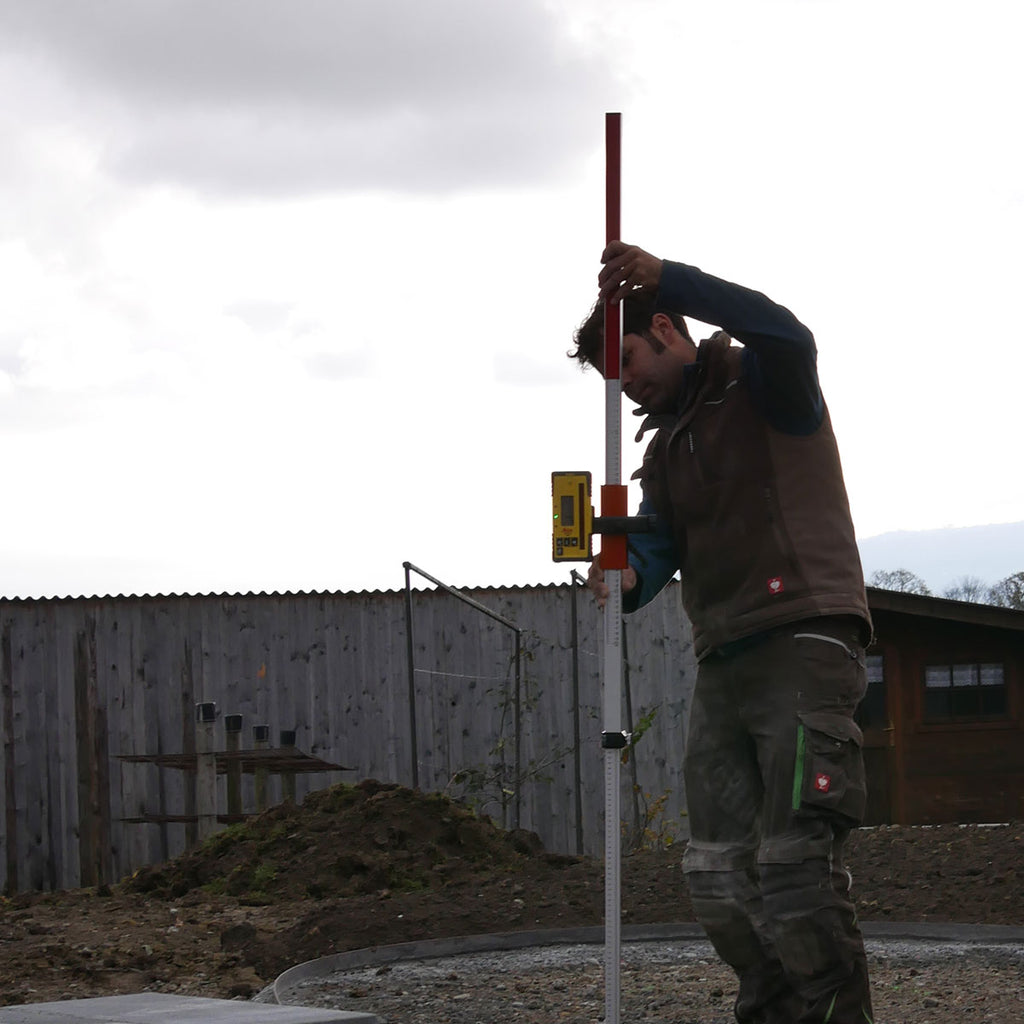

Versatile Rod Bracket A rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb.
Protective Overmold Protects the receiver from drops in tough jobsite conditions.

Special Features

Anti-strobe Protecton Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.
Beam Finding Passing the receiver through the laser beam will cause the receiver to beep twice quickly.
Out of Beam Display If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.
Laser Low Battery A small laser icon on the receiver display alerts the user when the batteries are getting low.

Package includes: -

  • 1 x Leica Rod Eye Basic Receiver
  • 1 x Bracket



Rod Eye Basic

Rod Eye 140 Classic

Rod Eye 160 Digital

Rod Eye 180 Digital RF

Technical data

Working diameter

600m (2000 ft) 1.350m (4430 ft) 1.350m (4430 ft) 1.350m (4430 ft)

Extended detection window

36mm / 1.4in 120mm / 5in 120mm / 5in 120mm / 5in

Numeric readout height

- - 90 mm / 3.5 in 90 mm / 3.5 in

Detectable spectrum

600 nm to 800 nm 600 nm to 800 nm 600 nm to 800 nm 600 nm to 800 nm

Detection Accuracies

Very fine

- - ± 0.5 mm / ± 0.02 in ± 0.5 mm / ± 0.02 in

Fine

± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in ± 1.0 mm / ± 0.04 in

Medium

- ± 2.0 mm / ± 0.08 in ± 2.0 mm / ± 0.08 in ± 2.0 mm / ± 0.08 in

Coarse

± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in ± 3.0 mm / ± 0.12 in

Very coarse

- - ± 5.0 mm / ± 0.20 in ± 5.0 mm / ± 0.20 in
