Description

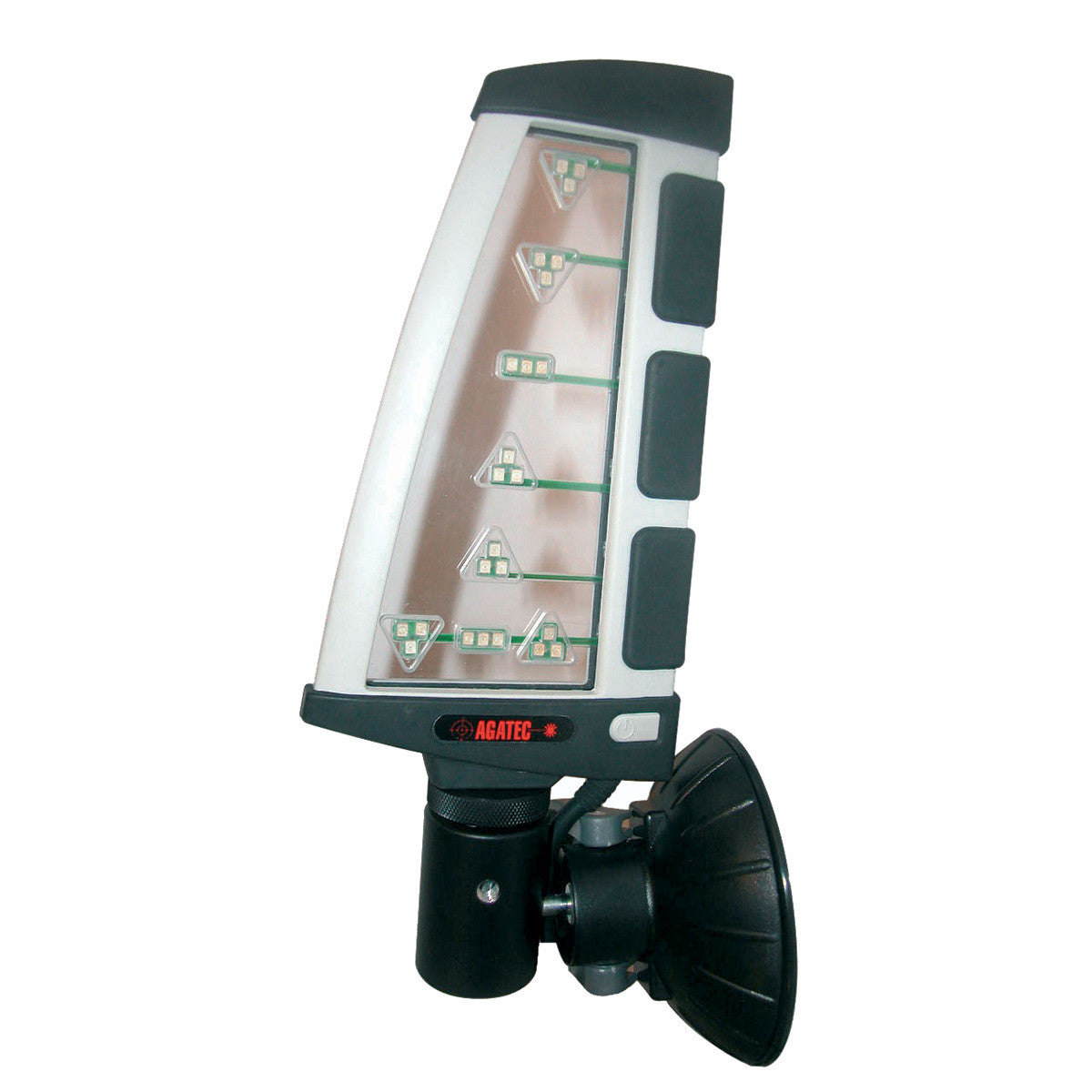

MD360R Remote Display
The remote display MD360R located in the cabin is connected to the receiver via the RF wireless technology. Clear remote display panel mounts to the windshield with a heavy-duty suction cup or magnetically to the cab or window frame. Won’t block operator’s view. Displays the 9 channels of the receiver, plus the vertical indicator arrows.
Both the receiver and remote have menus, enabling you to scroll through menu choices to change settings. All settings can be done through the remote display, without getting out of the cab. You can even turn off the receiver display from the remote, saving battery life.
LED Indicators on remote display
Remote display has direction arrows for plumbing up the dipper stick. If used on a dozer or grader, these LEDs can be turned off for a simpler display and longer battery life. Memory stores the last signal received. Arrows indicate which way to move the cutting edge to reach the reference plane.
- Clear remote display panel mounts to the windshield with a heavy-duty suction cup. Won't block operator's view.
- Displays the 9 channels of the receiver, plus the vertical indicator arrows. It receives the information via wireless RF link (no cable needed).
- Both the receiver and remote have menus, enabling you to scroll through menu choices to change settings. All settings can be done through the remote display, without getting out of the cab. You can even turn off the receiver display from the remote, saving battery life.
- Choice of receiver channels: switch to the 2nd frequency if there are two systems on a job site.
