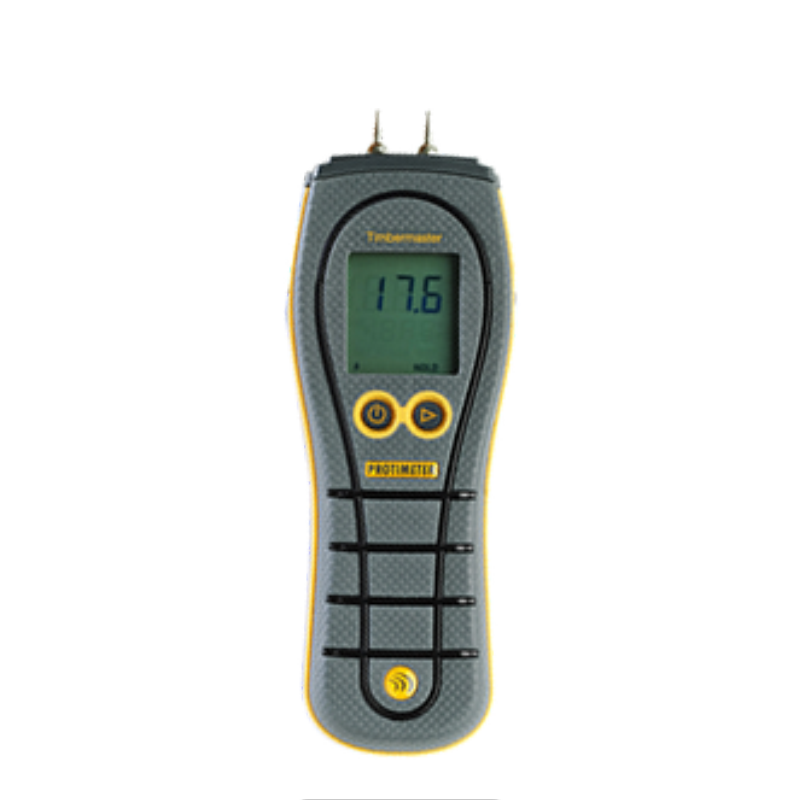

Protimeter Timbermaster Moisture Meter

  • The Protimeter Timbermaster is an advanced moisture meter specifically designed for the timber industry.

    It is ideal for a range of quality control applications associated with moisture levels within all wood products.

    Features

    • Simple hand-held design
    • Durable and rugged design
    • Built in wood calibration scales - 150 Wood species
    • All readings are displayed on a large LCD display
    • May be used with optional hammer electrode for sub-surface measurements
    • Automatic temperature correction (requires optional temperature probe)

    When precise wood moisture measurements are required, there is no substitute for the Protimeter Timbermaster. The UK Timber Grading Committee (UKTGC) recommend that the Protimeter Timbermaster should be utilised for all moisture content readings of structure timber produced to the requirements of BS 4978 or BS EN 519.

    Measure 150 Wood Species

    The Protimeter Timbermaster features eight calibration scales, enabling the user to take accurate moisture measurements in 150 wood species from around the world.

    Simple Operation

    Moisture measurements are commonly taken using the integral pin electrodes. The appropriate wood calibration scale can be dialed in to ensure the accurate measurements are taken.

    Temperate Compensation

    If the timber being measured is significantly above or below 20°C (70°F) the Protimeter Timbermaster should be used in conjunction with the optional temperature probe. When the probe is connected, the instrument will automatically correct the measured moisture value.

    A telescopic hammer electrobe can be used with the Protimeter Timbermaster is ideal for users that have a constant need to measure the sub-surface moisture level in wood.

  • Kit includes:

    • Protimeter Timbermaster Moisture Meter
    • Two pin head and lead
    • Calibration check device
    • Velcro pouch
    • Wood calibration chart
    • Operators instructions
    • 2 Year Warranty
  • Downloads

    Protimeter Timbermaster Brochure

    Protimeter Timbermaster Manual
