Leica BLK2GO Handheld Laser Scanner


Price:
Price on Application

Description

Mobile mapping, simplified

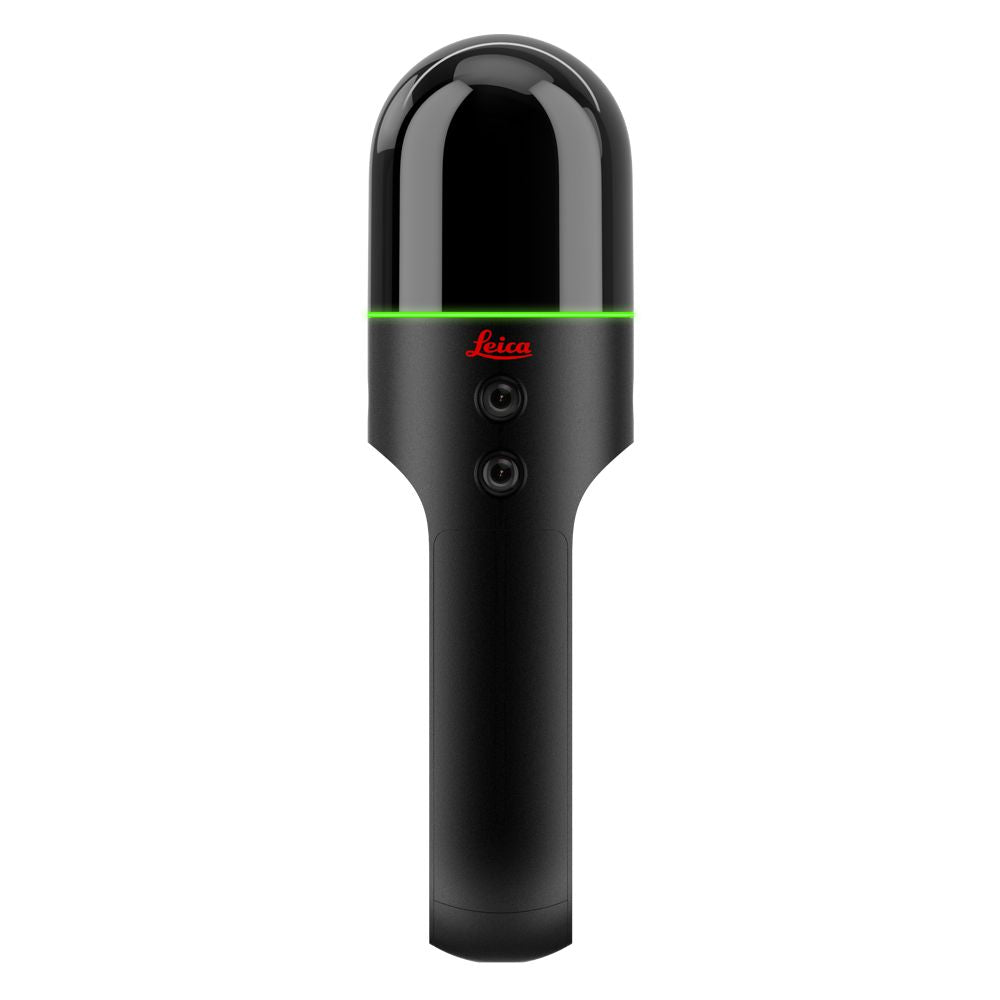

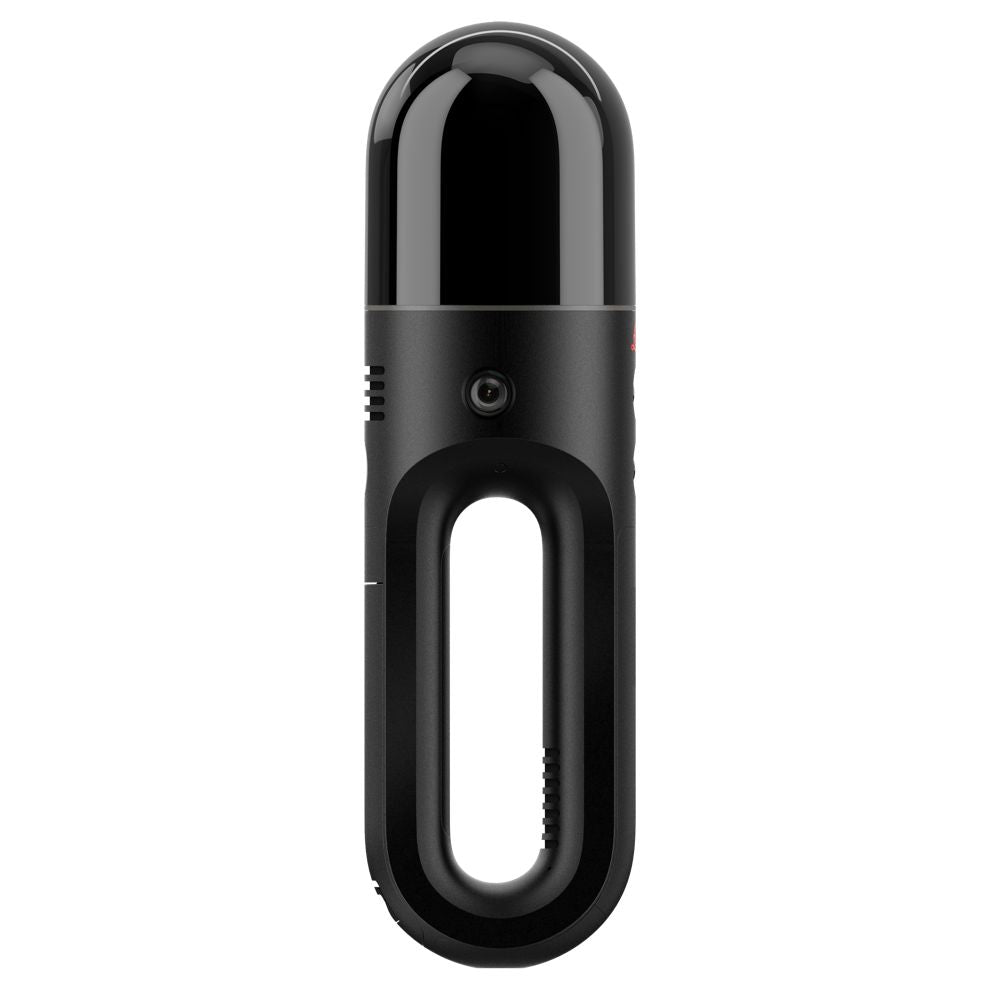

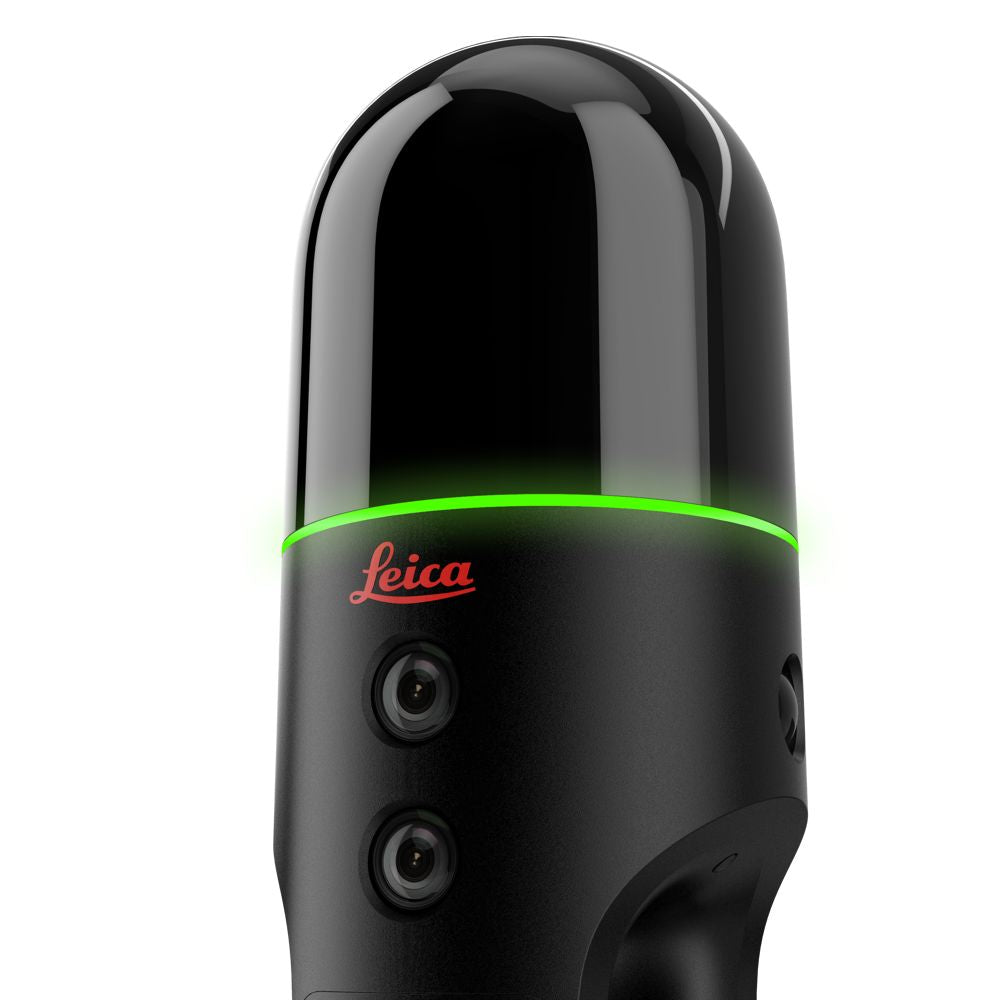

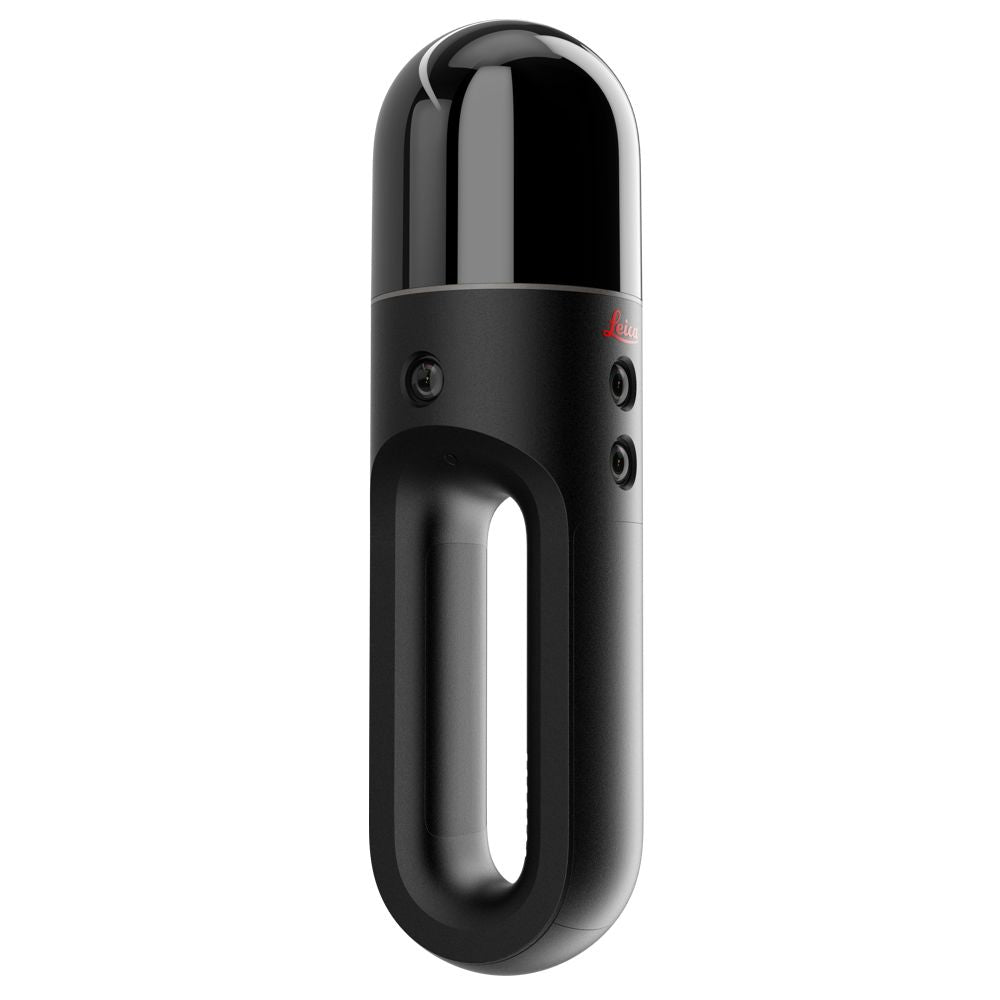

The BLK2GO is a handheld imaging laser scanner that creates a 3D digital twin as you move through a space. It is the fastest and easiest way to scan a large building, structure or environment.

Suitable for a range of applications and industries from architecture and space planning to facility management and engineering. The BLK2GO is an asset to any project.

Simple

Simple and easy to use, one button is all you need. Simply, turn it on, walk, and the BLK2GO takes millions of accurate measurements to perfectly recreate the space around you in 3D.

Sleek

A masterpiece of cutting-edge engineering and design. Housed in black anodized aluminium and measuring just 297mm by 80mm, the BLK2GO packs cutting edge technology into a small, lightweight design that does all the hard work for you. The robust design makes it suitable for both outdoor and indoor use.

Fast

The BLK2GO helps you capture an entire building, structure, or other large environment in minutes. All you need to do is grab and go.



Key Features

  • Lightweight, ergonomic design
  • GrandSLAM - combines three powerful SLAM methods
  • Panoramic imagery
  • Fully colourized 3D point clouds
  • Battery life of 45-50 minutes
  • LiDAR range of up to 45 meters
  • 6 hours of onboard storage
  • "Point & Shoot" camera to capture specific details



Technology

BLK2GO's GrandSLAM technology combines LiDAR SLAM, Visual SLAM, and an IMU to deliver best-in-class handheld mobile mapping performance. Gain speed and confidence when capturing including large indoor, outdoor, underground, complex, and multi-level spaces.

LiDAR SLAM

The BLK2GO identifies different surfaces and unique geometry in the LiDAR data, which it analyzes to calculate its 3D position.

VISUAL SLAM

Three panoramic cameras identify similarities between consecutive images to calculate the scanner’s movement through 3D space.

IMU

While you walk, the IMU, (Inertial Measurement Unit,) senses your movement to calculate the BLK2GO’s change of position in 3D space.



Box Contents

  • Leica BLK2GO Handheld Laser Scanner

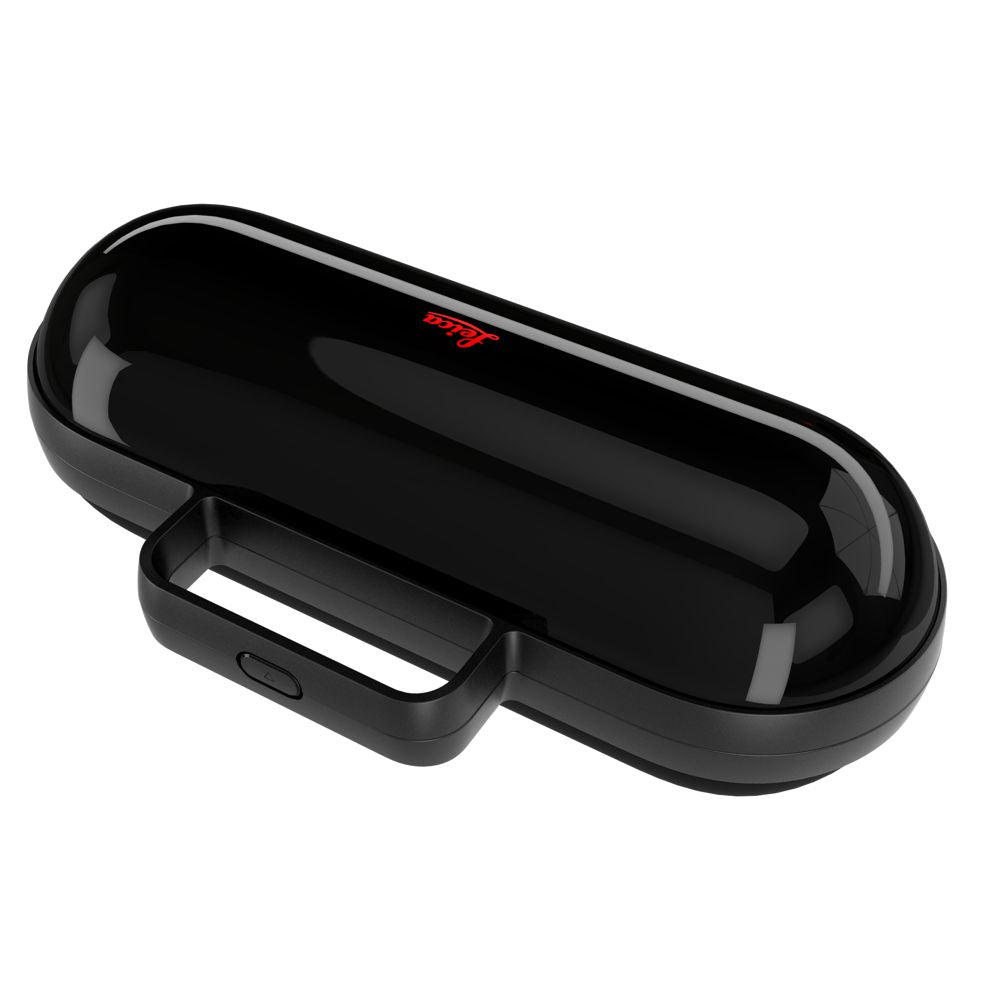

  • Transportation Case
  • 3x GEB821 Li-Ion Battery
  • GKL821 Multi Charge with AC Adapter
  • Table Stand
  • USB C Cable
  • Wrist Strap
  • Quick Guide
  • USB Documentation Card



Downloads

Leica BLK2GO Handheld Laser Scanner  - Brochure

Leica BLK2GO Handheld Laser Scanner - Data Sheet

Leica BLK2GO Handheld Laser Scanner - Best Practices
