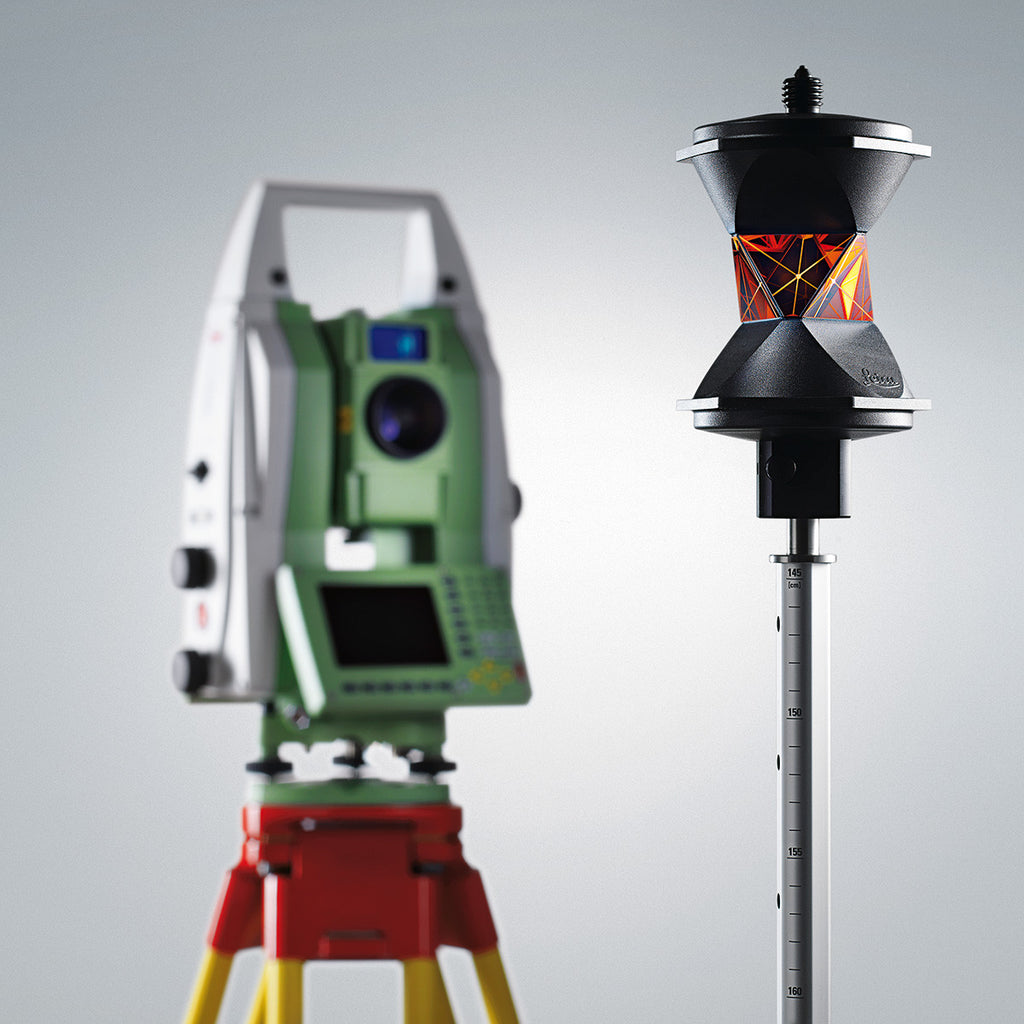

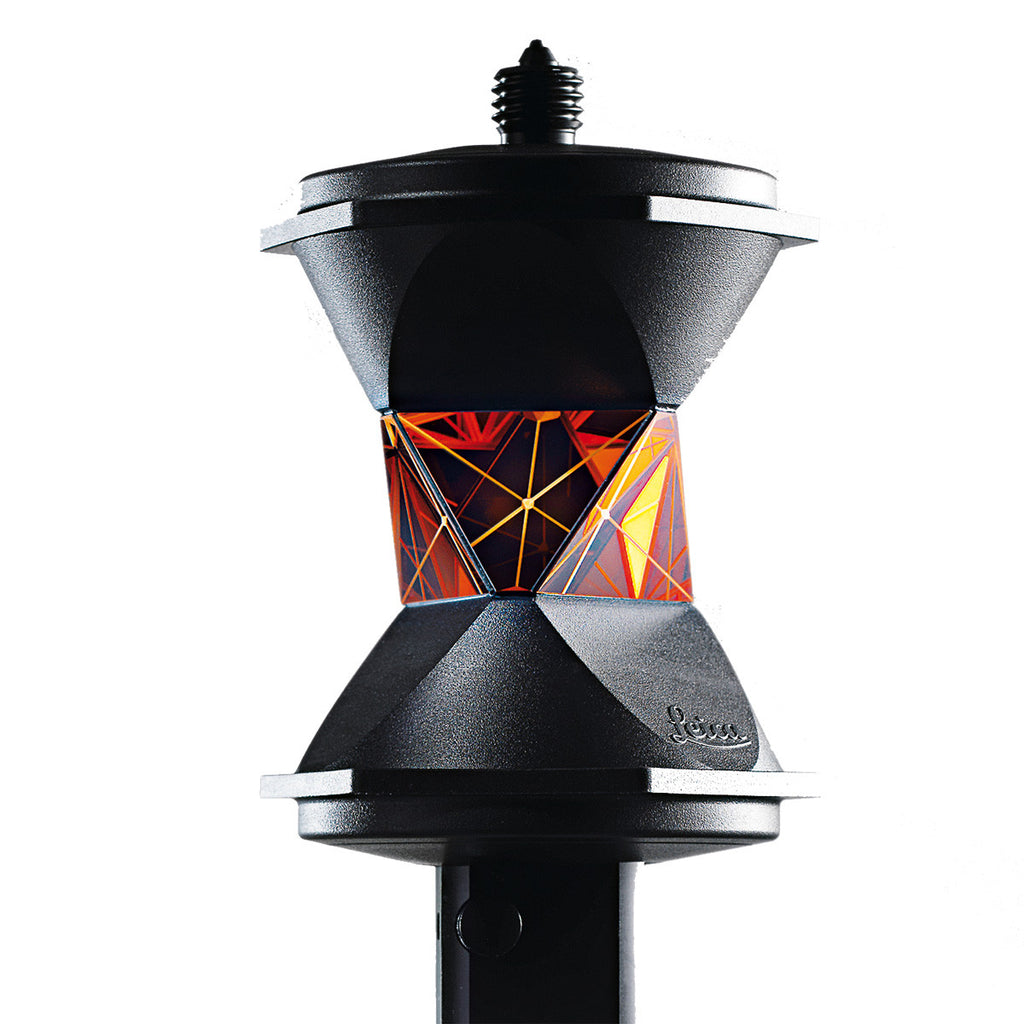

Leica GRZ122 360° Prism

  • Leica GRZ122 smartpole 360 degree reflector prism.

    The high performance GRZ122 allows connectivity to the Leica SmartAntenna. The reflector is of extreme robust design to survive a topple-over even when the SmartAntenna is attached.

    The built-in point allows the reflector to be precisely positioned directly on a survey mark.

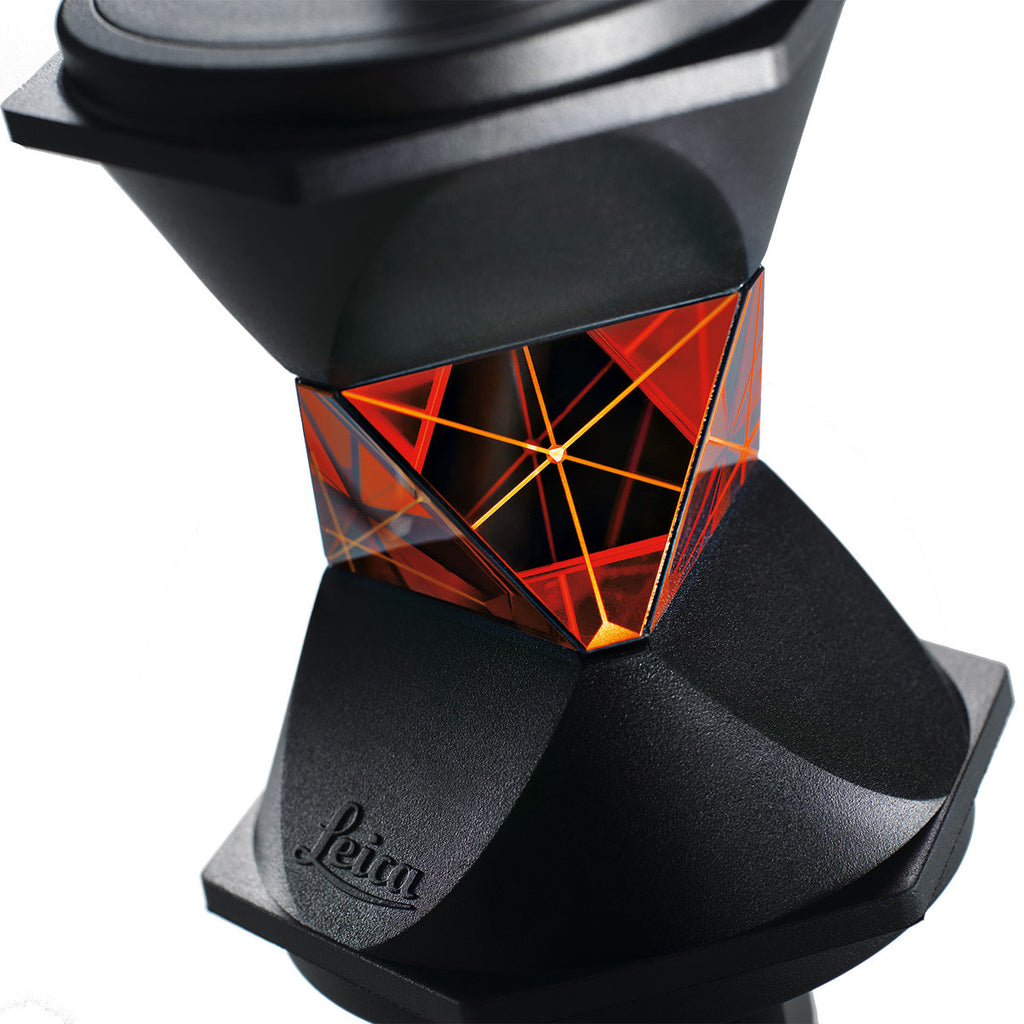

    The special arrangement of the six prisms provides a high pointing accuracy. A 3D pointing accuracy of 2mm is achieved.

    • Prism Constant: 23.1mm
    • Centering Accuracy: 2.0mm
    • Range: 600m (ATR)
  • Downloads

    Leica Accessories Brochure

    Leica Prism Dimensions

    Surveying Reflectors White Paper
