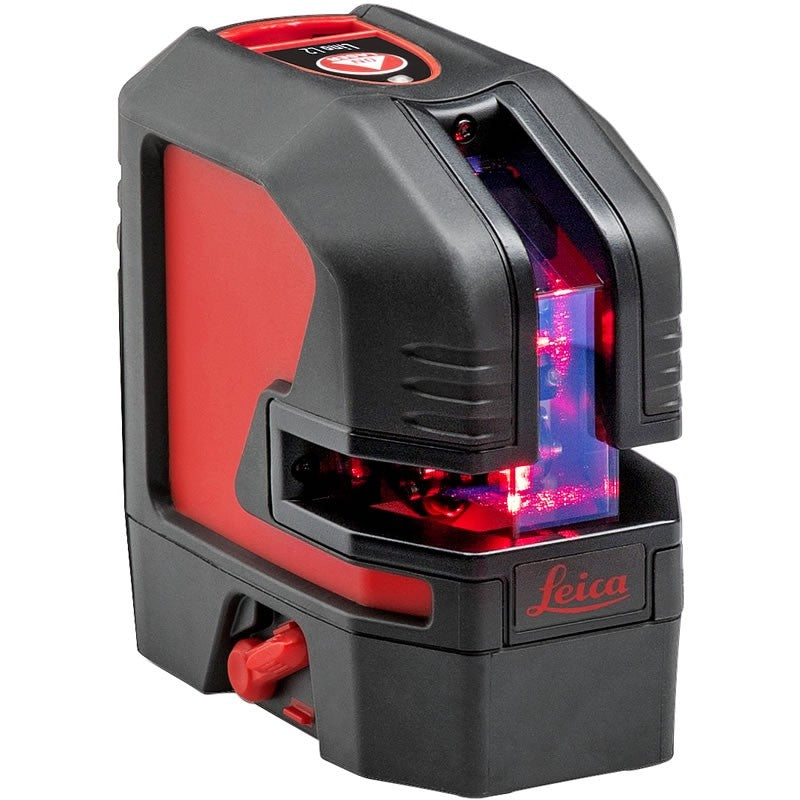

Leica Lino L2 Cross Line Laser

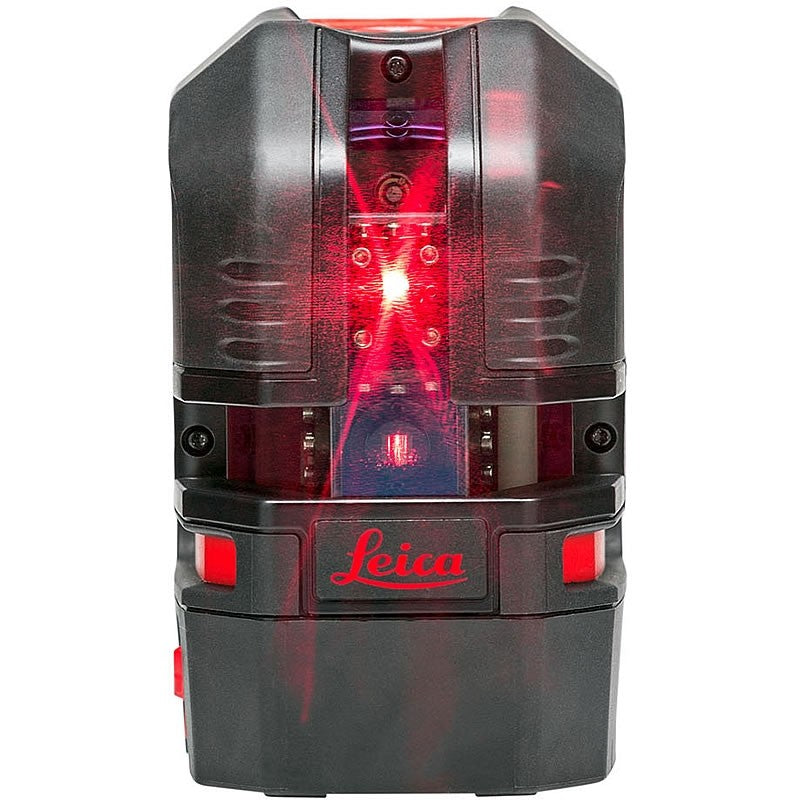

  • The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 metres, depending on lighting conditions.

    Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.

    Exact and quick projection of horizontal and vertical lines

    Outstanding Laser Visibility

    The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 metres, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.

    Self-Levelling

    The Leica Lino L2 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.

    Smart Adapters

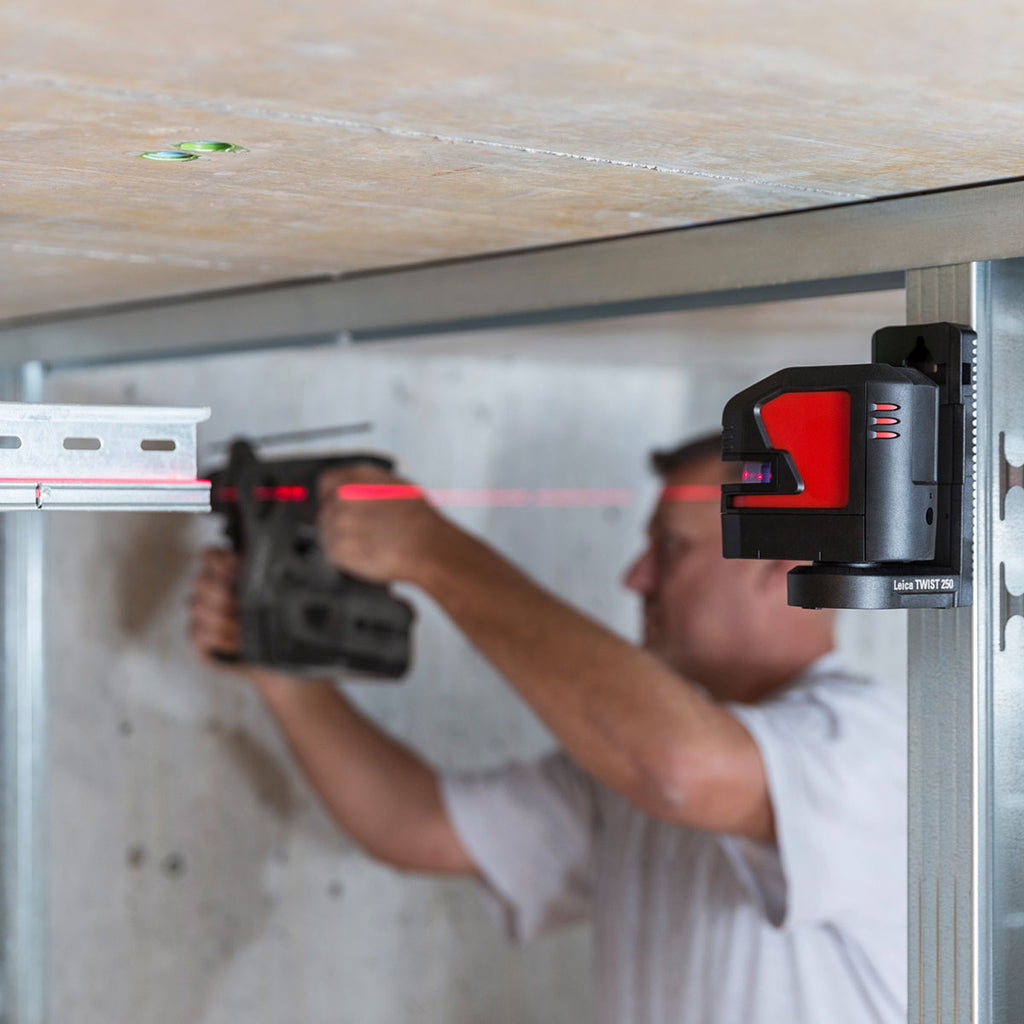

    Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.

    Triple Power Concept

    The Leica Lino L2’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 44 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.

    Rugged Design

    The Leica Lino L2 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.

    L2 Kit Options

    Starter Kit: Powered by Alkaline batteries and complete with a carrier case, a Leica TWIST 250 adapter and a target plate.

    Professional Kit: As the starter kit plus Li-Ion battery pack, charger, and hard carry case.

  • Features - Leica Lino L2 Cross Line Laser

    Specifications:
    Range up to 25 m depending on lighting conditions
    Range with laser receiver up to 80 m depending on lighting conditions
    Levelling accuracy @ 5 m ± 0.2 mm /m
    Self-levelling range ± 4°
    Self-levelling time < 3s
    Number of laser lines 2
    Beam direction vertical, horizontal
    Laser line width at 5m < 2mm
    Laser type 635 nm, class 2 (red)
    Battery type AA (3 × 1.5 V) or Li-Ion rechargeable
    Operating time up to 44h (Li-Ion) depending on laser mode
    Protection class IP54
    Operating temperature -10 to 50 °C
    Storage temperature -25 to 70 °C
    Dimensions 110 × 60 × 100 mm
    Weight with batteries 530 g
    Tripod thread Lino 1/4"
    Tripod thread adapter 1/4" + 5/8"
  • Box Contents

    Starter Package:
    Lino L2s Laser
    Twist 250 Magnetic Adapter
    Target Plate
    Alkaline Batteries (3x AA)
    Carrying Pouch
    Quickstart Guide

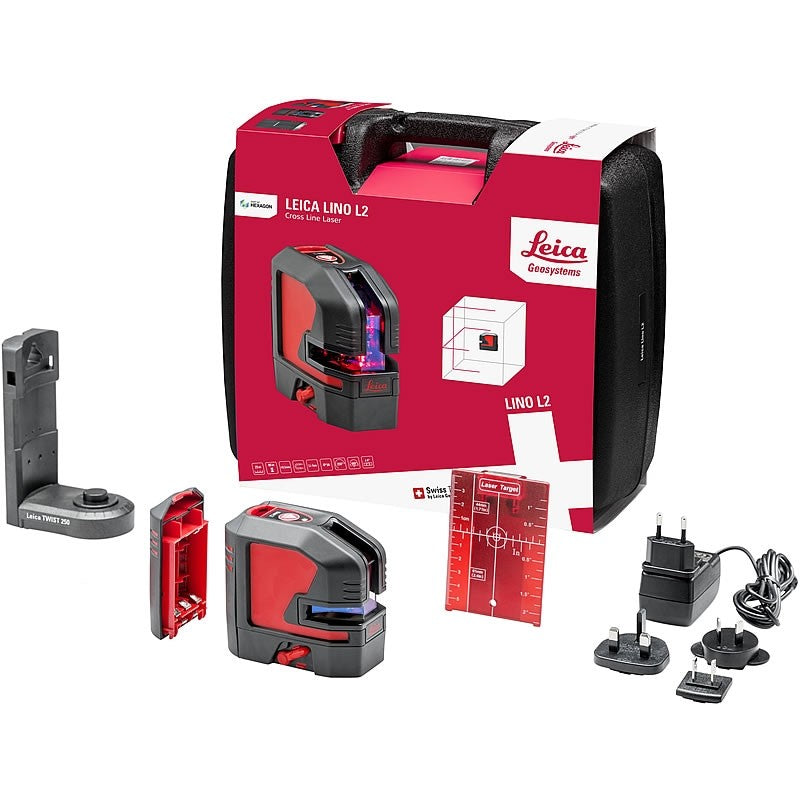

    Professional Package:
    Lino L2 Laser
    Twist 250 Magnetic Adapter
    Target Plate
    Li-Ion Battery
    Charger
    Alkaline Battery Tray
    Carrying Case
    Quickstart Guide
  • Hire

    This laser level is also available to hire.

    Please visit our Laser Level Hire page or call us on 0800 633 5131.

    View Laser Level Hire »

  • Calibration & Repair

    This items requires on-going maintenance to ensure its optimum performance.

    It comes with a one-year calibration certificate as standard but, after this, please feel free to contact our service team for calibration and repair services.

    Please visit our Calibration & Repair page or call us on 0800 633 5131.

    View Calibrations & Repair »

  • Downloads

    Leica Lino L2 & L2G Cross Line Laser User Manual
