Leica PowerBlade - Automated Grading System


Price:
Price on Application

Description

Automated Machine Control System for the Construction Market

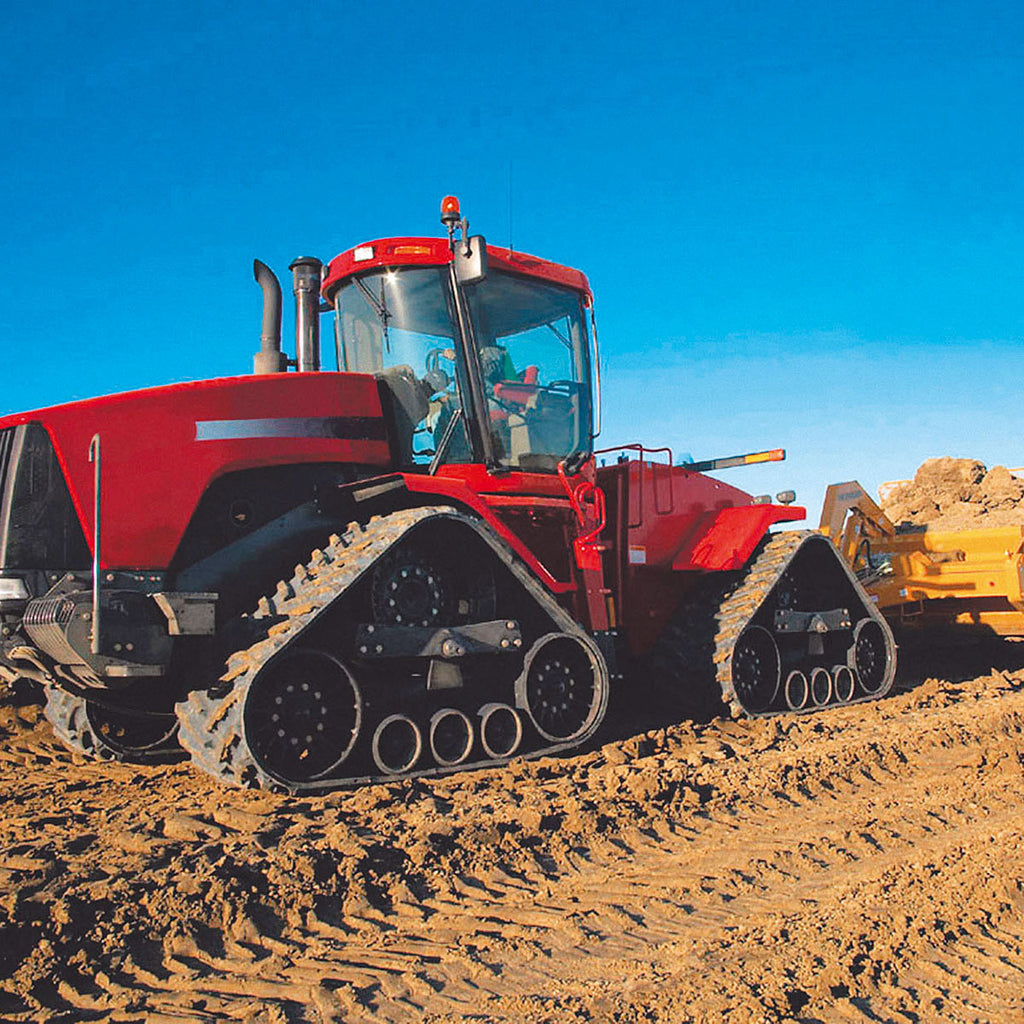

Leica PowerBlade is a rugged, easy-to-use grading system for a broad range of machinery such as Scrapers, Dozers and agricultural Tractors. It’s a complete solution steered by the MCP-700 Control Box, providing you full functionality for automated machine control. An especially rugged Electric Mast and a variety of hydraulic options complete the system.

Advantages of Leica PowerBlade

  • Designed for advanced grading applications (lift functionality)
  • Variety of hydraulic options (e.g. proportional , Danfoss and black/white valves)
  • Choice of manual or automatic level control of the machine
  • Easy to use due to simple user interface
  • Very bright LED display that can be read even in strong direct sunlight
  • 360° capture range in 190 mm (8”) window
  • Works with all types of lasers

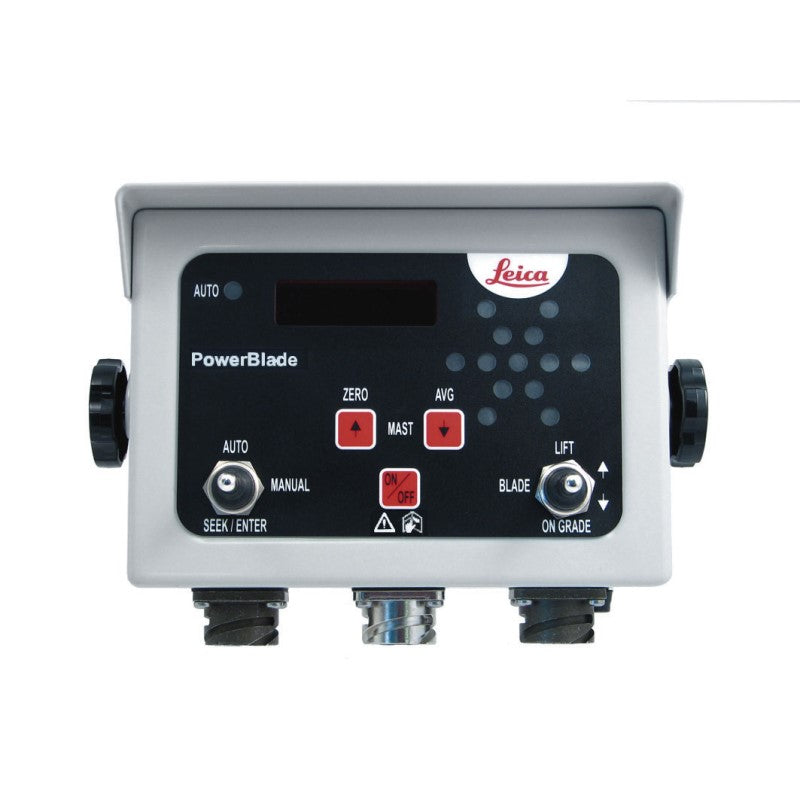

CONTROL BOX MCP700

The Leica PowerBlade system offers 5 different indications of grade position including directional out-of-beam indicators. This information is shown where you need it, on the control box. Selectable accuracies provide job tolerances from rough grading to final finishing. The control box is water-resistant (IP65) and uses an LED display that can be easily read, even in strong sunlight. Two easy to operate switches let you choose between auto/manual mode and blade raise/lower. The well-laid out design makes the control box both easy-to-use and understand. The system features a lift function allowing the operator to temporarily lift the blade without leaving automatic mode. This feature is especially helpful for coarse grading when great amounts of dirt are moved. The survey function provides height information of a defined area even including an average height function. This feature makes land levelling a simple task. The small size of the control box makes it easy to integrate into any machine

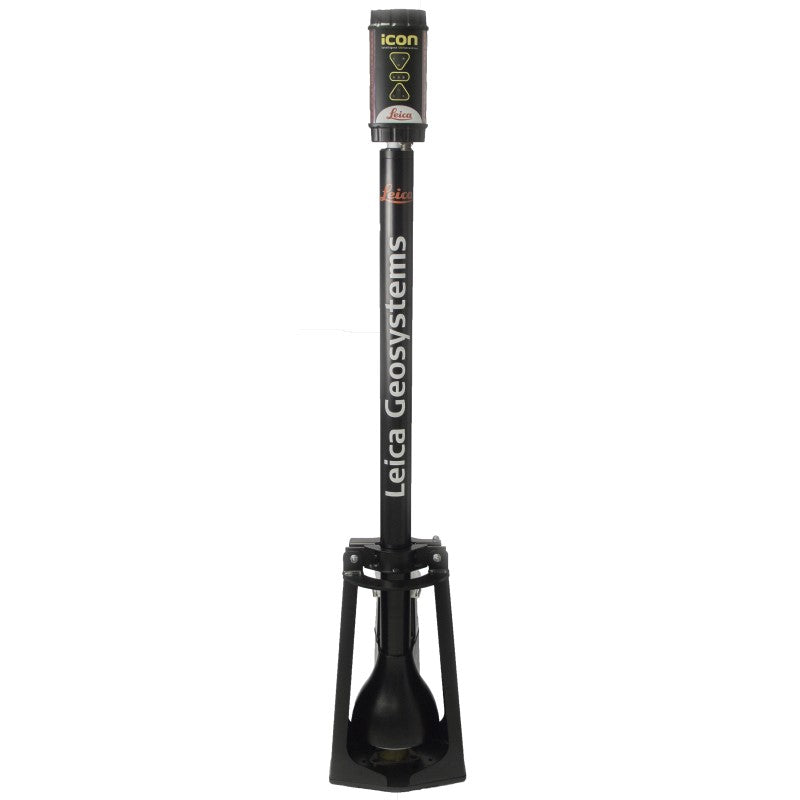

ELECTRIC MAST MPM700

The electric mast MPM700 was specifically developed for use in tough and demanding environments. The rugged design and the antivibration system of the platform are the ultimate combination against damage in harsh construction environment.

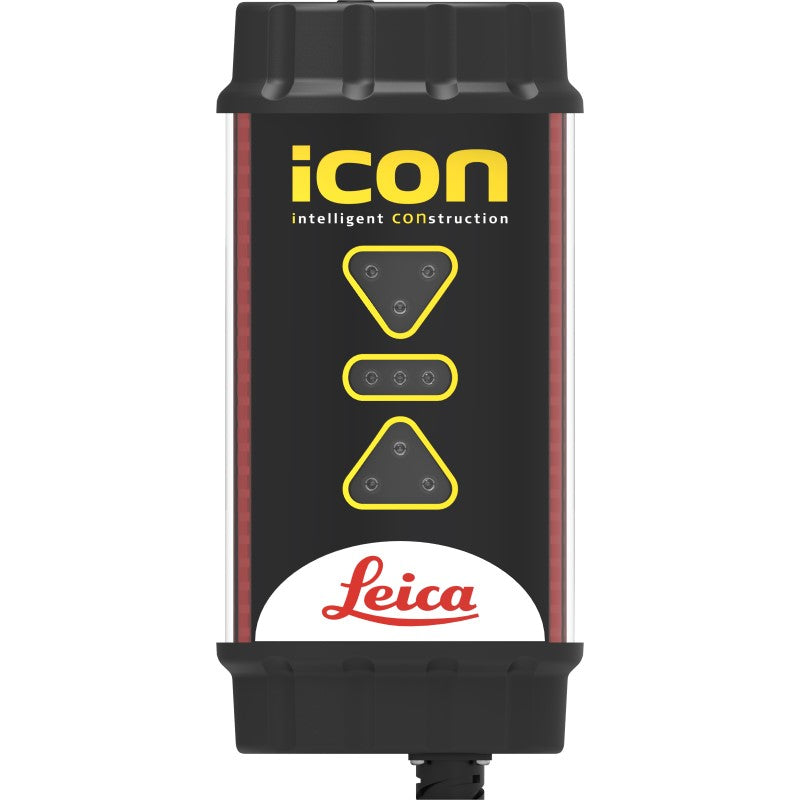

LASER RECEIVER MLS720

The laser receiver is waterproof (IP68) and uses an LED display that can be easily read, even in strong direct sunlight. The receiver has a 360° capture range, with a measurement window of 190 mm. It features 5 different indications of grade position. The receiver communicates and is powered via CAN bus from the MCP-700.

Downloads

Leica PowerBlade Brochure
