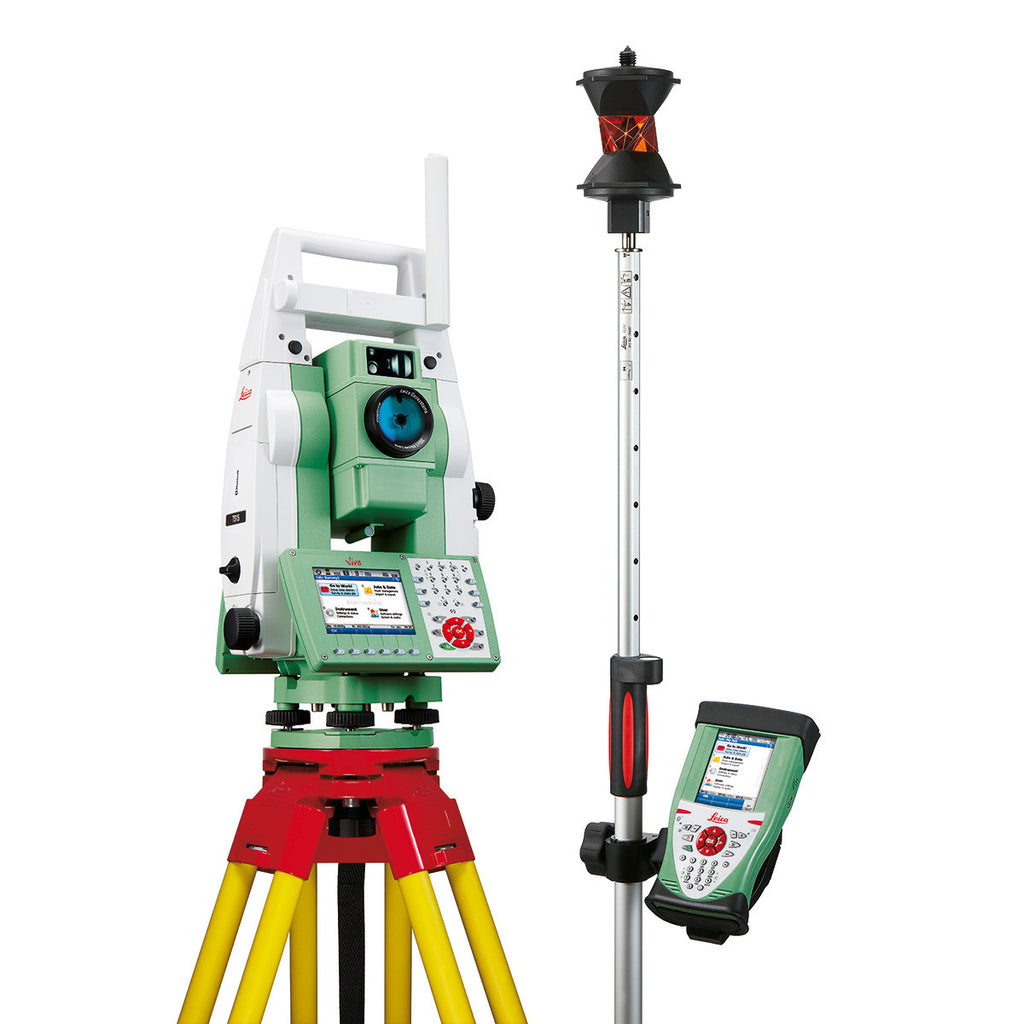

Leica Viva TS11 Total Station

  • Leica Viva TS11, is the most advanced manual total station with the inclusion of Leica SmartWorx Viva easy-to-use onboard software, imaging and GNSS capability.

    With a complete package of easy-to-use software your work can start immediately and be finished faster than ever before.

    Add full GNSS functionality to your Viva TS11 whenever you want and combine TPS and GNSS in the most efficient way. Or use imaging with the unique capture-sketch-link functionality.

    High resolution total station images can be captured, enhanced with sketching and then linked to any point of interest. Costly revisits can be avoided to significantly improve productivity. Every vision on every scale becomes reality with ease.

    Leica SmartWorx Viva Onboard Software

    With clear graphics, non-technical terminology and simplified workflows SmartWorx Viva is incredibly easy to use.

    • Survey, coding and lineworks
    • Including comprehensive application package for many daily tasks

    Best-in-class Imaging

    Optimize your productivity with exact photo documentation of site conditions. With live streaming of  the total station view, you always know what the total station sees.

    • Image Notes – Capture an image, screenshot or template, sketch on it and link it to any object in the database
    • Image Assisted Surveying – Use the camera's live streaming to speed up the aiming process

    Best-in-class Electronic Distance Measurement (EDM)

    With PinPoint EDM, Leica Viva TS11 delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time.

    • 1 mm + 1.5 ppm to prism
    • 2 mm + 2 ppm to any surface
    • Extremely fast (1 second)
    • 1000 m range without a prism
    • Coaxial laser pointer and measurement beam

    Leica Viva GNSS Add-on

    Add full GNSS functionality to your Viva TS11 whenever you want and combine TPS and GNSS in the most efficient way.

    • Use SmartStation for TPS setup without the need of control points, traverses and resections
  • Downloads

    Leica Viva TS11 Brochure

    Leica Viva TS11 Datasheet
